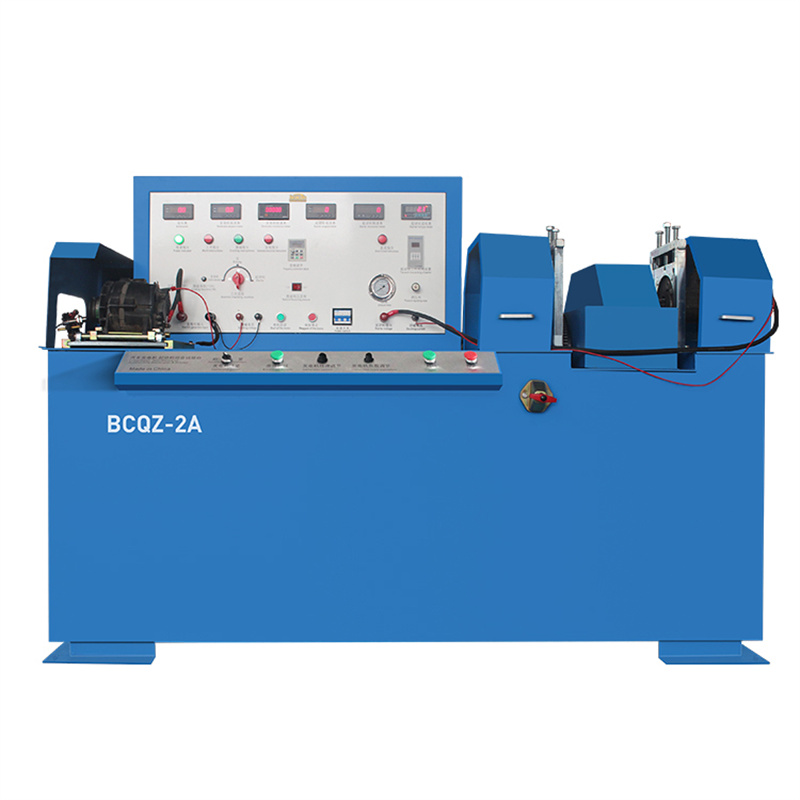

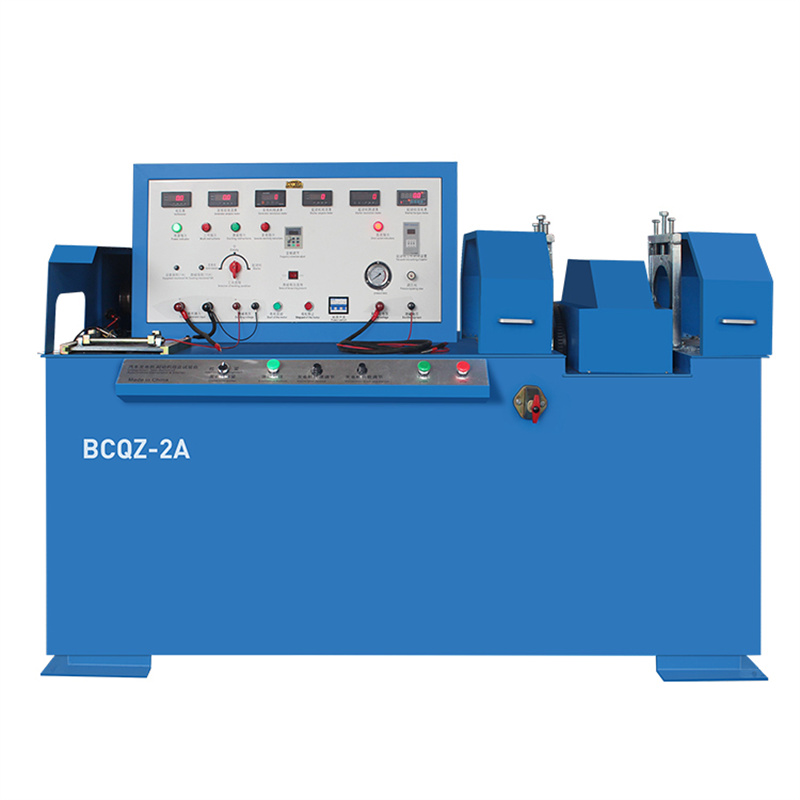

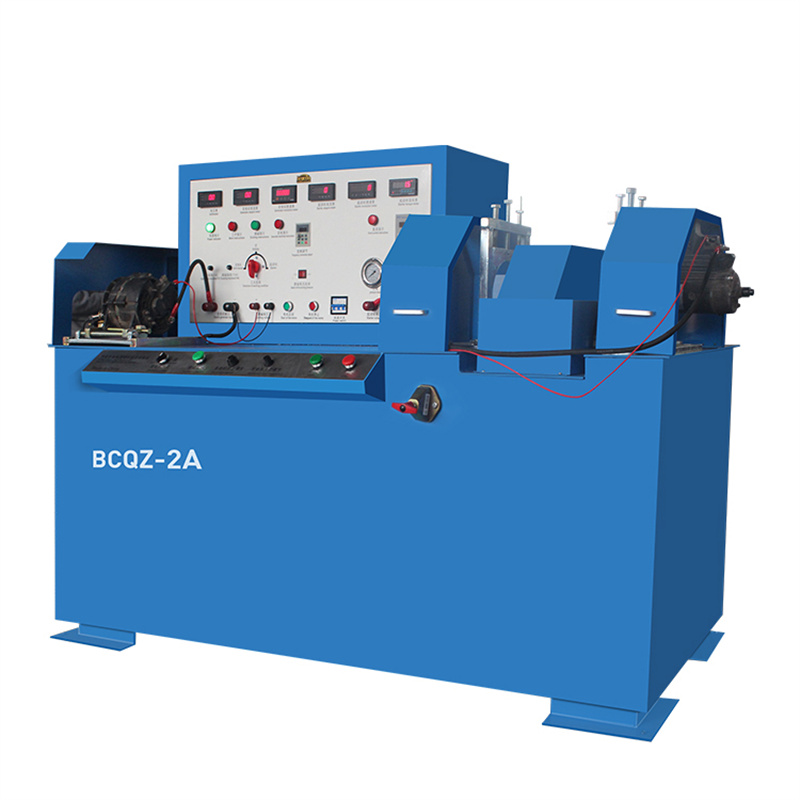

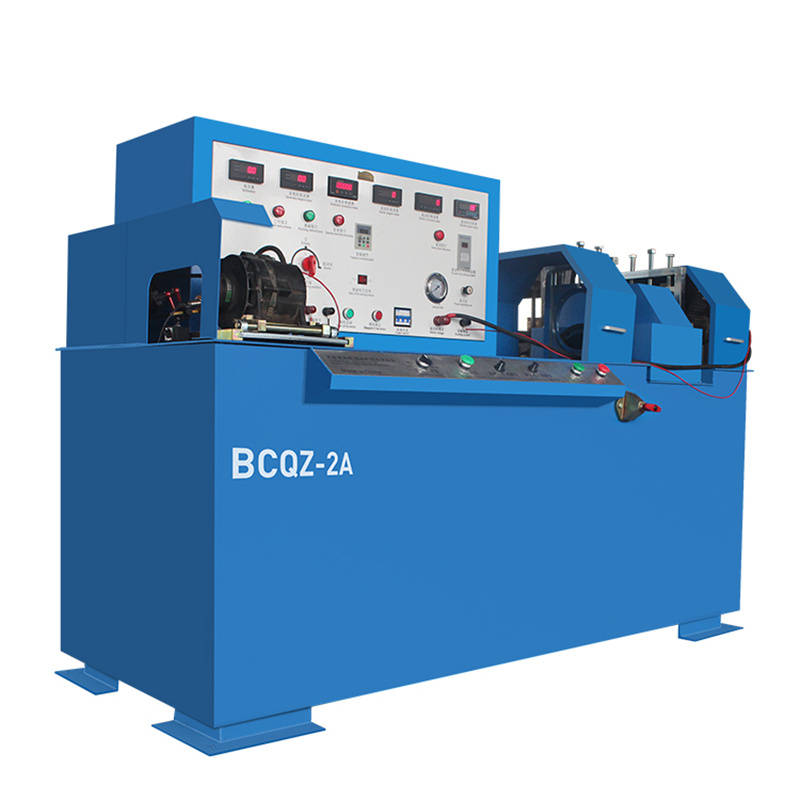

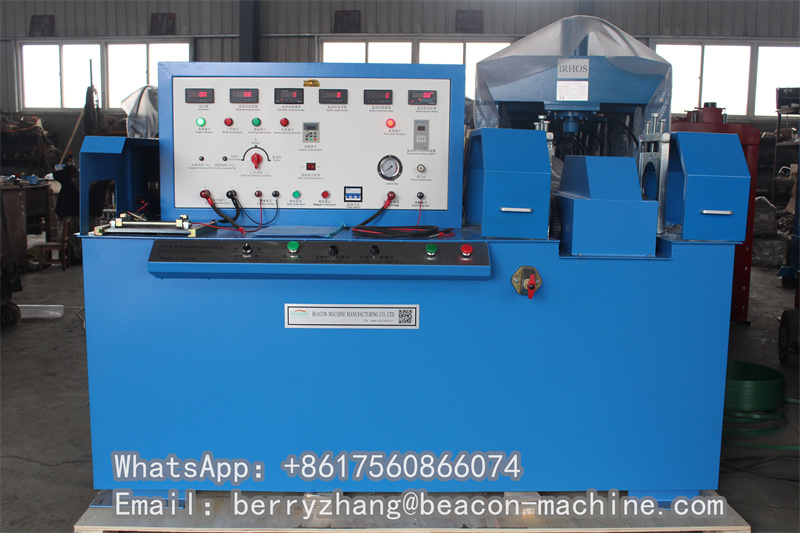

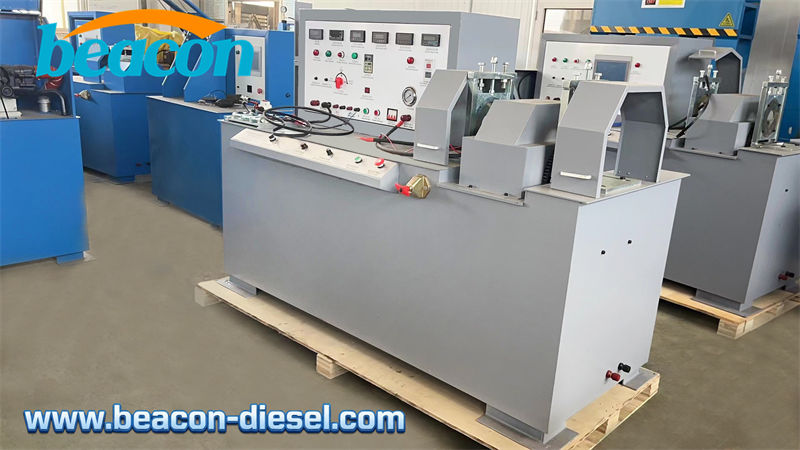

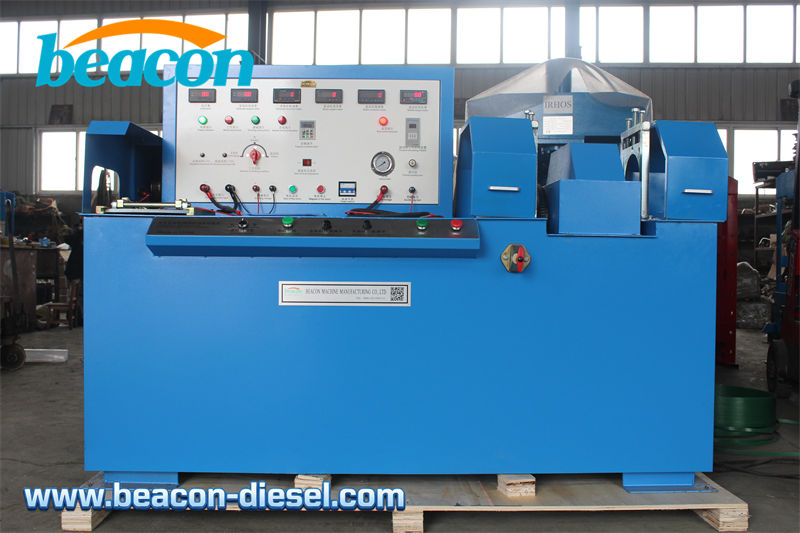

BCQZ-2A Alternator and Starter Motor Test Bench Machine for Car Truck Helicopter Airplane Small Aircraft

High-precision BCQZ-2A test bench for 12V/24V automobile alternators and starters. Features a 7.5KW motor, variable frequency speed control, and digital display. Ideal for testing heavy-duty vehicle electrical components with up to 2000A starter current capacity.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

The BCQZ-2A Integration Test Bench is an essential diagnostic tool for automotive repair shops and remanufacturers. By accurately simulating vehicle operating conditions, it allows technicians to identify faults in heavy-duty alternators and starters before installation, ensuring reliable repairs and minimizing vehicle downtime.

Key Features:

Variable Frequency Control: Utilizes advanced frequency conversion for precise speed regulation and high control sensitivity.

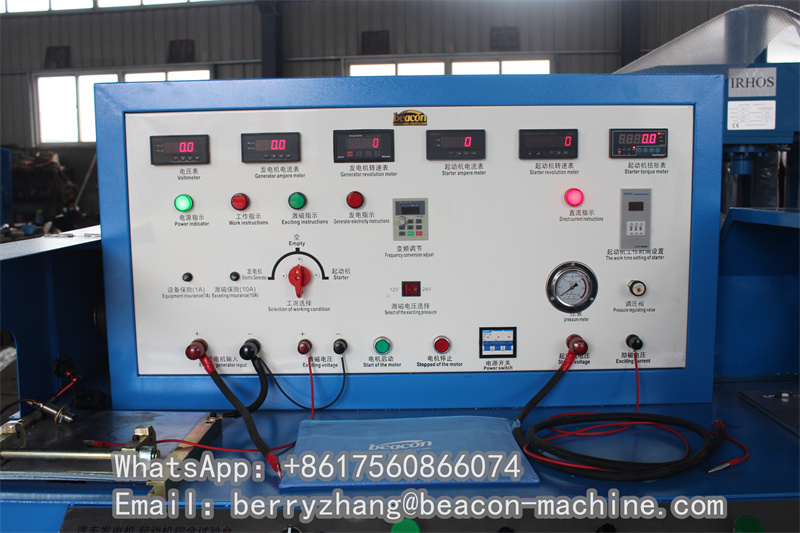

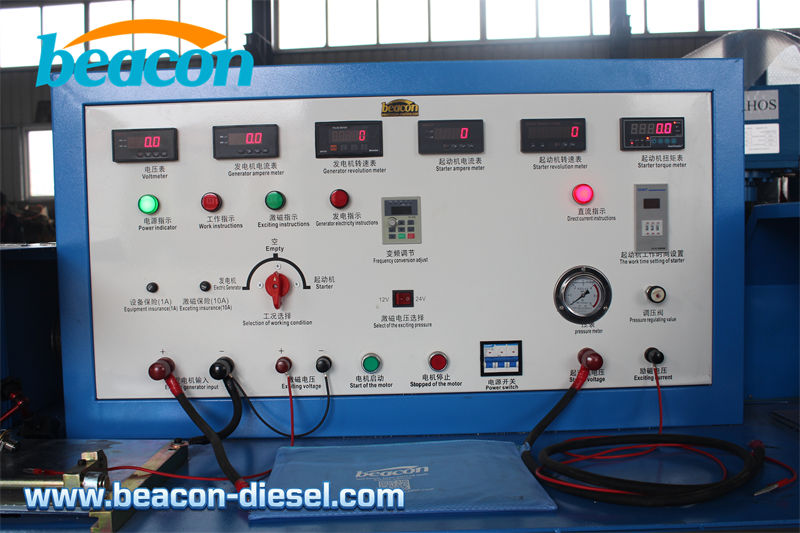

Digital Instrumentation: Features clear digital displays for voltage, amperage, and rotational speed (RPM).
Electronic Load: Equipped with an electronic module type DC load for stable generator testing (0-200A).
Heavy-Duty Starter Testing: Capable of handling starter working currents up to 2000A with a maximum torque of 200 N.m.
Pneumatic Braking: Includes an automatic pneumatic-hydraulic braking system for safe starter load testing.
Versatile Compatibility: Perfect for testing components from large vehicles, trucks, and buses (12V/24V systems).

parameter

No.	Item	Specification
1	Input Voltage	380V AC 50HZ
2	Motor Power	7.5 KW
3	Frequency Converter	7.5 KW (Three-phase AC)
4	Motor Rotation	Positive and Reverse
5	RPM Range	Non-Load: 0-8000 r/min; Load: 0-6000 r/min
6	Generator Load Mode	Electronic module type DC (0 ~ 200A)
7	Exciting Voltage	DC 12V and 24V
8	Starter Working Current	0-2000 A
9	Starter Torque	0 ~ 200.0 N.M
10	Air Pressure Settings	0 ~ 1 Mpa (Adjustable)
11	Starting Time	0.1 ~ 9.9 S (Adjustable)
12	External Battery	12V and 24V (Equipped by user)
