BCZB-4 Automatic Transmission Test Bench

BCZB-4 gearbox test bench for automatic transmission testing, with a 110 kW motor, 0–2600 rpm range and six hydraulic test functions.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

Automatic transmission testing

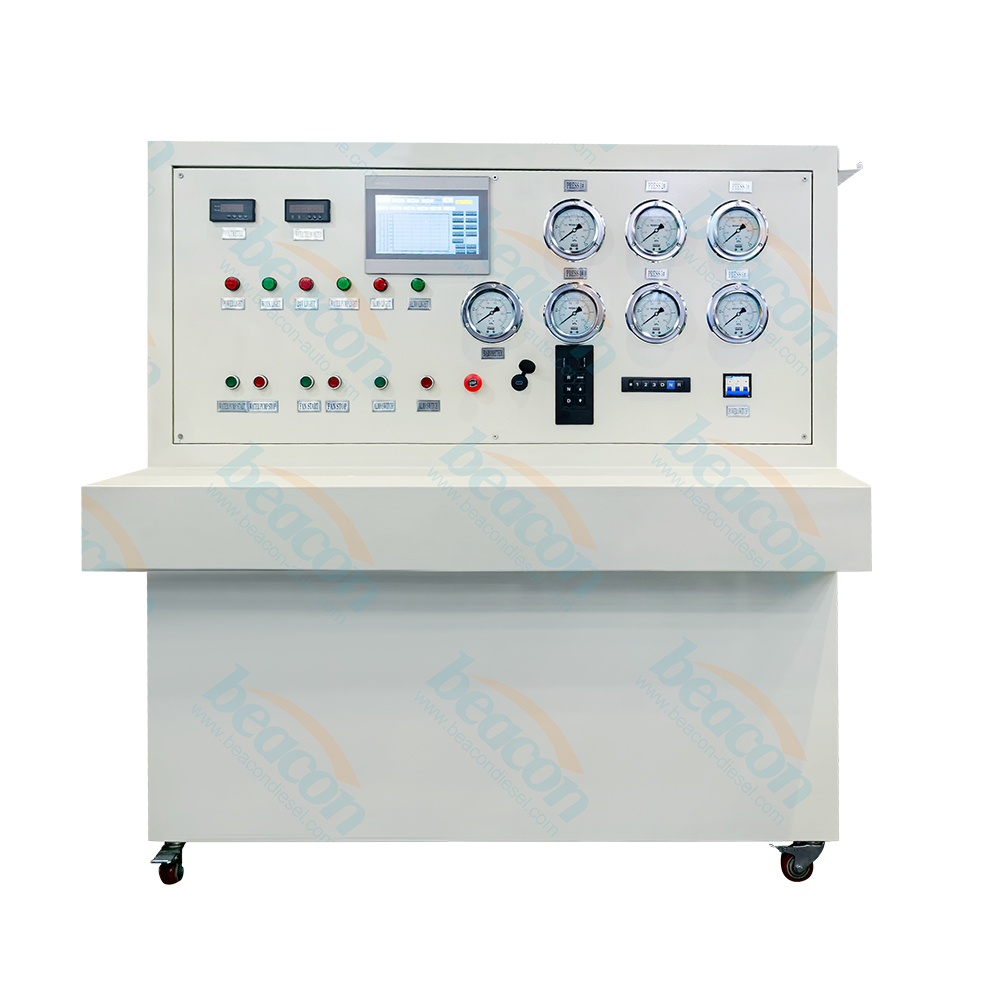

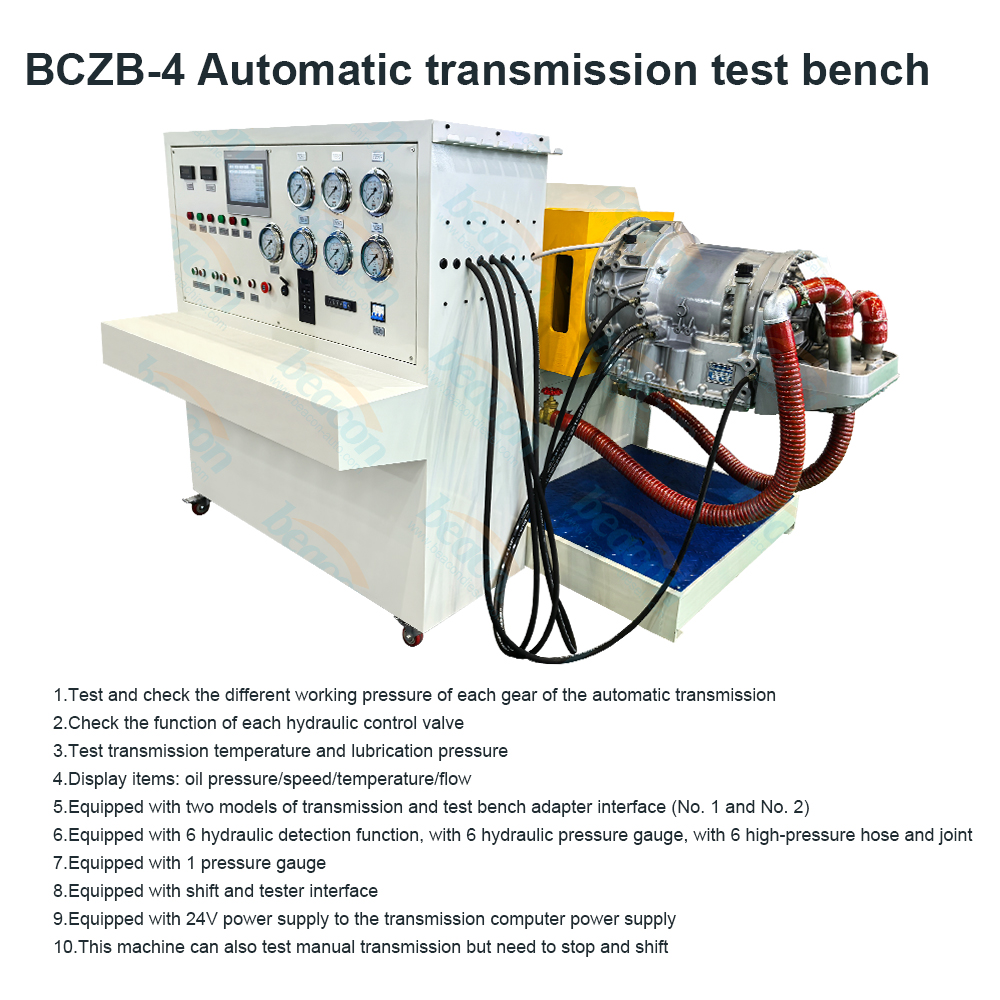

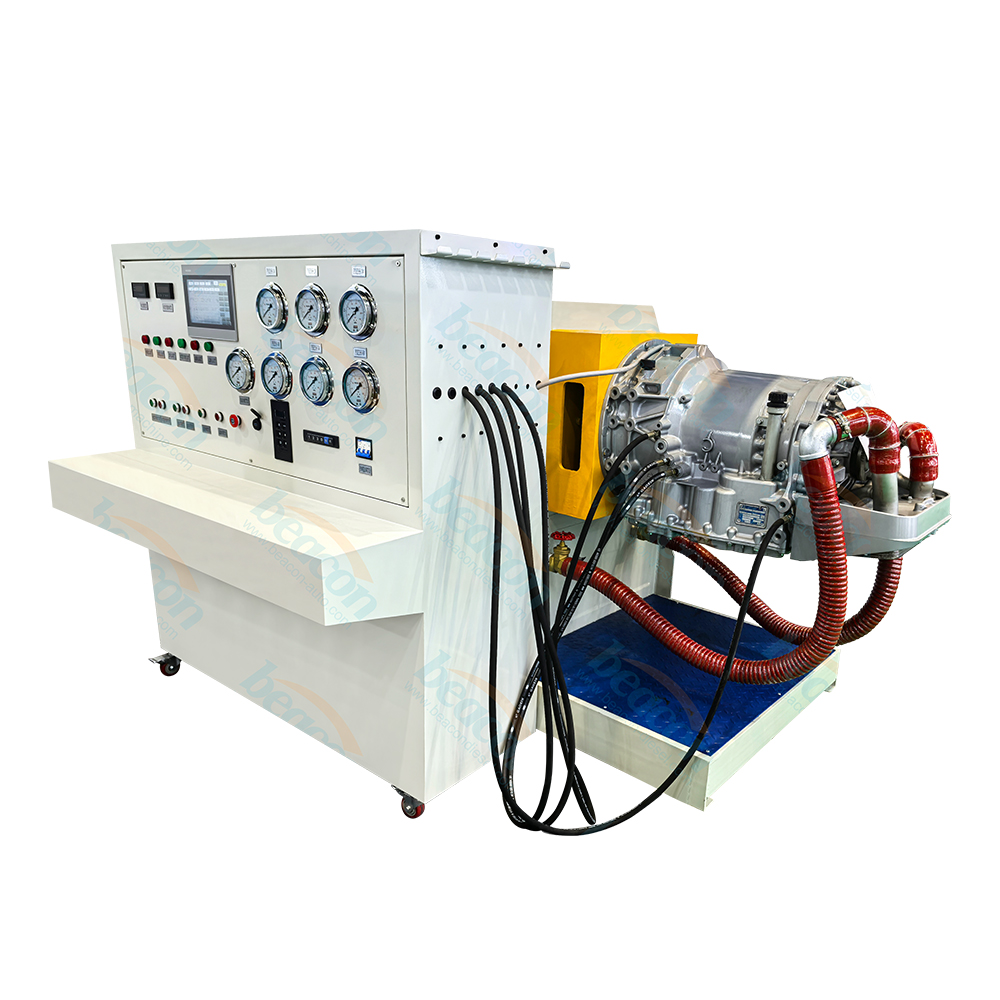

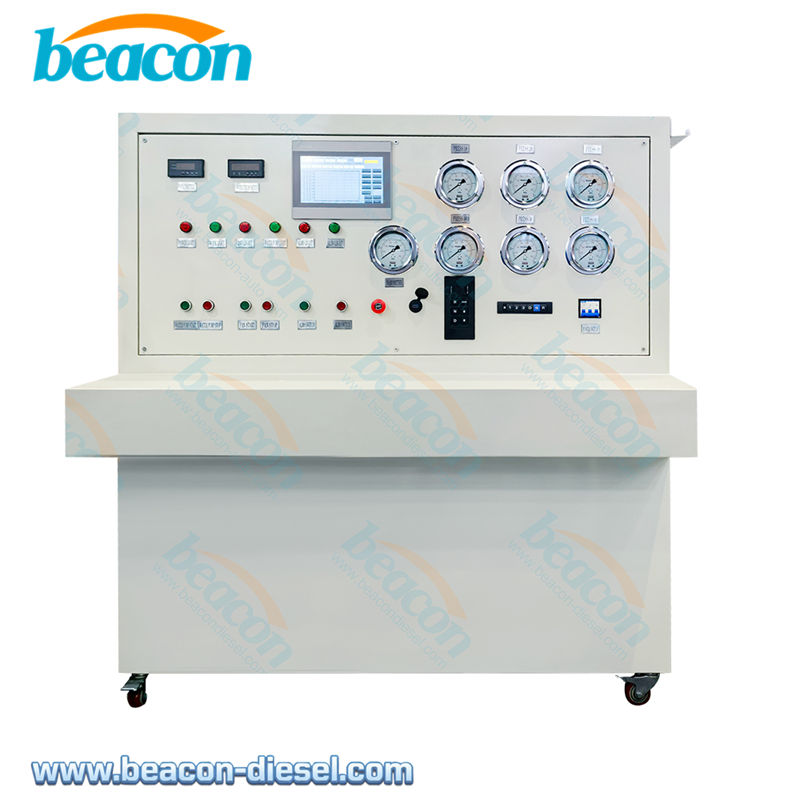

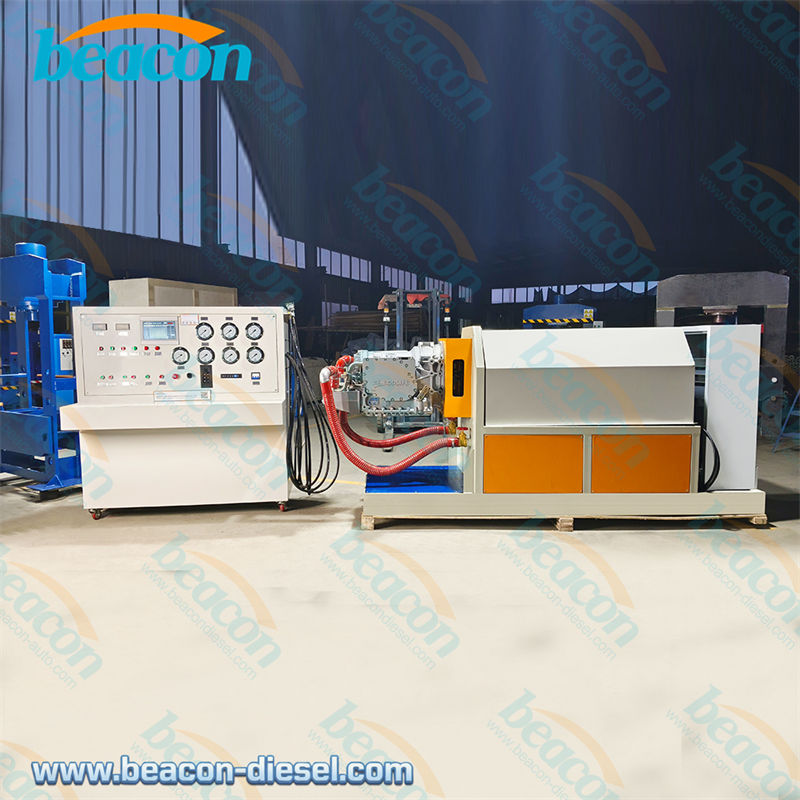

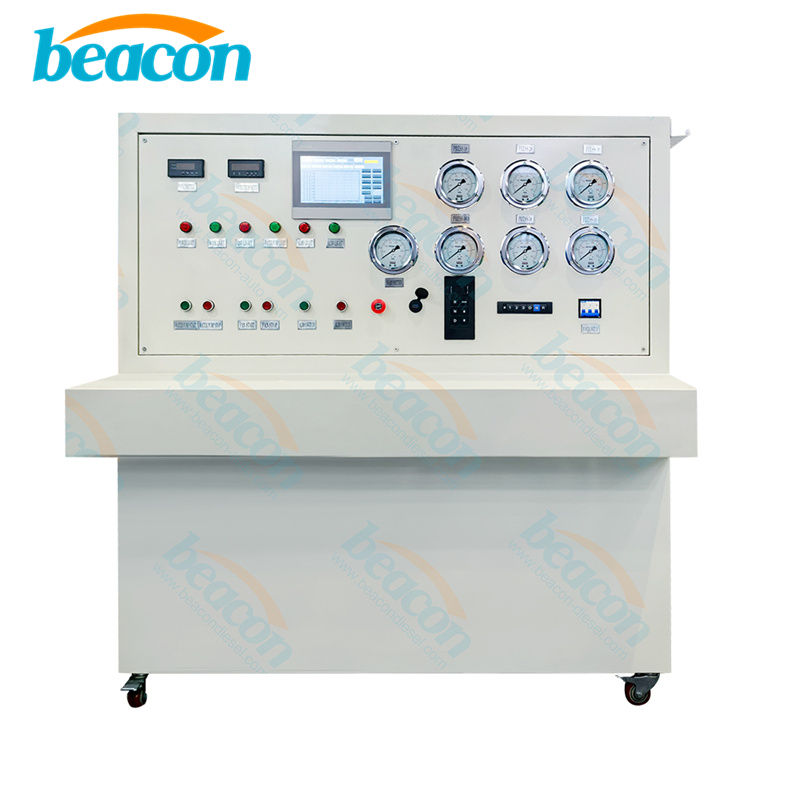

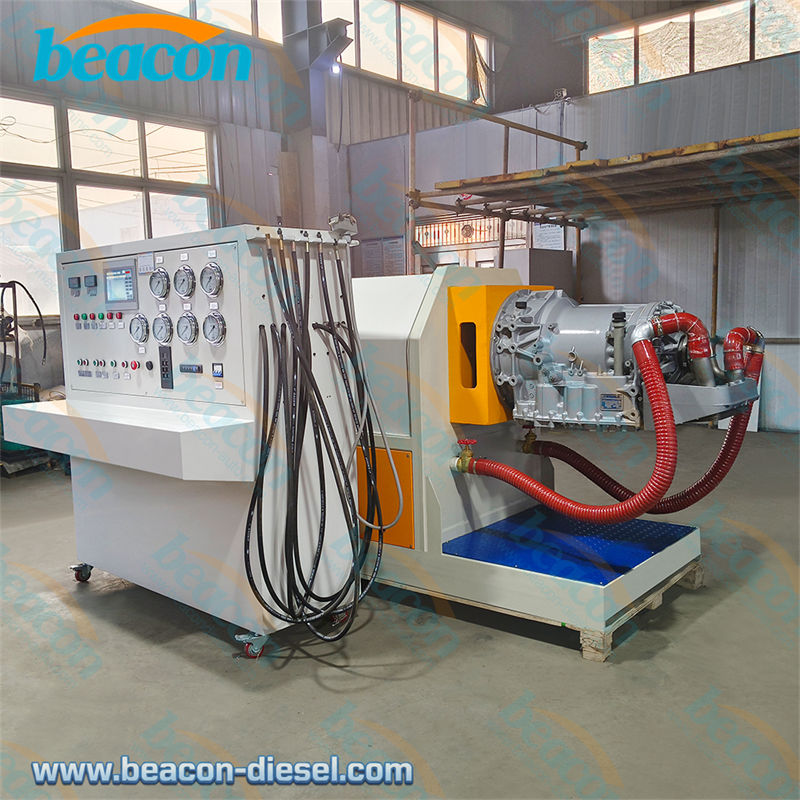

The BCZB-4 is an automatic transmission testing machine and gearbox test bench. It checks working pressure in each gear, hydraulic control valve operation, transmission temperature and lubrication pressure.

Measurements and connections

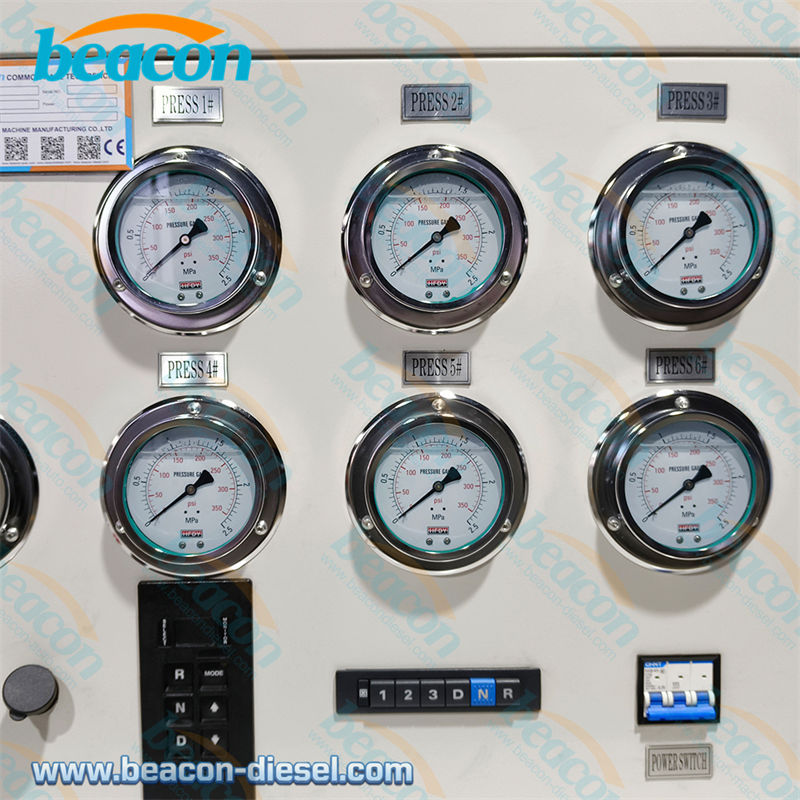

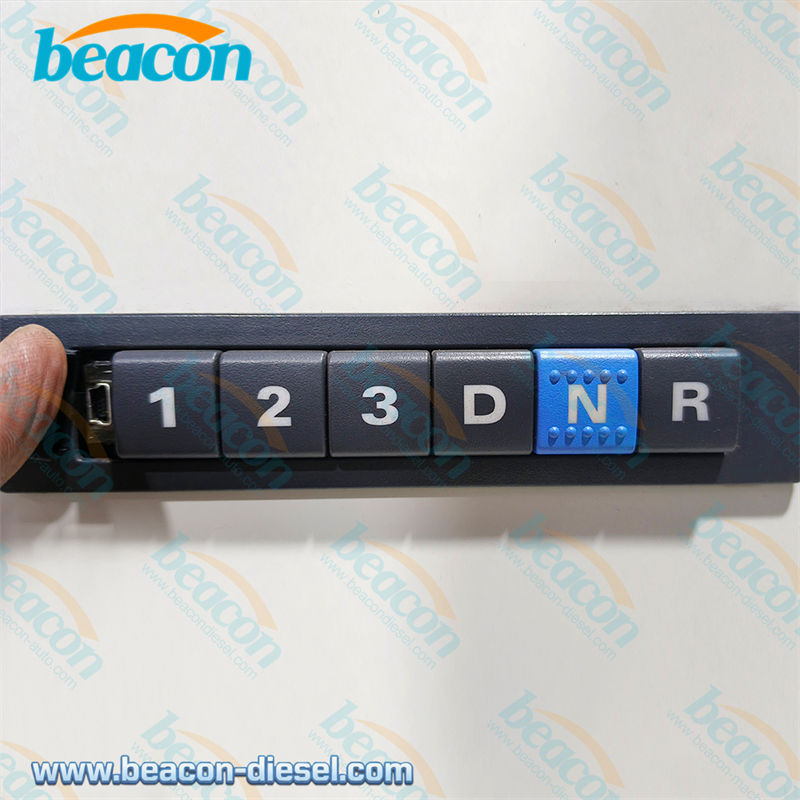

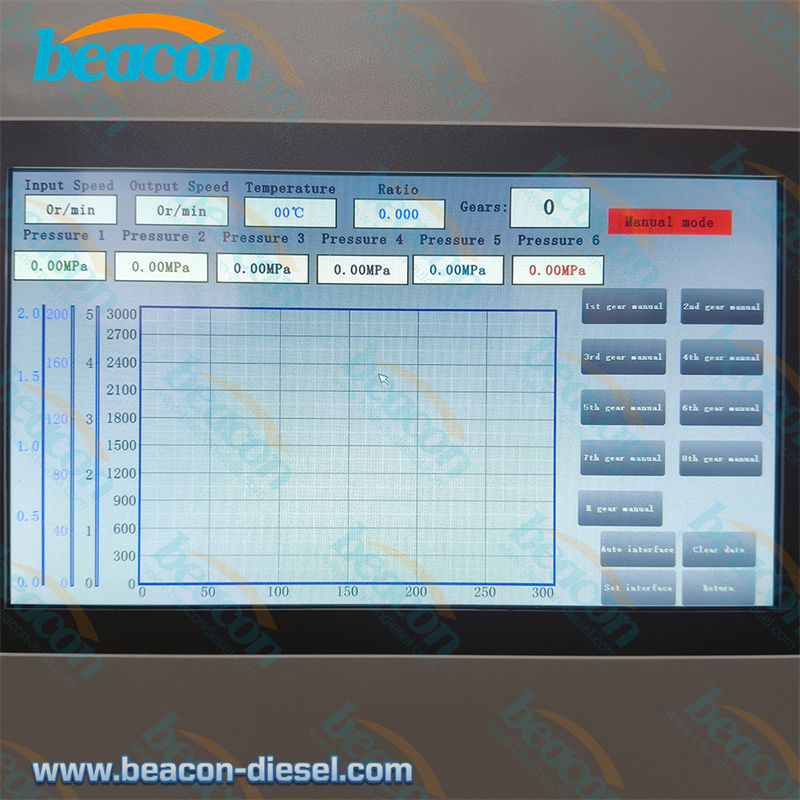

The display shows oil pressure, rotational speed, temperature and flow. The bench has six hydraulic test functions, six pressure gauges, six high-pressure hoses with connectors, and one additional pressure gauge. It also has a shift/tester interface, a 24 V supply for the transmission computer, and transmission adapter interfaces No. 1 and No. 2.

Manual transmission testing

Manual transmissions can also be tested. Stop the bench before shifting gears.

parameter

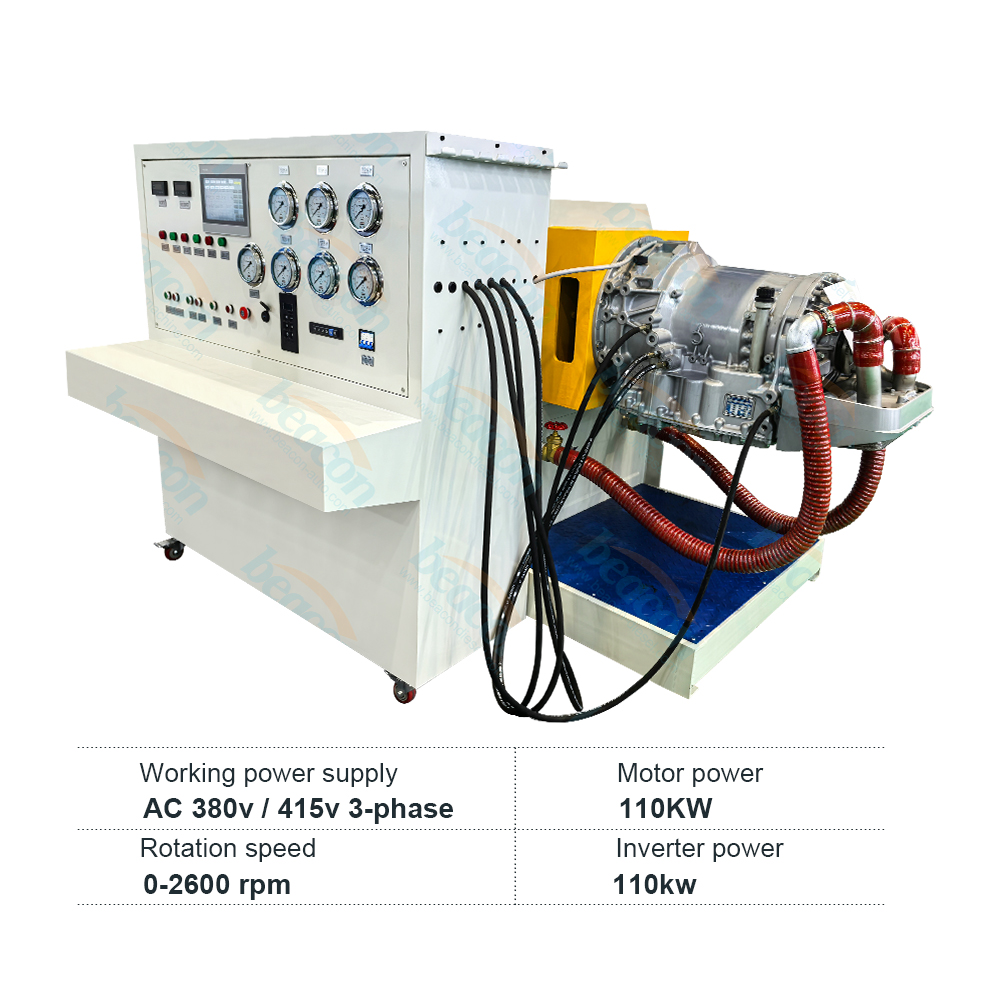

Item	Technical Specifications
Model	BCZB-4
Working Power Supply	AC 380V / 415V (3-Phase)
Motor Power	110 KW
Rotation Speed Range	0 - 2600 RPM
Inverter Power	110 KW
Hydraulic Detection	6 hydraulic test functions
Pressure Gauges	6 hydraulic pressure gauges + 1 additional gauge
Computer Power Supply	DC 24V (for transmission ECU)
Adapter Interfaces	Equipped with No. 1 and No. 2 interfaces
Applicable Types	Automatic transmissions; for manual transmissions, stop before shifting gears
