BK2000 Marine speed regulator test bench

Struggling with inaccurate governor parameters? The BK2000 Speed Governor Test Bench offers precise calibration for Woodward UG-8, PG, EGB, and Europa models. Features Siemens PLC, 3.7KW drive, and adjustable oil pressure.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

Product Overview

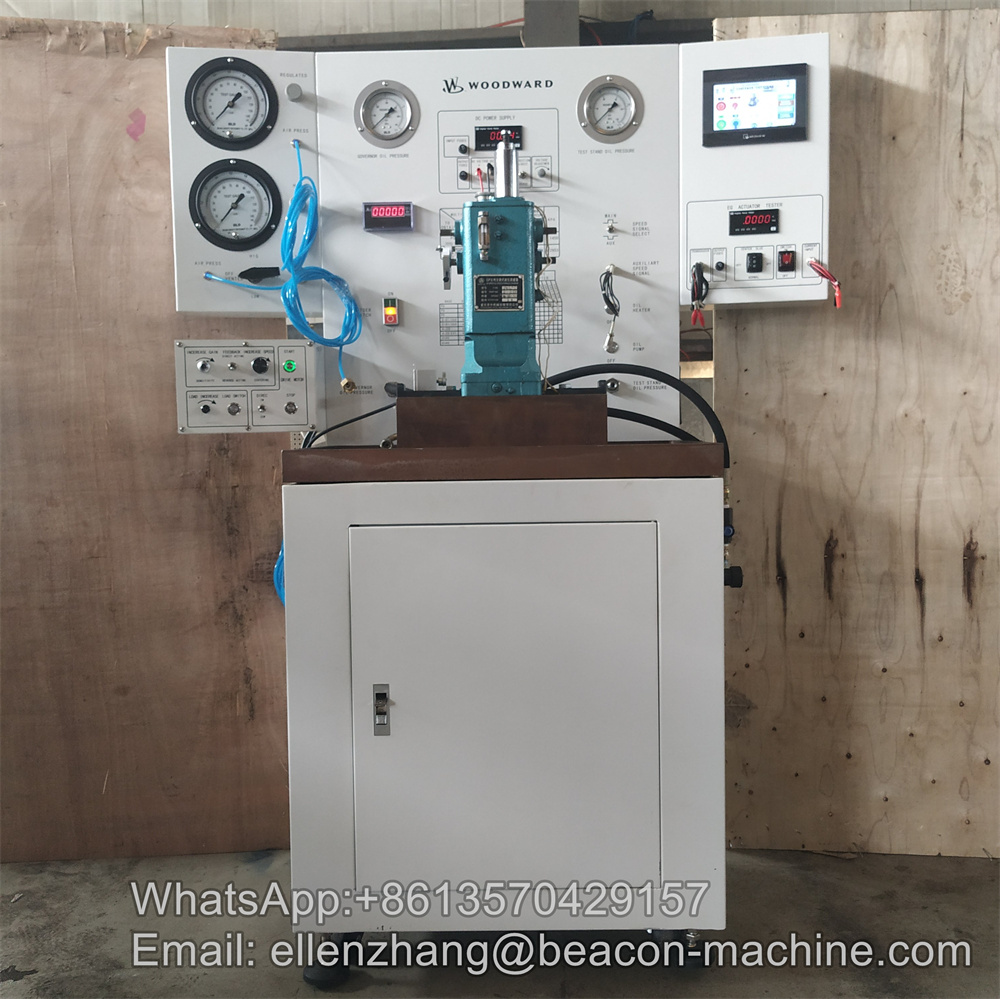

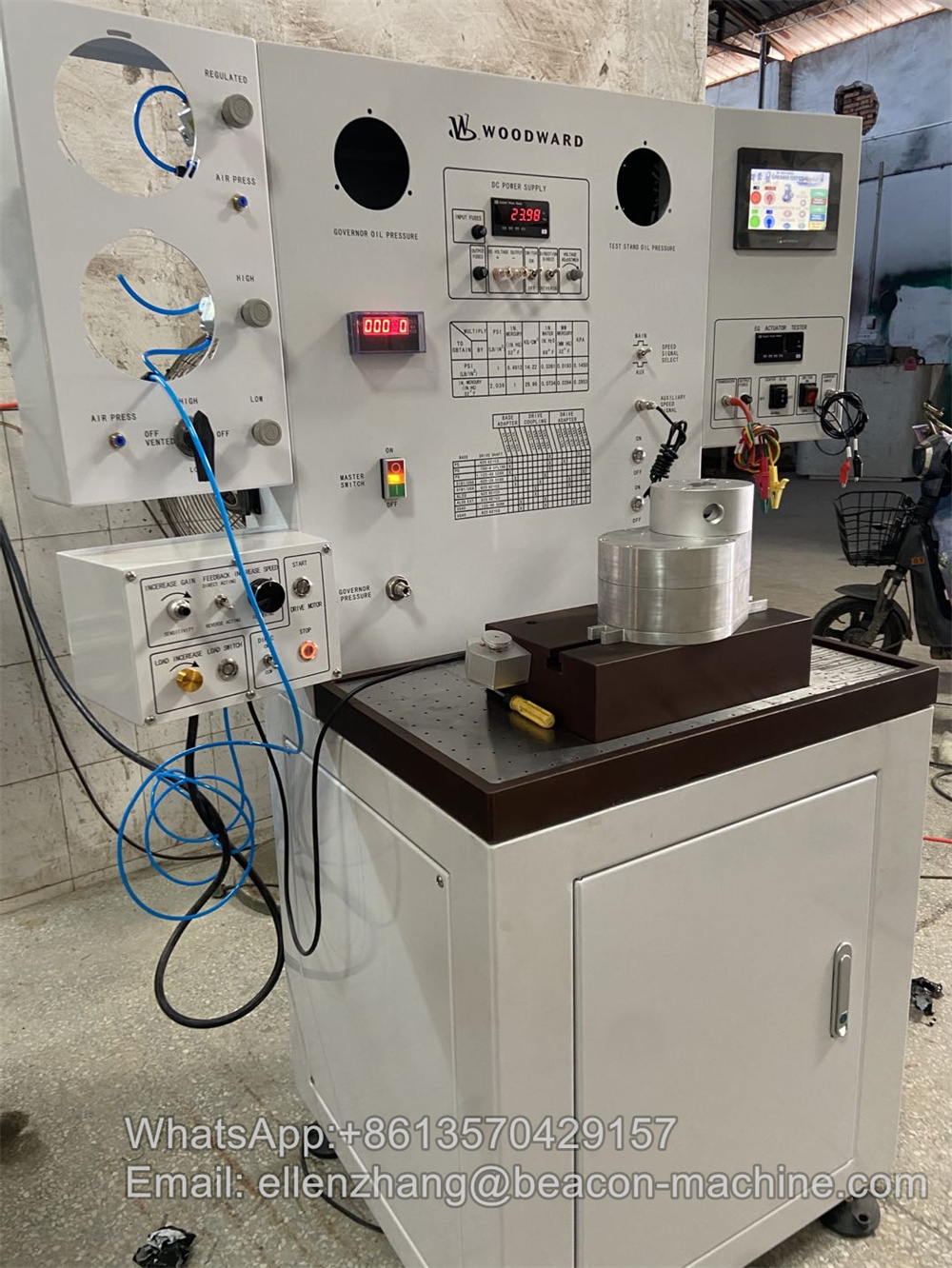

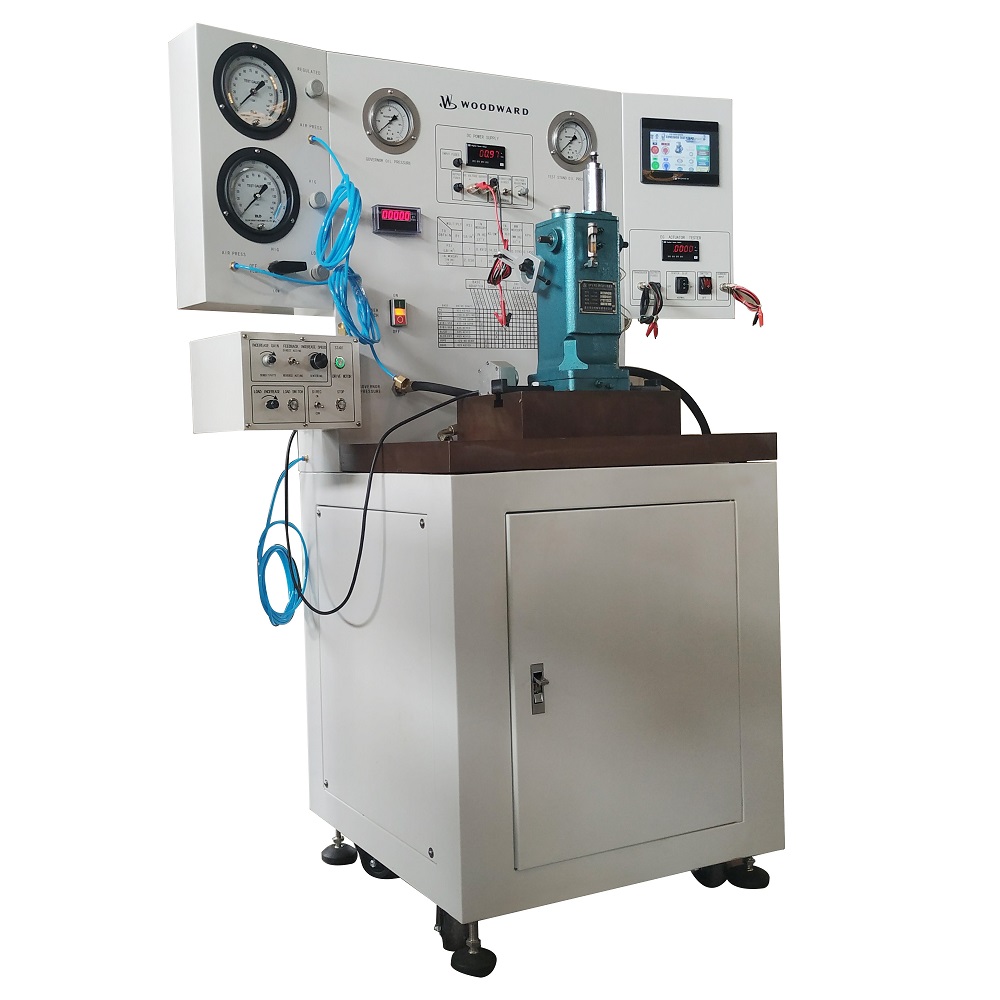

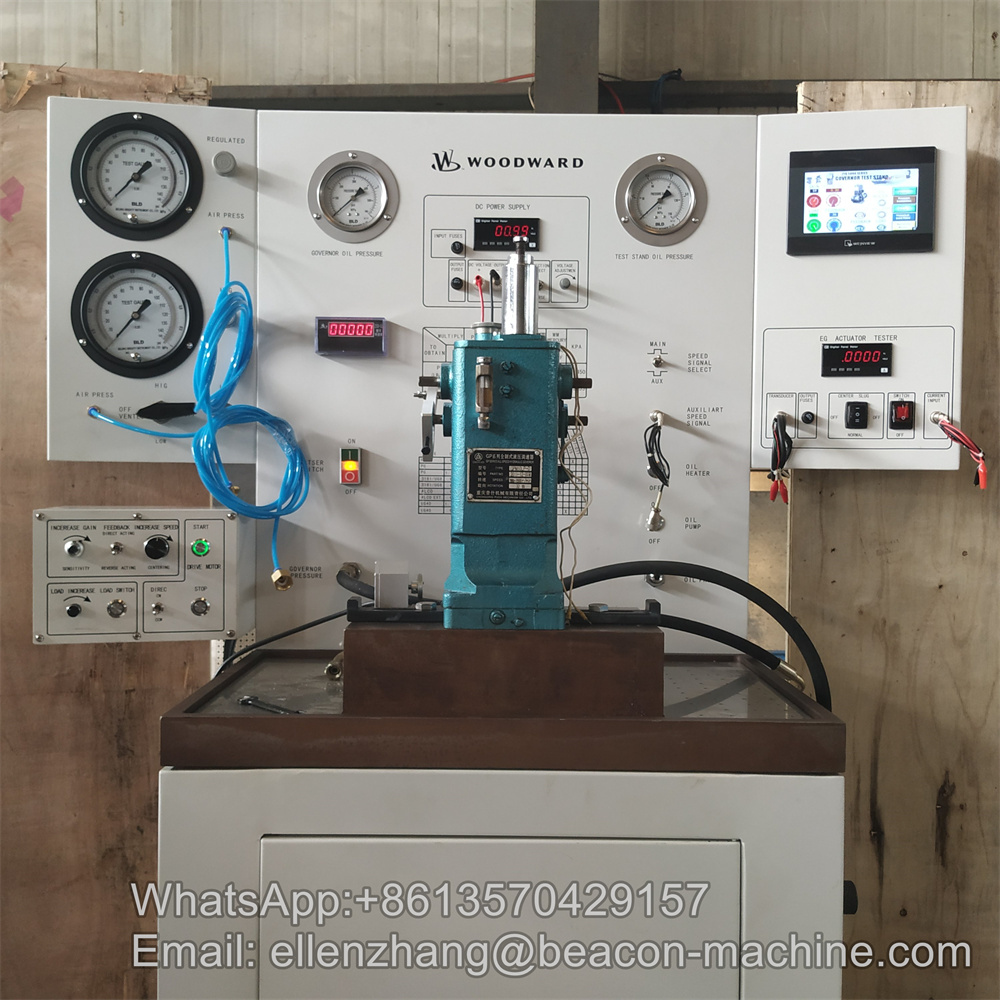

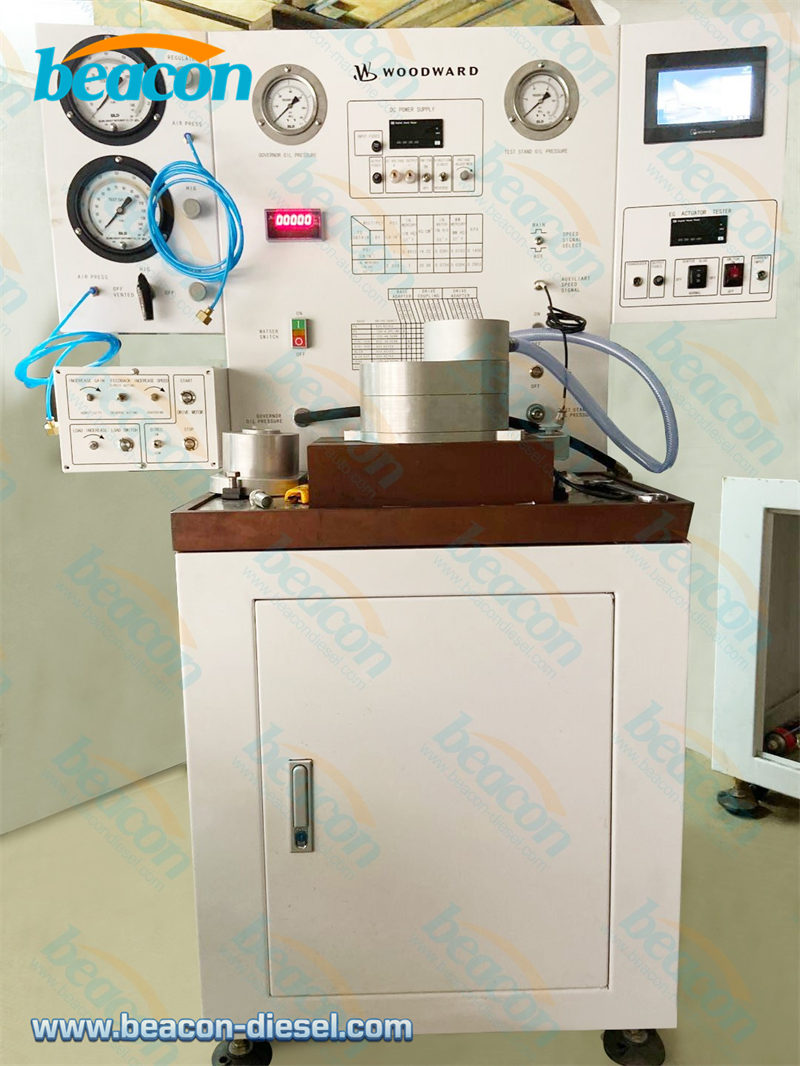

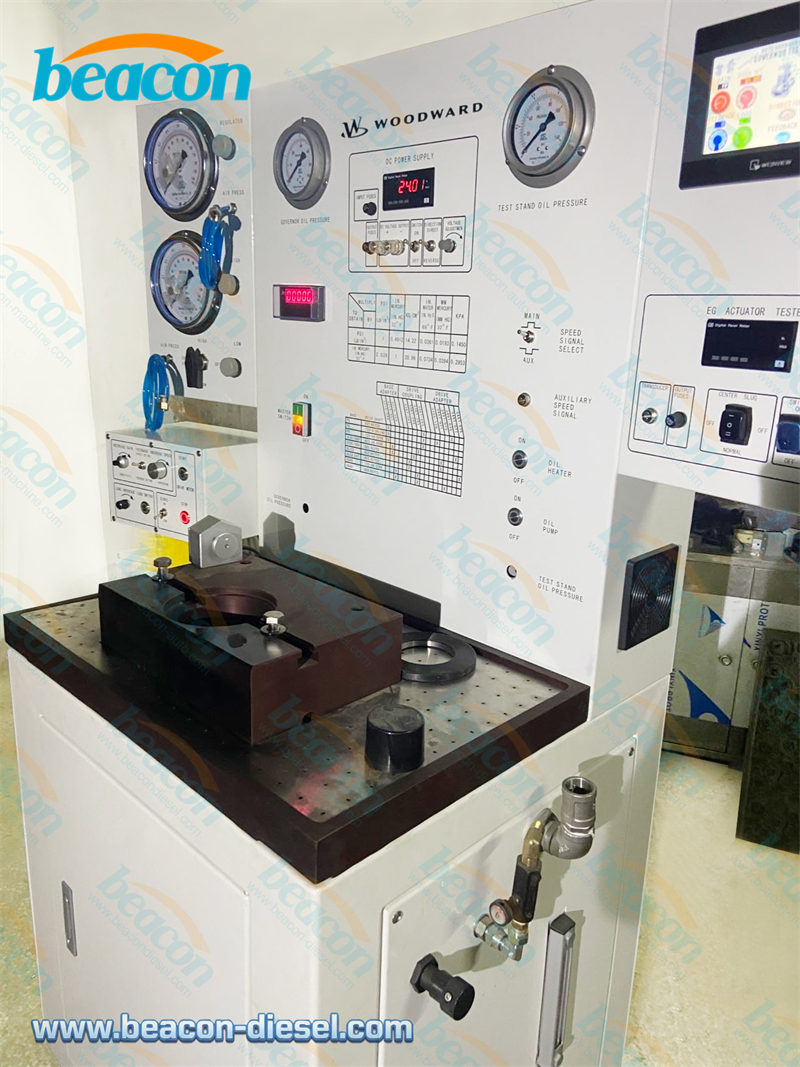

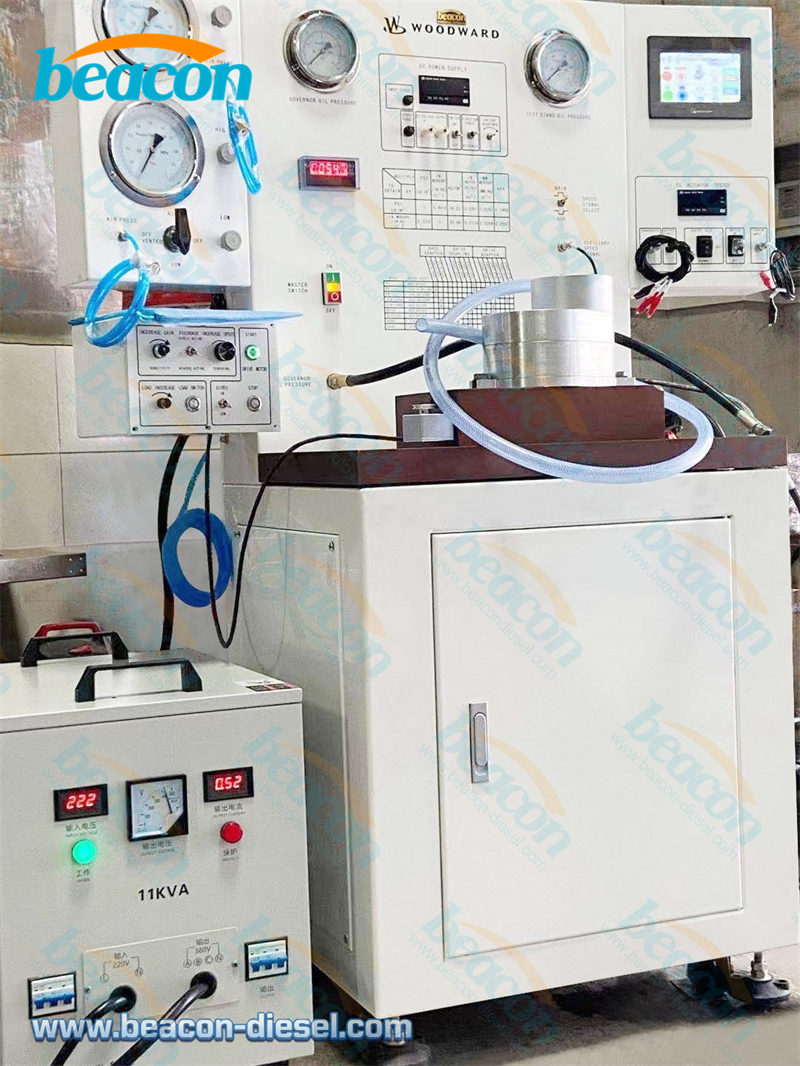

The Beacon BK2000 is a professional test bench designed to accurately test and correct parameters for a wide range of speed governors from engines and turbines. Engineered with a 3.7KW AC motor and Siemens PLC control, it ensures high reliability for maintenance workshops and industrial applications.

Key Features & Compatibility

Wide Application: Supports Woodward models including UG-8, UG-32, 3161, PG-EG, EGB 200, and many others. It is also compatible with non-Woodward products like EUROPA, RHD6, and TY111.

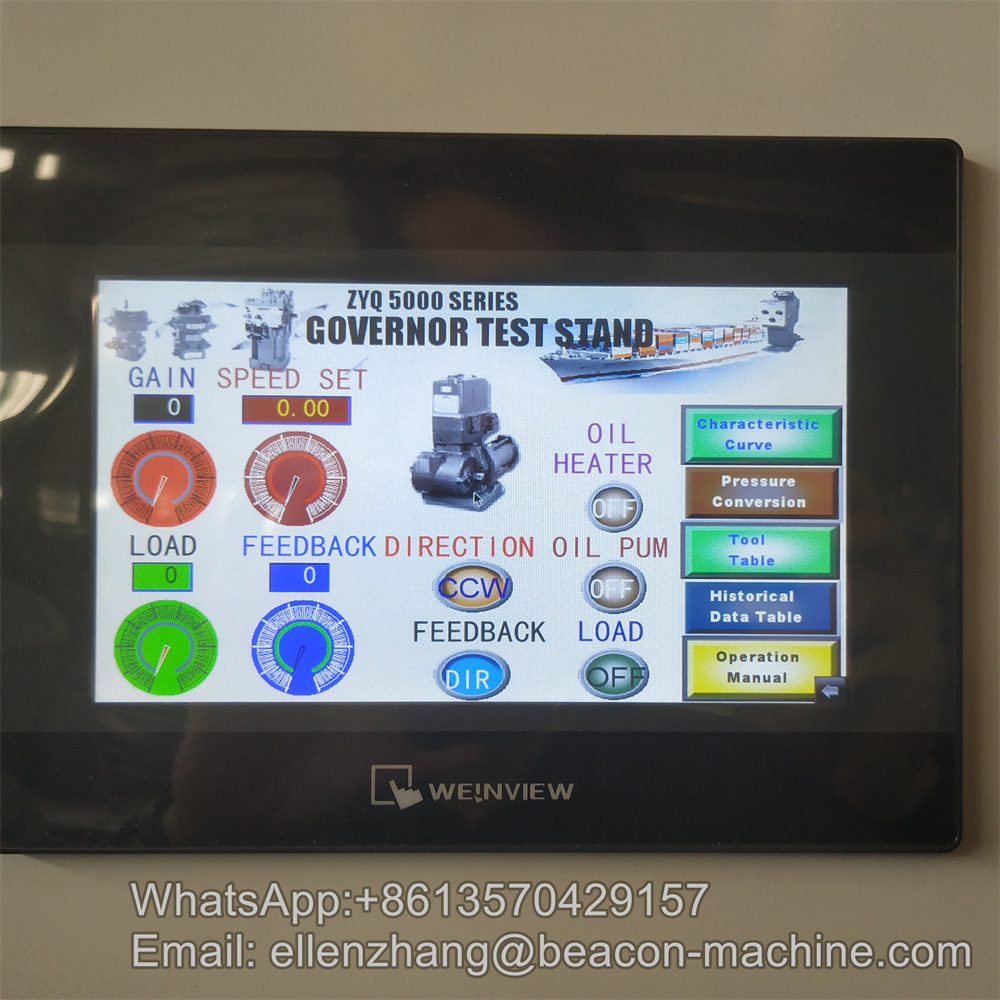

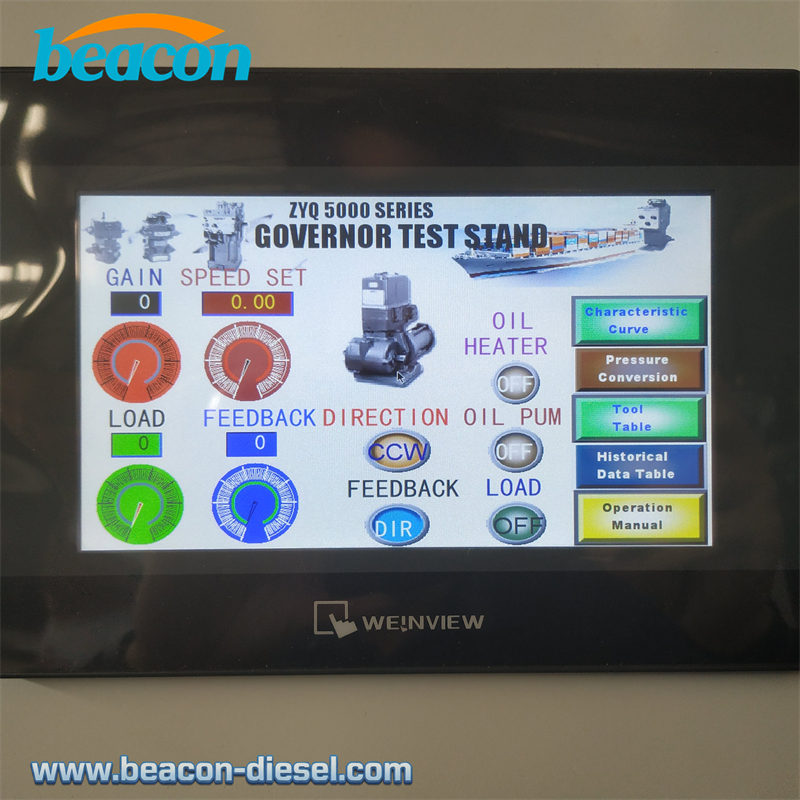

Advanced Control: Equipped with a SIEMENS PLC and a 7-inch color touch screen for intuitive operation.
Precise Testing: Features a 3-times speedup mechanism, achieving testing speeds up to 7500 RPM with an accuracy of +/- 1 turn.

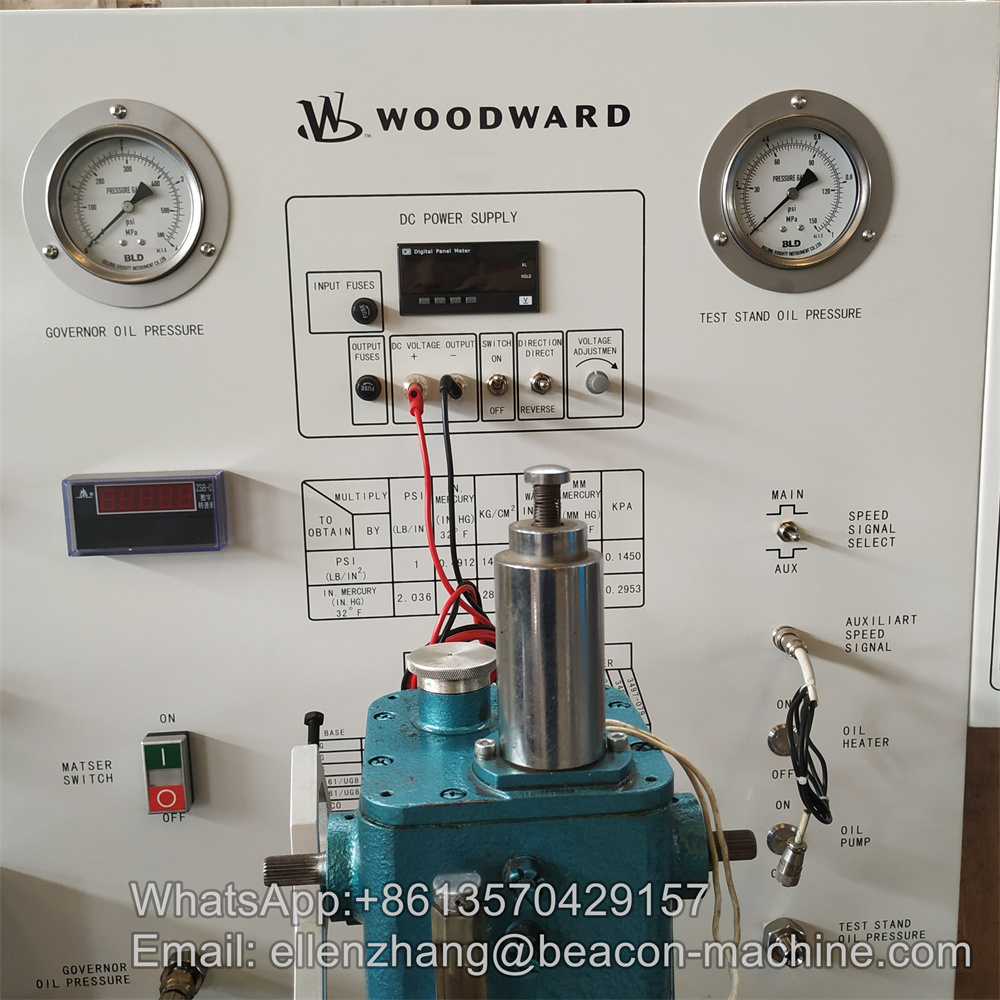

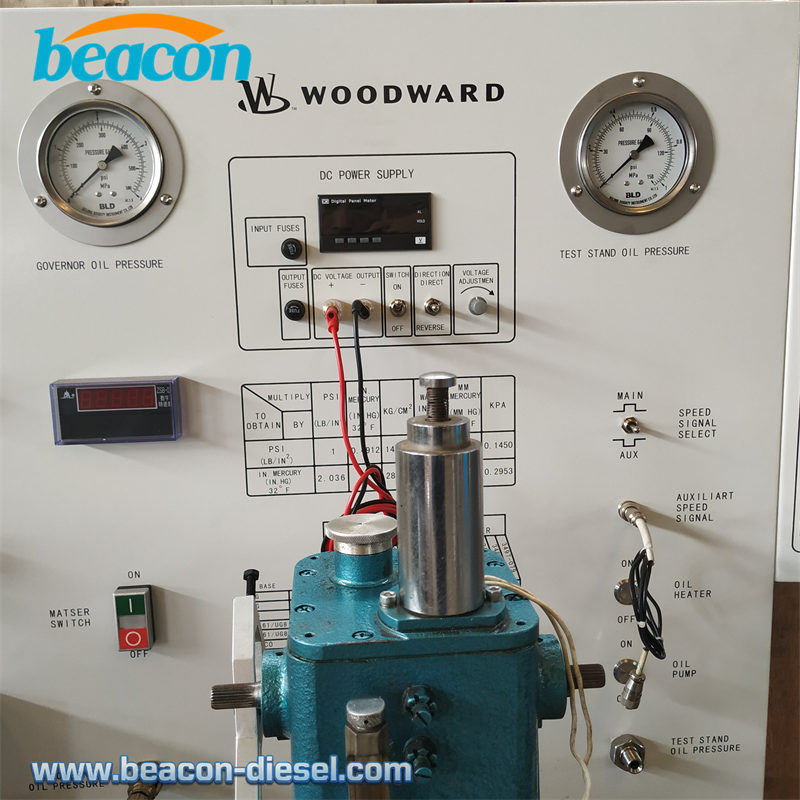

Robust Build: Includes double-scale barometers and hydraulic meters (MP/PSI) housed in 304 Stainless Steel cases.
Adjustable Systems: Provides adjustable oil pressure (0-0.8MP) and temperature control (Room temp to 60°C).

parameter

Parameter	Specification
Model	BK2000
Motor Power	3.7KW AC Motor Drive
Control System	SIEMENS PLC
Speed Range	200~2500 RPM (Up to 7500 RPM with 3x speedup)
Speed Accuracy	+/- 1 turn
Oil Pressure	Adjustable 0MP - 0.8MP
Oil Temperature	Room temperature to 60°C
Tank Capacity	26 Litres (approx. 5 gallons)
Instrumentation	Double-scale (MP, PSI) barometers & hydraulic meters

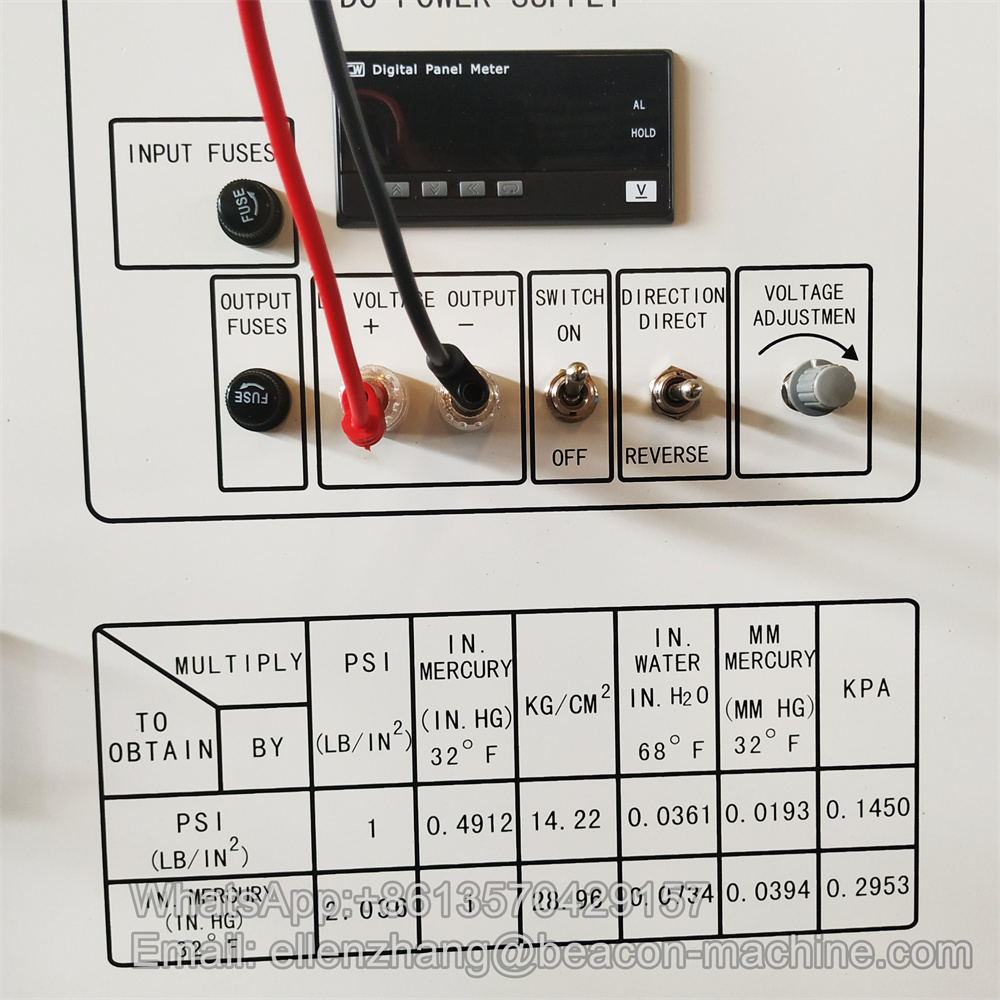

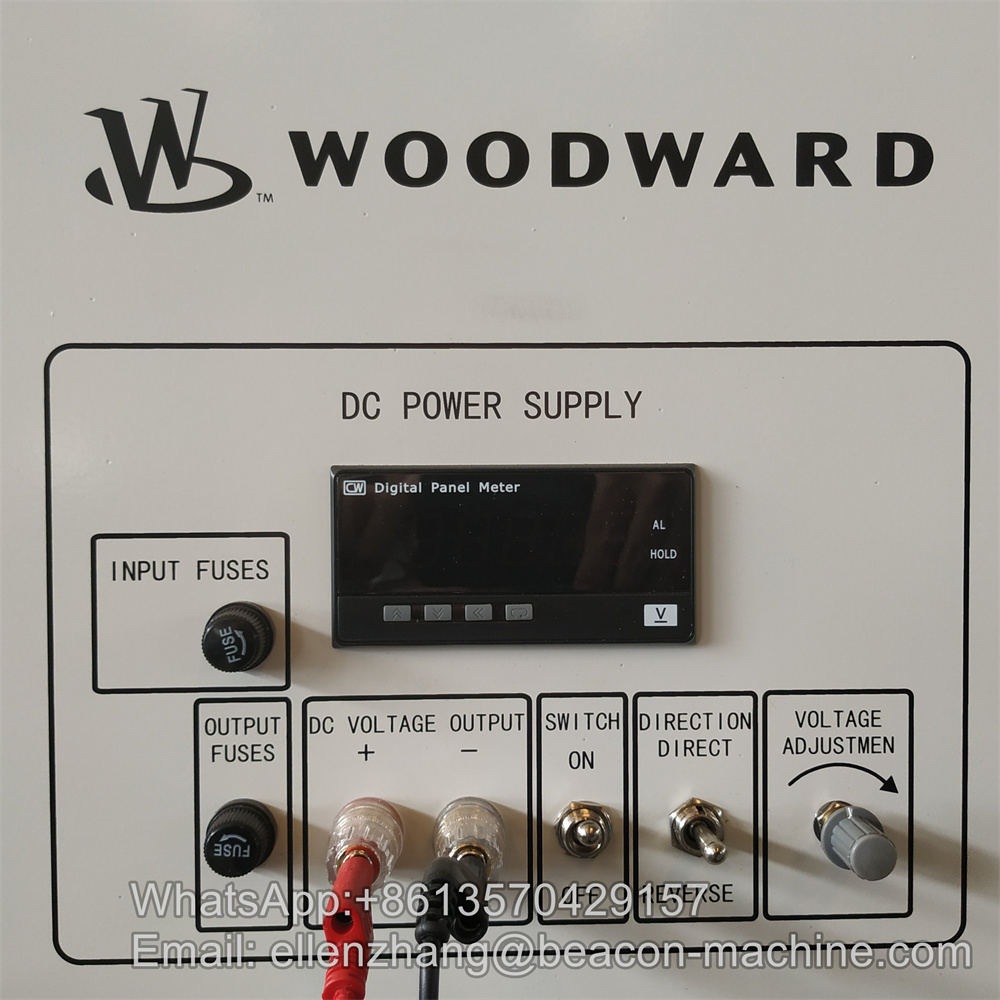

DC Power Supply	0-1A (3 bit ammeter), 0-110V (2 bit half voltmeter)
Power Supply	3X380V; 50HZ (Voltage fluctuation -10%~+10%)
Dimensions	75 x 143 x 185 cm
Weight	500 kg
