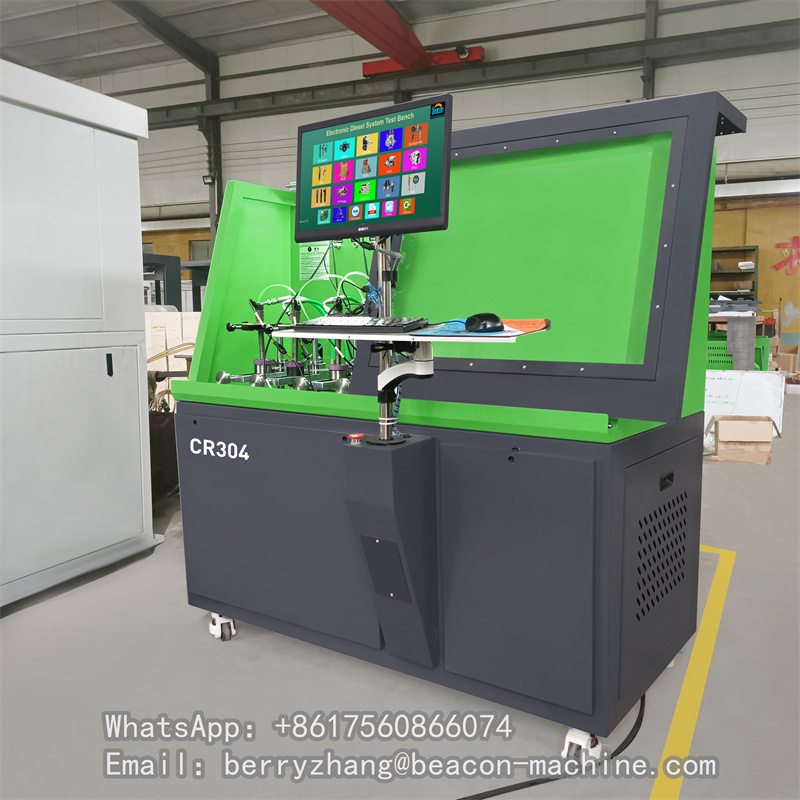

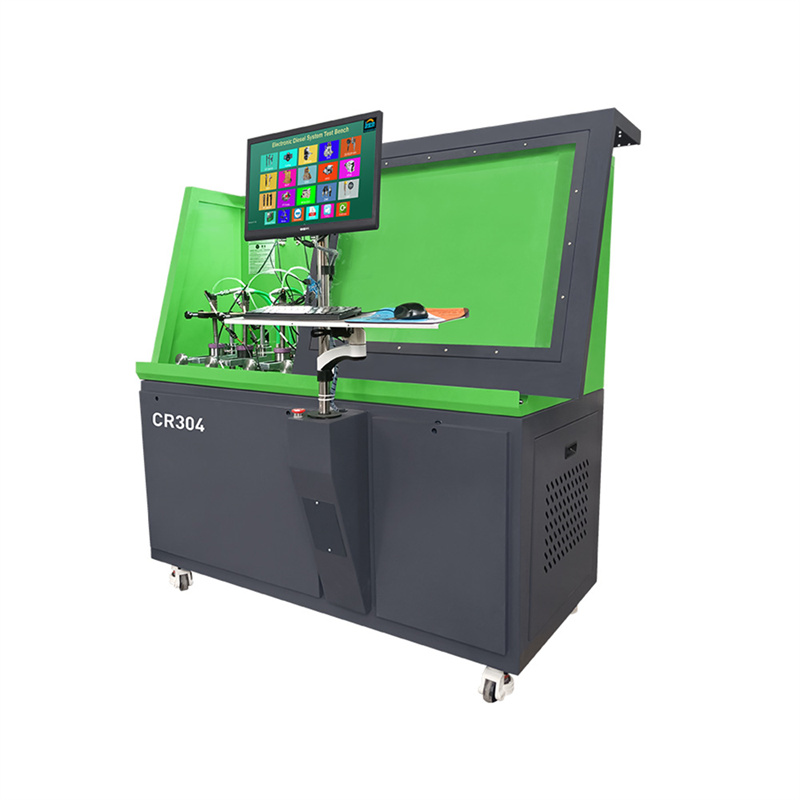

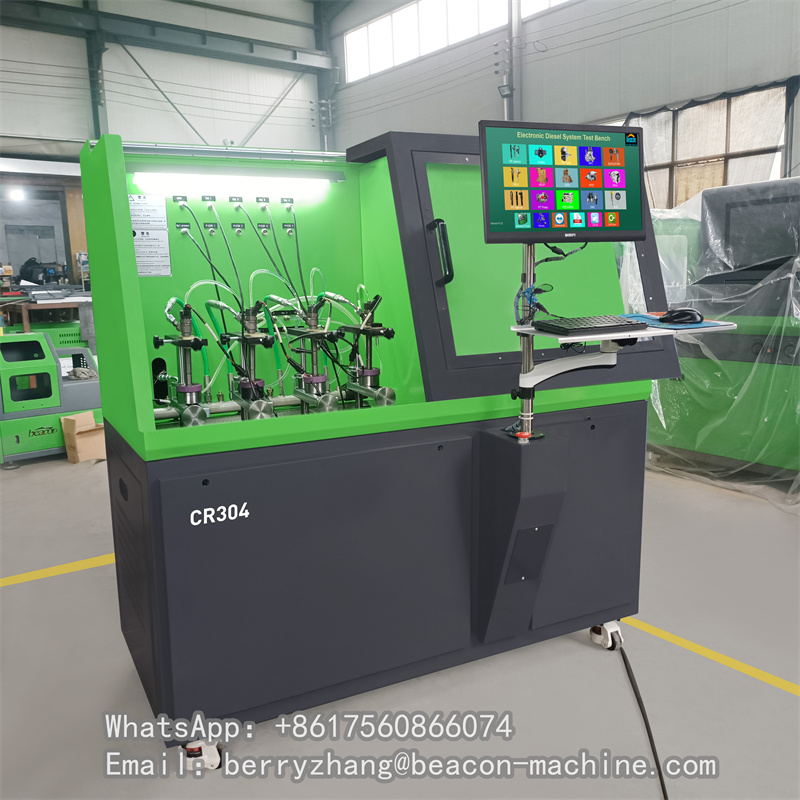

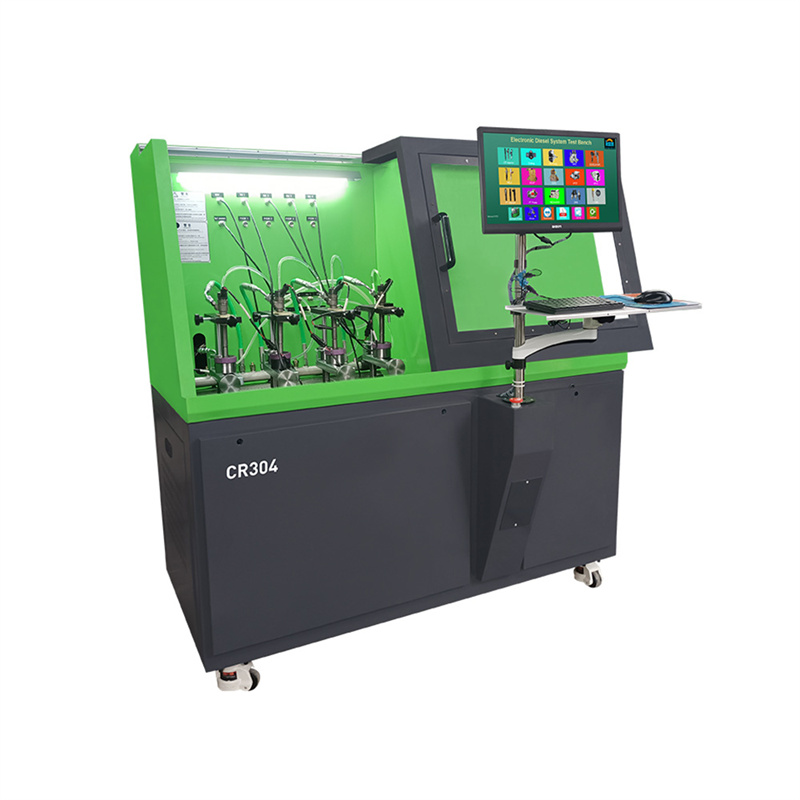

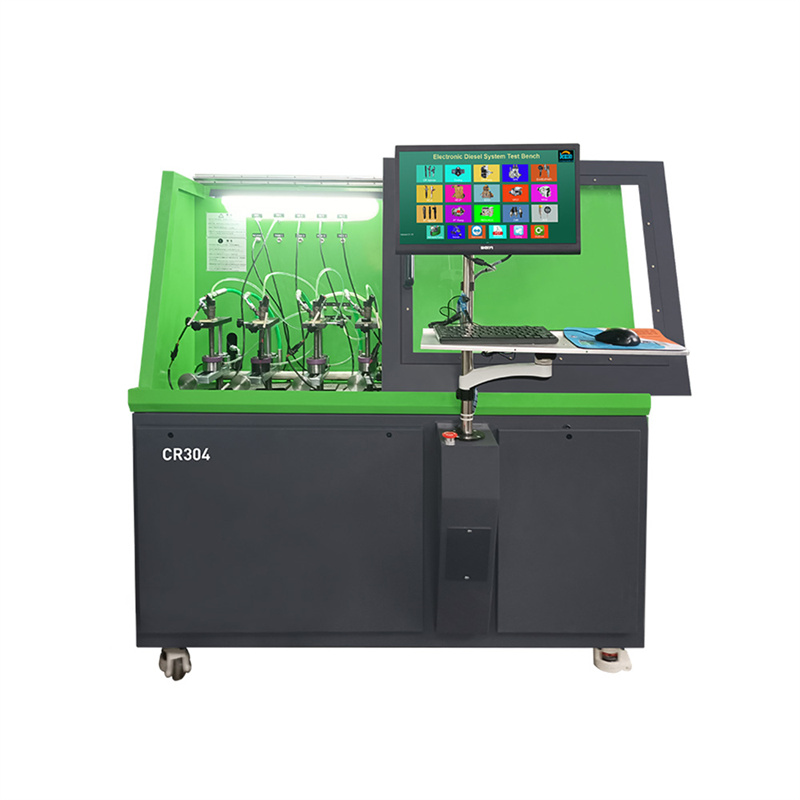

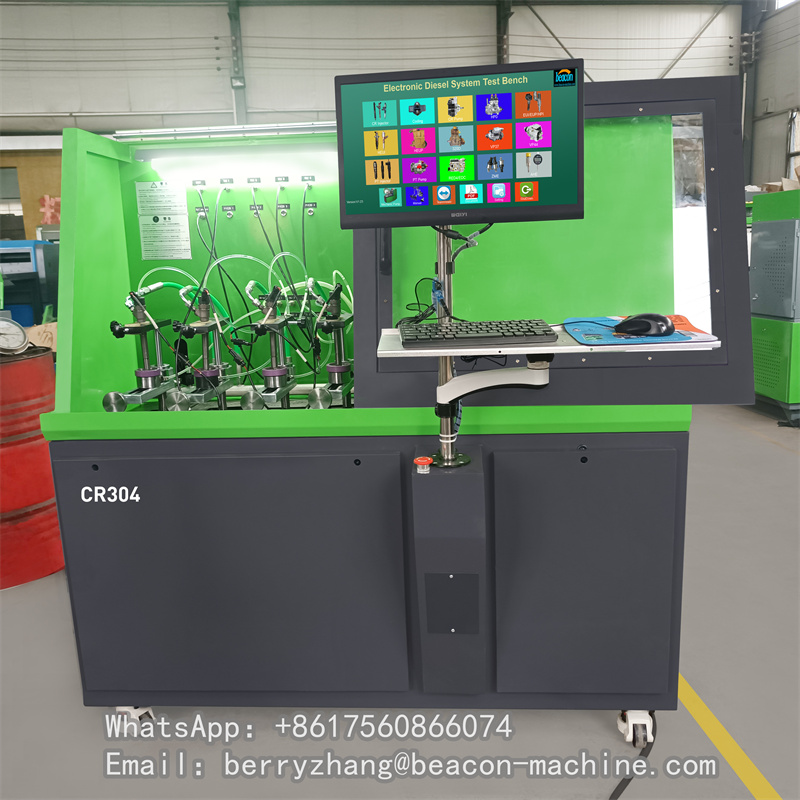

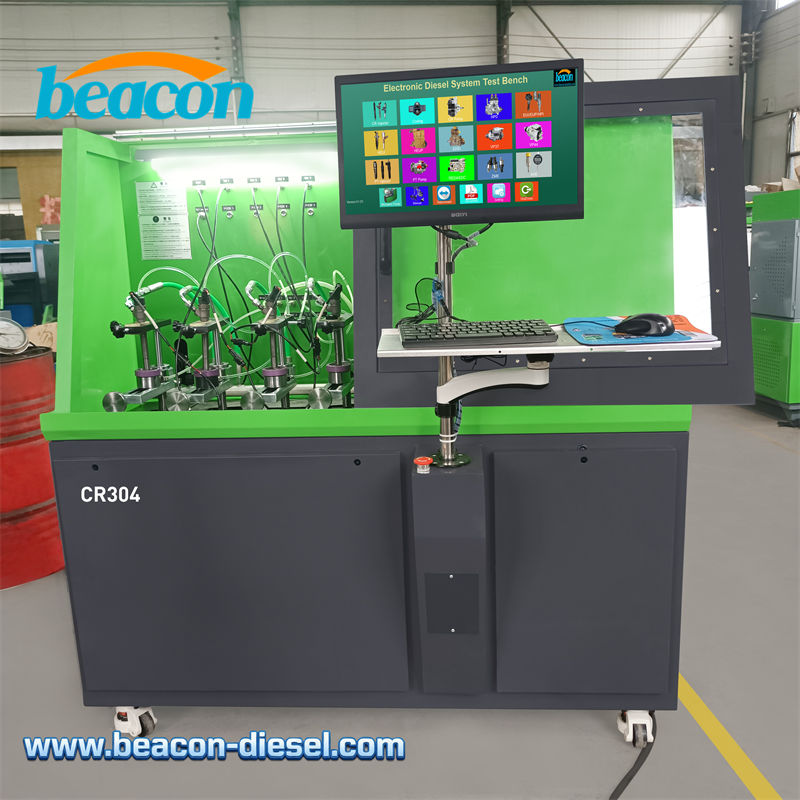

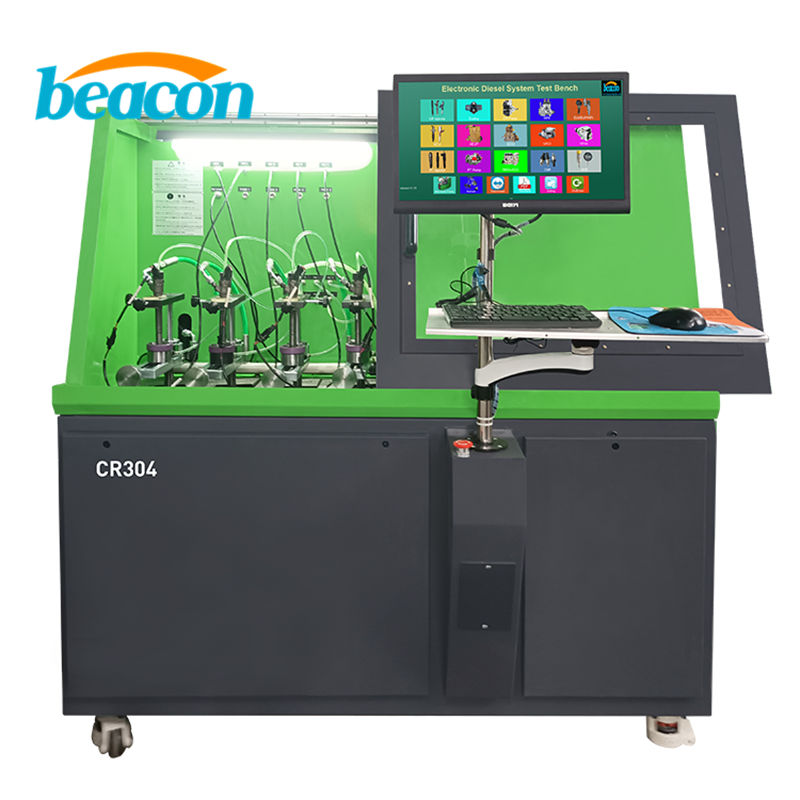

Beacon CR304 Common Rail Injector Test Bench Support 4 Injectors Test Simultaneously

The Beacon CR304 Common Rail Injector Test Bench is designed to significantly enhance workshop productivity by enabling the simultaneous testing of 4 injectors. This high-efficiency capability reduces downtime and increases throughput, making it an invaluable asset for professional diesel repair centers. Its advanced control system ensures precise diagnostics for both solenoid and piezo injectors.

To ensure broad compatibility and accuracy, the control system contains over 7700 injector data from various brands, providing a complete testing solution for modern diesel systems.

Standard Functions

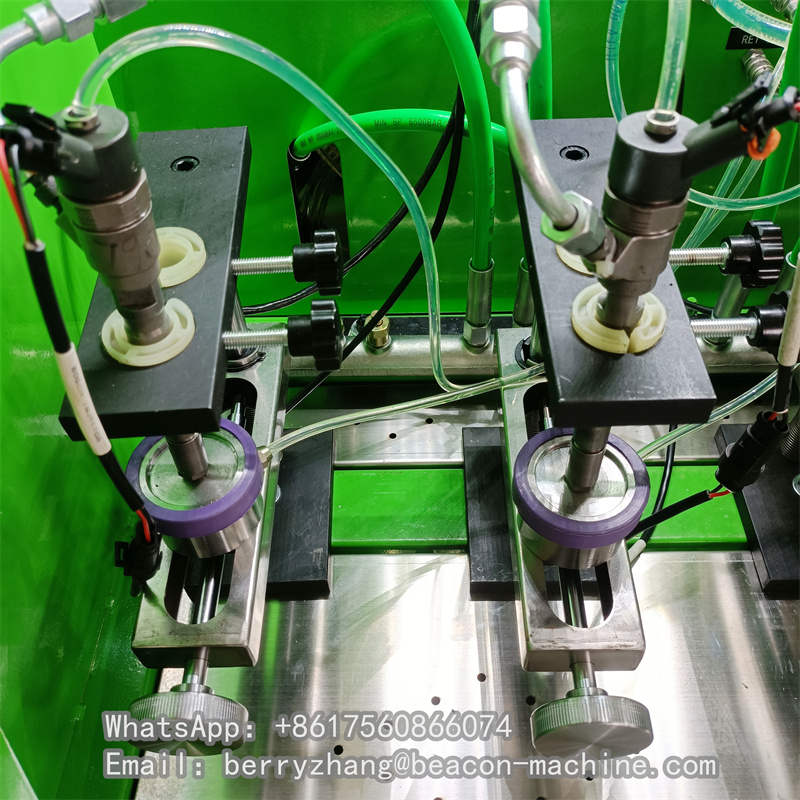

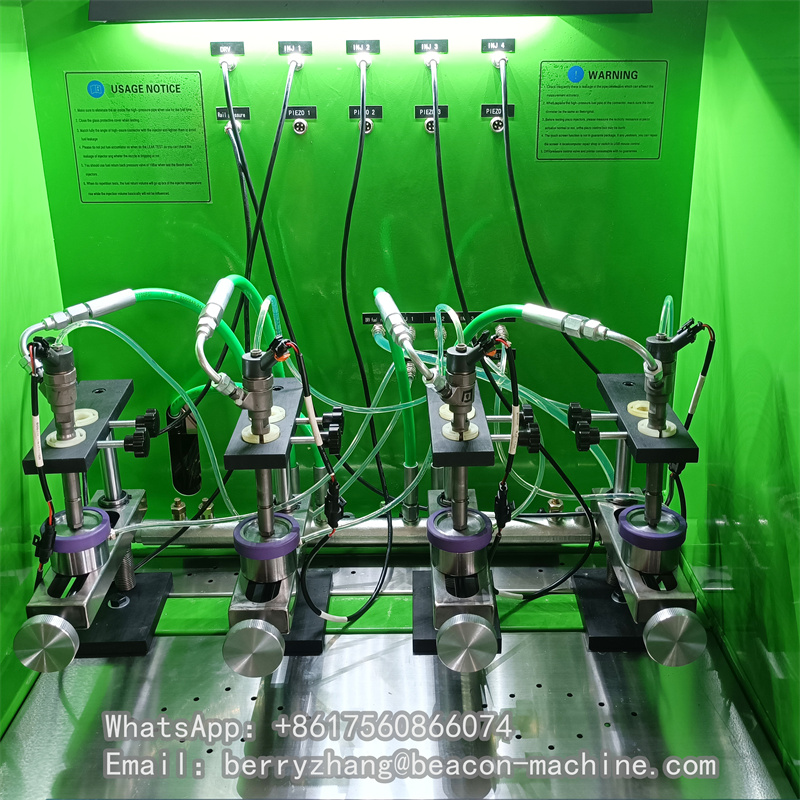

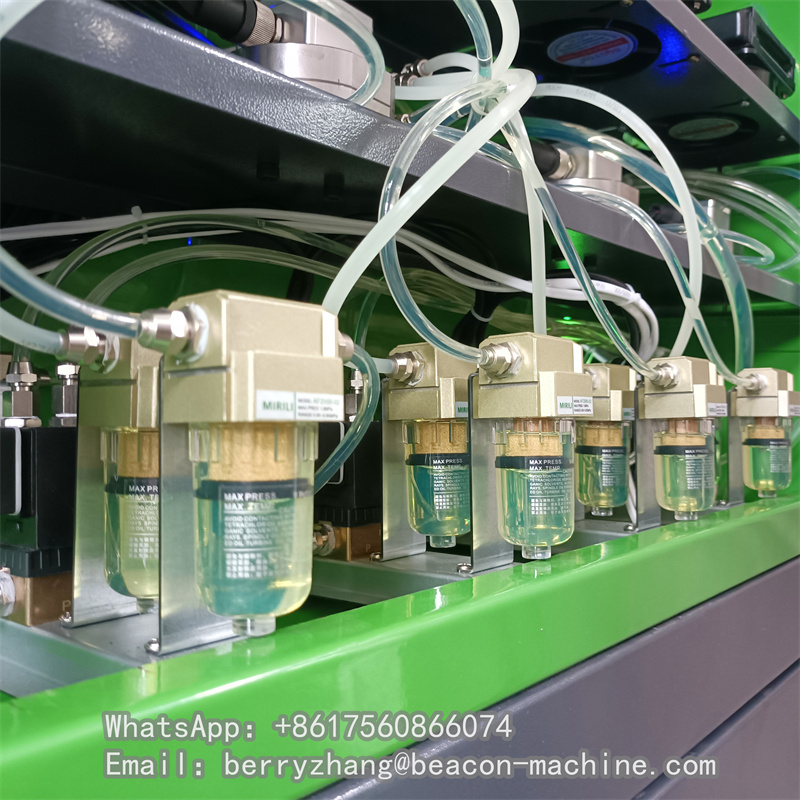

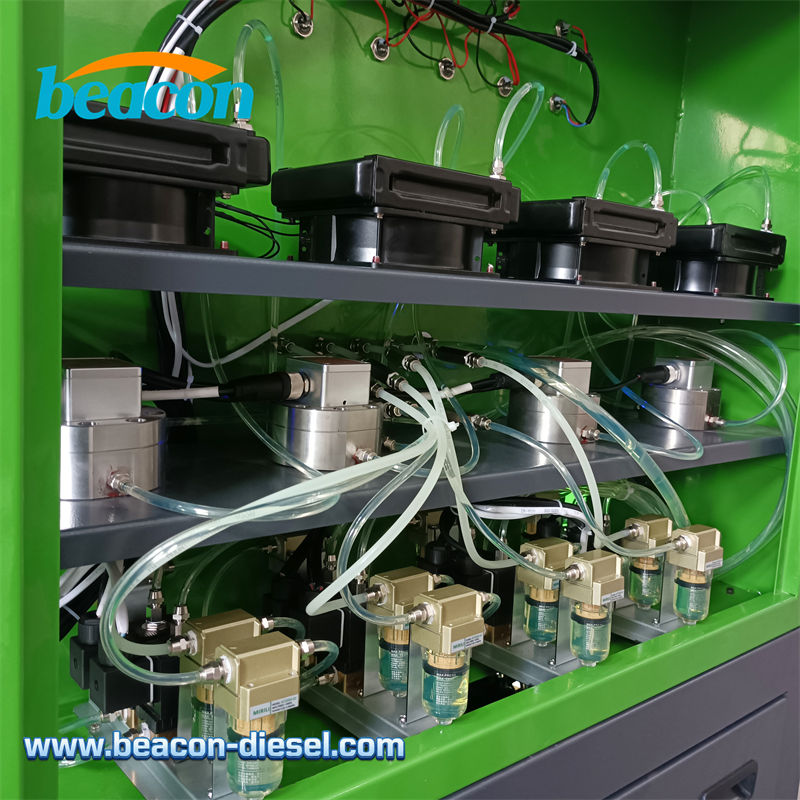

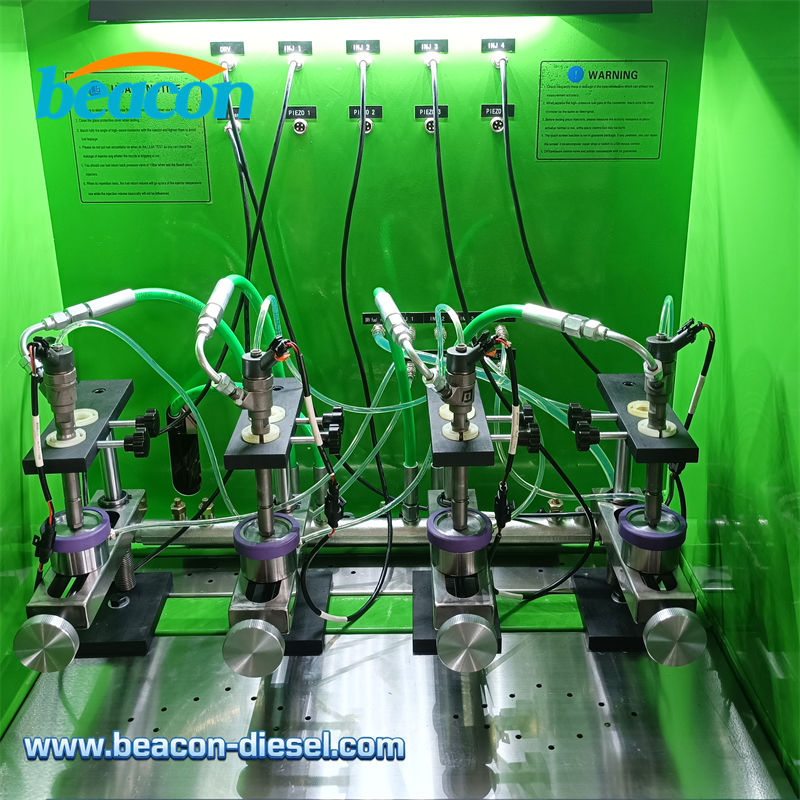

• Simultaneous Testing: Capable of testing 4 injectors at the same time (equipped with 4 flow meters).
• Wide Compatibility: Tests common rail and piezo injectors.
• Injector Coding: Supports coding for BOSCH, DENSO, DELPHI, and SIEMENS injectors.
• Power System: 4 KW Motor (Standard configuration), 380V, 3 Phase.

Optional Functions

• BIP Test: Injector response time testing.
• Delphi E3: Specialized testing function.
• AHE Dynamic Stroke: Measures armature stroke (equipped with Bosch 110120 stroke measuring tool + dial indicator).
• Expanded Capacity: Upgrade available to test 6 injectors at the same time.

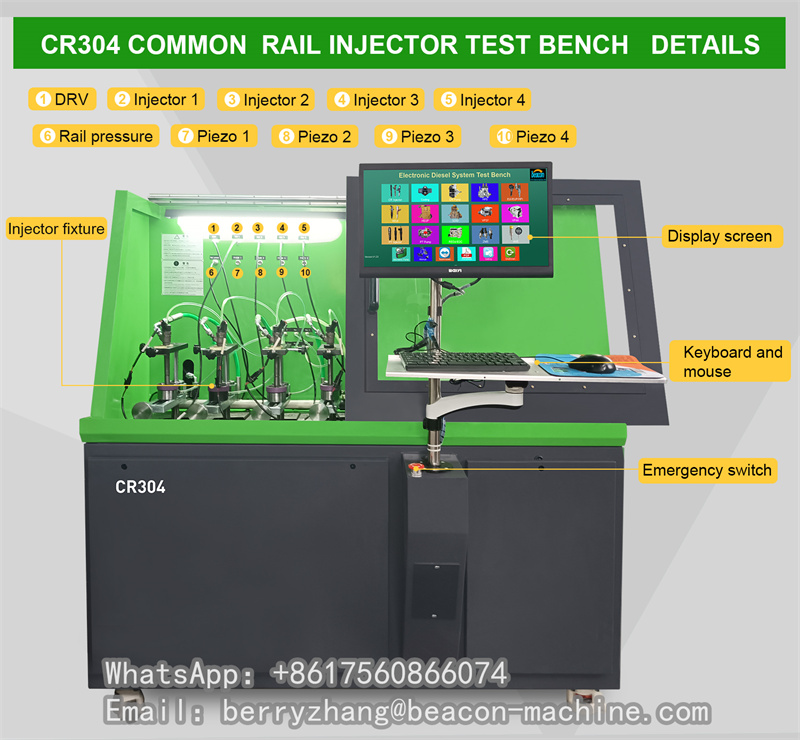

Key Features

• Industrial-grade touch screen control interface.
• High-pressure rail capable of handling up to 240MPa.
• Integrated reliable Bosch CP3 common rail pump.
• Robust design with a large 19L oil tank capacity.
