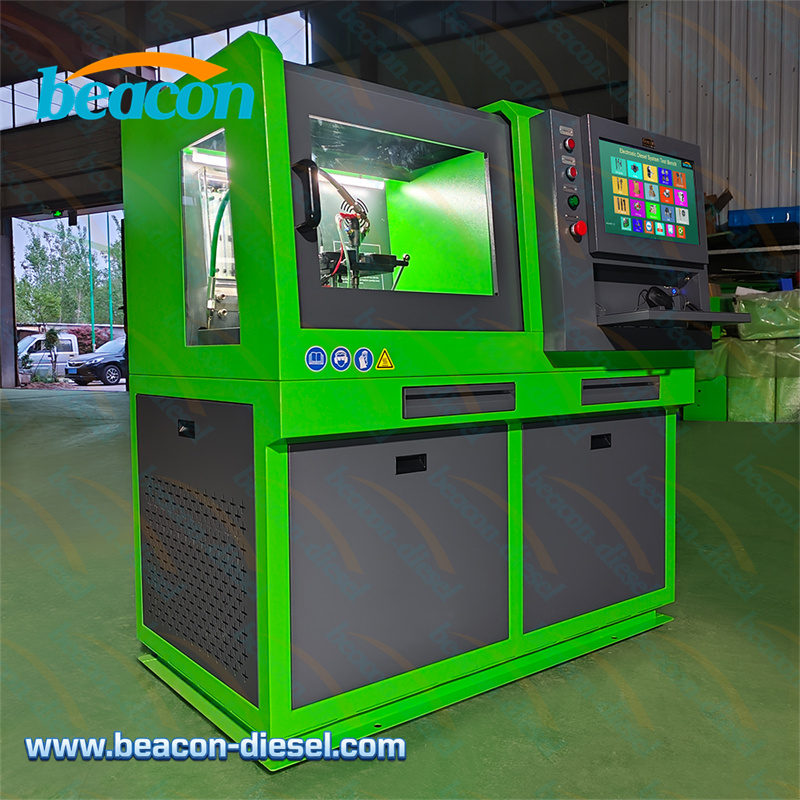

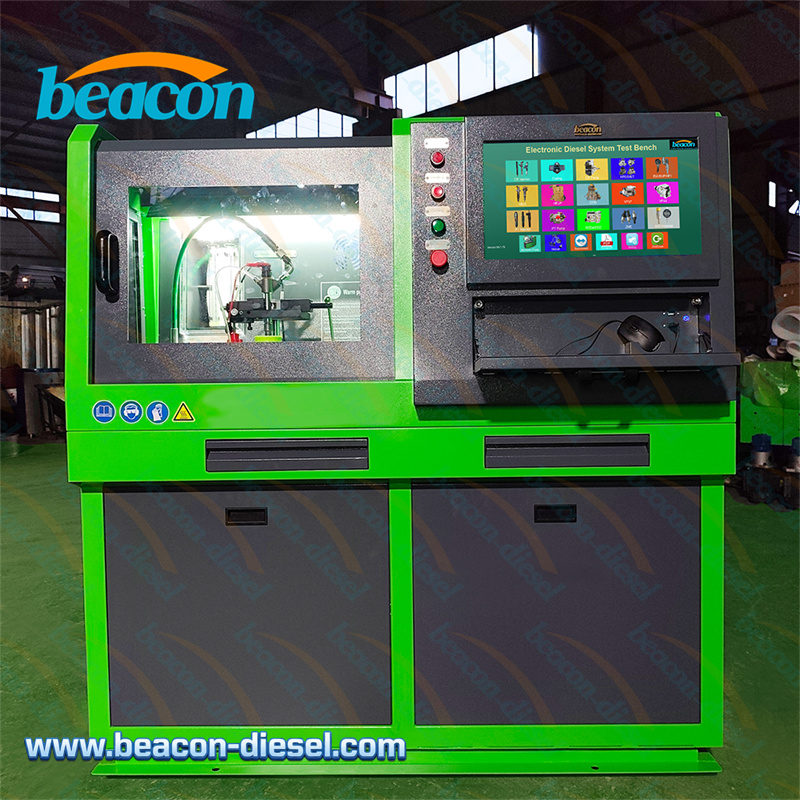

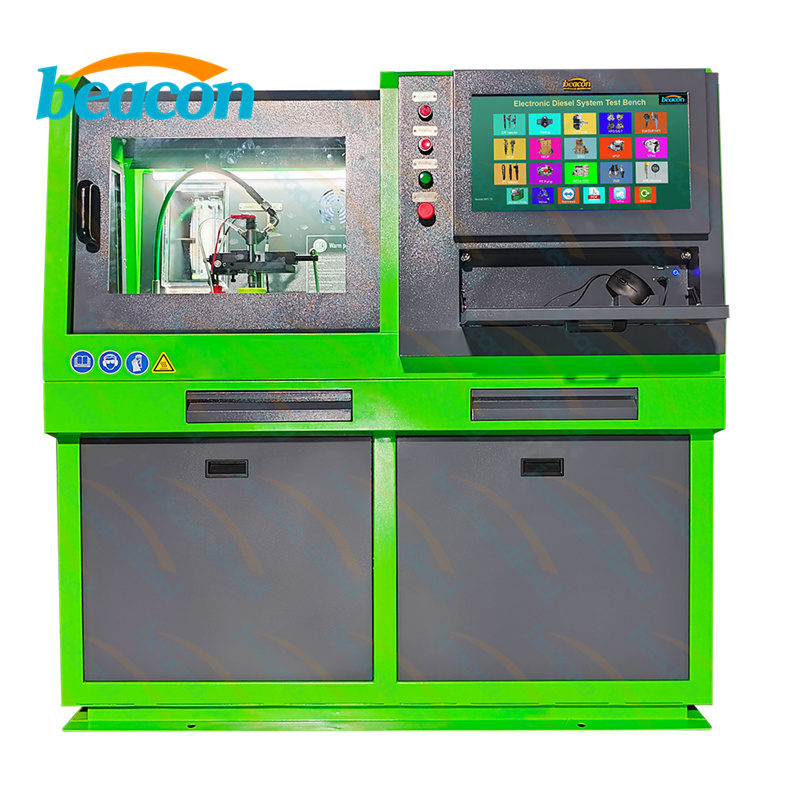

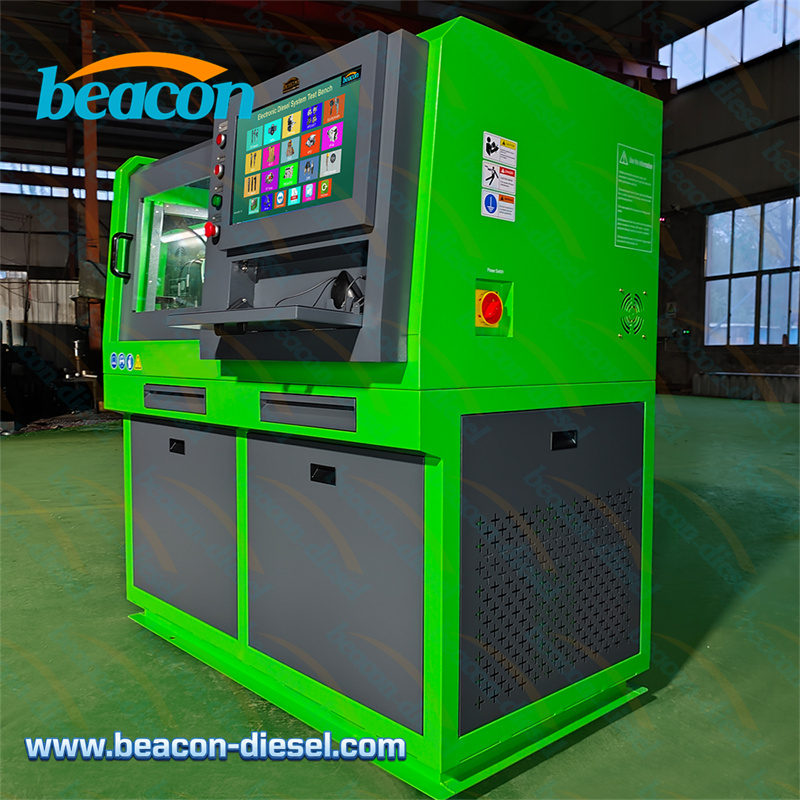

Beacon Machine CR317S Common Rail Fuel Injectior Test Bench

Need precise diesel diagnostics? The CR317S tests common rail and piezo injectors up to 2500Bar. Features BIP function, AHE testing, and coding for Bosch/Delphi/Denso. Includes 7700+ data plans.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

Unlock Precision Diagnostics and Revenue Growth

The CR317S Common Rail Injector Test Bench is designed to empower diesel repair workshops with OEM-level diagnostic capabilities. By providing highly accurate flow measurement and automated coding functions, this machine enables technicians to quickly identify faulty injectors, verify repairs with confidence, and expand their service offerings to cover the latest high-pressure diesel systems.

Key Features & Capabilities:

Comprehensive Testing: Fully supports Common Rail and Piezo injectors.
High-Pressure System: Capable of testing up to 2500Bar rail pressure.
Advanced Functions: Includes BIP (Begin of Injection Period) function and flow sensor measurement.
Injector Coding: Generates coding for Delphi, Bosch, Denso, and Siemens injectors.

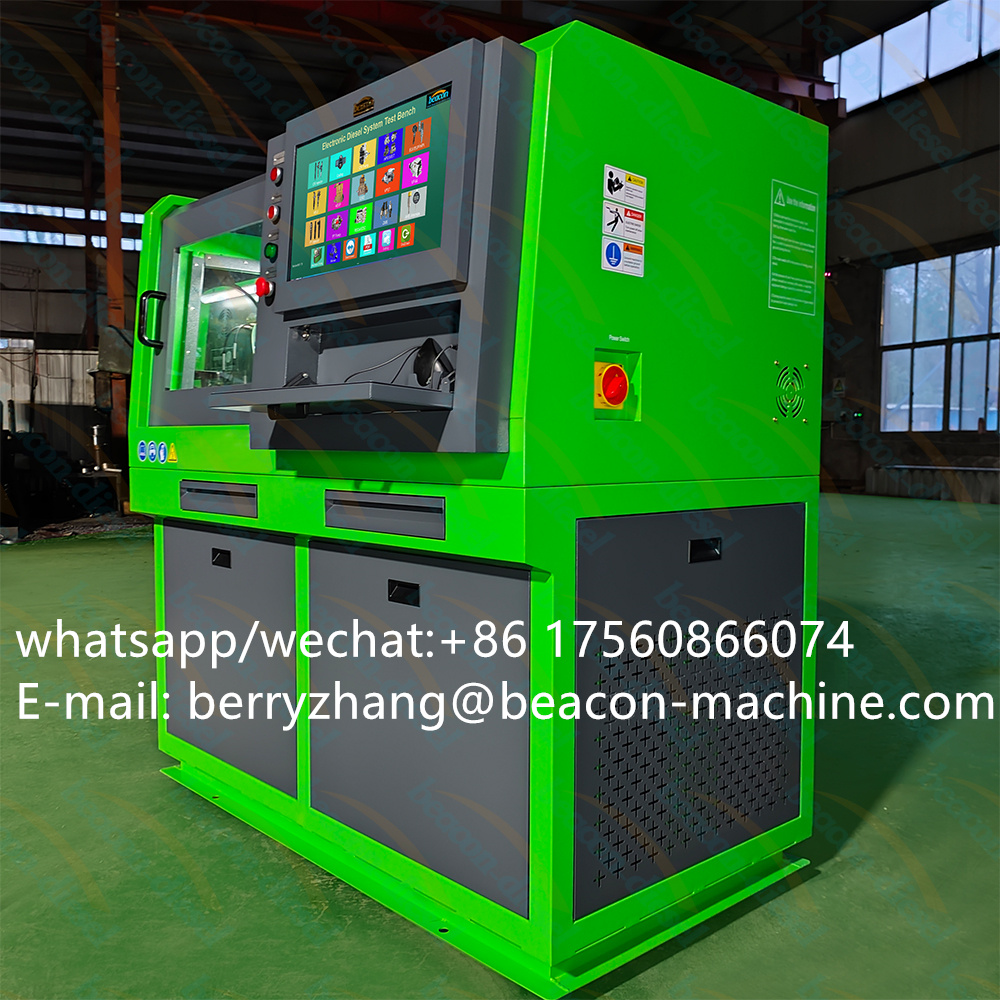

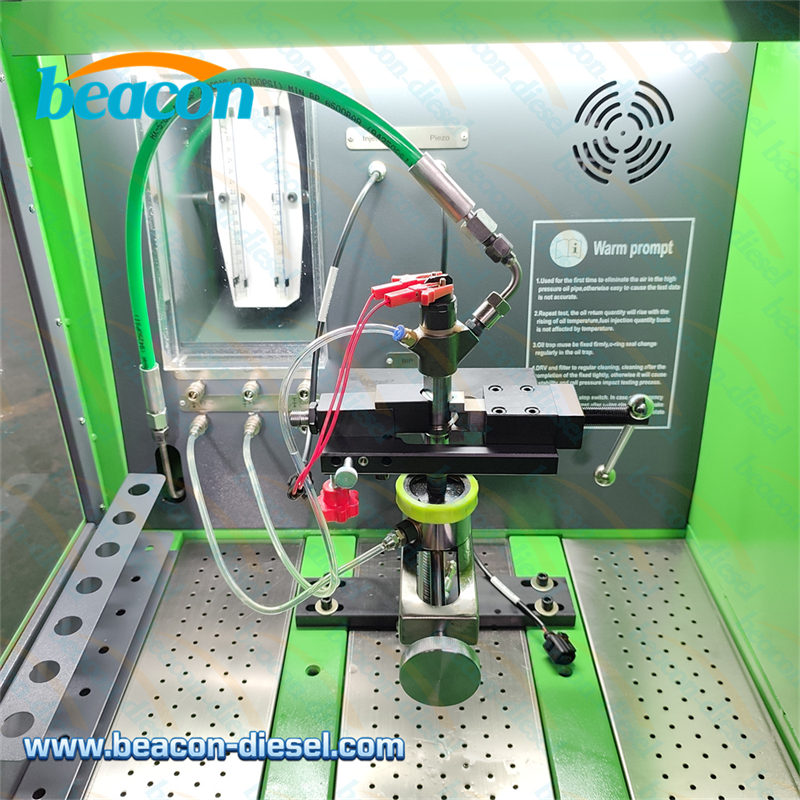

Hardware Design: Equipped with a motorized tipping cylinder for easy access and a protective safety guard.
Optional Upgrades:
- AHE injector dynamic stroke testing (with measuring tool).
- Simultaneous testing for 2 or 4 injectors (with or without flow sensors).
- Testing capabilities for Rail Pressure Sensors, DRV/HPV, and Solenoid Valves.

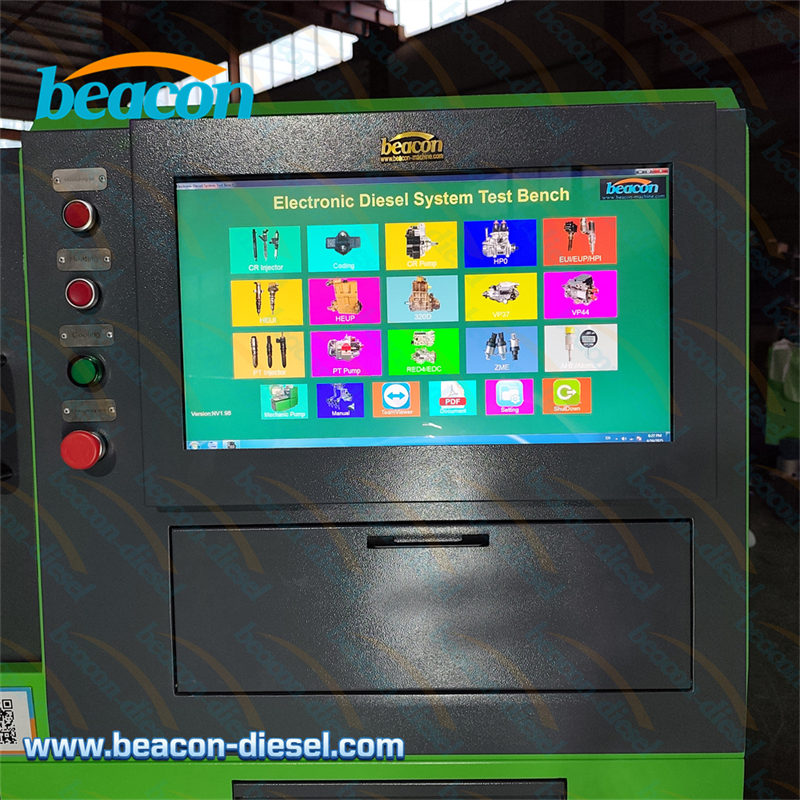

Intelligent Control System

The integrated electronic control system is the brain of the CR317S. It comes pre-loaded with over 7,700 injector data profiles, providing comprehensive test plans for all major brands. The user-friendly interface simplifies complex test sequences, ensuring accurate results every time.

Compare Models

Is the CR317S the right fit for your shop, or do you need a different configuration? Compare the technical specifications and capacity of this unit with the [CR1017 Common Rail Test Bench] to find your perfect match.

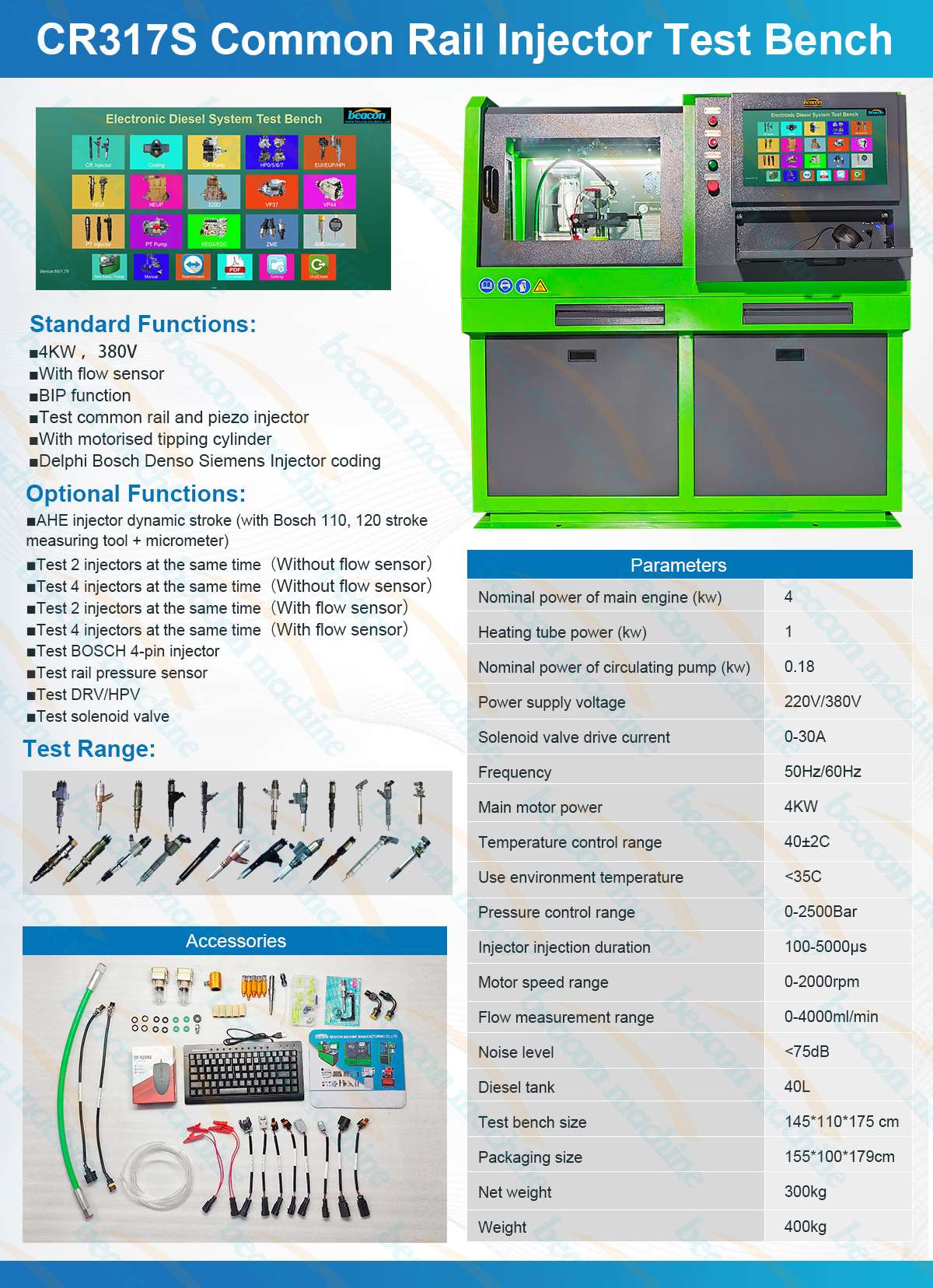

parameter

Parameter	Value
Model	CR317S
Main Engine Power	4KW
Power Supply Voltage	220V / 380V (50Hz/60Hz)
Pressure Control Range	0 - 2500 Bar
Flow Measurement Range	0 - 4000 ml/min
Injector Injection Duration	100 - 5000 μs
Motor Speed Range	0 - 2000 rpm
Temperature Control Range	40 ± 2°C
Noise Level	< 75 dB
Diesel Tank Capacity	40L
Machine Size	145 * 110 * 175 cm
Weight	400 kg
