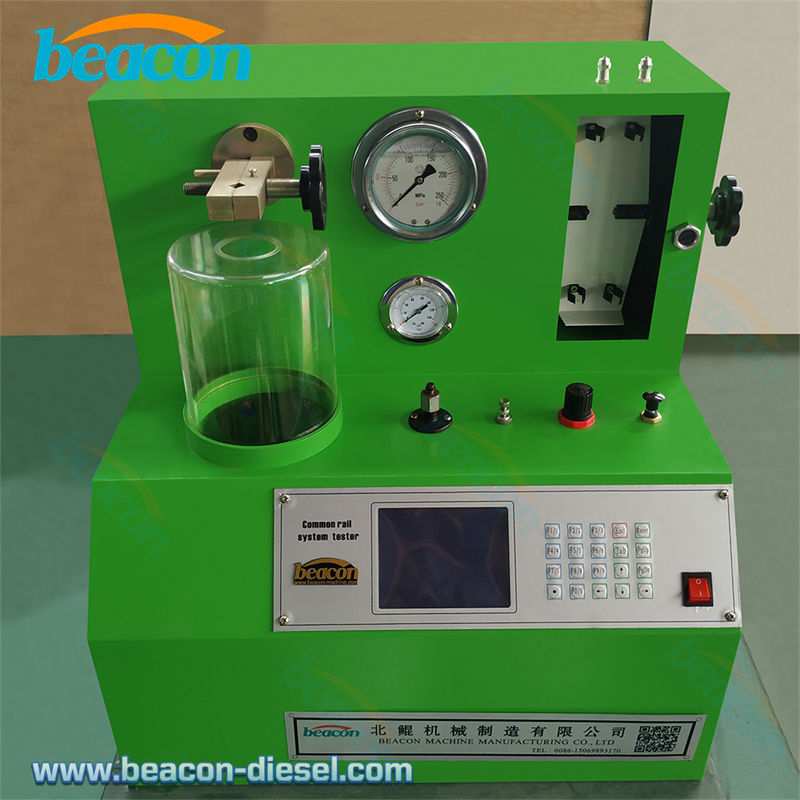

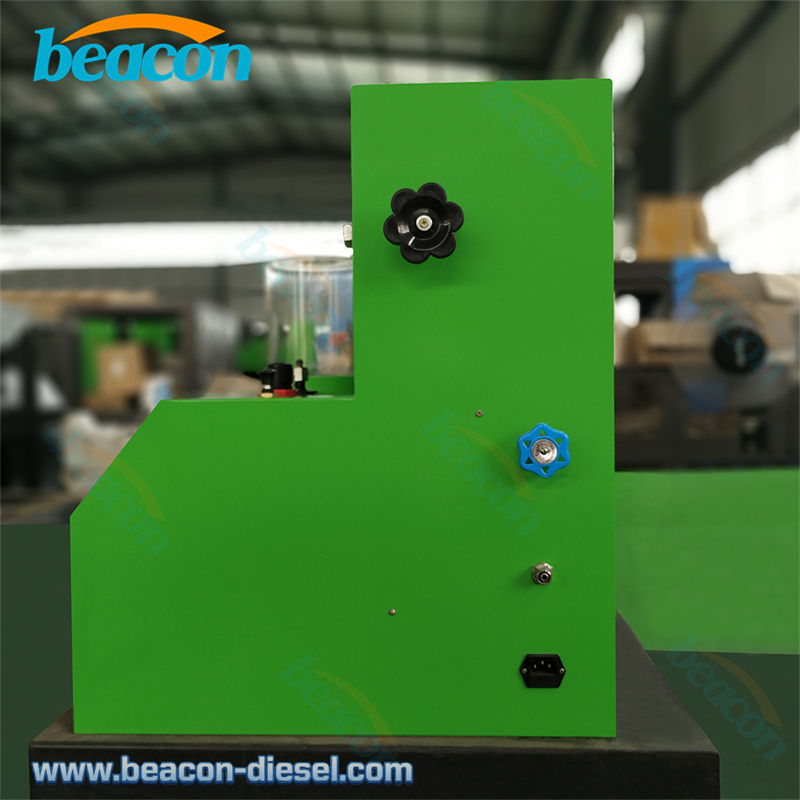

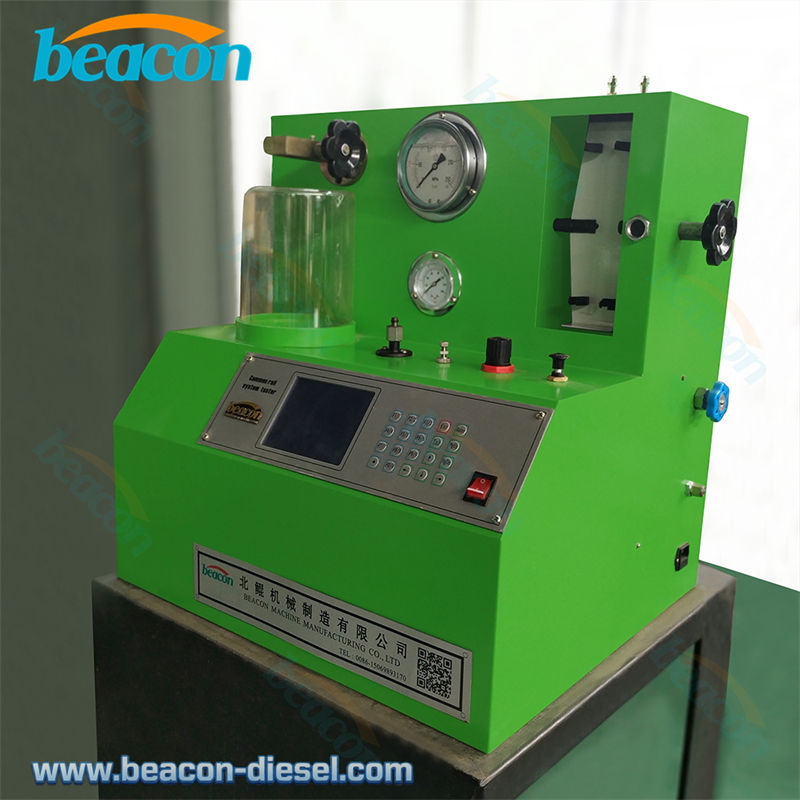

Beacon Machine PQ1000 Common rail injector tester test bench diesel injector calibration stand

Struggling with accurate diesel injector diagnostics? The PQ1000 offers precise testing up to 1800 bar and ultrasonic cleaning in one compact unit. Verify spray patterns, seal tightness, and flow rates to ensure optimal engine performance and reduce costly parts replacement.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

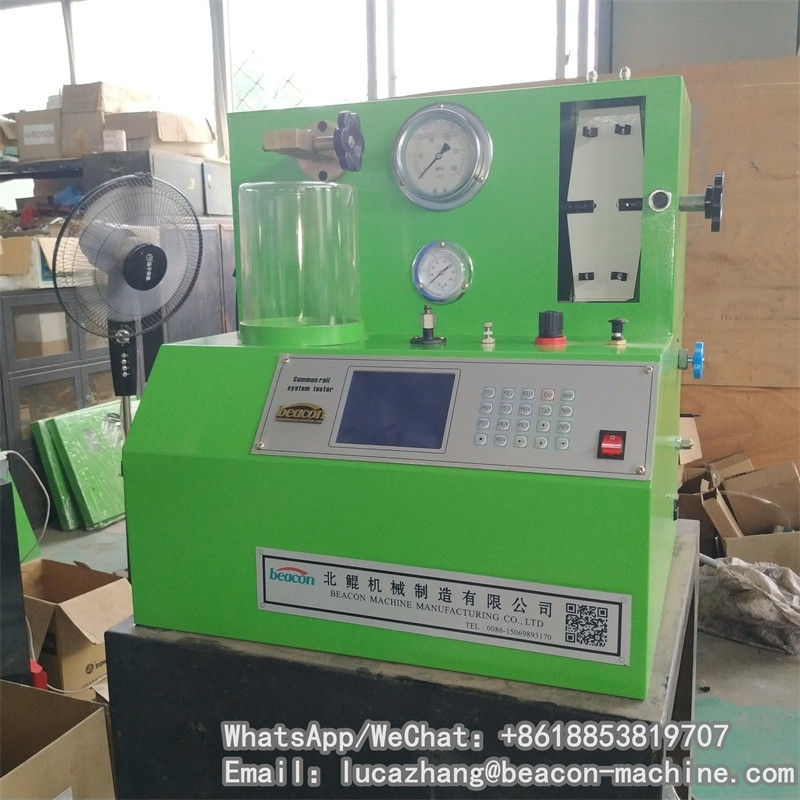

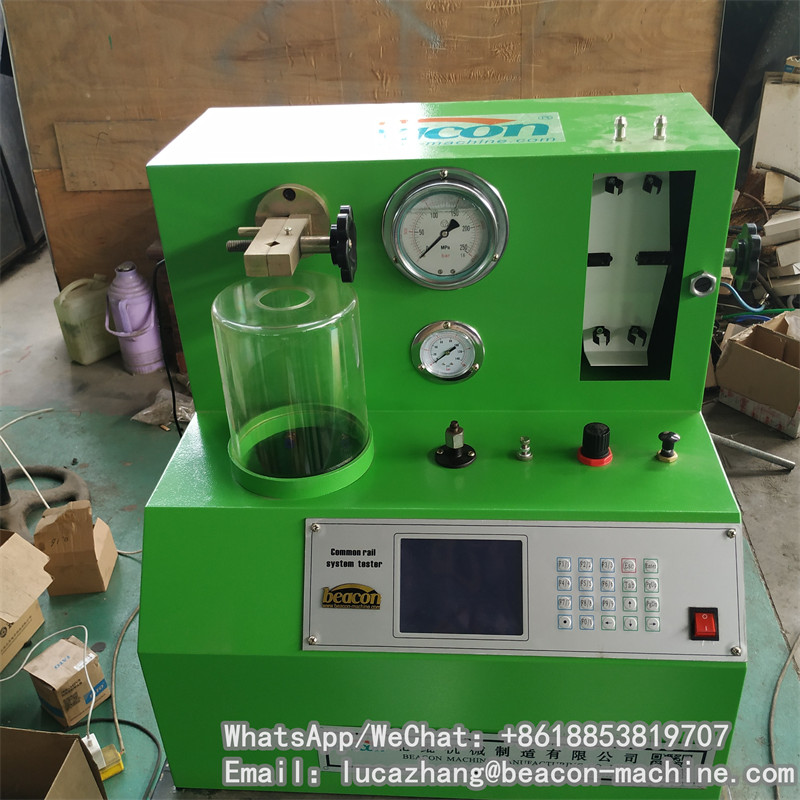

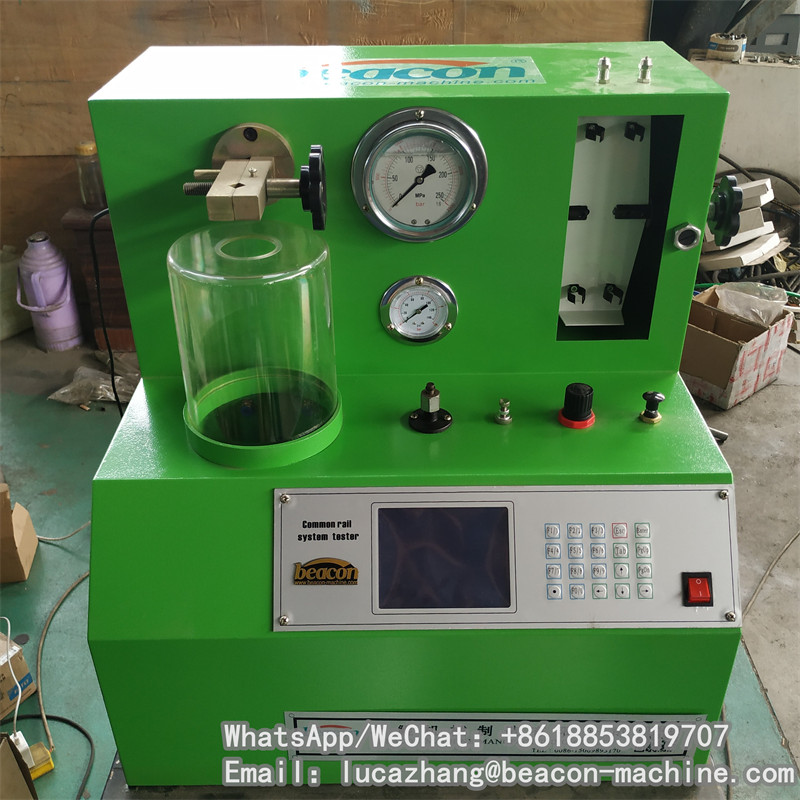

The PQ1000 Common Rail Injector Test Bench is a compact, high-performance diagnostic tool designed for modern diesel repair workshops.

Engineered to simulate the ECU signals for various injector brands (including Bosch, Denso, and Delphi), this machine allows technicians to precisely assess injector starting pressure, spray fog quality, oil range, and sealing integrity under pressures up to 1800 bar.

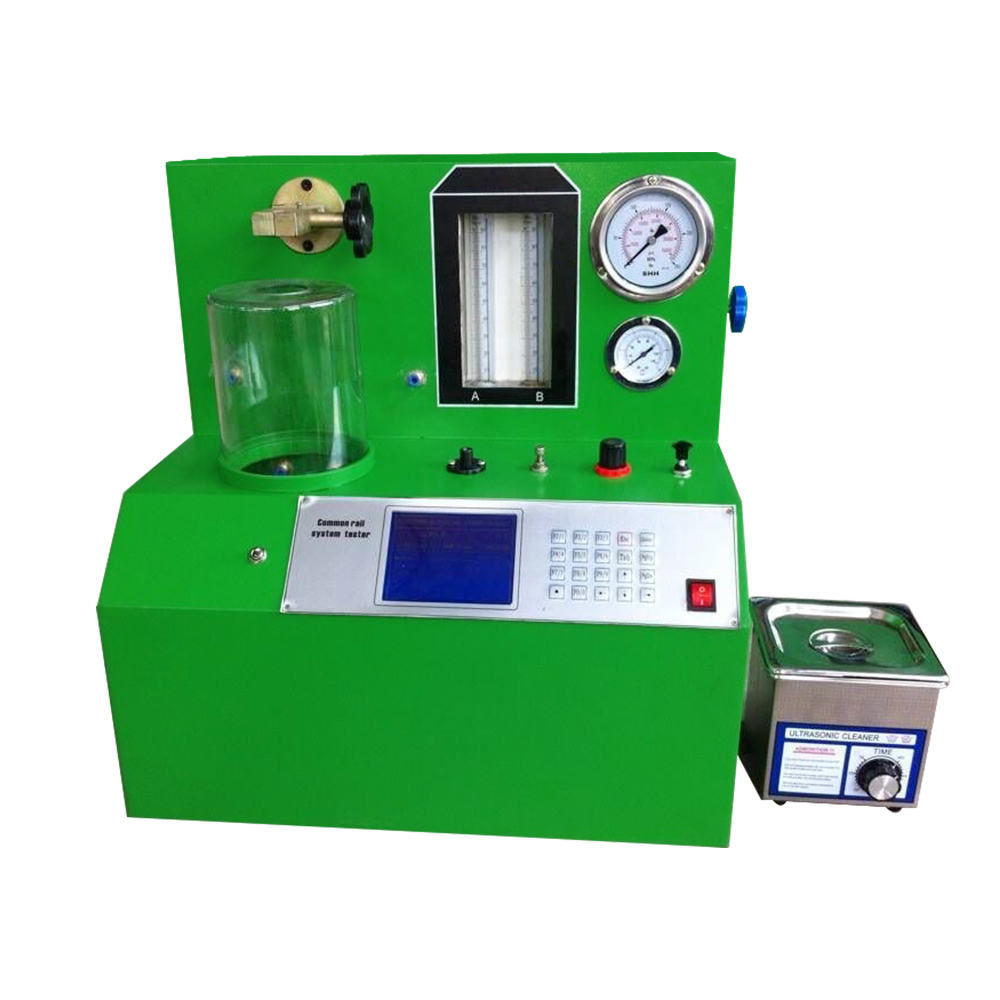

Beyond basic testing, the PQ1000 integrates an ultrasonic cleaning instrument, providing a dual solution that helps mechanics restore clogged injectors rather than simply replacing them, significantly saving costs for end-customers.

Features like the built-in fog dissipation device and two-grade filtration system ensure a clean, safe, and accurate testing environment.

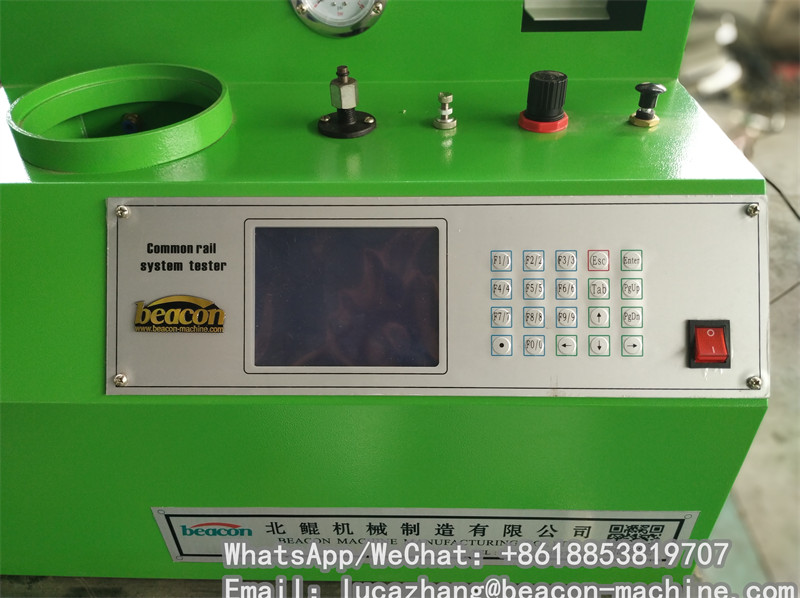

The user-friendly digital interface allows for the willful setting of parameters such as frequency, pulse width, and pressure, making it an indispensable tool for maintaining high standards in diesel fuel system repair.

parameter

Parameter	Specification
Model	PQ1000
Main Voltage	220V AC
Frequency	50/60 Hz
System Build-up Pressure	0-1800 bar (0-26100 psi)
Input System Pressure	0-10 bar (0-145 psi)
Fuel Tank Capacity	2 Liters
Testing Functions	Starting pressure, Spray quality, Seal test, Oil flow, Spray angle
Cleaning Function	Ultrasonic Cleaning Included
Control System	Digital Display with PID Settings
Adjustable Parameters	Frequency, Pulse width, Spray counts, Pressure
