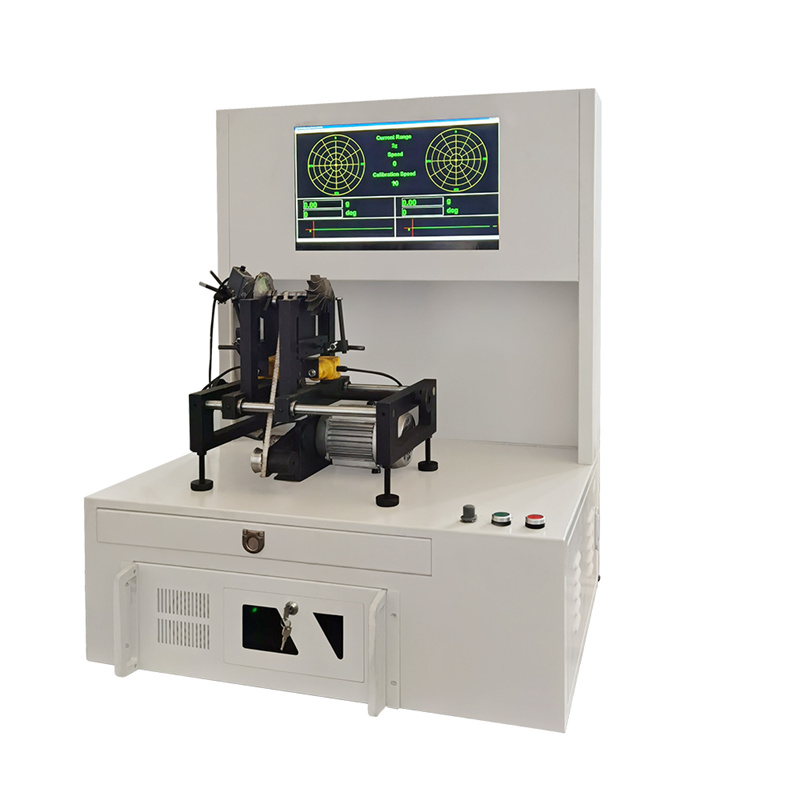

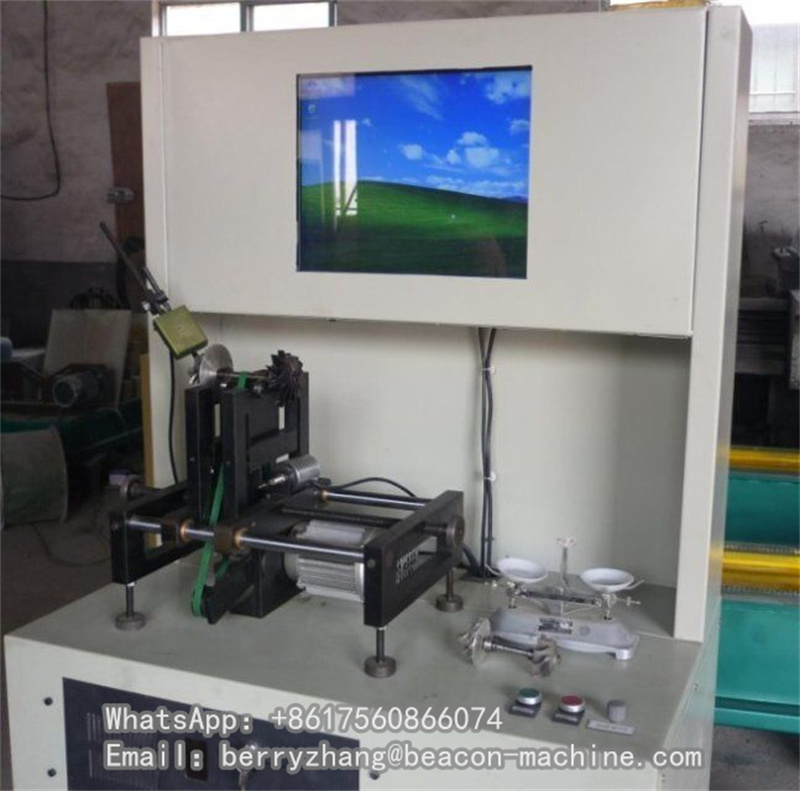

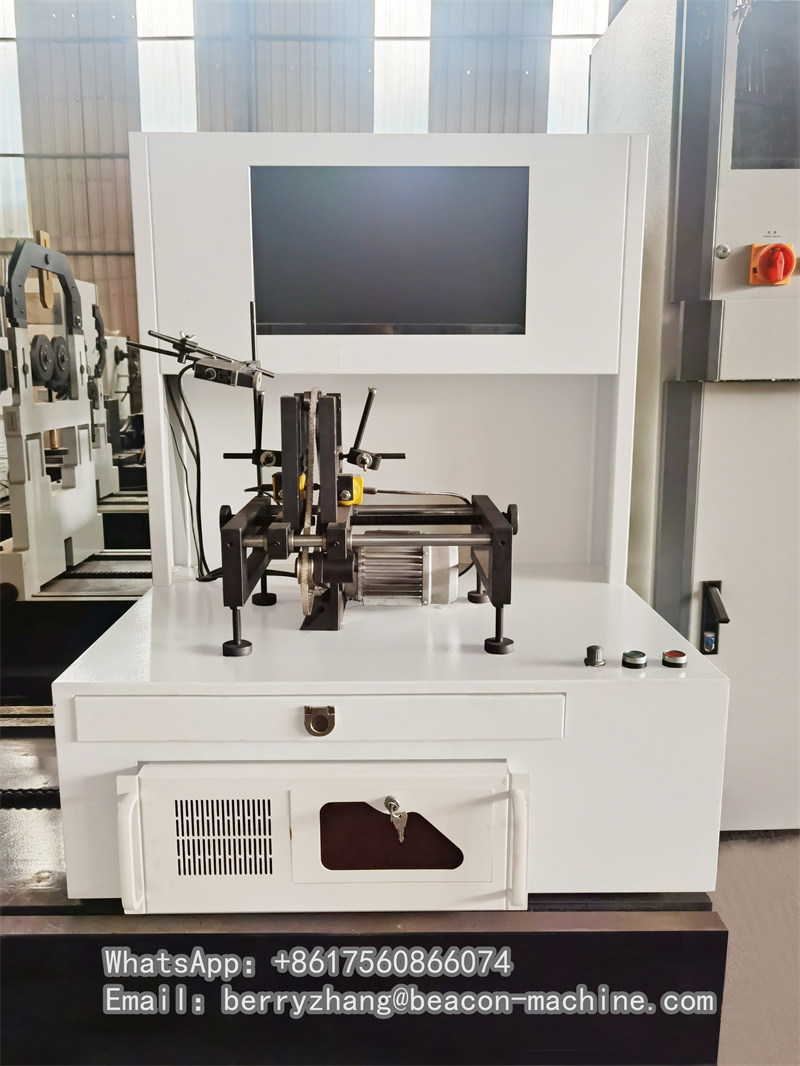

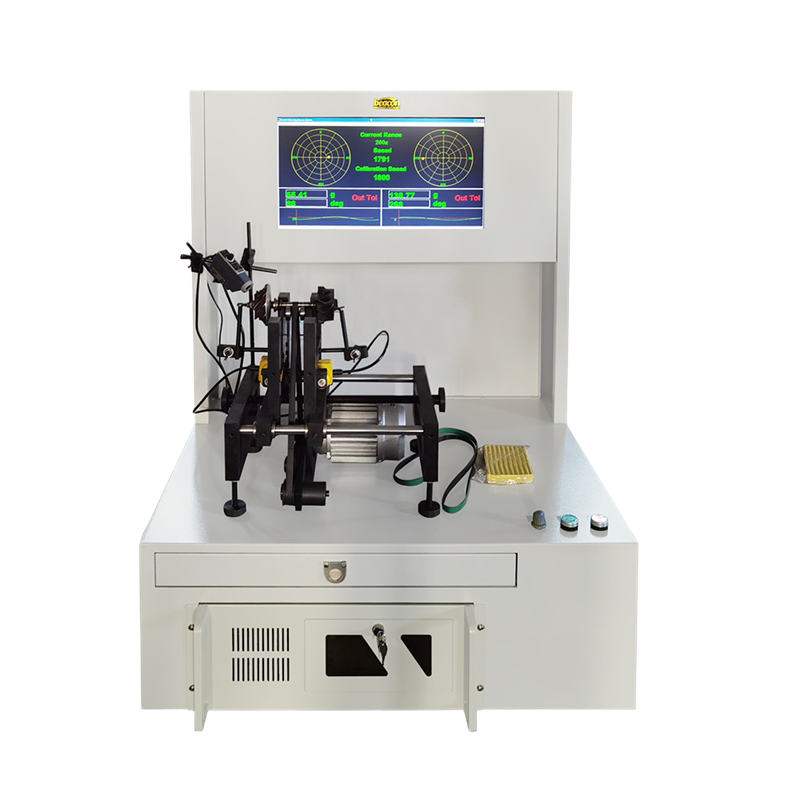

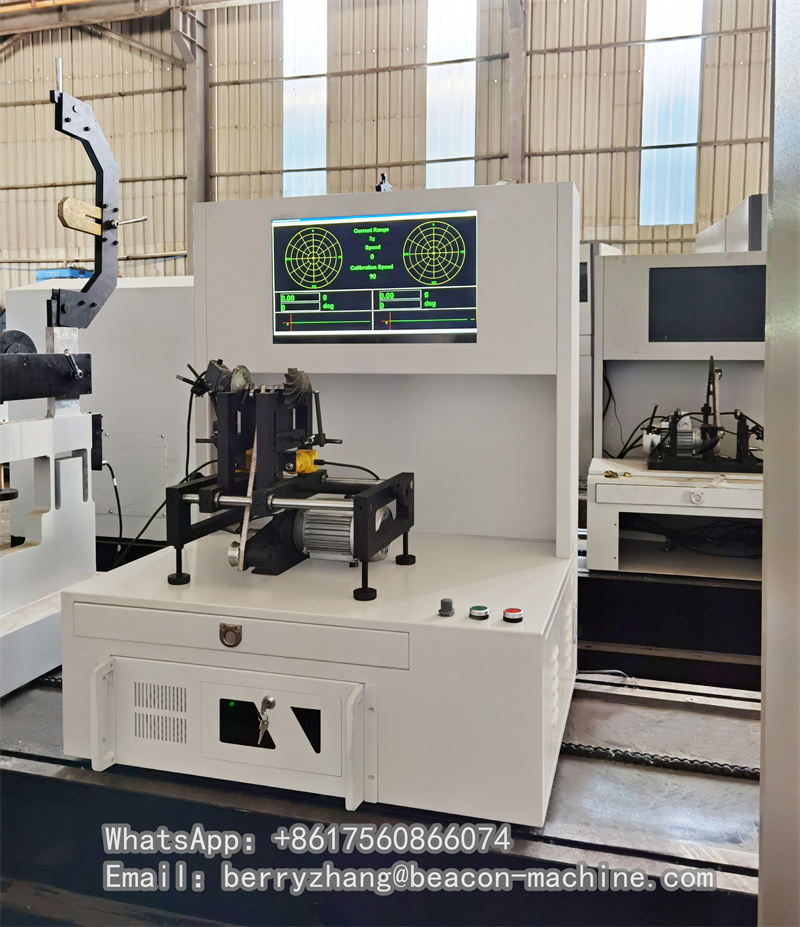

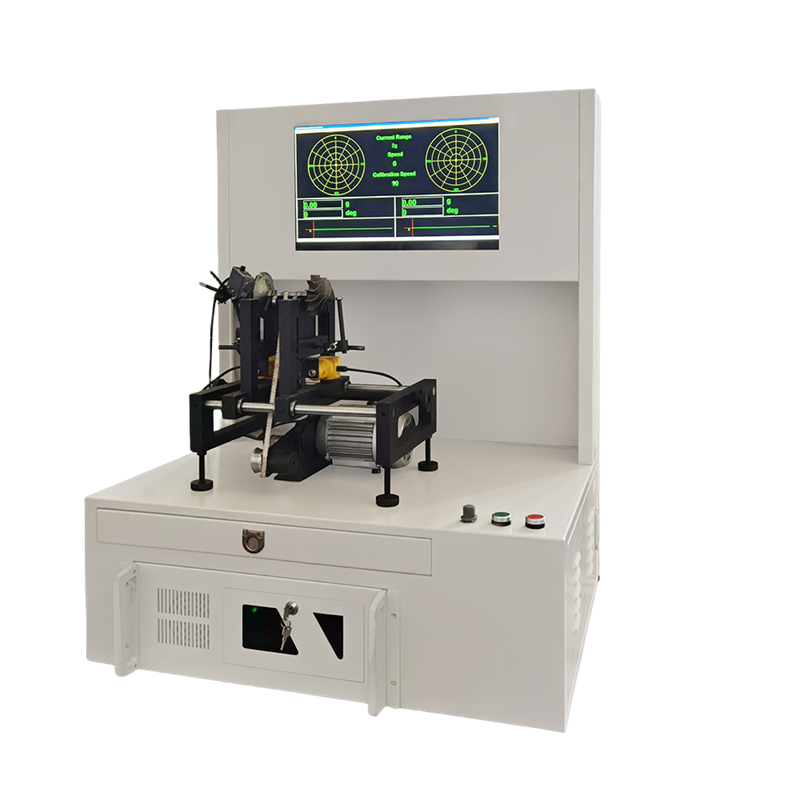

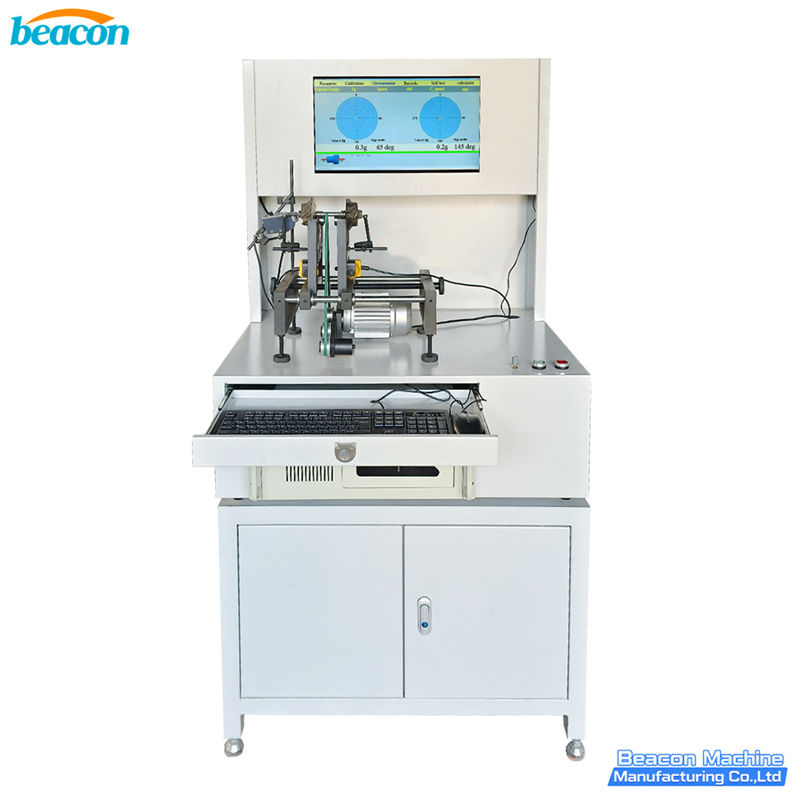

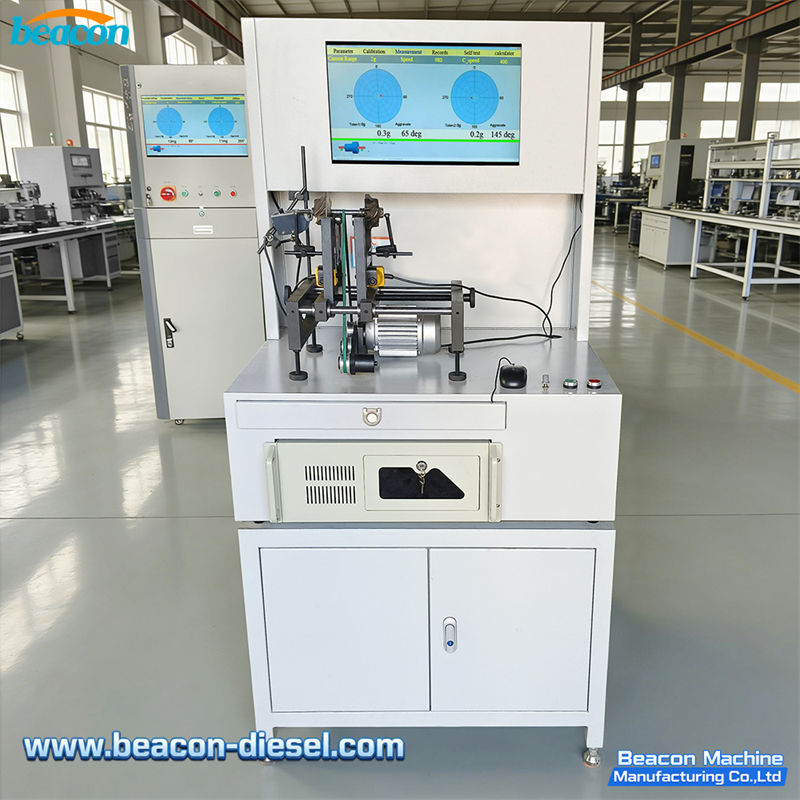

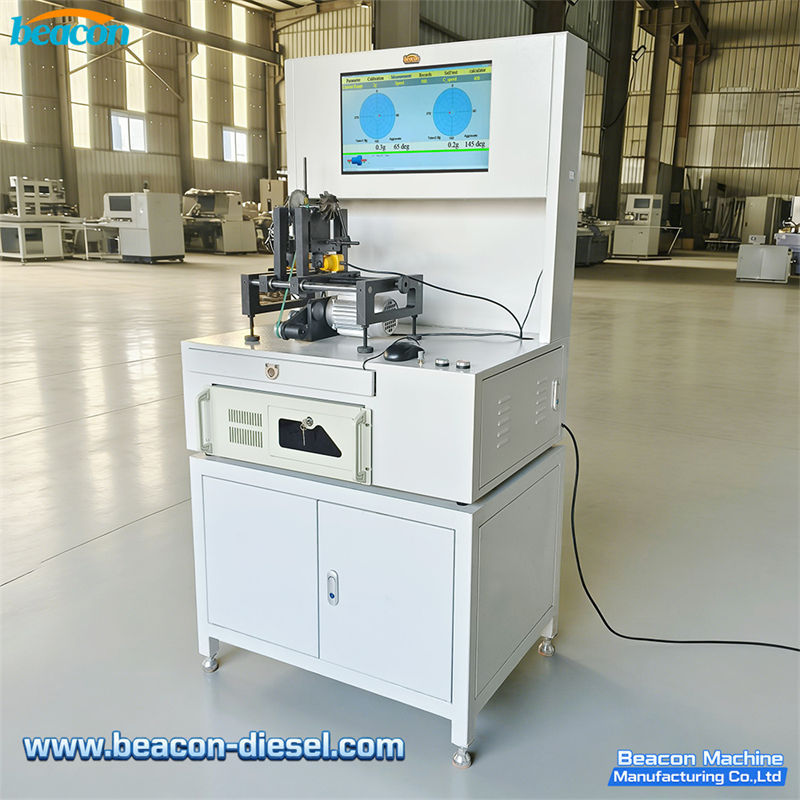

RYQ-3A Turbocharger Balancing Machine

The RYQ-3A offers high accuracy for balancing turbochargers and small mechanical parts (0.01-3kg). Features a soft-bearing belt drive, variable DC speed, and ergonomic computer display system.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

The RYQ-3A Turbocharger Balancing Machine is designed to meet the rigorous demands of modern turbocharger repair and manufacturing. By ensuring precise balancing of rotors ranging from 0.01 to 3 kg, this machine significantly reduces vibration and noise, thereby extending the lifespan of turbochargers and enhancing engine performance. It is an essential tool for workshops aiming to deliver OEM-quality balancing results.

Key Features:

High Measuring Accuracy: Ensures precise residual unbalance detection for optimal performance.

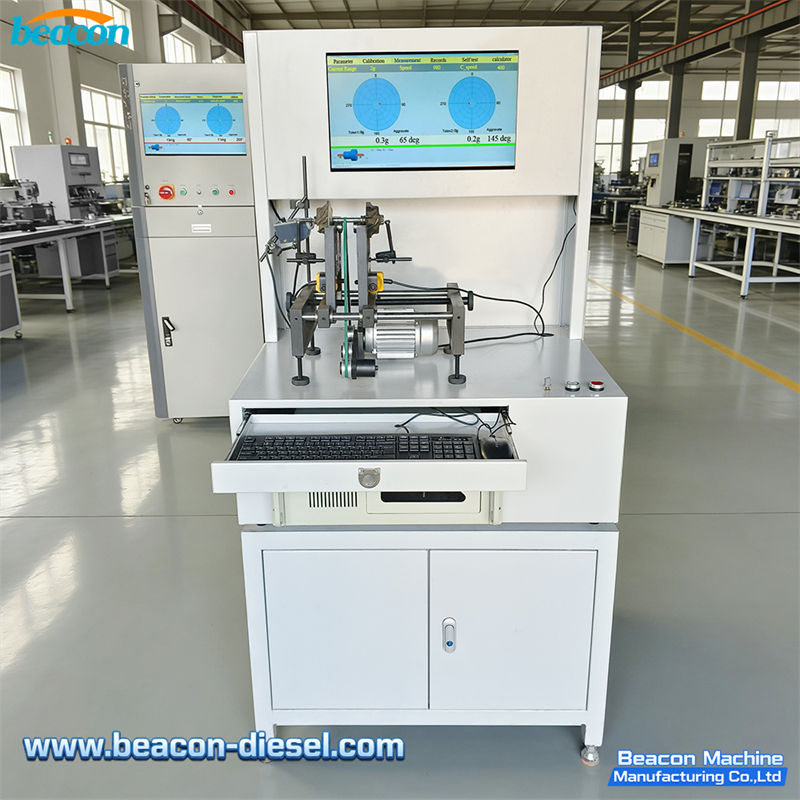

Ergonomic Design: Features a comfortable working height and integrated computer display for ease of use.

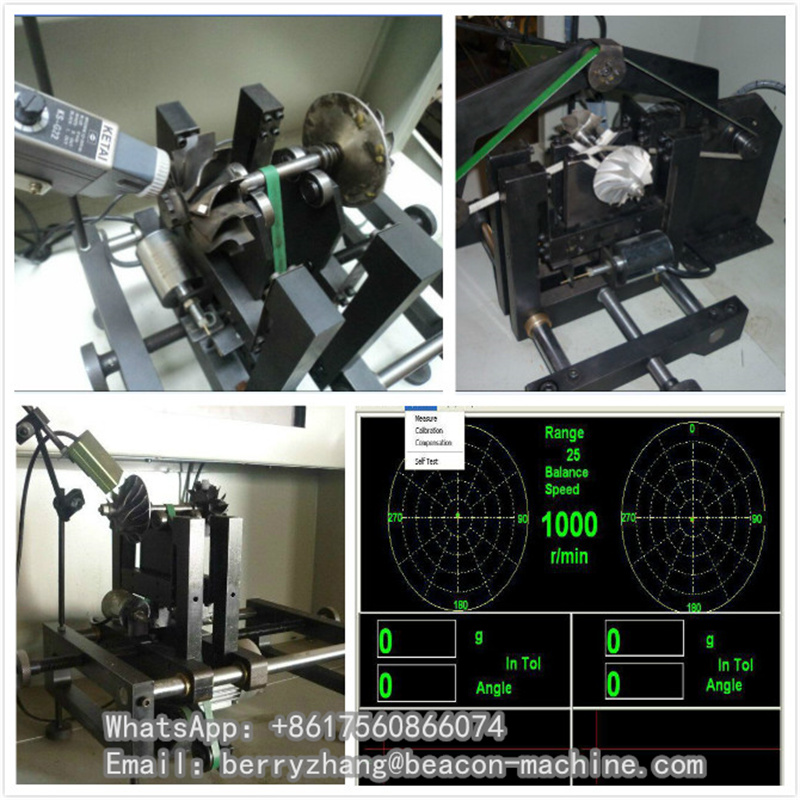

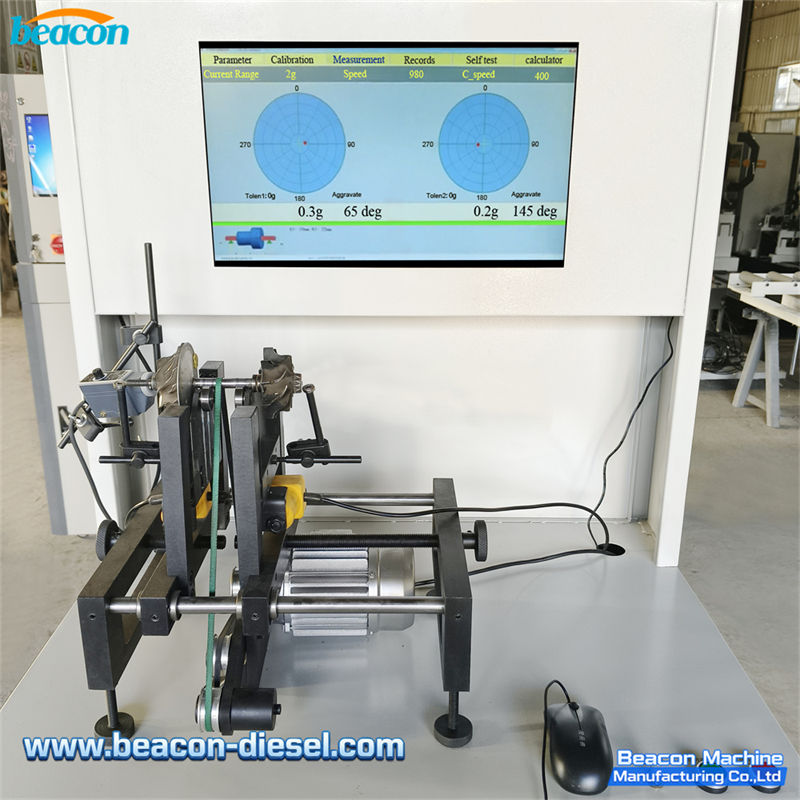

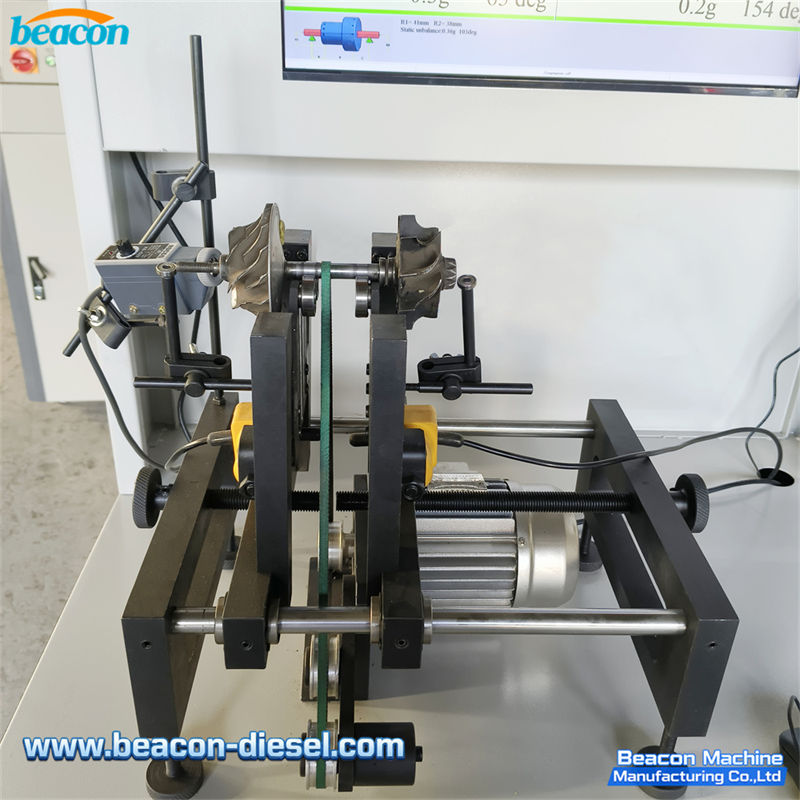

Soft-Bearing System: Equipped with a horizontal soft-bearing belt drive for accurate and stable measurements.
Variable Speed Control: Infinitely variable DC drive allows for flexible testing speeds between 400-10,000 r/min.
Versatile Application: Suitable for balancing various mechanical parts within the 0.01-3kg weight range.
Advanced Software: Measuring system with specialized balancing software for intuitive operation and data analysis.

parameter

Technical Parameters	Value
Mass of workpiece (kg)	0.01 - 3
Max diameter of workpiece (mm)	Φ350
Distance between two support bearings (mm)	30 - 450
Range of journal diameter (mm)	φ3 - 22
Balancing speed (r/mm)	400 - 10000
Min achievable residual unbalance (g.mm/kg)	≤ 0.5
Unbalance reduction ratio (%)	≥ 90
Drive power (kw)	0.09
Actual weight (kg)	120
Size (cm)	98 * 70 * 125
