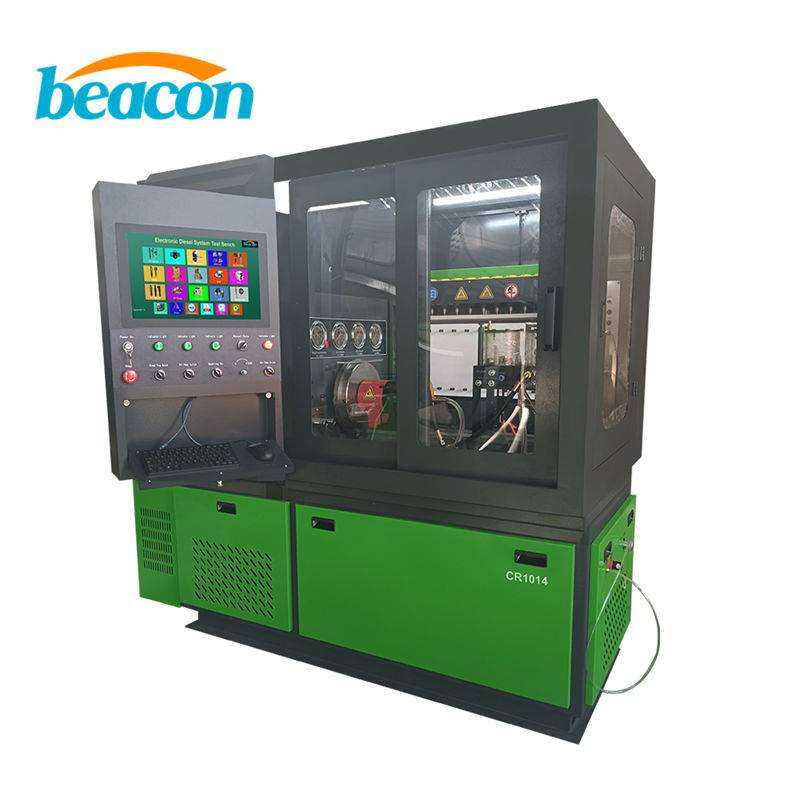

CR1014 Common Rail Diesel Fuel Injection Pump Test Bench Electronic Injector Testing Machine

The Beacon CR1014 is a comprehensive test bench for Common Rail injectors/pumps, HEUI, and EUI/EUP systems. Features 2600bar testing, coding for major brands, and 10,000+ built-in data plans.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

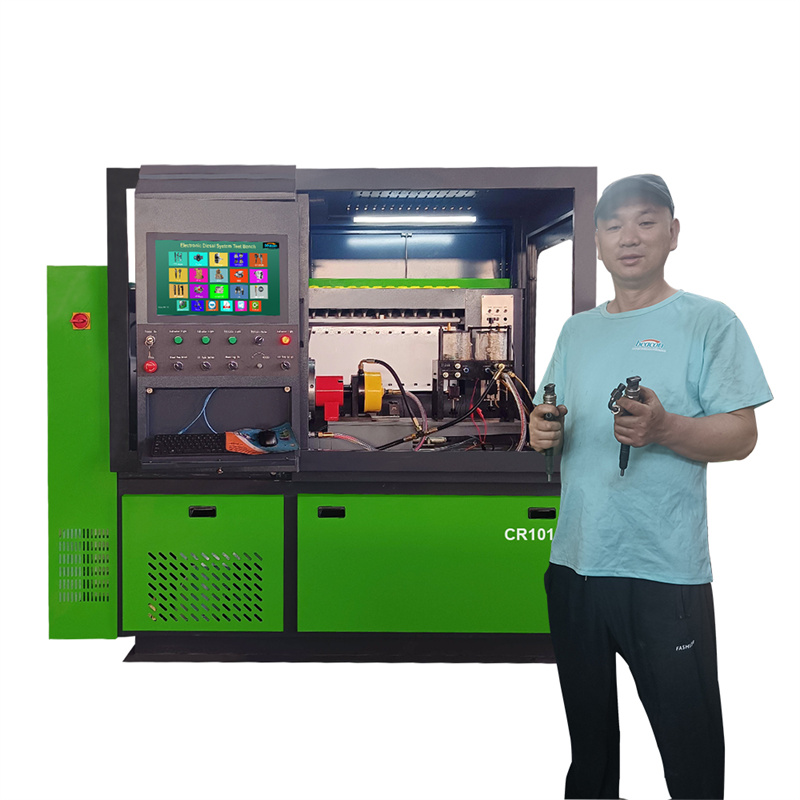

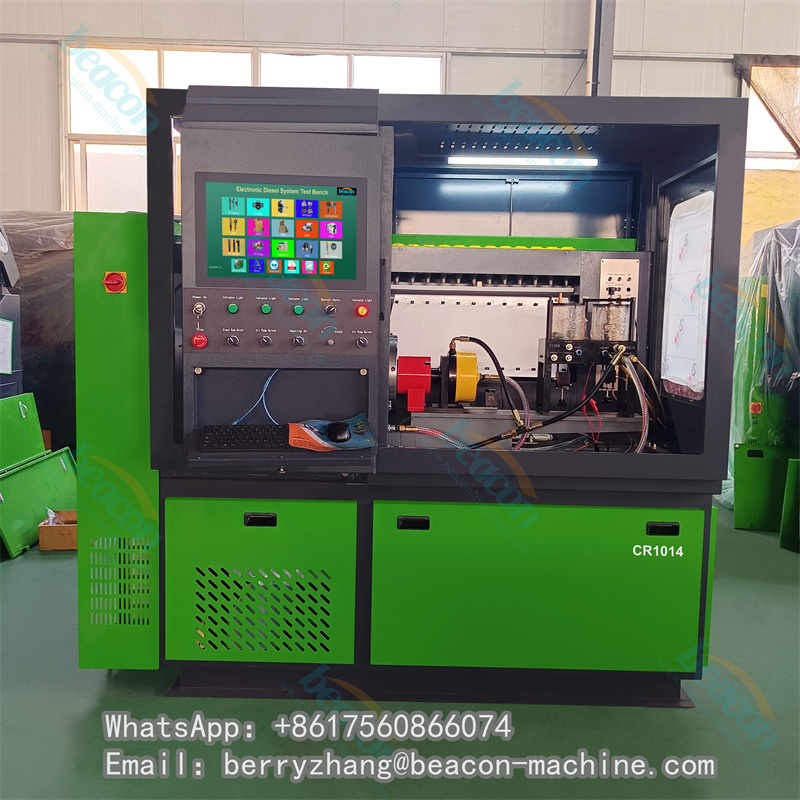

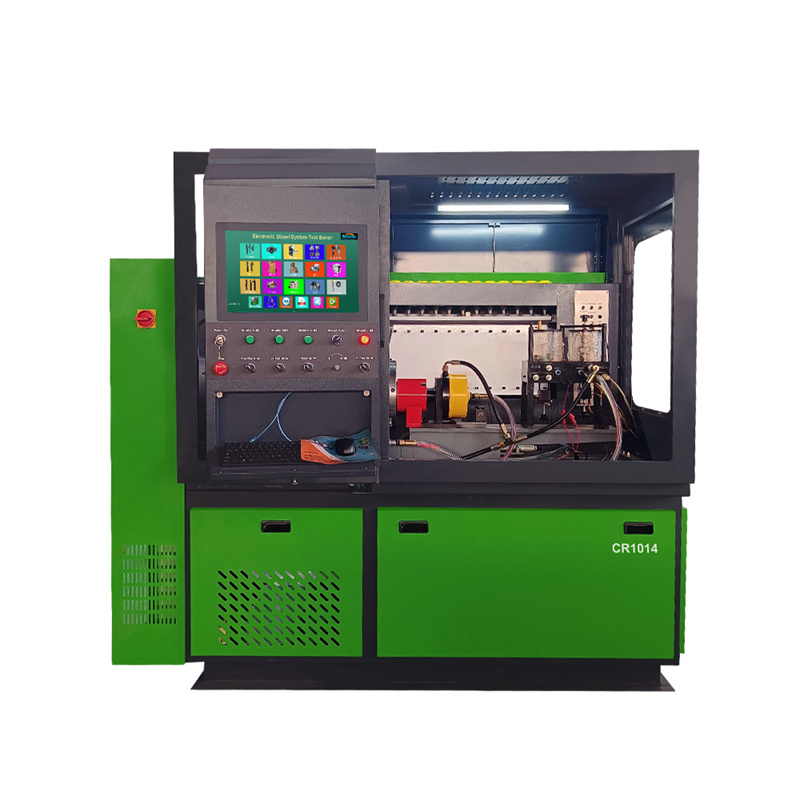

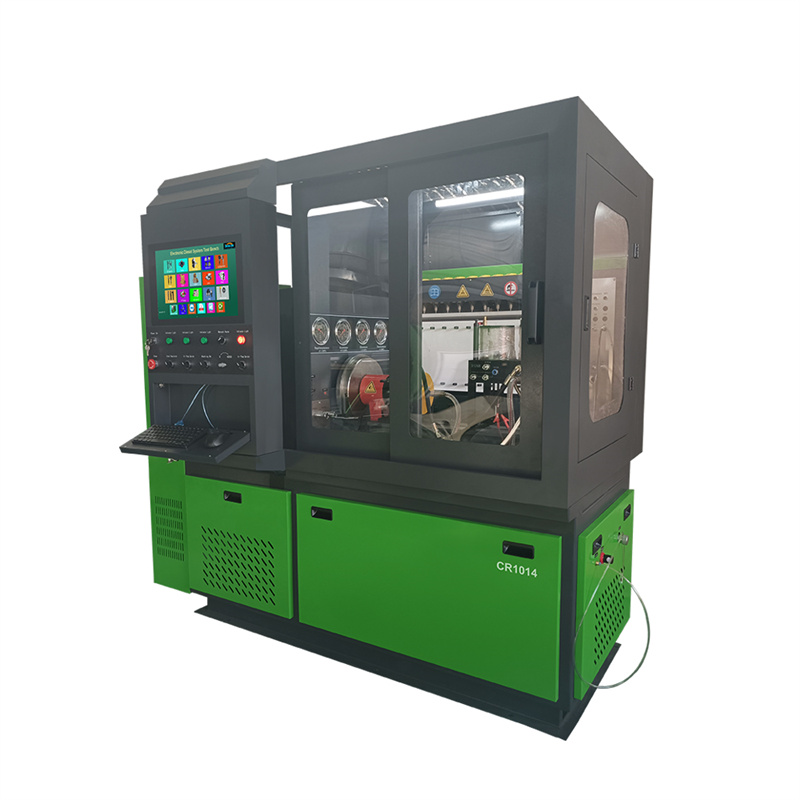

The Beacon CR1014 Multifunctional Test Bench is designed to be the ultimate workstation for modern diesel repair shops. By consolidating the testing capabilities of Common Rail, HEUI, and EUI/EUP systems into a single unit, this machine maximizes your workshop's service range and operational efficiency, allowing you to service virtually any diesel system from passenger cars to heavy-duty trucks.

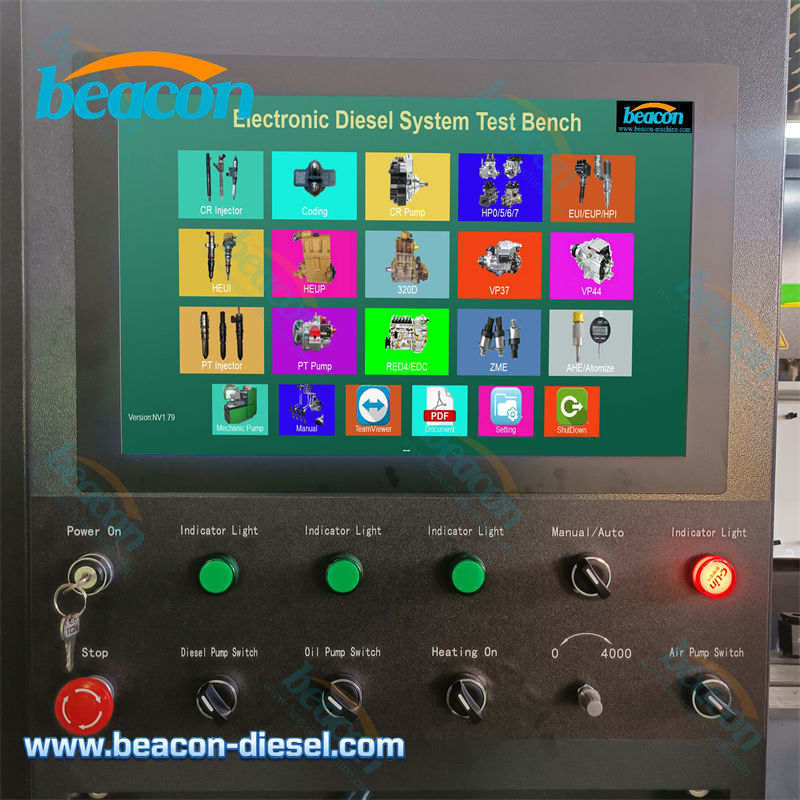

Control System & Data:

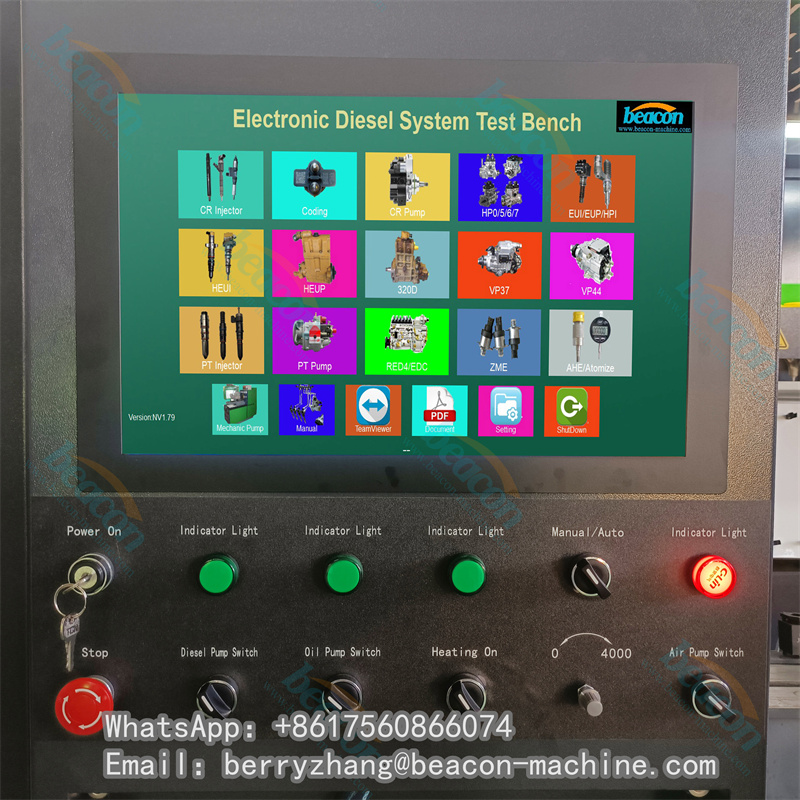

At the heart of the CR1014 is an intelligent control system featuring a comprehensive database. It includes over 10,000 specific data profiles for injectors, pumps, EUI EUP, and HEUI systems across all major brands (Bosch, Delphi, Denso, Siemens, CAT, Cummins), providing accurate, automated testing plans and reliable results.

Standard Capabilities:

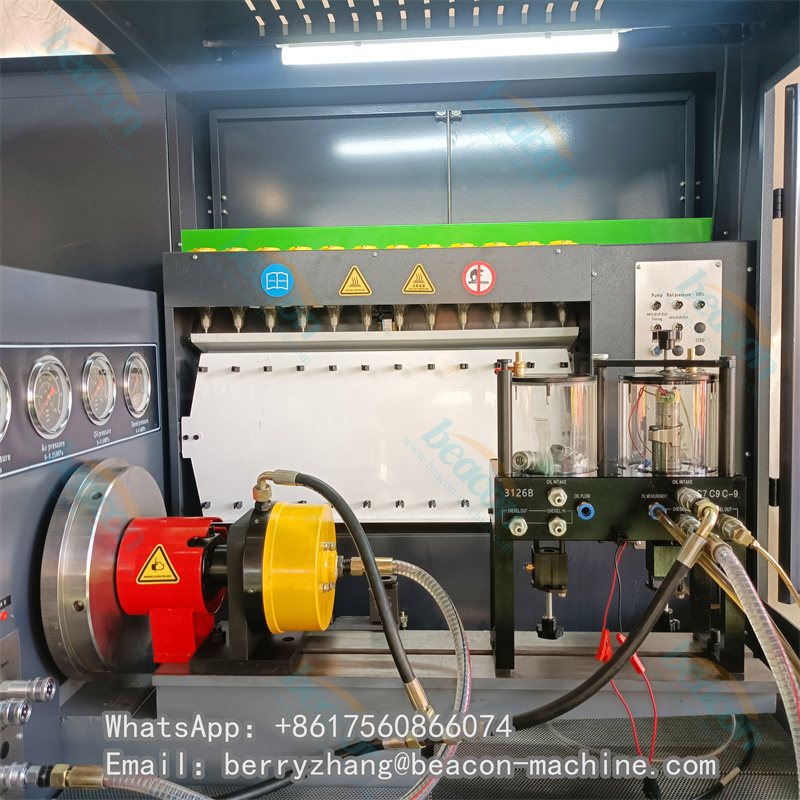

Common Rail: Tests common rail pumps, common rail injectors, and Piezo injectors.
Denso Specific: Specialized testing for Denso HP0 pumps.
HEUI System: Dual oil system HEUI testing.
EUI/EUP: Includes standard testing with 10 adaptors.
Coding: Generates coding for Delphi, Bosch, Denso, and Siemens injectors.

Optional Expansions:

Mechanical Pumps: Full support including Euro II accessories.
Extended EUI/EUP: Upgrade to 23 adaptors and various cam boxes (TU-C, TU-D, TU-E).
Heavy Duty & Specialized: Fixtures for Old/New 3412 ISUZU, FORD 6.0/CAT 3408 injectors.
Advanced Pump Tests: CAT320D pump, CP4 pump, RED4, VP37, VP44, and Cummins PT/HPI/X15 actuators.

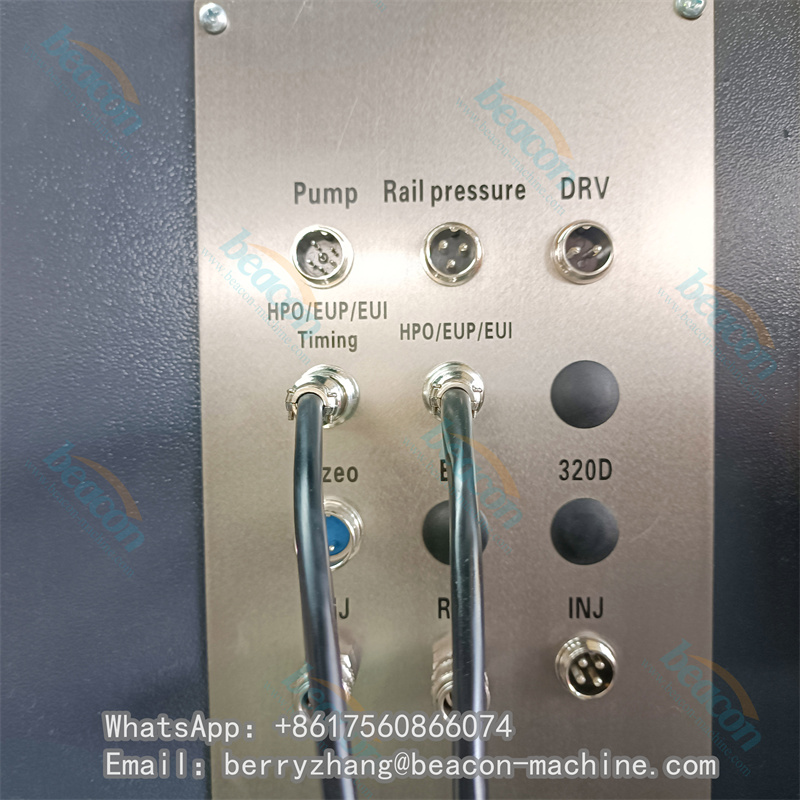

Sensors & Valves: ZME measurement, Rail pressure sensor test, DRV/HPV test, Solenoid valve test.
Functionality: AHE dynamic stroke, BIP function, and simultaneous testing for 2/4/6/8 injectors.

Interested in seeing how this compares to other models? View our comparison with the [CR919 Test Bench] to choose the right comprehensive solution for your shop.

parameter

Item	Parameter
Model	CR1014 Multifunctional Test Bench
Output Power	11KW / 15KW / 18.5KW / 22KW
Speed Range	0-4000 RPM
Speed Control Mode	Frequency converter
Power Supply	380V (3-phase) / 220V (3-phase) / 220V (single phase)

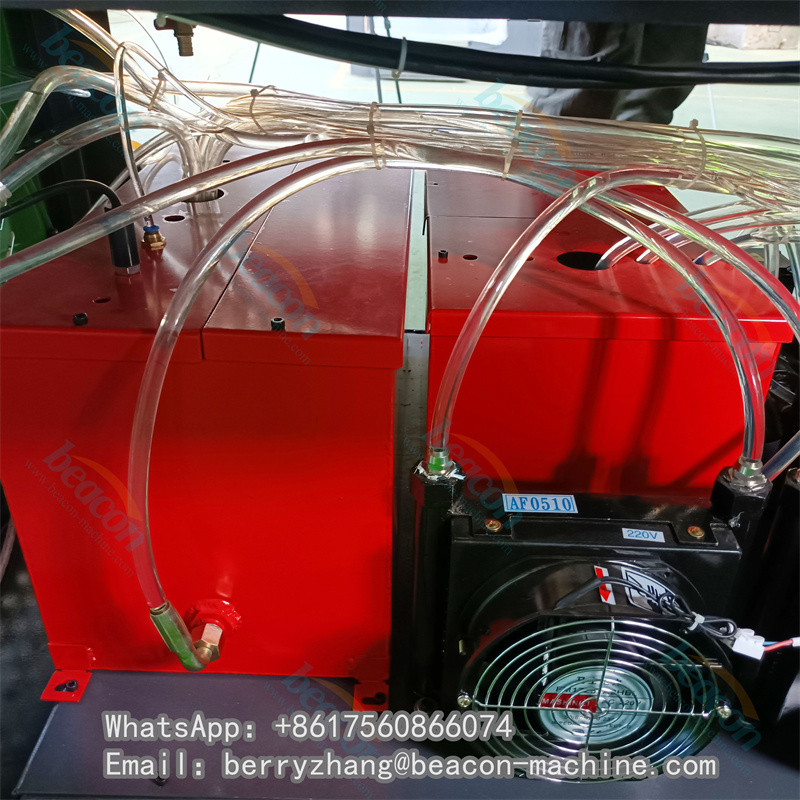

Cooling System	Air conditioning units strong cooling
Rail Pressure	0-2600 bar
Diesel Low Pressure	0-25 bar
Flow Sensor	3 pcs
Diesel Tank	40L (1 piece)
Engine Oil Tank	40L (1 piece)
Fuel Temperature Control	40 ± 2°C
Package Size	207 * 125 * 215 cm
Net Size	198 * 113 * 195 cm
Gross/Net Weight	1000 / 850 kg
