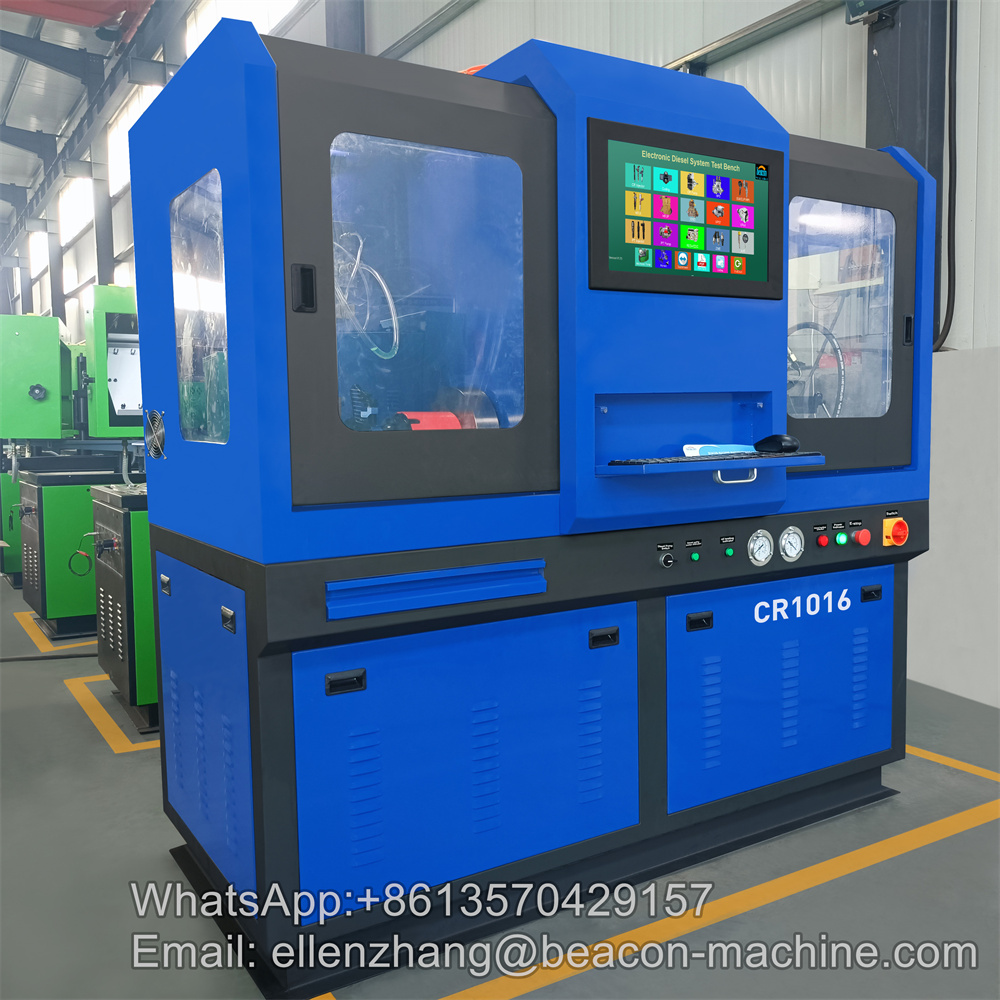

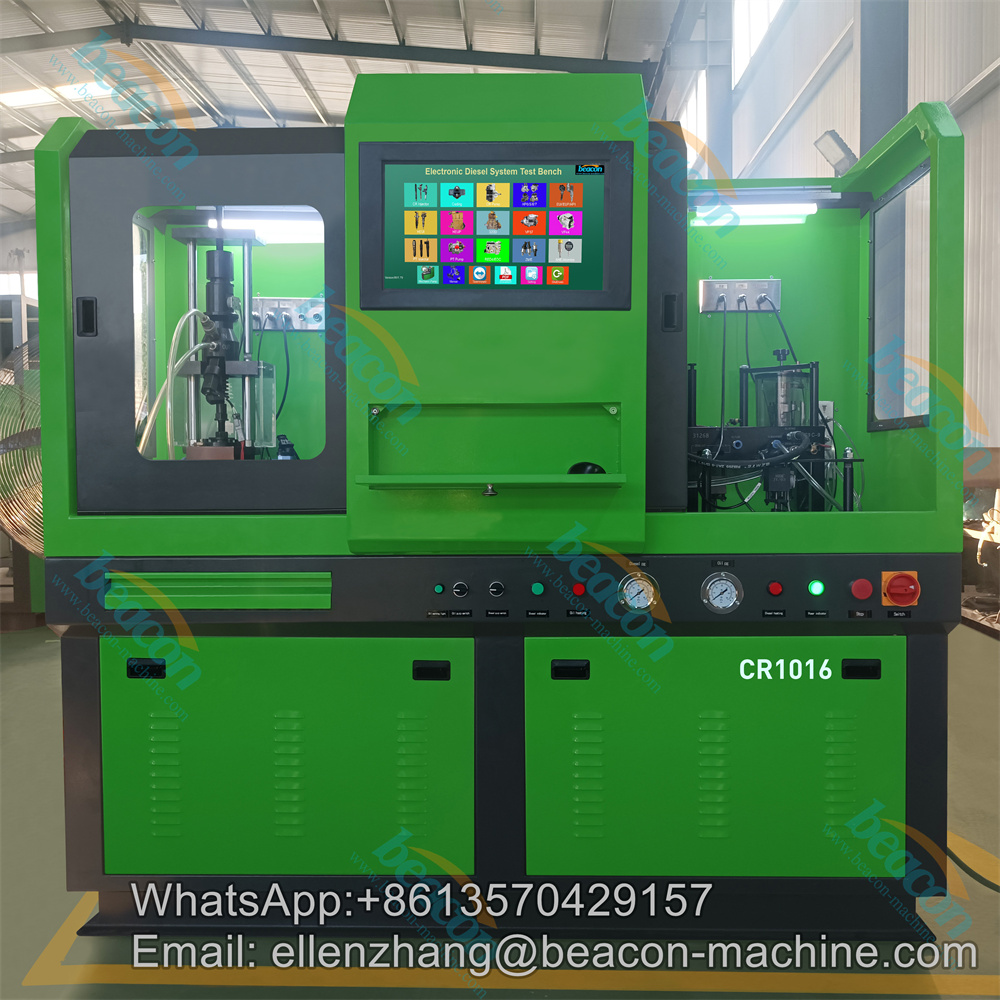

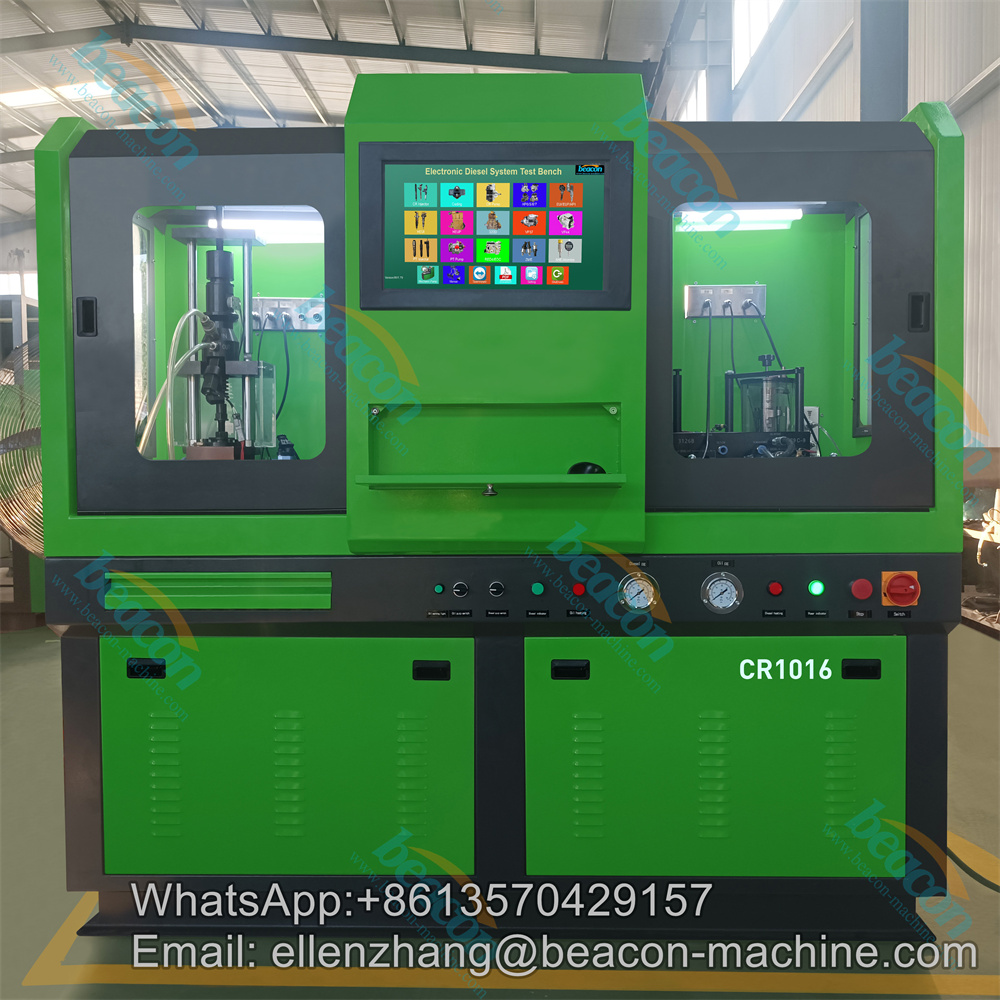

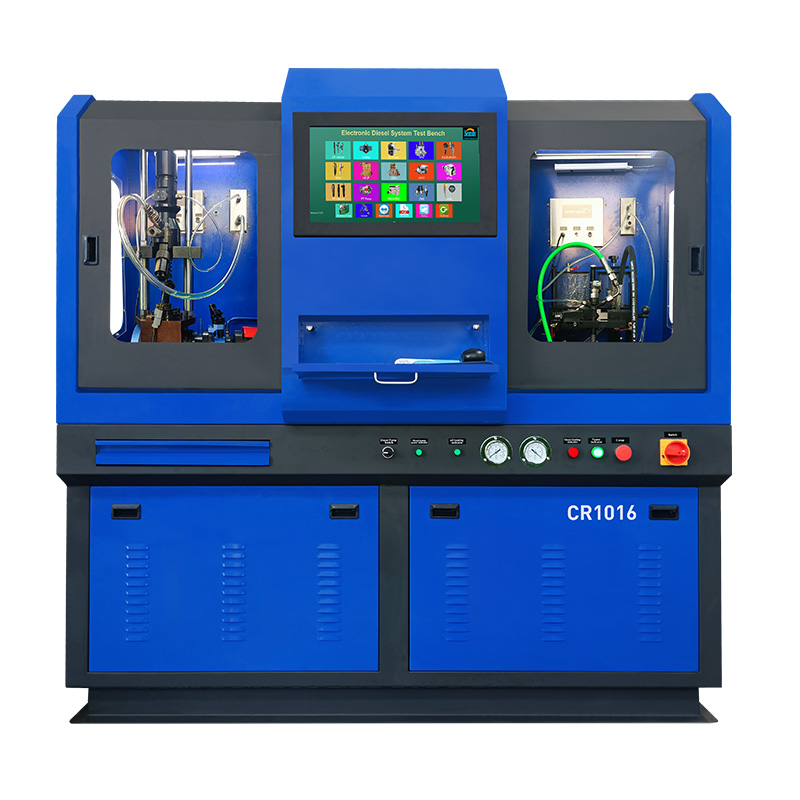

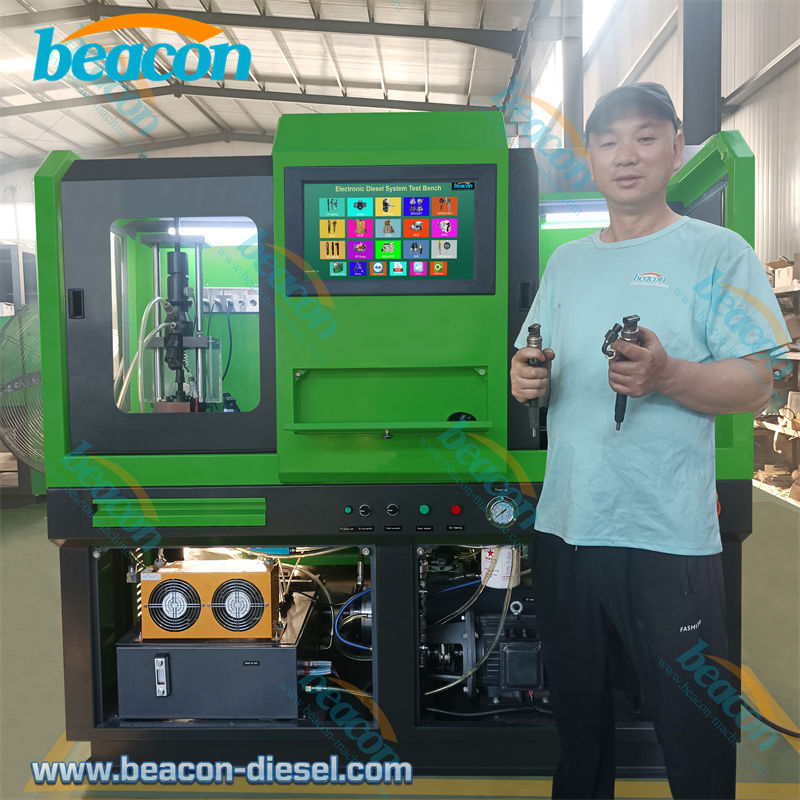

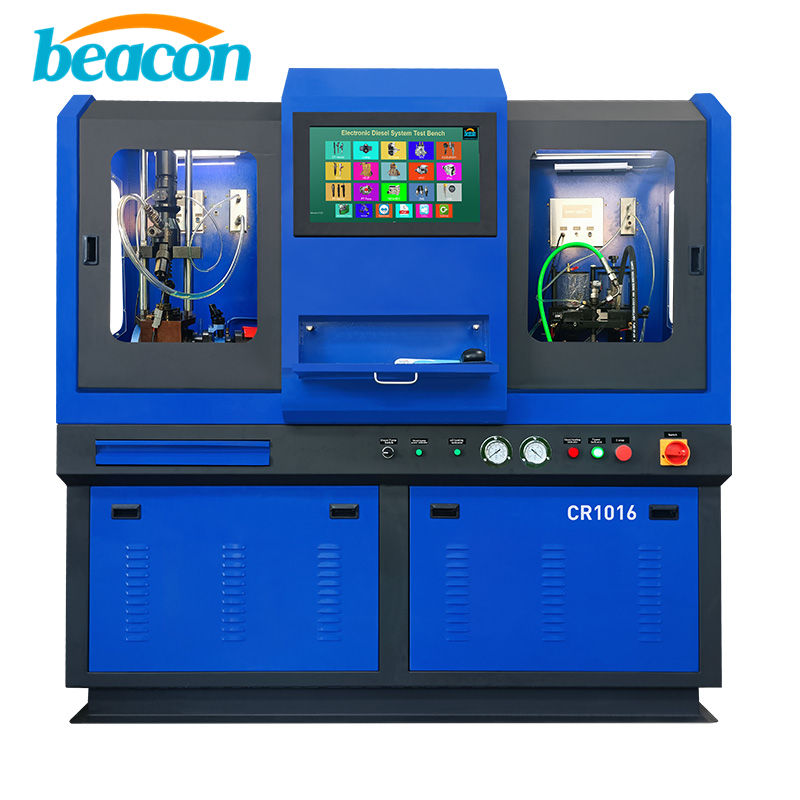

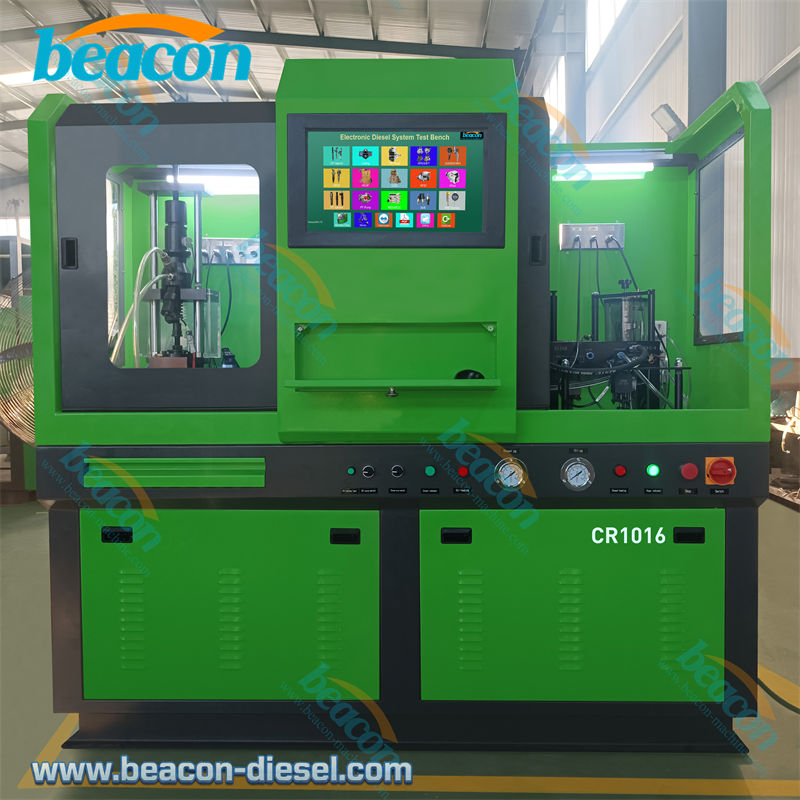

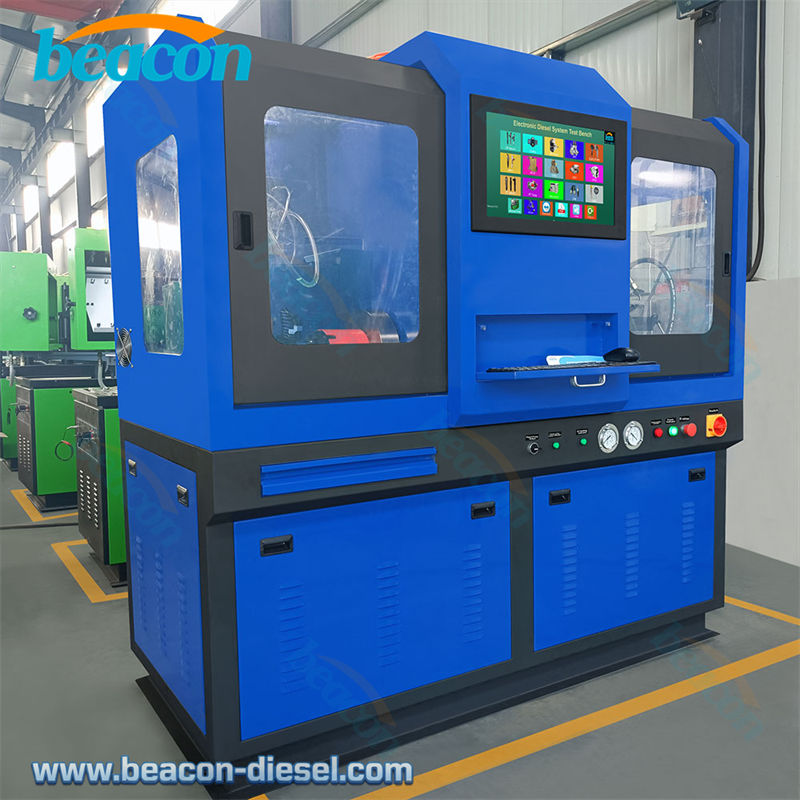

CR1016 comprehensive test bench for common rail injector and pump and EUI EUP HEUI with cambox

The Beacon CR1016 Common Rail Injector Pump Test Bench is a professional-grade diagnostic station designed to be the backbone of modern diesel repair workshops.

This machine empowers technicians to handle a vast array of maintenance tasks on a single platform, eliminating the need for multiple specialized devices.

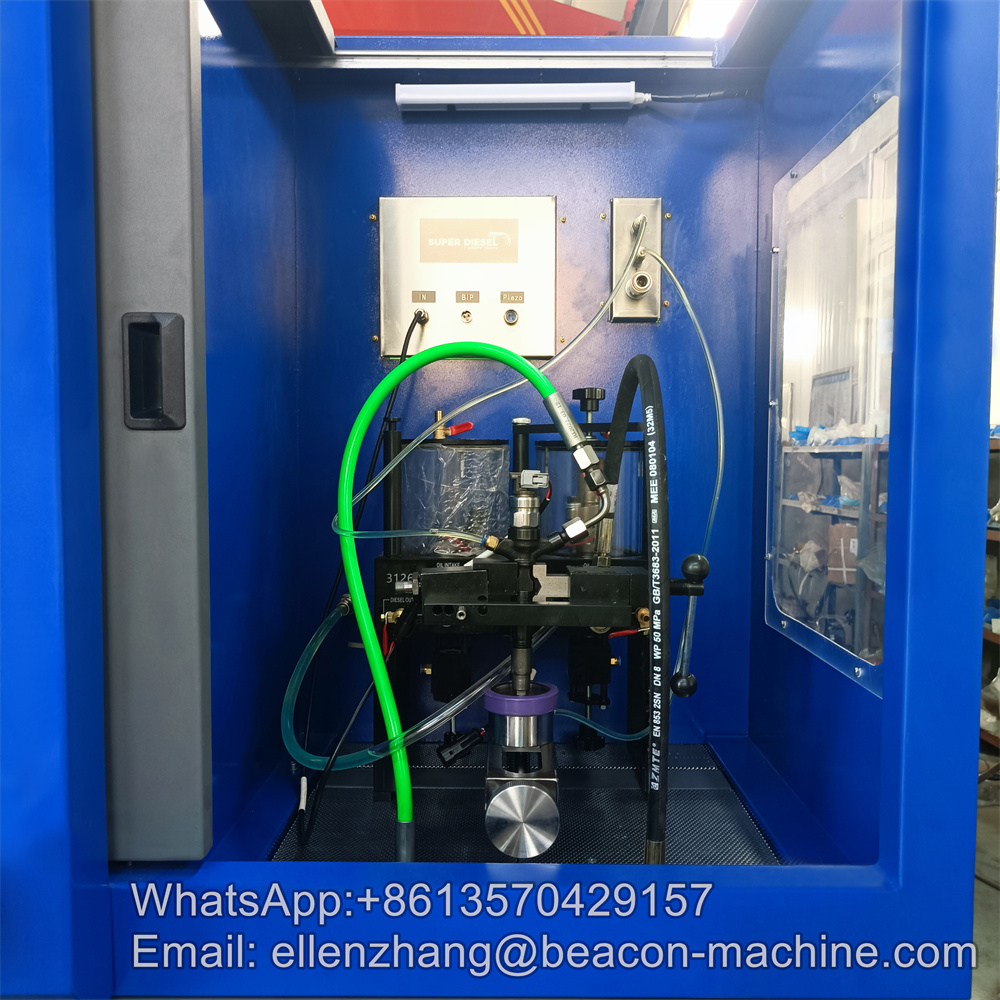

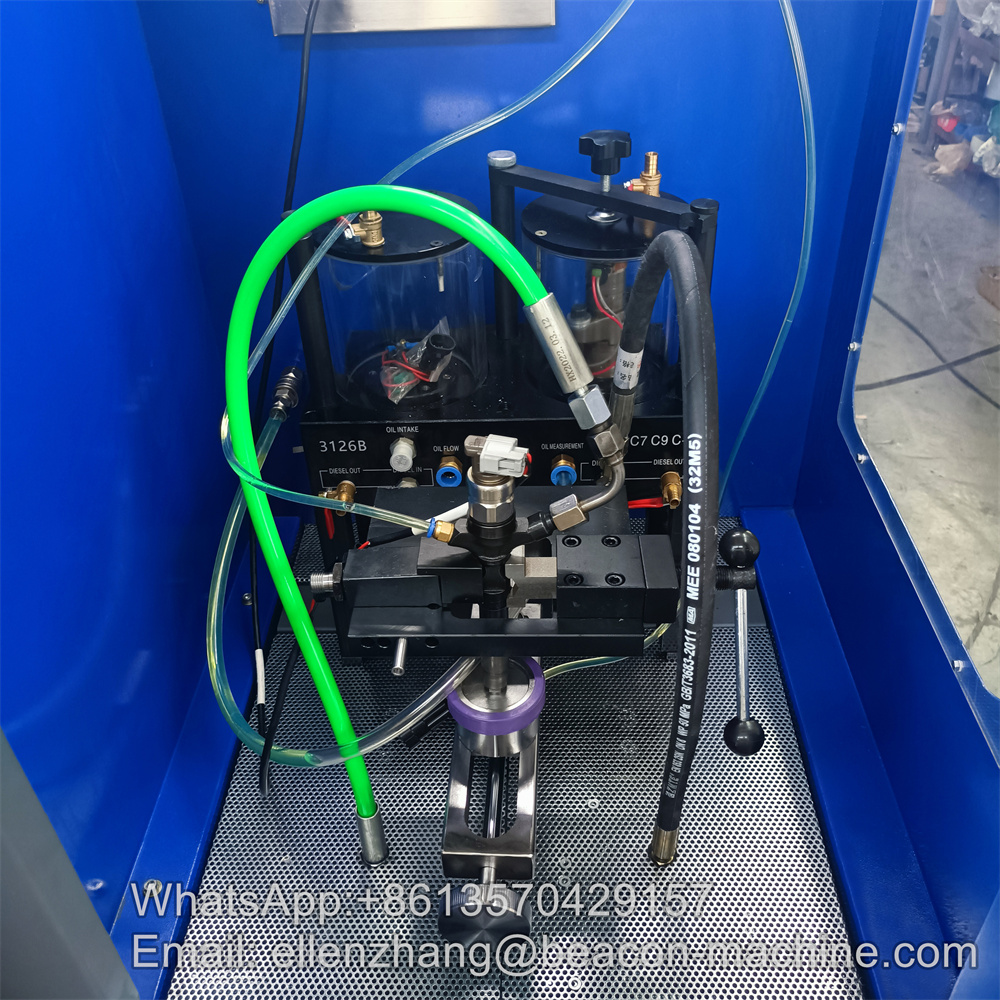

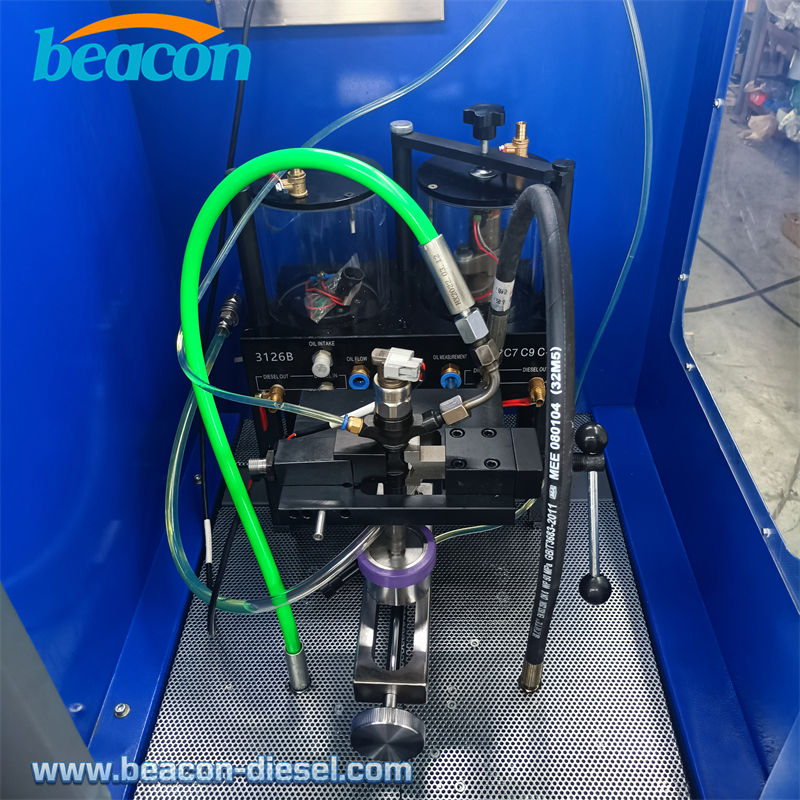

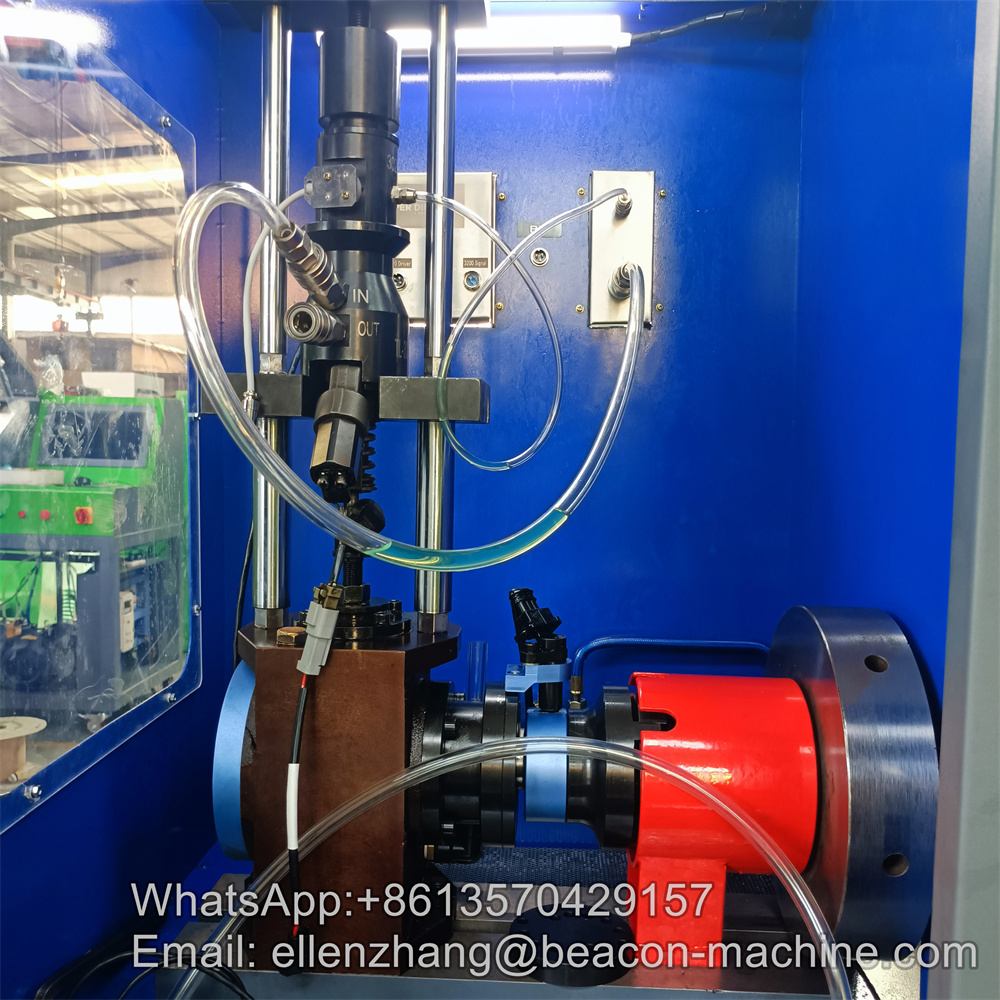

By integrating standard testing for common rail pumps and piezoelectric injectors with advanced capabilities for EUI/EUP (Electronic Unit Injector/Pump) using a gear scale cam box, the CR1016 helps workshops expand their service range to include heavy-duty CAT, Ford, and ISUZU systems, directly increasing service revenue and customer retention.

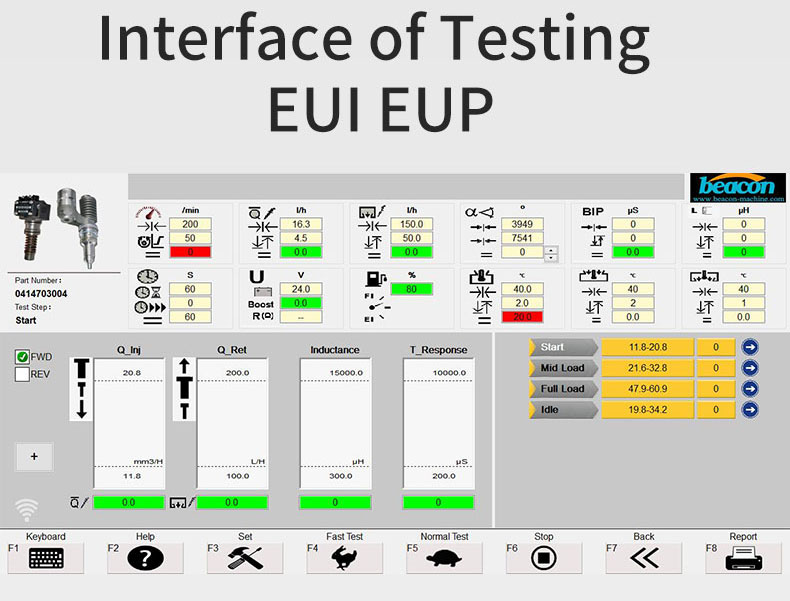

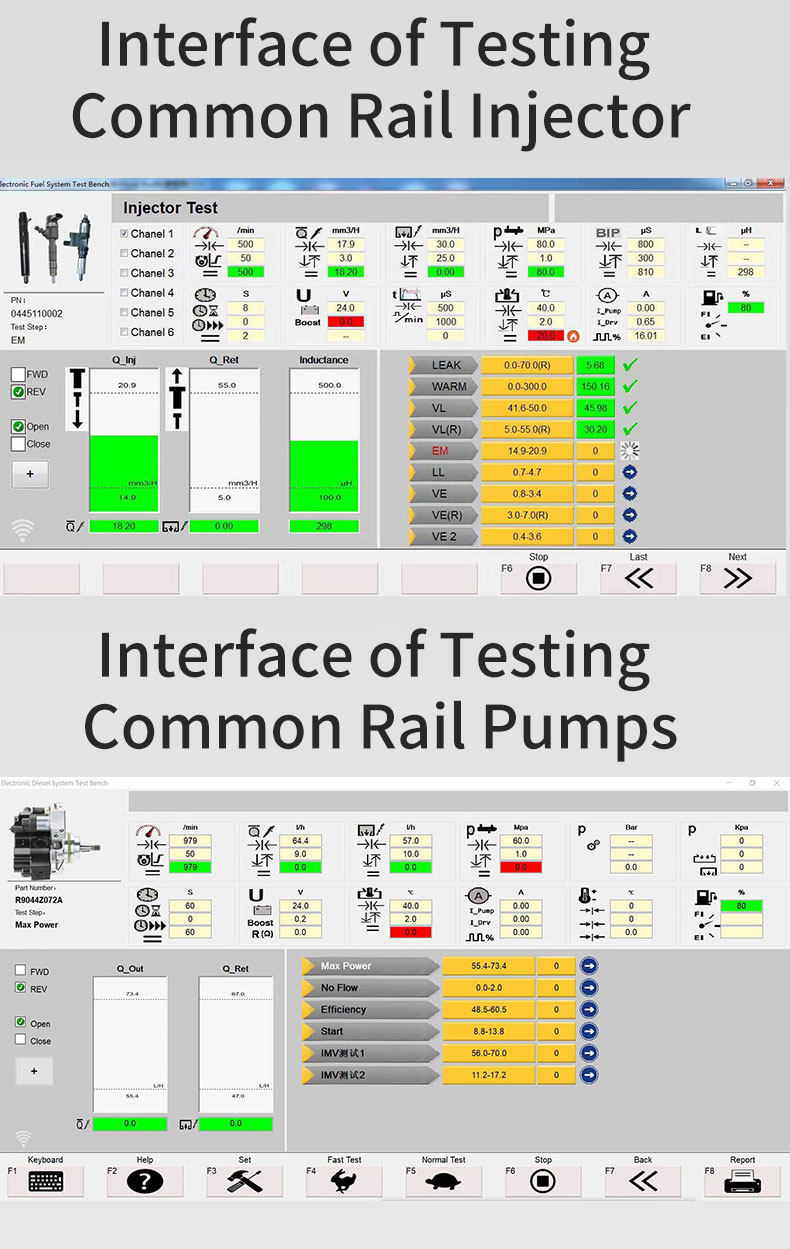

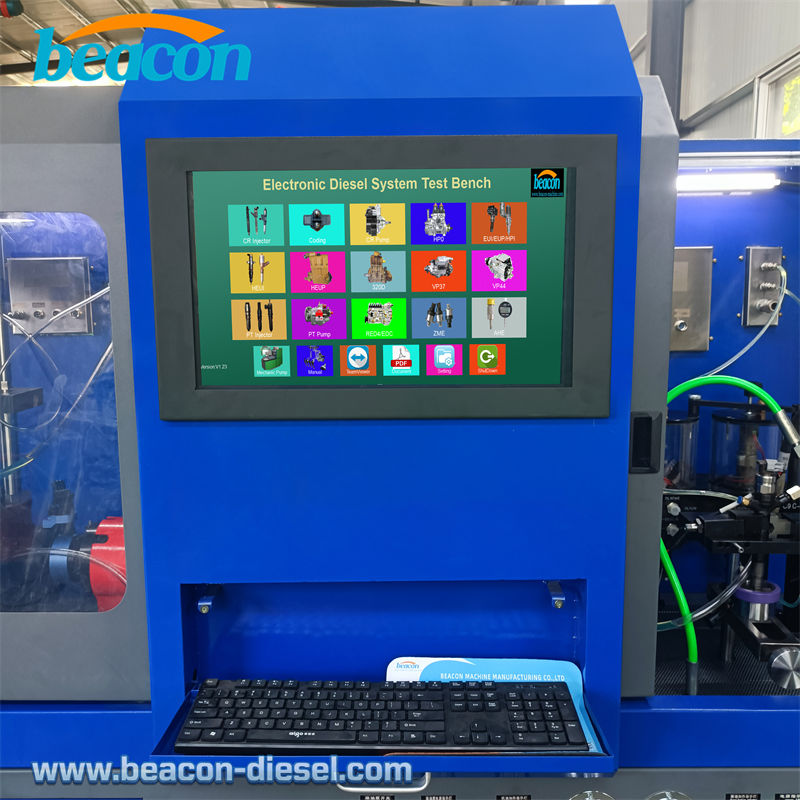

At the heart of the CR1016 is an intelligent electronic control system equipped with a high-definition touchscreen.

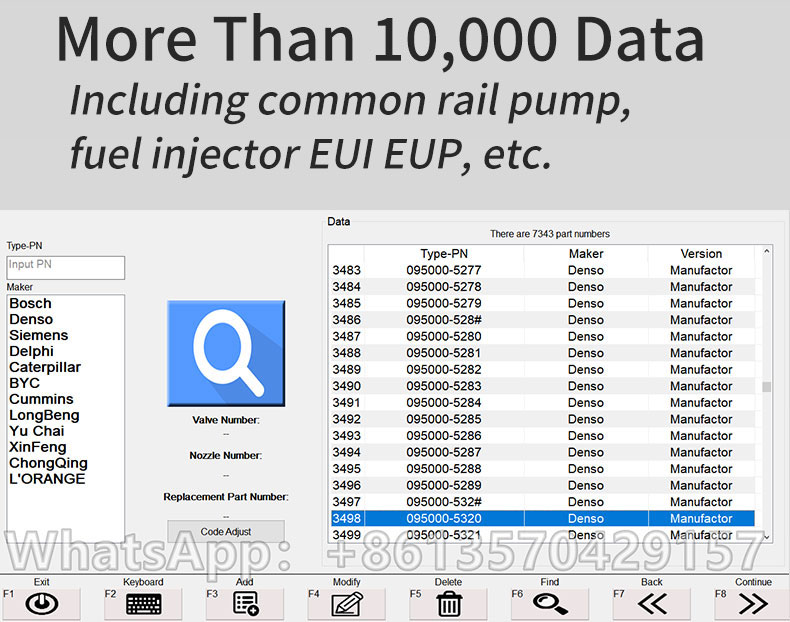

The software is pre-loaded with over 10,000 standard data profiles covering major brands such as Bosch, Denso, Delphi, Siemens, and Caterpillar.

This comprehensive database provides precise testing plans and coding functions, ensuring accurate diagnostics for every job.

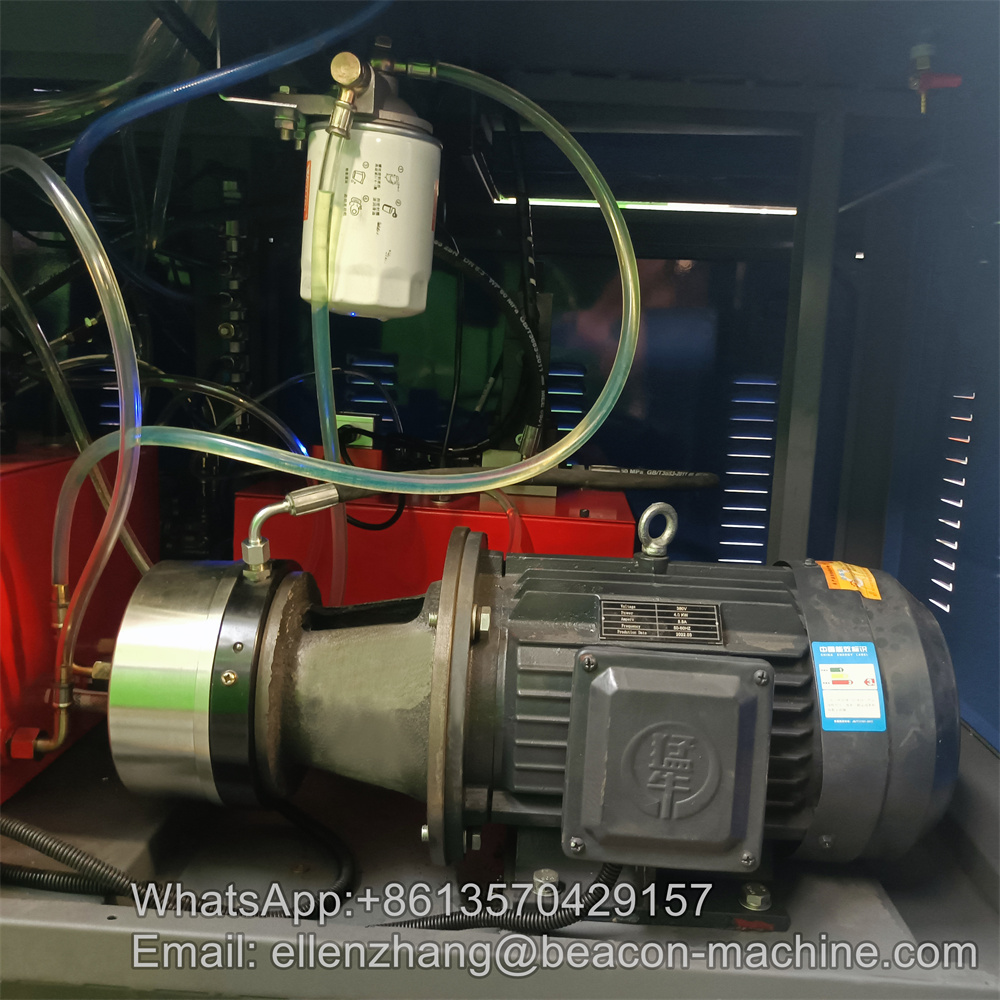

With a powerful 11kW/15kW motor and pressure control up to 2400bar, this test bench delivers the stability and precision required for high-quality diesel system calibration.

1. Main motor speed: Adjustable from 0 to 4000 rpm.

2. Motor power: 11KW or 15KW.

3. Voltage control range: Adjustable phase.

4. Injector opening: Adjustable from 0 to 1000Hz.

5. Control accuracy: 1Hz.

6. Frequency control: Adjustable from 0 to 65535 microseconds.

7. Fuel injector hold time control: Adjustable from 0 to 1000 times.

8. Delivery oil count control accuracy: 1 time.

9. Fuel pressure control: Adjustable from 0 to 2400 bar.

10. Control accuracy: 1 bar.

11. Electronic power: 380V/220V three-phase or 220V single-phase.

12. Product size: 190*110*180 cm.

13. Weight: 850 kg (includes cam box).
