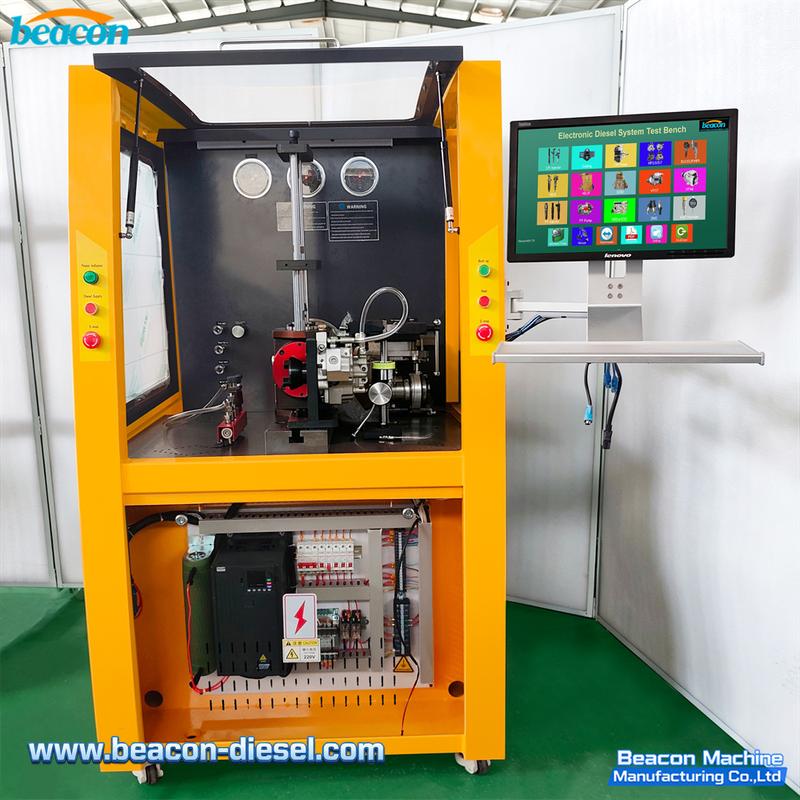

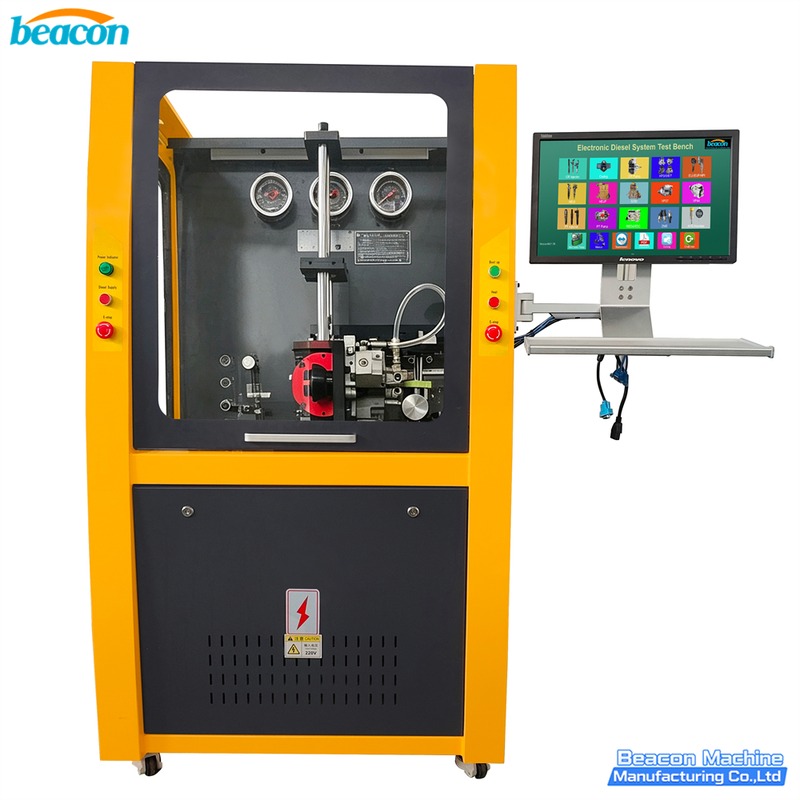

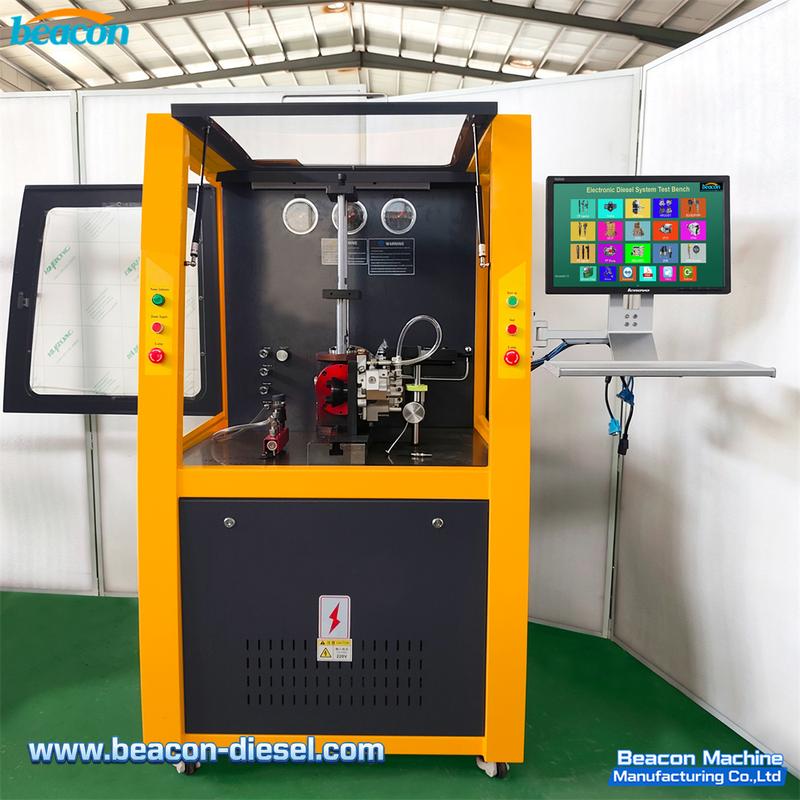

CR1017-PLUS EUI EUP Common Rail Injector Pump Test Bench

CR1017-PLUS EUI EUP Common Rail Injector Pump Test Bench

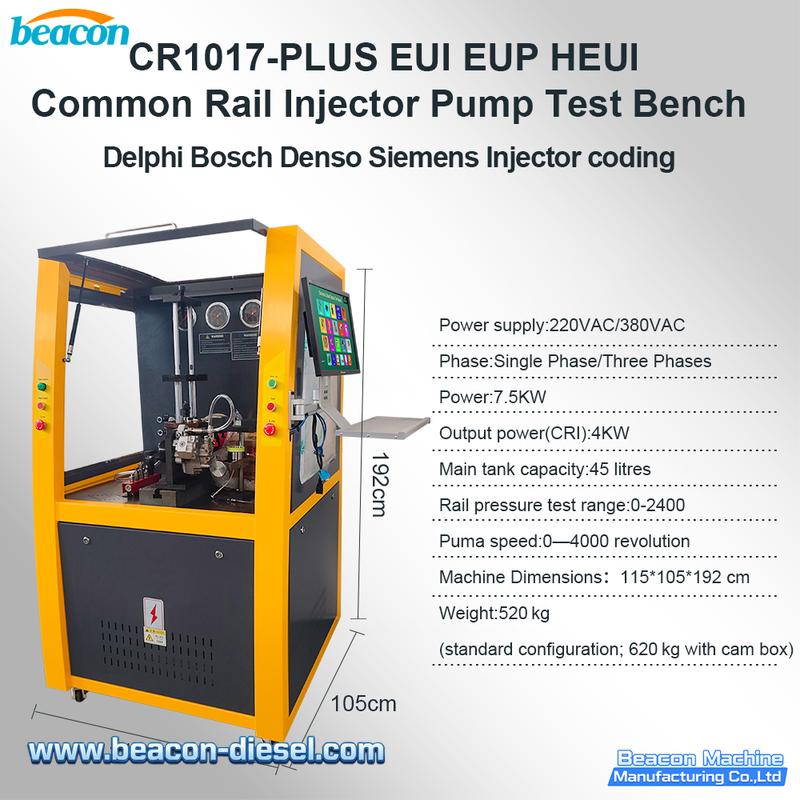

The Beacon CR1017-PLUS is a common rail diesel injector and pump test bench with EUI/EUP and HEUI testing capability. The standard configuration runs on a 7.5KW main motor with 380V three-phase power, and covers common rail injectors, common rail high-pressure pumps, and Denso HP0 pumps, with injector coding included.

Key Features

• Common Rail Injector Testing: Tests solenoid and piezo common rail injectors from Bosch, Denso, Siemens, Delphi, CAT, and Cummins with an 8272-entry injector database
• Common Rail Pump Testing: Tests common rail high-pressure pumps with a 1821-entry pump database, plus Denso HP0 pump support
• EUI/EUP Testing: Tests electronic unit injectors and unit pumps with TU-C, TU-D, and TU-E cam boxes
• HEUI Testing: Tests dual-circuit HEUI injectors with a 74-entry HEUI database and multiple fixture options
• Injector Coding: Generates injector compensation codes for Bosch, Denso, Siemens, and Delphi injectors
• 0-2400 bar Rail Pressure: Rail pressure test range of 0-2400 bar with 0-4000 rpm pump speed for full operating-condition testing

Optional Functions

• Simultaneous testing of 2, 4, 6, or 8 injectors
• CAT 320D pump, CP4 pump, and Denso HP5/HP6/HP7 pump testing
• PT injector and PT pump testing
• Cummins HPI Q60 X15 injector testing
• Bosch 4-pin injector testing
• AHE injector dynamic stroke measurement
• ZME measurement unit, rail pressure sensor, DRV/HPV, and solenoid valve testing
• BIP function and Delphi E3 double-pulse control system

Control Software

• 15-language control software with open, editable database
• Printable test report with customizable logo
• Free system upgrade within one year and remote upgrade support

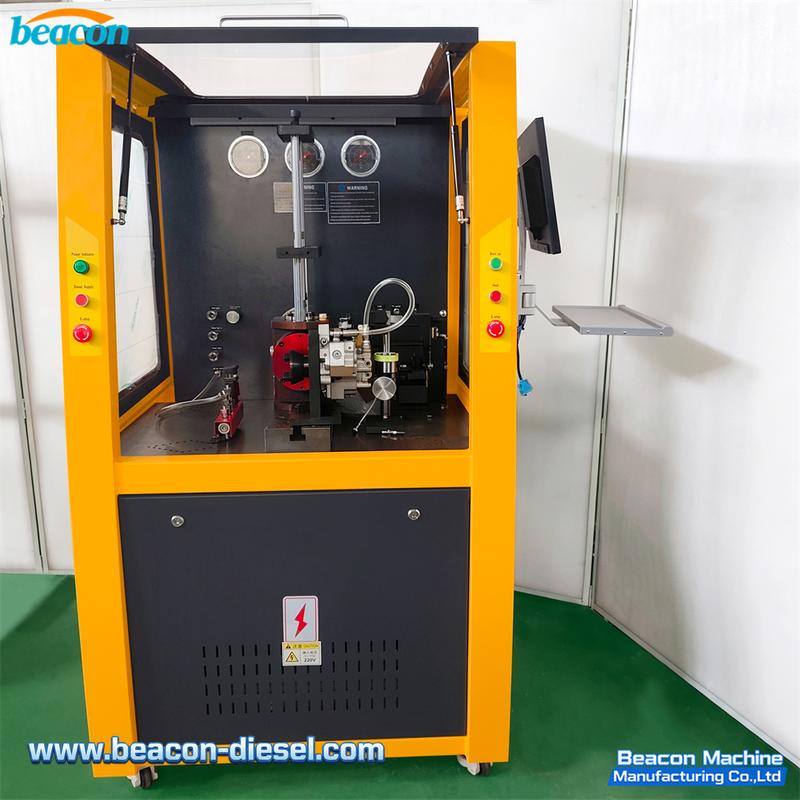

CR1017-PLUS Common Rail Injector Pump Test Bench - Overall View (Yellow)

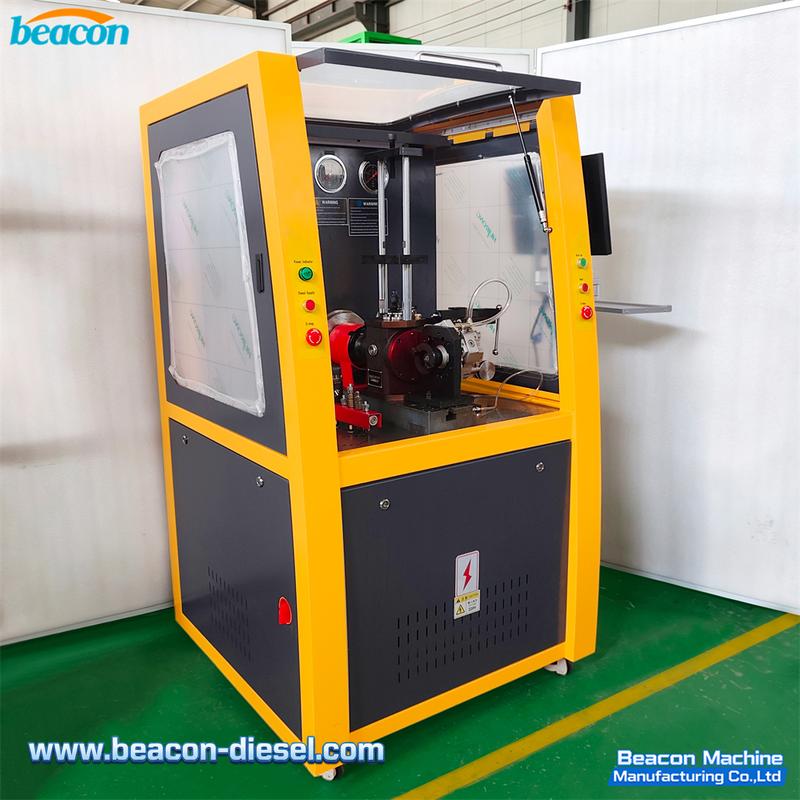

CR1017-PLUS EUI EUP Common Rail Test Bench - Machine View
