CR305 Diesel Fuel Common Rail Injector Test Bench Vehicle Diagnostic Calibration Injection Testing Equipment

Maximize workshop efficiency with the CR305 Common Rail Test Bench. Accurately test and code Bosch, Denso, Delphi, and Siemens injectors up to 2600 Bar. Features 7700+ built-in data entries for precise diagnostics.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

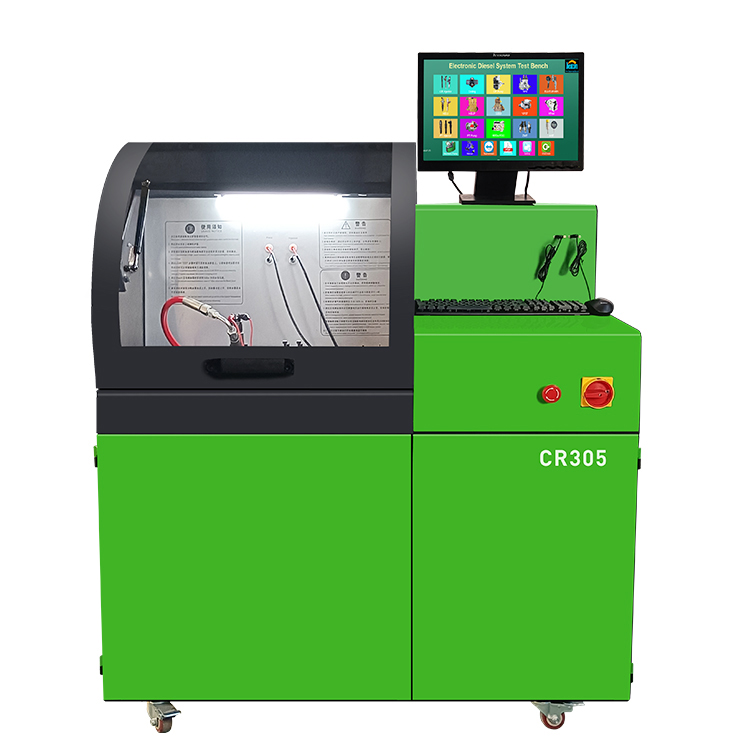

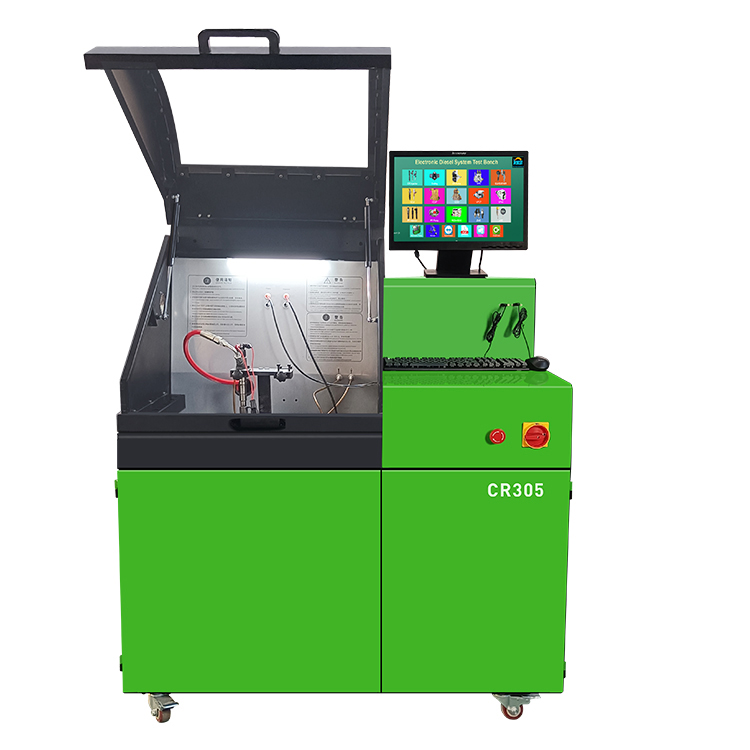

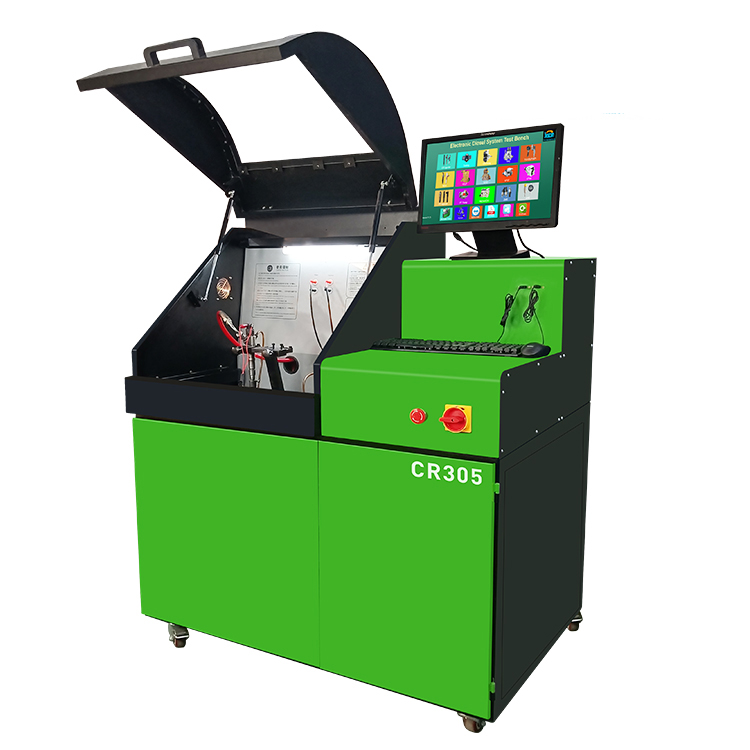

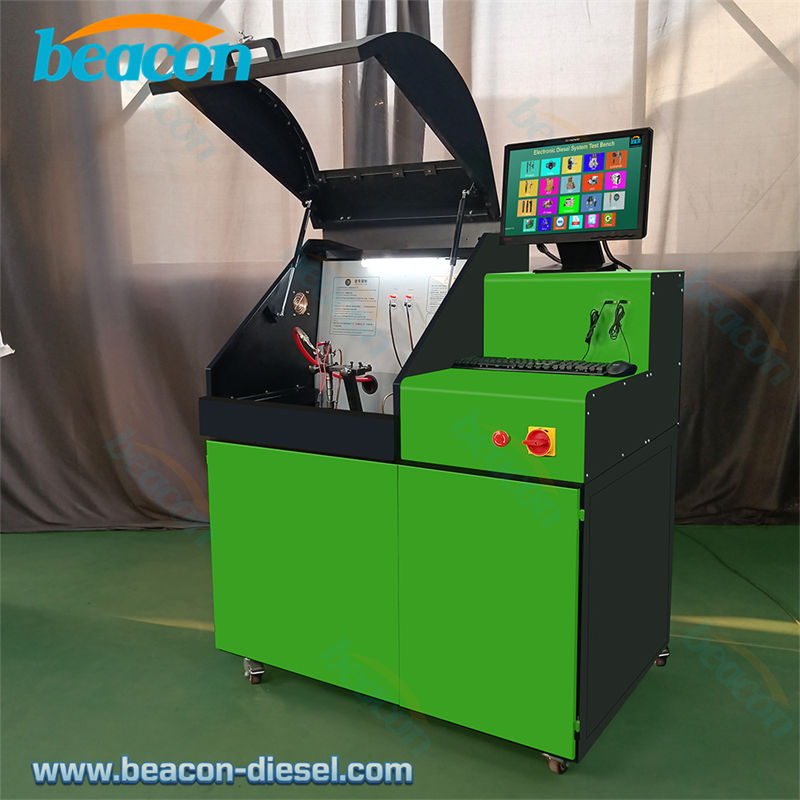

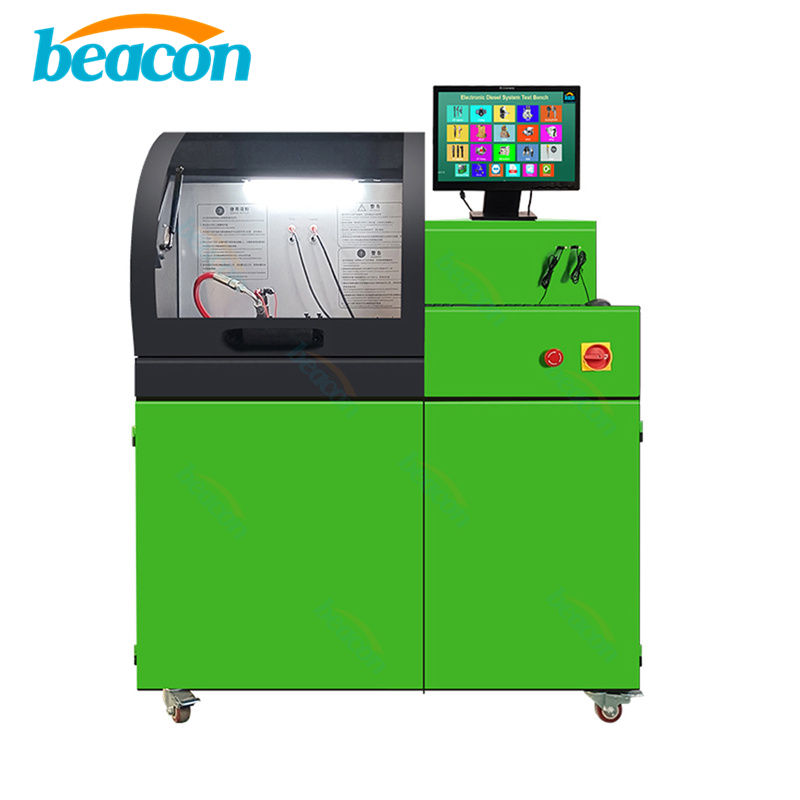

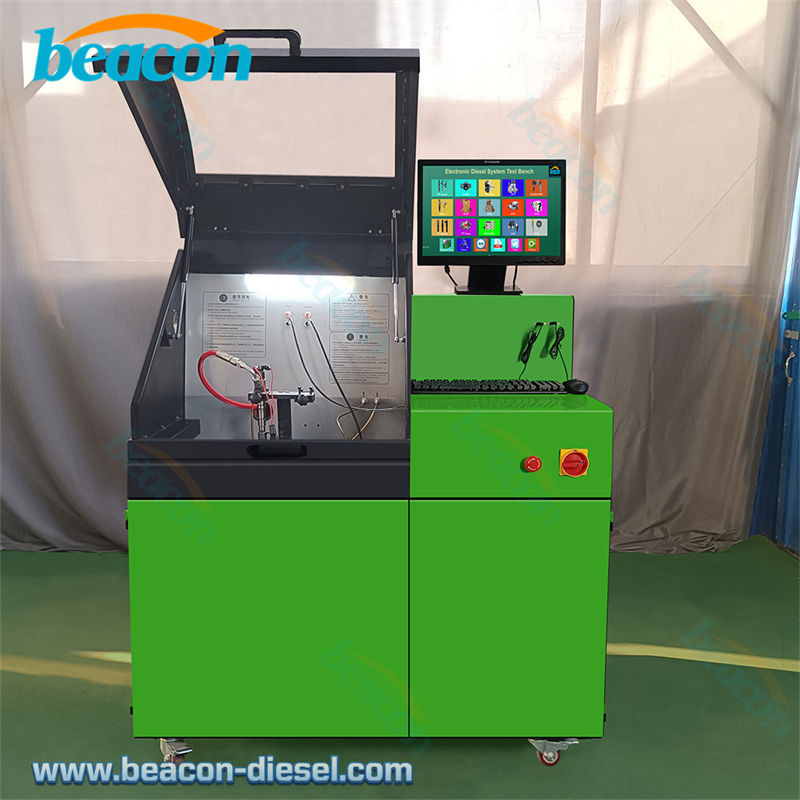

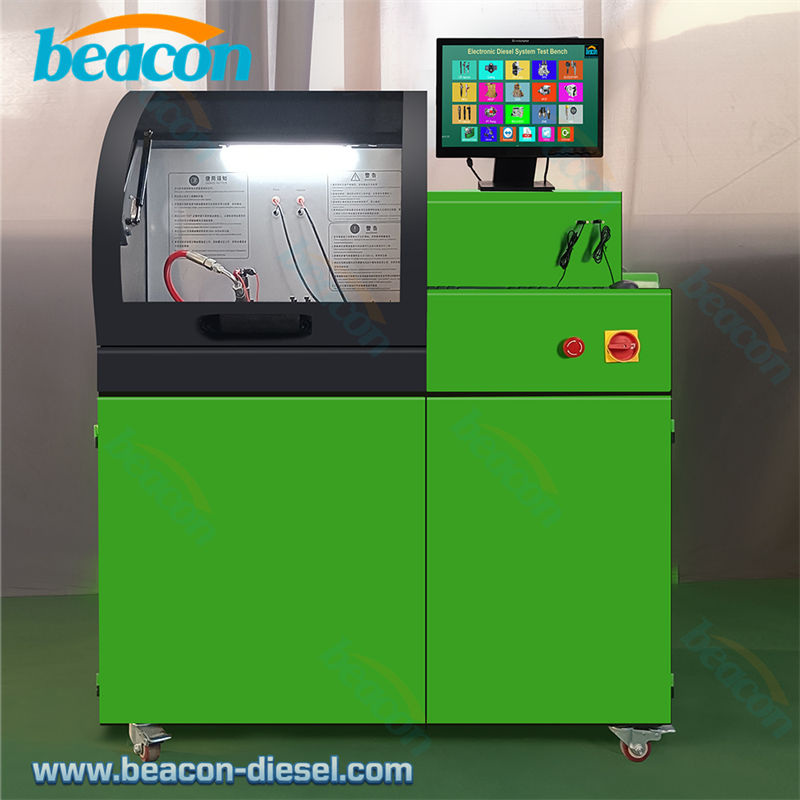

The CR305 Common Rail Injector Test Bench is a professional diagnostic solution designed to elevate the service capabilities of modern diesel repair workshops.

This machine empowers your business to perform high-precision testing and coding for major brands including Bosch, Delphi, Denso, and Siemens, enabling you to diagnose faulty injectors quickly and reduce vehicle downtime for your customers.

Built for versatility and accuracy, the CR305 supports standard common rail and piezo injectors with a testing pressure of up to 2600 bar.

Its advanced intelligent control system is the heart of the machine, boasting a comprehensive database with over 7,700 injector data entries.

This extensive library ensures you have the correct testing plans for virtually any injector that comes into your shop, providing a complete and reliable testing solution.

Whether you are performing standard flow tests or utilizing optional features like BIP function and AHE dynamic stroke measurement, the CR305 delivers the precision required to expand your service range and increase workshop profitability.

parameter

Parameter	Specification
Model	CR305
Supply Voltage	380V or 220V
Phase Number	1 phase or 3 phase
Frequency	50Hz/60Hz
Current	30A (Max)
Motor Power	5.5Kw
Oil Temperature Control	Heating / Forced Air-cooled
Oil Temperature Settings	40 ° C
Environment Temperature	Less than 35 ° C
Max Rail Pressure	180Mpa (System capable of 2600 Bar test)
Common Rail Pump	Bosch CP3.3
Control Circuit Voltage	DC24V / DC12V
ECU Internal Boost	0-200VDC (Max)
Fuel Tank Capacity	19 Liters
Noise Level	<85 dB
Weight	350Kg
Dimensions	141 x 80 x 120 cm
