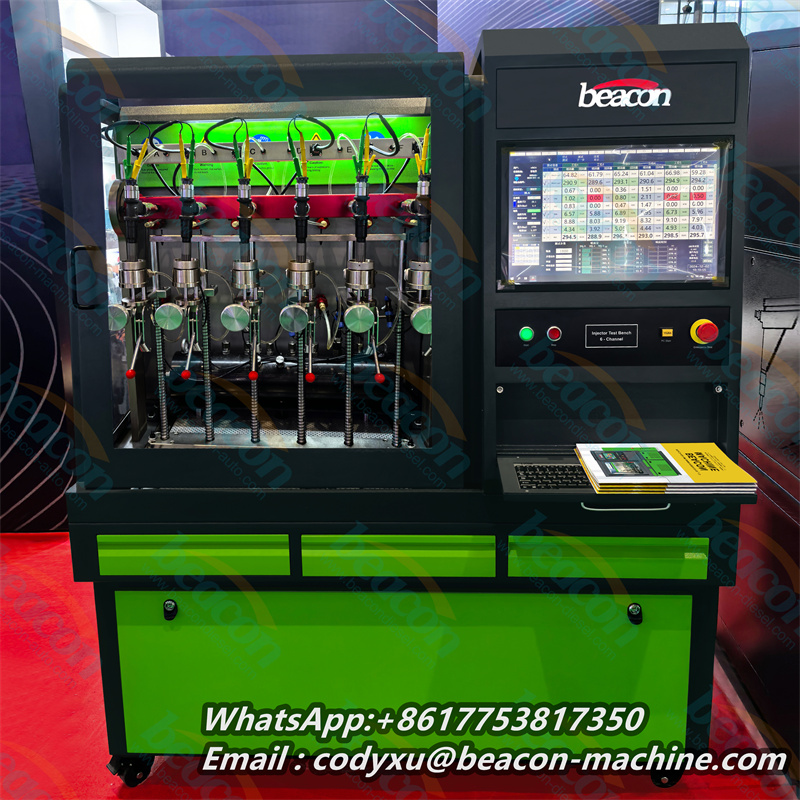

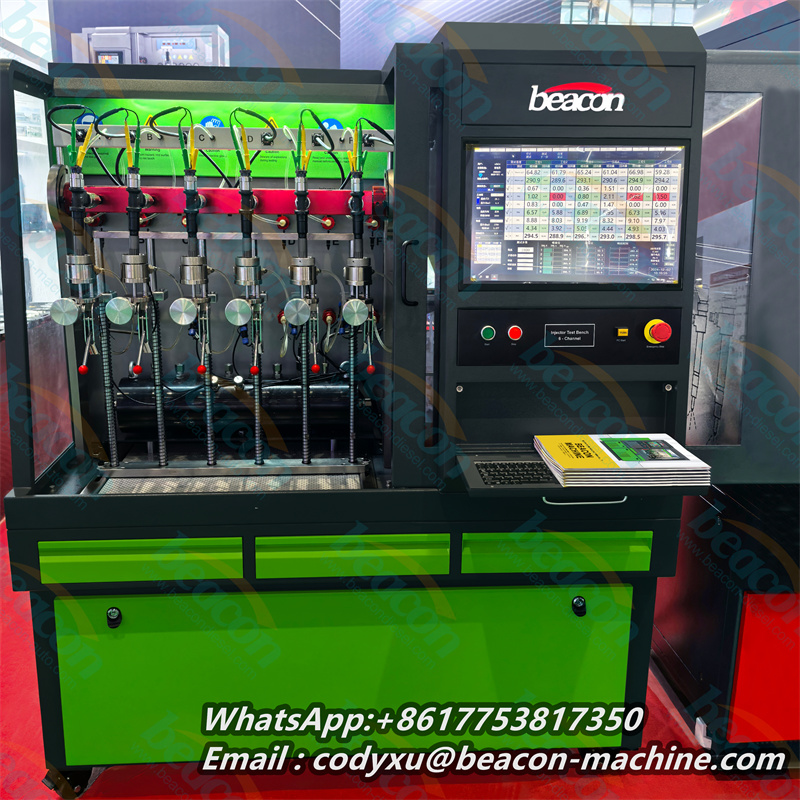

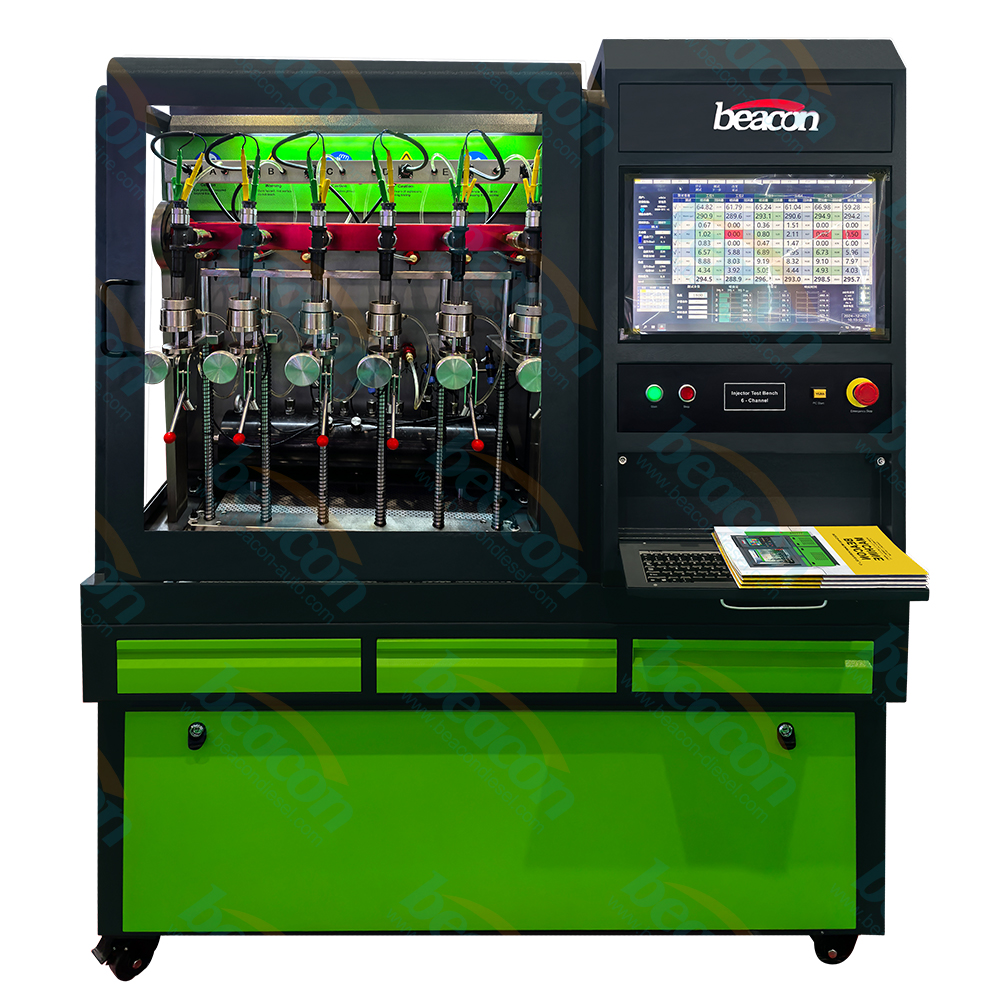

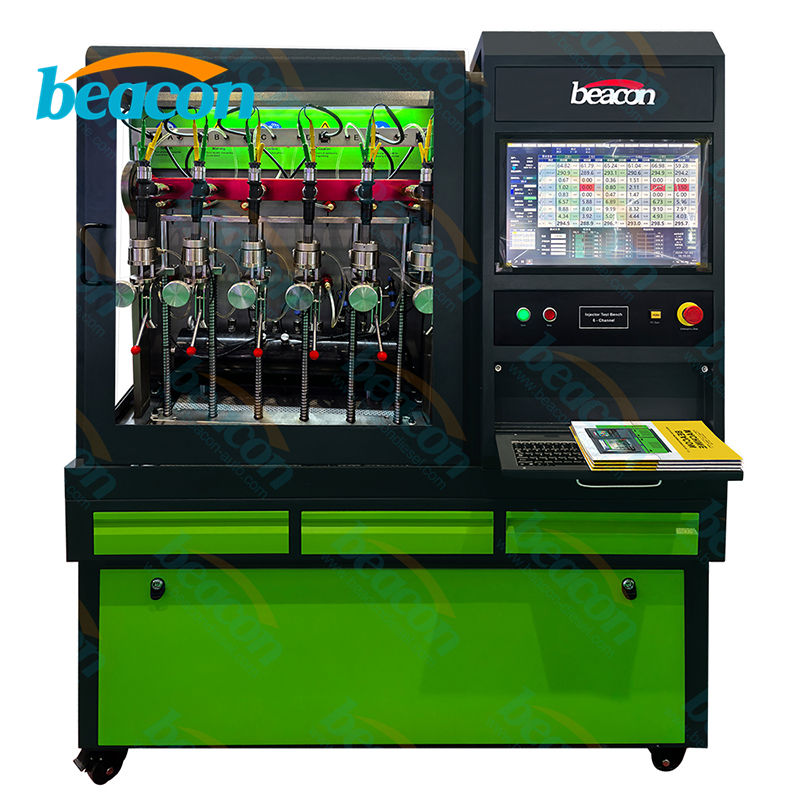

CR718D 6-Channel Common Rail Injector Test Bench with Coding Function

Boost workshop efficiency with the CR718D. Tests 6 injectors simultaneously at 2400 Bar. Features full engine simulation and coding for Bosch, Denso, Delphi, & VDO.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

Product Overview

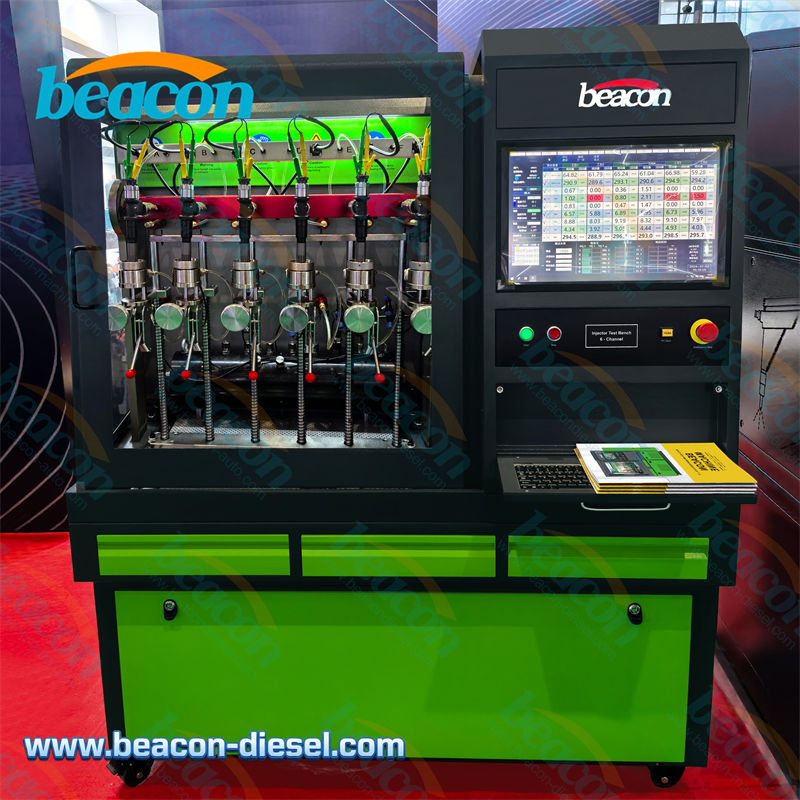

The CR718D Common Rail Injector Test Bench is designed to revolutionize diesel repair workshops by significantly increasing throughput. By enabling the simultaneous testing of 6 injectors, it reduces diagnostic time while maintaining high precision. It fully simulates engine operating conditions to provide accurate coding and diagnostics for major brands like Bosch, Denso, Delphi, and VDO.

Key Functions & Features

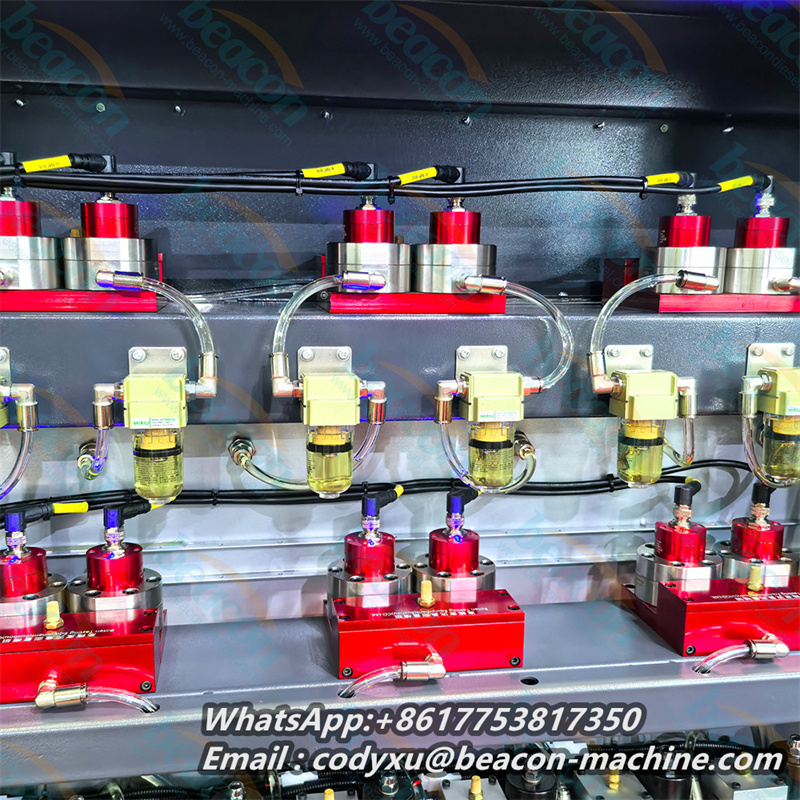

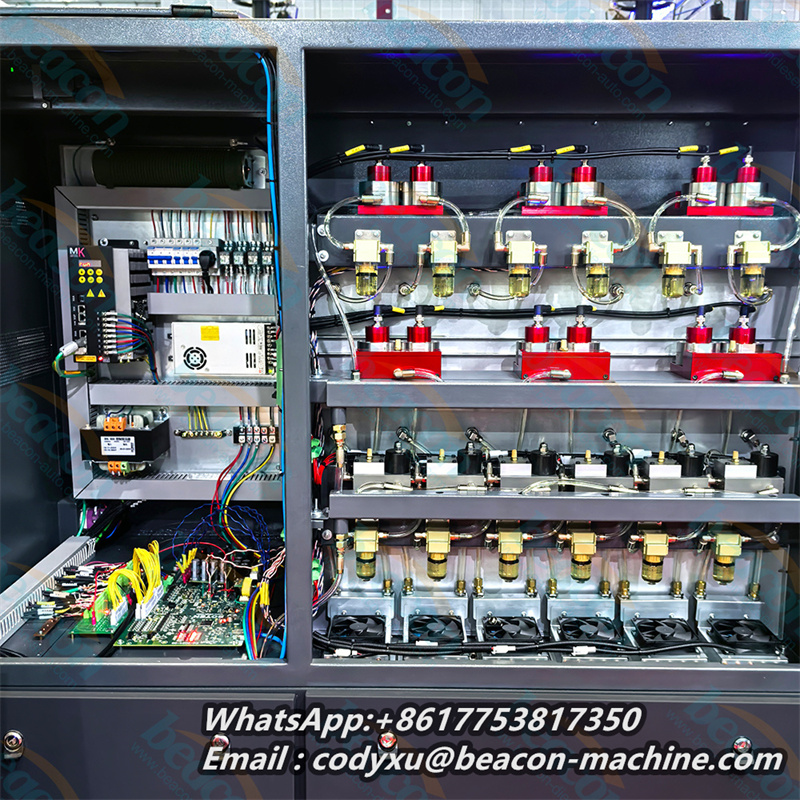

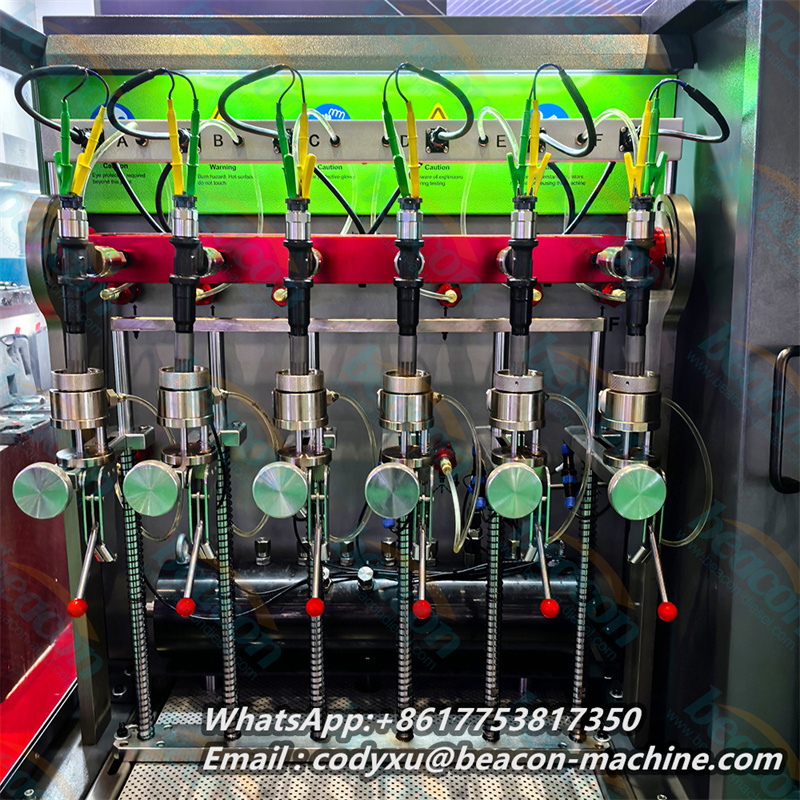

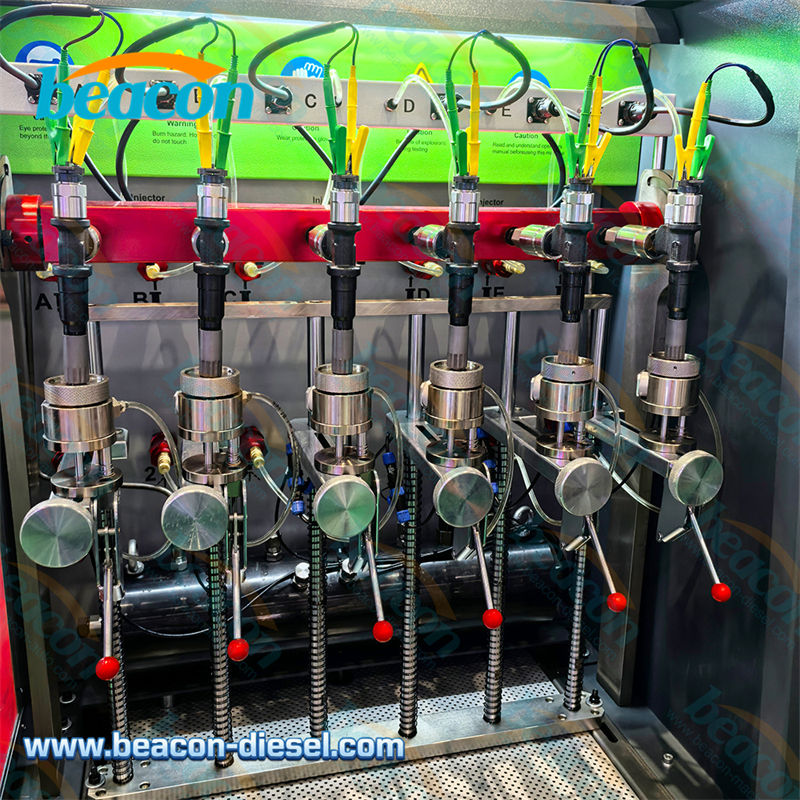

High Efficiency: Built-in 12 flow sensors allowing 6-channel simultaneous triggering and clamping of injectors.

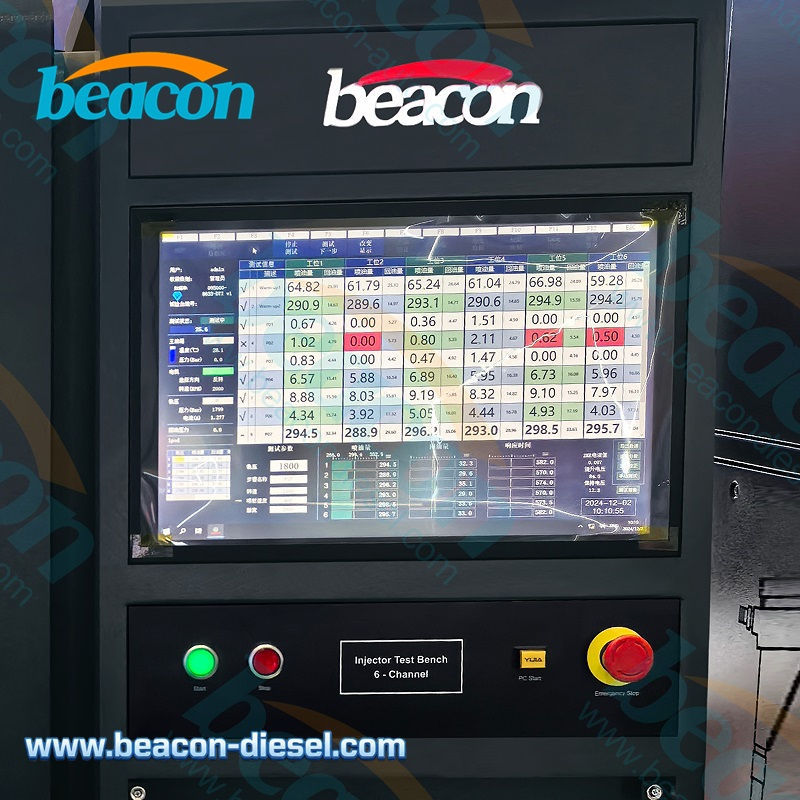

Comprehensive Testing: Simultaneous test of fuel injection, fuel return, and response time.
Advanced Coding: Simultaneous coding of fuel correction for 6-channel injectors (Bosch, Denso, Delphi, VDO, Cummins).
Engine Simulation: Fully simulates engine operating conditions with manual setting of control curve parameters.

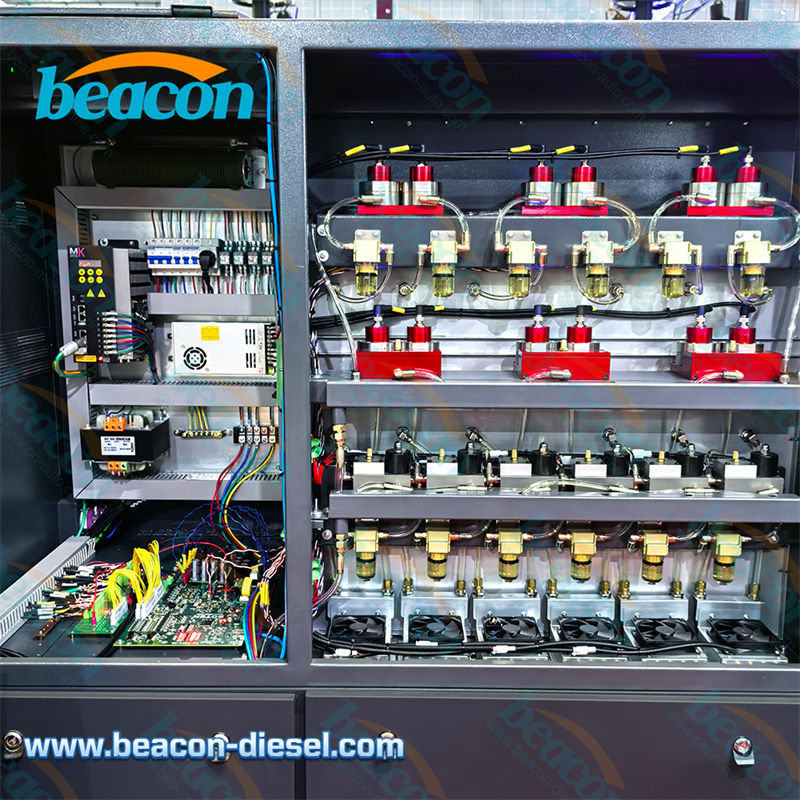

Component Testing: Includes Solenoid Valve Resistance/Inductance Test and Piezo Crystal Unit Inductance Test.
Robust Build: High-pressure common rail tube with rapid and stable rail pressure building up to 2400 Bar.

parameter

Parameter	Value
Model	CR718D
Max Rail Pressure	2400 Bar
Motor Power	5.5kw
Voltage	380V AC
Frequency	50Hz / 60Hz
Tank Volume	35L
Oil Temp Control	40±2℃
Heater Power	380V / 3kw
Noise Level	<85dB
Net Weight	700KG
Net Dimensions	160011901710mm
Gross Dimensions	170012901810mm
