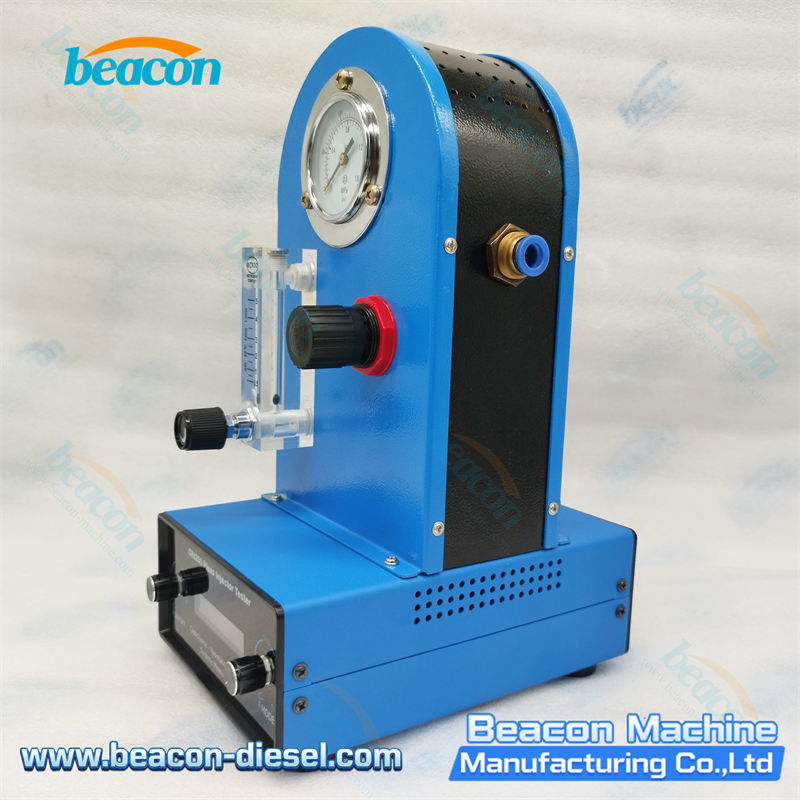

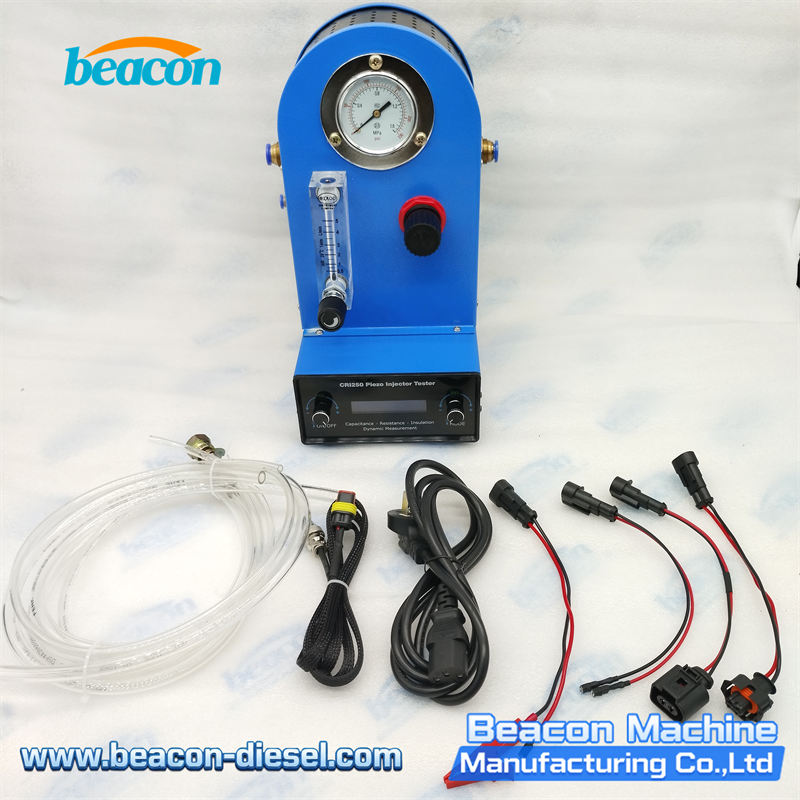

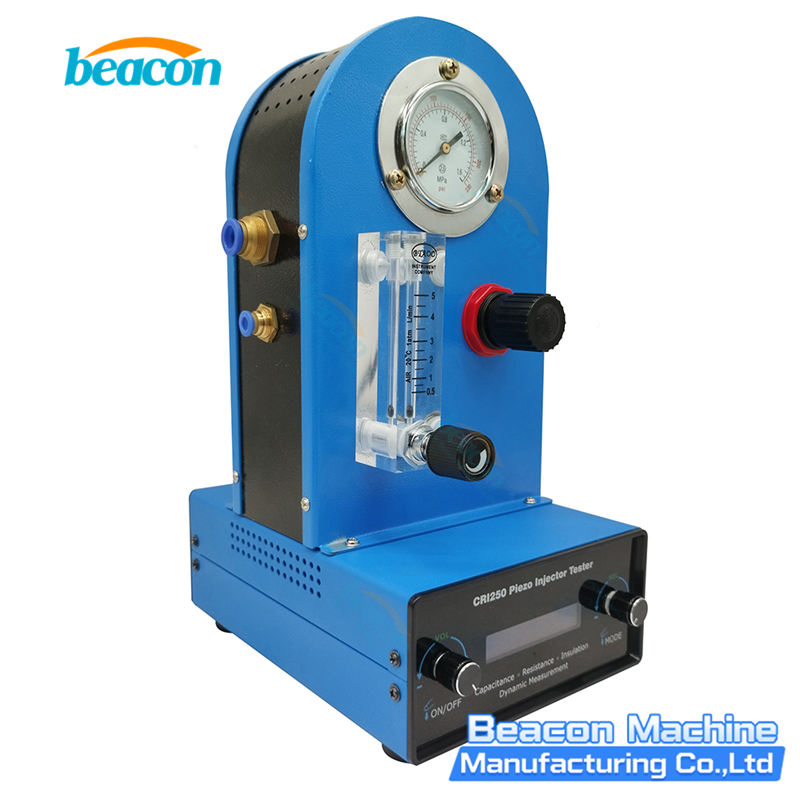

CRI250 Piezo Injector Comprehensive Tester Overview

The CRI250 Piezo Injector Comprehensive Tester is a professional device designed to diagnose the performance of piezo injectors accurately. It provides essential measurements to ensure the quality and functionality of the piezo crystal components.

Key Functions

Piezo Crystal Resistance: Measures the internal resistance of the piezo element.
Piezo Crystal Capacitance: Tests the capacitor values effectively.
Insulation Resistance: Checks the insulation resistance of the piezo injector.
Dynamic Lift: Measures the piezo crystal dynamic lift.
Injector Drive: Capable of driving the piezo injector for testing.

Operation Instructions

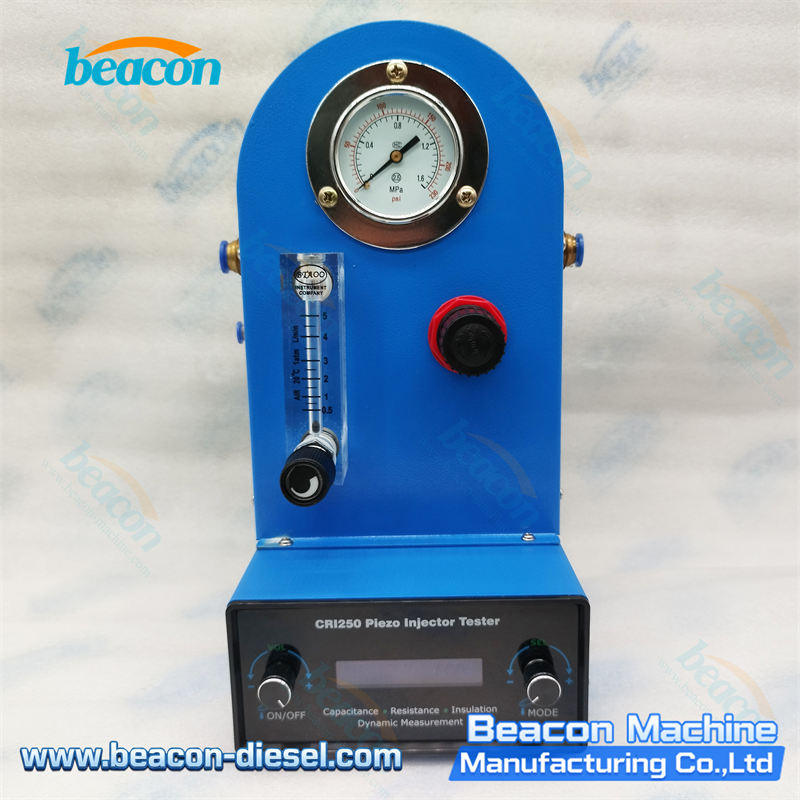

1. ON/OFF Knob:
Press to Run or Stop. The lower right corner of the screen indicates the status (ON/OFF). Turn left or right to adjust voltage (0-178V in modes 1, 3, 4) or pulse width (0-5000us in mode 5).

2. MODE Knob:
Press to enter submenus or return to the main menu. In mode 5, rotate to adjust injection frequency (1-100Hz).

Warranty Policy

We provide free maintenance within one year for product quality problems under normal use. Lifetime maintenance is available (cost borne by the user) after the warranty period.

parameter

Model	CRI250
Application	Piezo Injector Comprehensive Testing
Adjustable Voltage	0 ~ 178V (In Mode 1, 3, 4)
Pulse Width	0 ~ 5000us (In Mode 5)
Frequency	1 ~ 100Hz (In Mode 5)

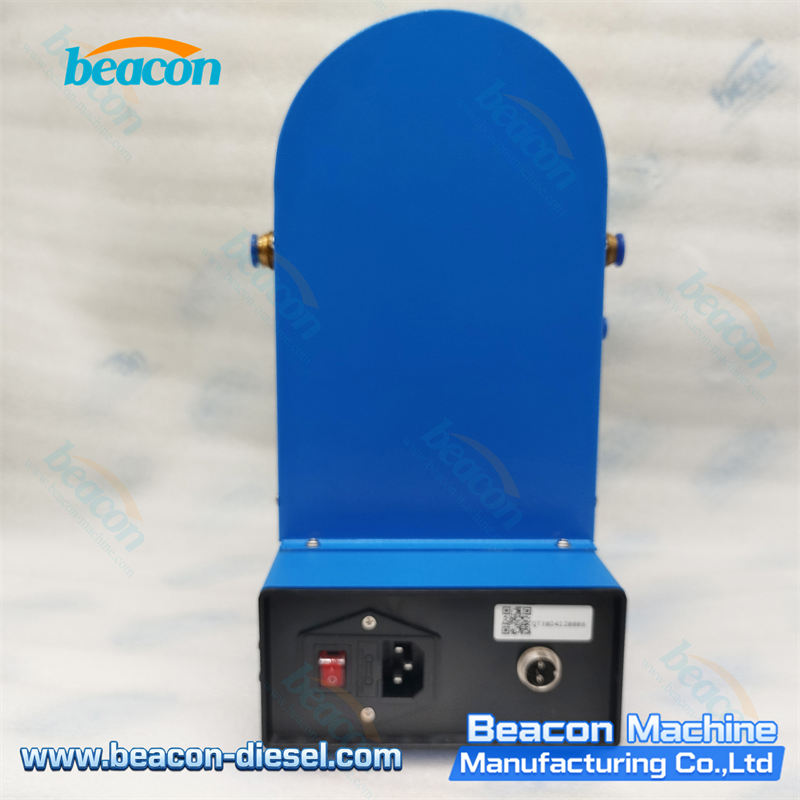

Power Supply	AC 100-240V
Interface	Piezo injector drive harness port
