CRM900 Integrated Touchscreen Common Rail Injector Stroke Measuring System Stage 3 Repair Kit

The CRM900 Common Rail Injector Stroke Measuring System represents the latest evolution in Stage 3 repair tools. This All-in-One solution integrates a responsive touchscreen computer directly into the unit, eliminating the need for an external laptop. Paired with an upgraded heavy-duty measuring stand, it offers superior stability and vibration resistance, ensuring the highest precision (1um) when measuring needle lift and armature stroke for Bosch injectors.

Key Upgrades & Features

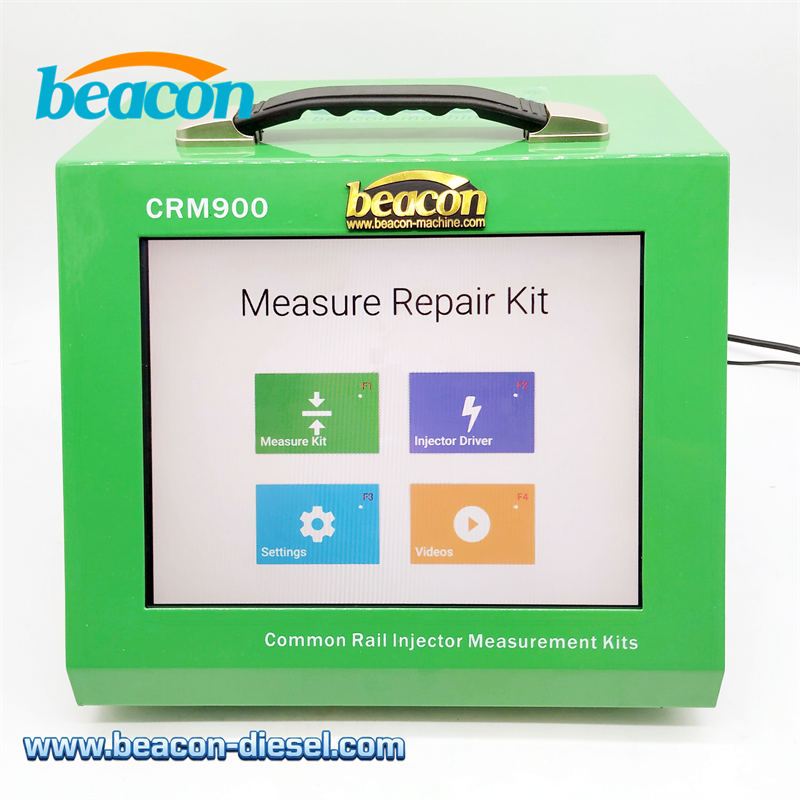

• Integrated Touchscreen: Built-in computer system for immediate operation. No software installation or external PC required.

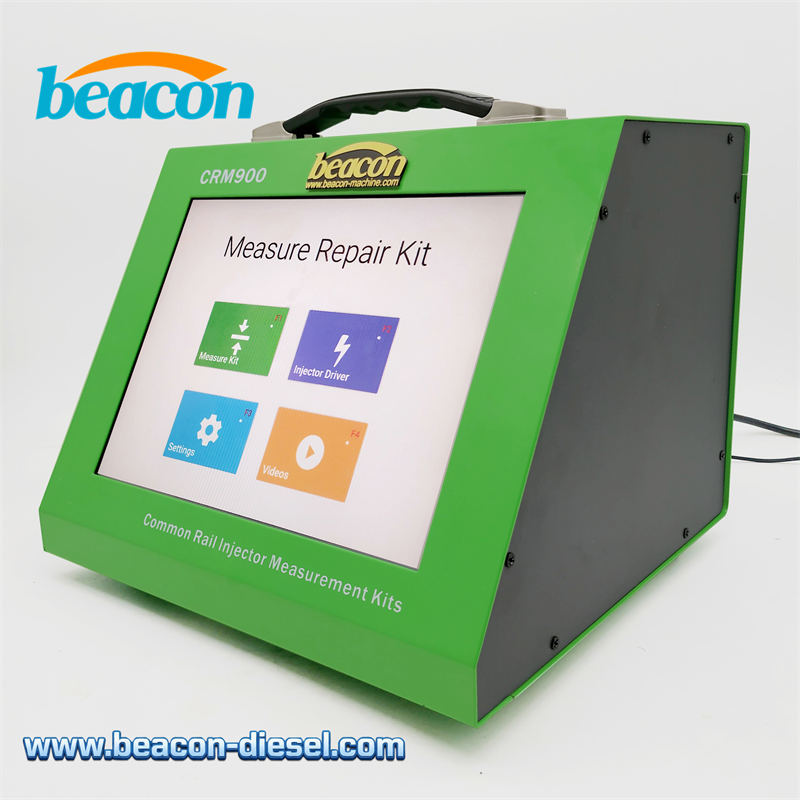

• Premium Measuring Stand: Enhanced structural integrity and weight provide a stable base for the digital micrometer, minimizing measurement errors.
• Portable Design: Compact metal casing with a handle makes it ideal for mobile workshops and bench testing.
• Precise Shim Calculation: Automatically calculates exact shim thickness for Bosch CRI/CRIN injectors to meet factory specs.

Standard Functions

• Comprehensive Measurement: Measures Needle Lift, Needle Opening Pressure, Armature Total Lift, Actual Lift, Solenoid Air Gap, and Spring Compression.
• Intelligent Database: Full database for Bosch CRI 1, CRI 2, CRI 3, CRIN 1, and CRIN 2 injectors.

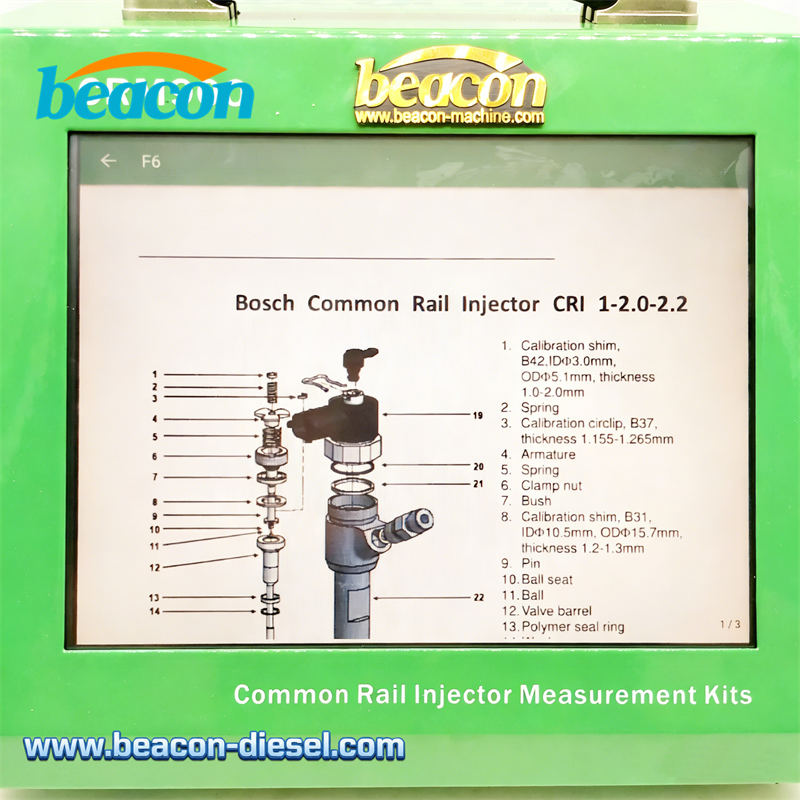

• User Guidance: Step-by-step on-screen instructions guide the technician through the entire rebuilding process.

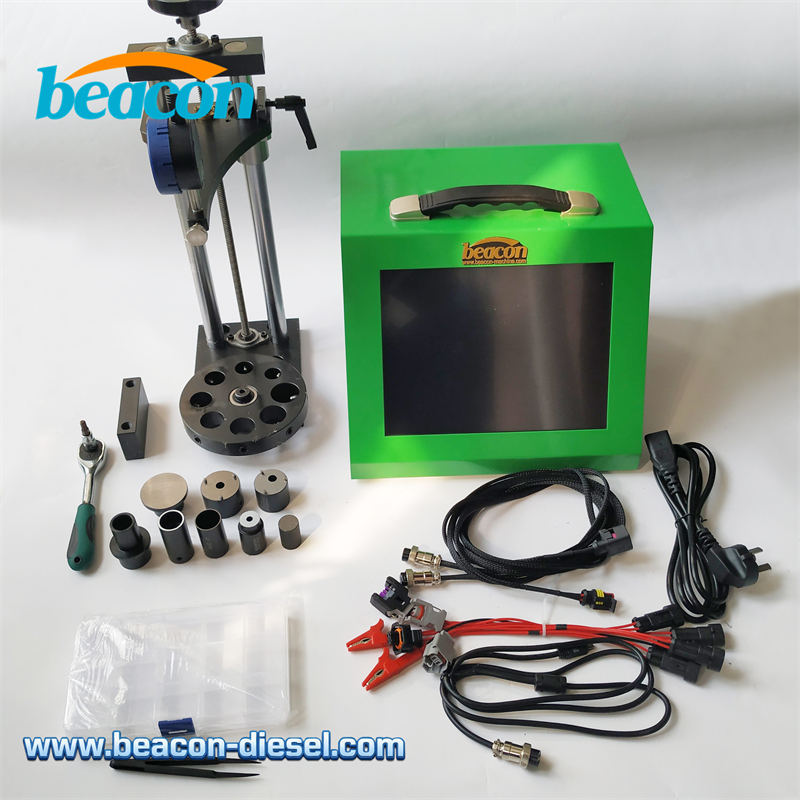

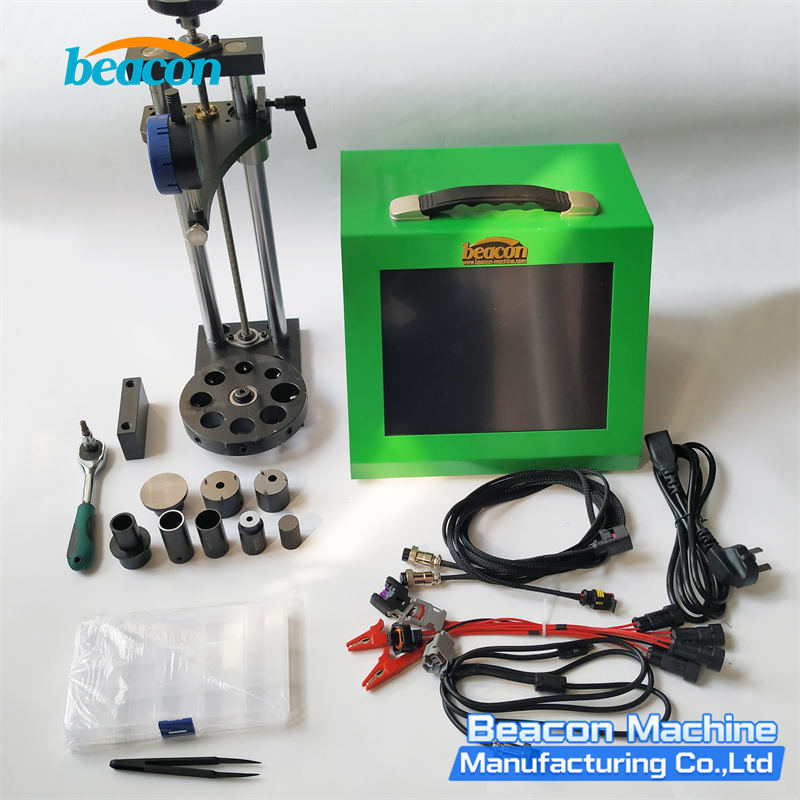

• Complete Kit: Includes the main unit, high-precision digital gauge, heavy-duty stand, and a full set of adapters.
