Introduction

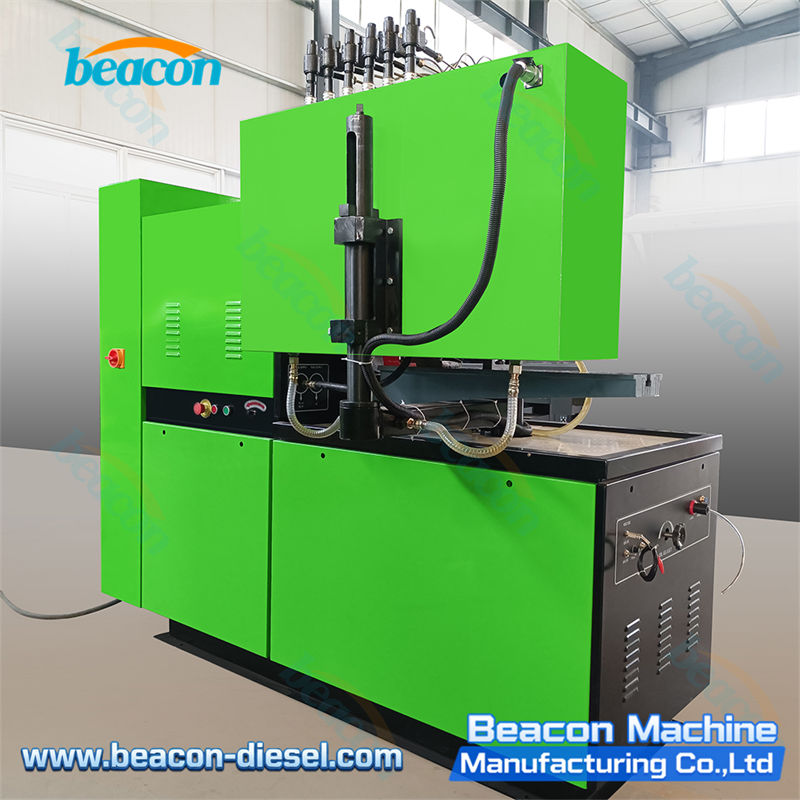

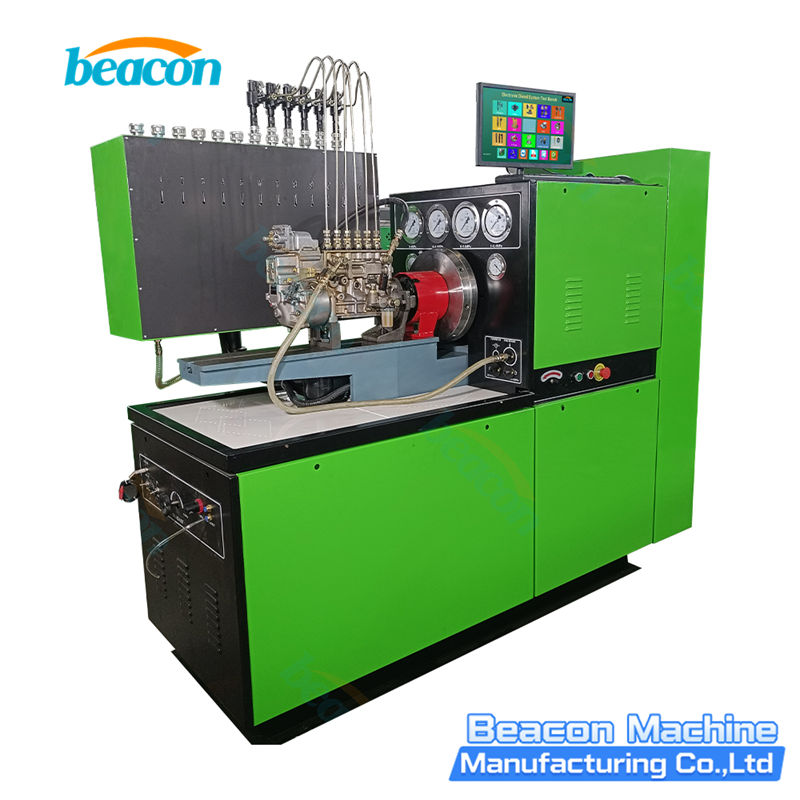

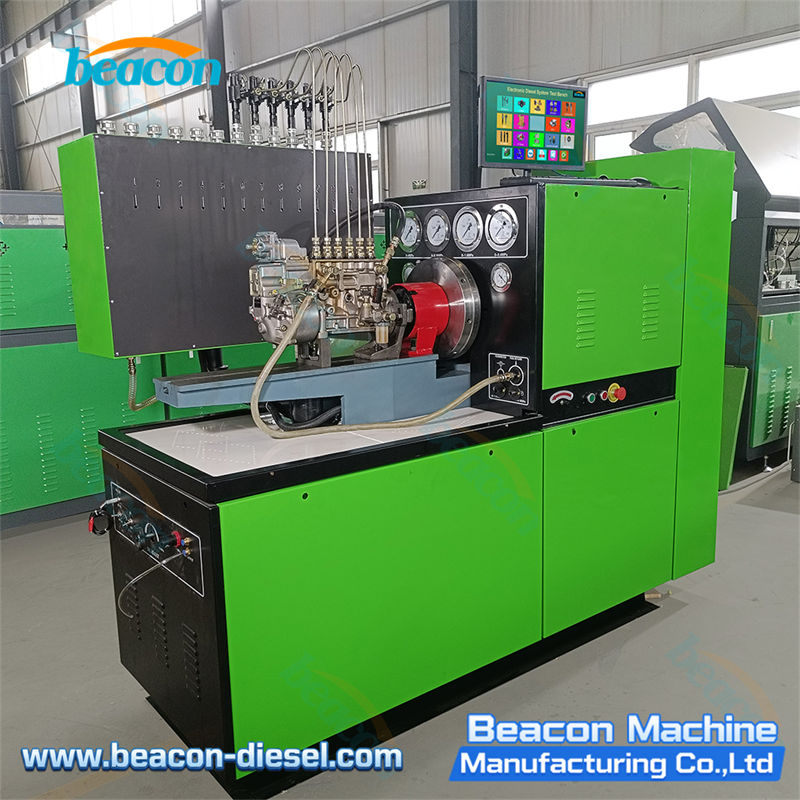

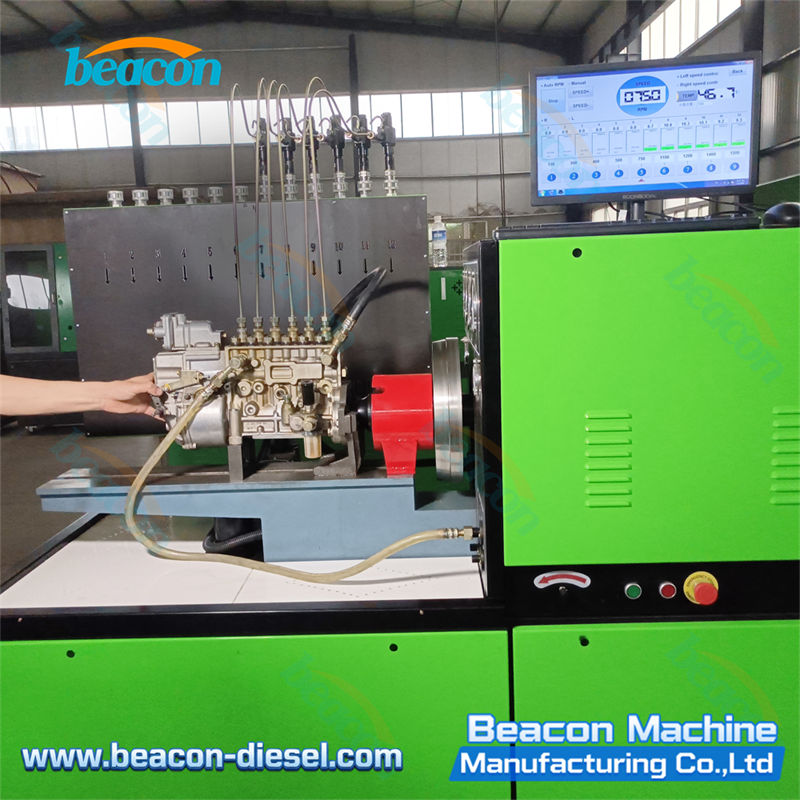

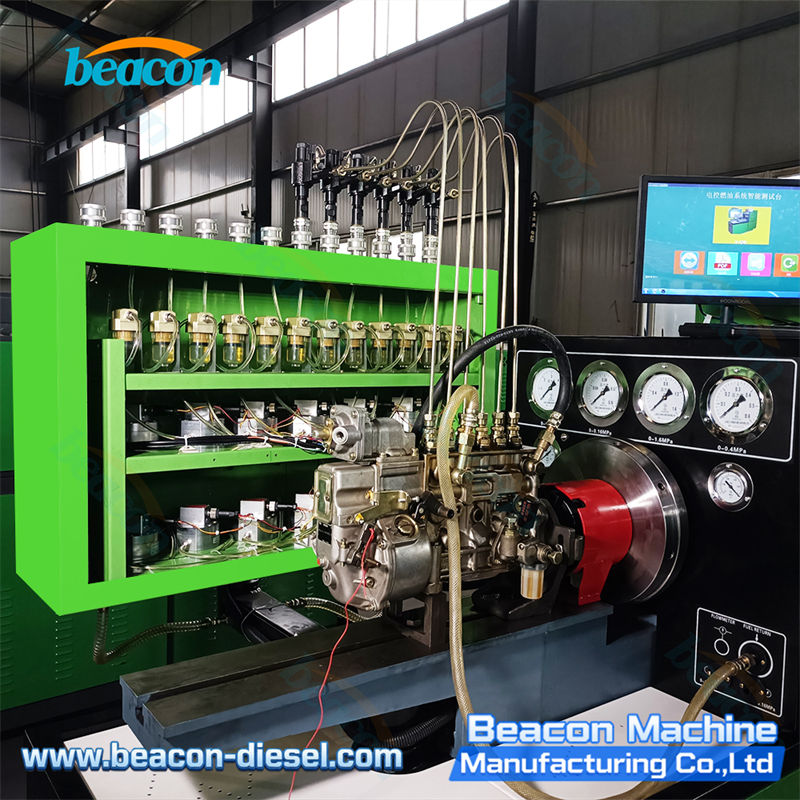

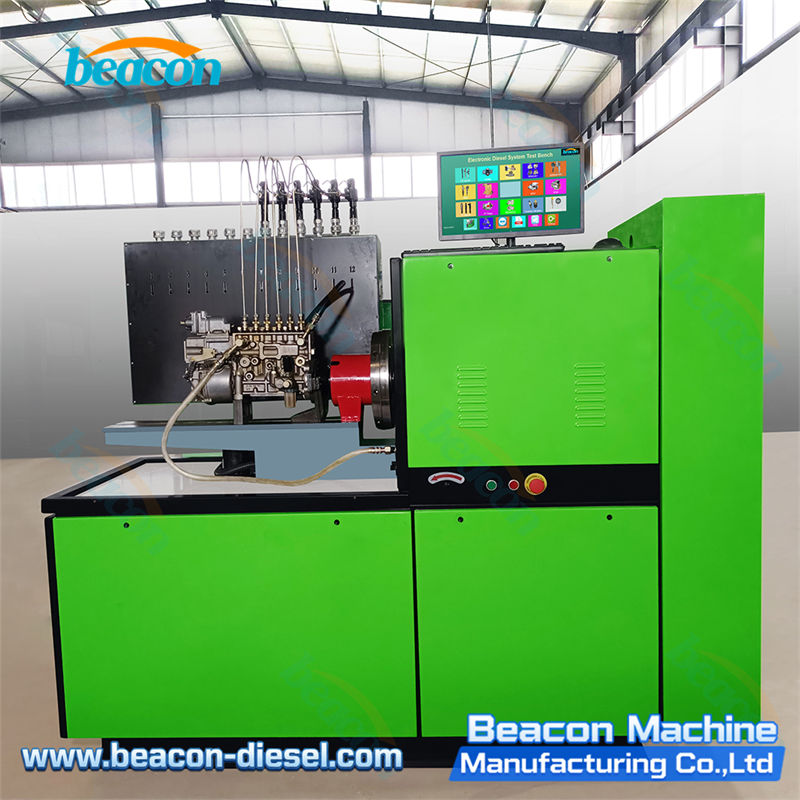

EPS816 Diesel Injection Pump Test Bench

The EPS816 Diesel Injection Pump Test Bench is a new-type professional testing equipment designed for the calibration and testing of diesel injection pumps. Equipped with advanced frequency conversion speed regulation system and digital fuel measurement technology, it delivers high-precision testing results for various diesel injection pumps.

Key Features

Advanced Frequency Control: Variable frequency drive system provides precise and stable speed regulation for reliable test results.

Digital Fuel Measurement: High-precision digital fuel metering system ensures accurate measurement of fuel injection volume.

Wide Compatibility: Suitable for testing various diesel injection pumps, including in-line pumps, distributor pumps, and VE/VE pumps.

User-Friendly Interface: Intuitive control panel with clear display for easy operation.

Applications

The EPS816 is ideal for diesel injection pump repair shops, fuel injection service centers, diesel engine maintenance stations, and automotive training institutions.

Packing List

EPS816 Test Bench × 1
High-pressure pipe assembly × 1 set
Low-pressure oil pipe × 1 set
Power cable × 1
Tool kit × 1 set
Lifting plate assembly × 1 set
User manual × 1

parameter

Parameter	Specification
Power Supply	AC 380V/220V, 50/60Hz
Speed Range	0-4000 rpm
Fuel Tank Capacity	60L
Measurement Accuracy	±0.5%
Max. Test Pressure	1.0 MPa (adjustable)
Control Mode	Frequency conversion + Digital control
Dimensions	1200×800×1400 mm
Net Weight	approx. 200 kg
