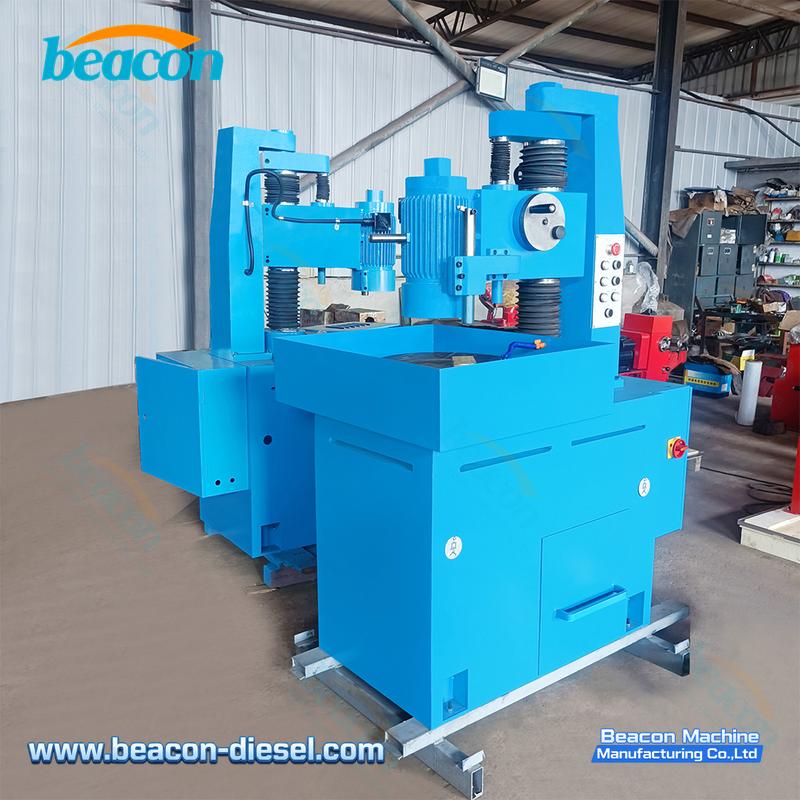

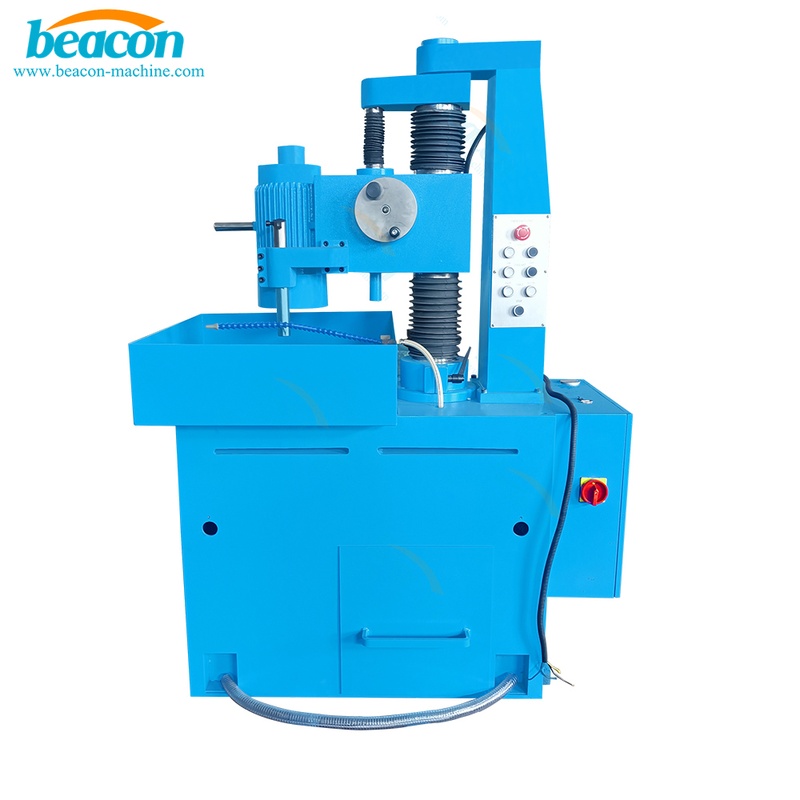

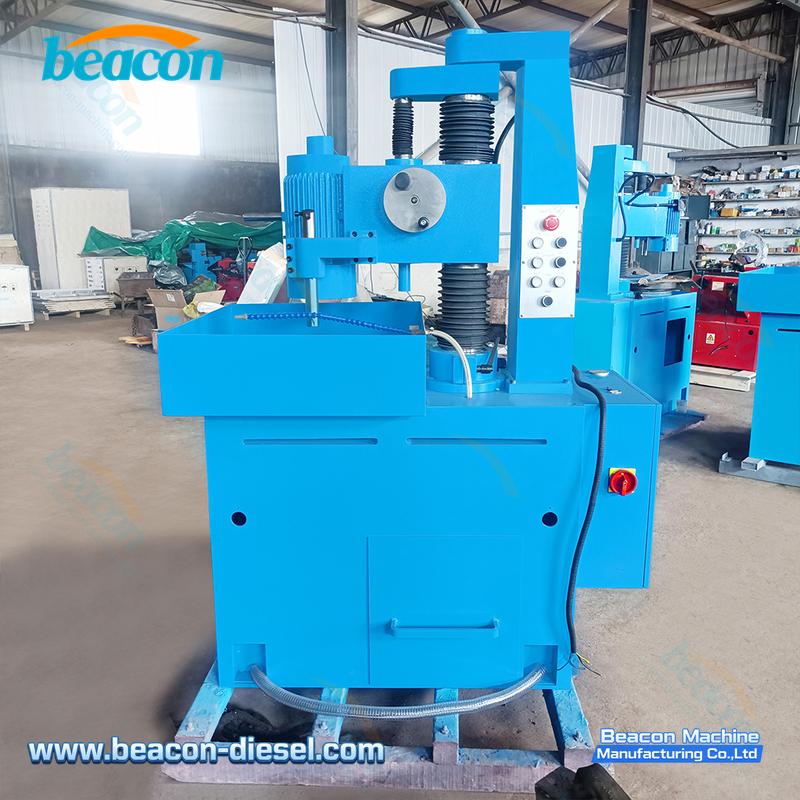

FG500 Flywheel Grinding Machine

The Beacon FG500 is a dedicated vertical surface grinding machine engineered for professional automotive flywheel resurfacing and repair. With its robust circular column design, dual-speed round worktable, and reinforced square column construction, the FG500 delivers exceptional rigidity, machining accuracy, and cutting efficiency for flywheels up to 500mm in diameter.

Key Features

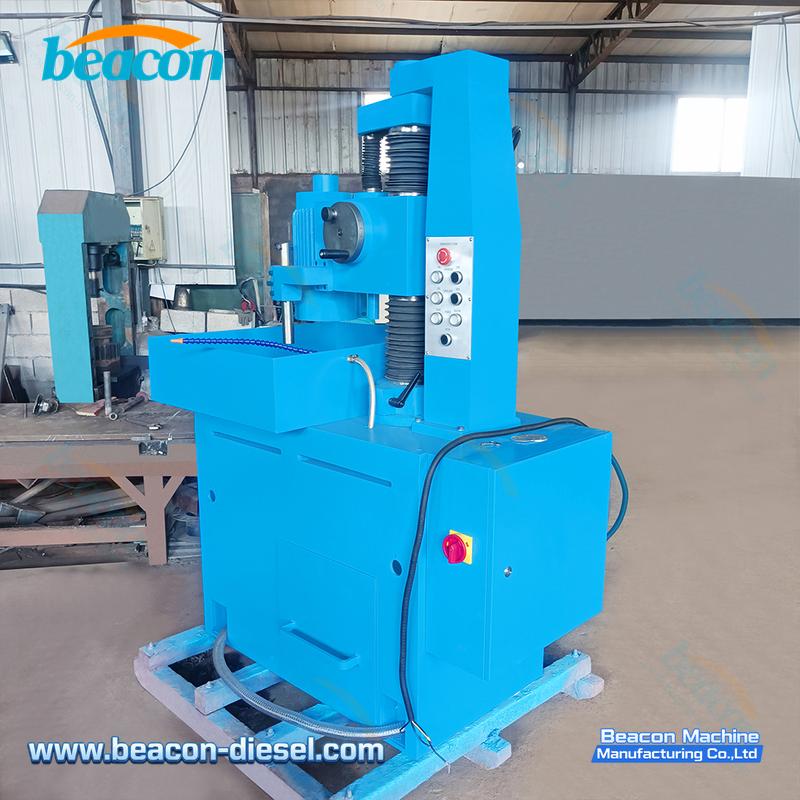

Vertical Surface Grinding Design: Round table vertical grinder configuration with grinding head and feeding box that rotate around the circular column — enabling precise grinding of flywheels across different diameters
Reinforced Rigidity: Square column reinforcement behind the circular column significantly enhances structural rigidity and long-term machining accuracy stability
Dual-Speed Worktable: Selectable 17 RPM (slow) or 34 RPM (fast) table speeds allow operators to optimize grinding parameters based on flywheel size for best surface finish results

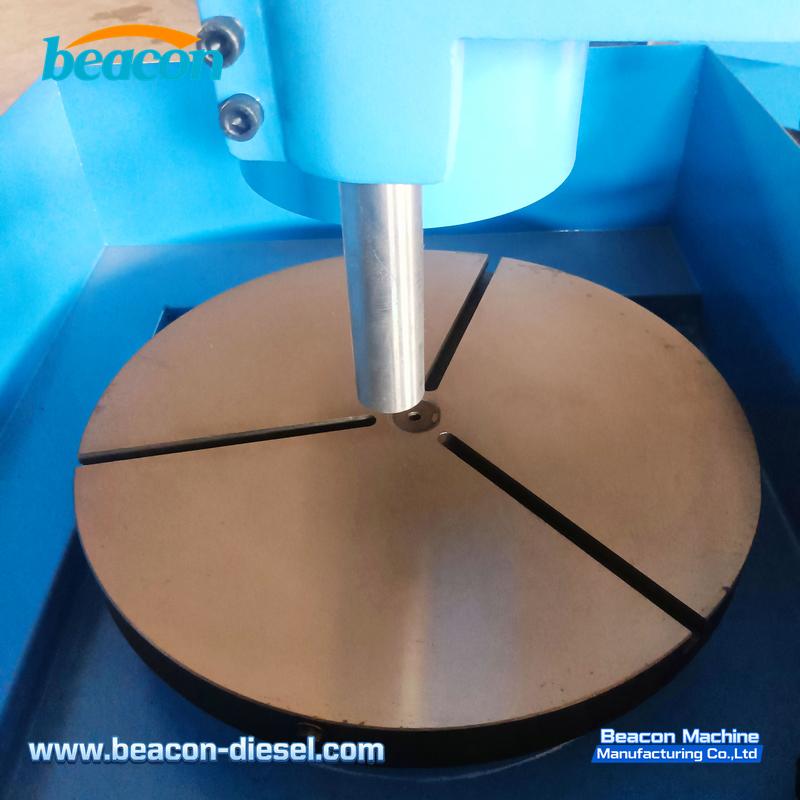

Wide Capacity: Accommodates flywheels up to 500mm in diameter on a 450mm diameter worktable with 200mm maximum spindle-to-table clearance
Integrated Cooling System: Built-in pull-type water tank provides efficient grinding and cooling, maintaining workpiece temperature while keeping the machine exterior clean and tidy
High-Speed Grinding: 2800 RPM grinding wheel rotation speed powered by a 3KW motor delivers fast cutting speed and high work efficiency

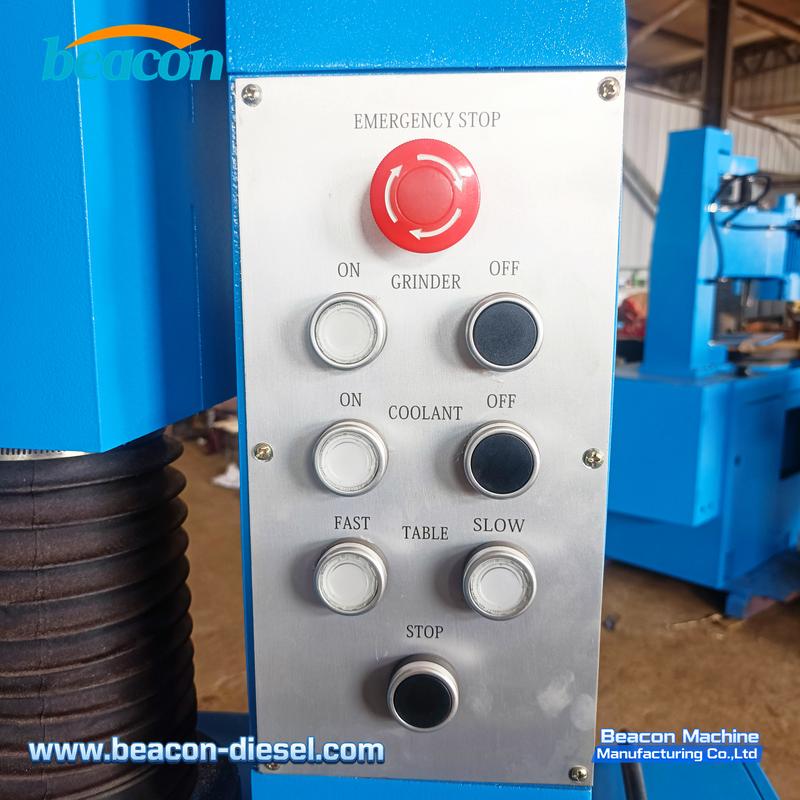

Simple Operation: Straightforward controls and easy maintenance make this an ideal specialized equipment for flywheel repair workshops
Sturdy Construction: Net weight of 690kg (750kg gross) ensures vibration-free, stable operation during precision grinding

Applications

Automotive flywheel resurfacing and grinding
Clutch flywheel surface restoration
Vehicle transmission system repair workshops
Engine rebuilding and remanufacturing centers
Commercial vehicle and passenger car flywheel maintenance

parameter

Parameter	Specification
Model	FG500
Table Diameter	450 mm
Max. Flywheel Repair Diameter	500 mm
Max. Spindle-to-Table Distance	200 mm
Grinding Wheel Speed	2800 RPM
Worktable Speed	17 / 34 RPM (Dual-Speed)
Grinding Wheel Motor	3 KW
Net Weight	690 kg
Gross Weight	750 kg
Overall Dimensions	1200 × 800 × 1750 mm
Packing Dimensions	1300 × 820 × 1900 mm
