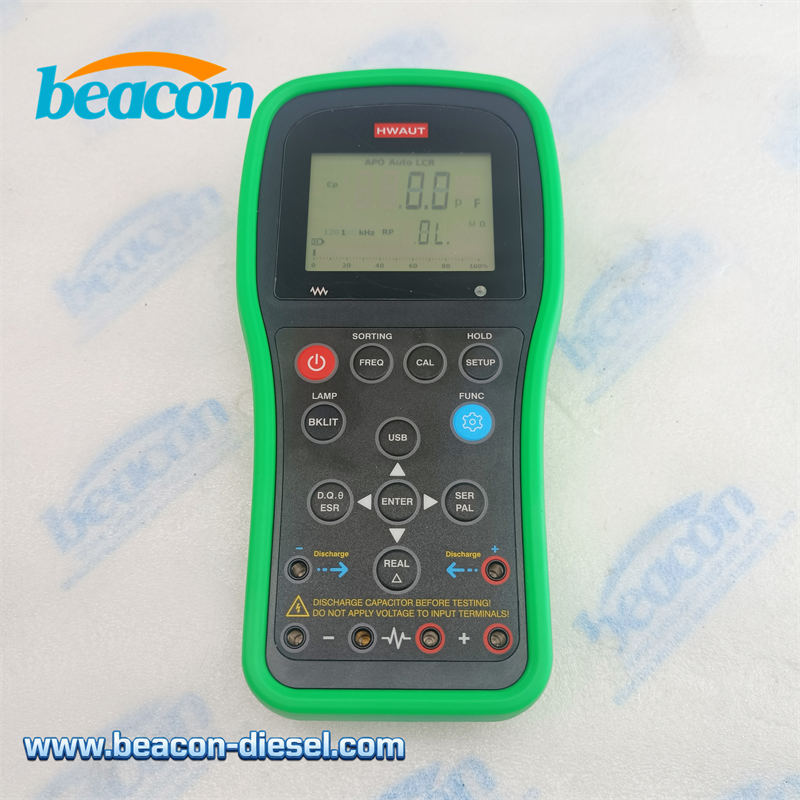

HW-LCR06 Professional Portable Handheld LCR Meter Digital Bridge Inductance Capacitance Resistance Tester 100kHz with ESR

HW-LCR06 Professional LCR Meter & Component Tester

The HW-LCR06 is a high-precision portable handheld digital bridge designed for professional measurement of Inductance (L), Capacitance (C), and Resistance (R). It adopts advanced AC impedance measurement technology with a test frequency up to 100kHz and a basic accuracy of 0.5%. Ideal for electronic engineers, maintenance technicians, and production lines.

Key Features:

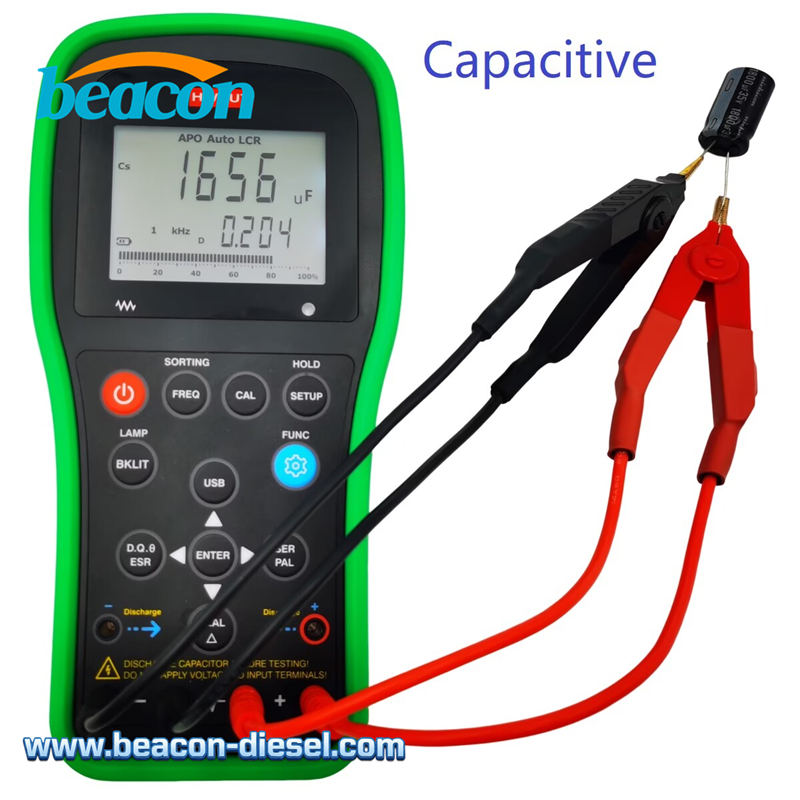

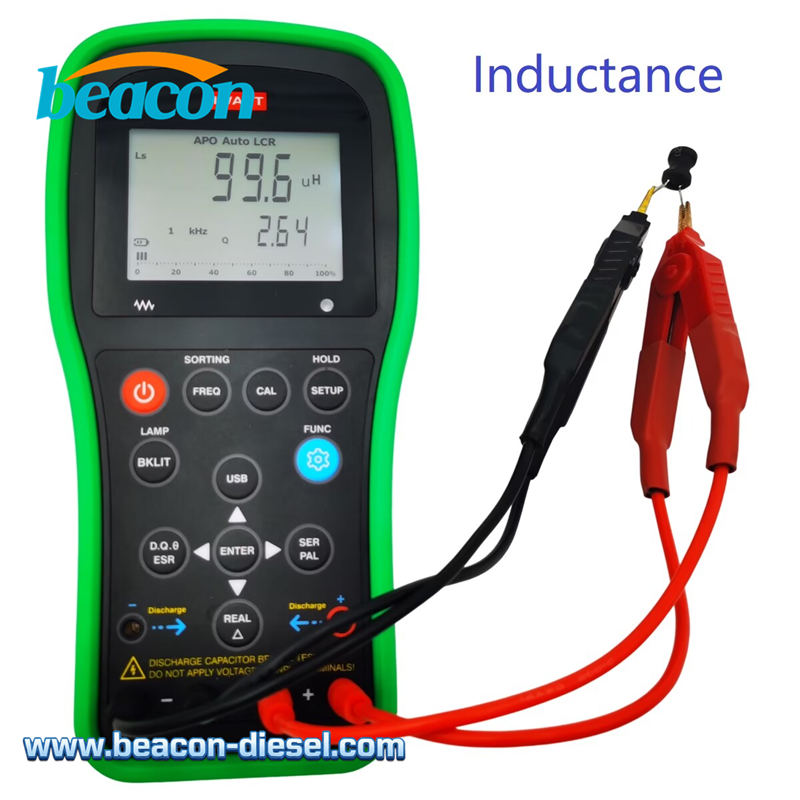

• Multi-Parameter Measurement: Measures L, C, R, DCR (DC Resistance), Q (Quality Factor), D (Loss Factor), ESR (Equivalent Series Resistance), and θ (Phase Angle).
• Wide Frequency Range: Supports 5 test frequencies: 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz to suit various component requirements.
• Intelligent Auto Mode: Automatically identifies the component type (L/C/R) and selects the appropriate series/parallel measurement mode.

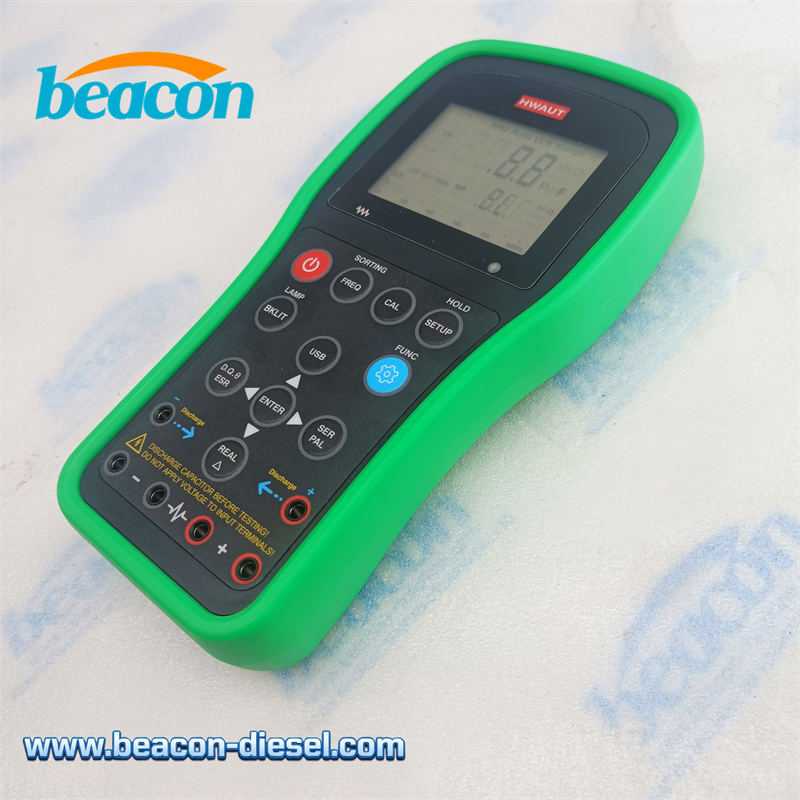

• Portable & Powerful: Compact design with a clear LCD display. Powered by a built-in 3.7V lithium battery or USB 5V, ensuring long operation time.

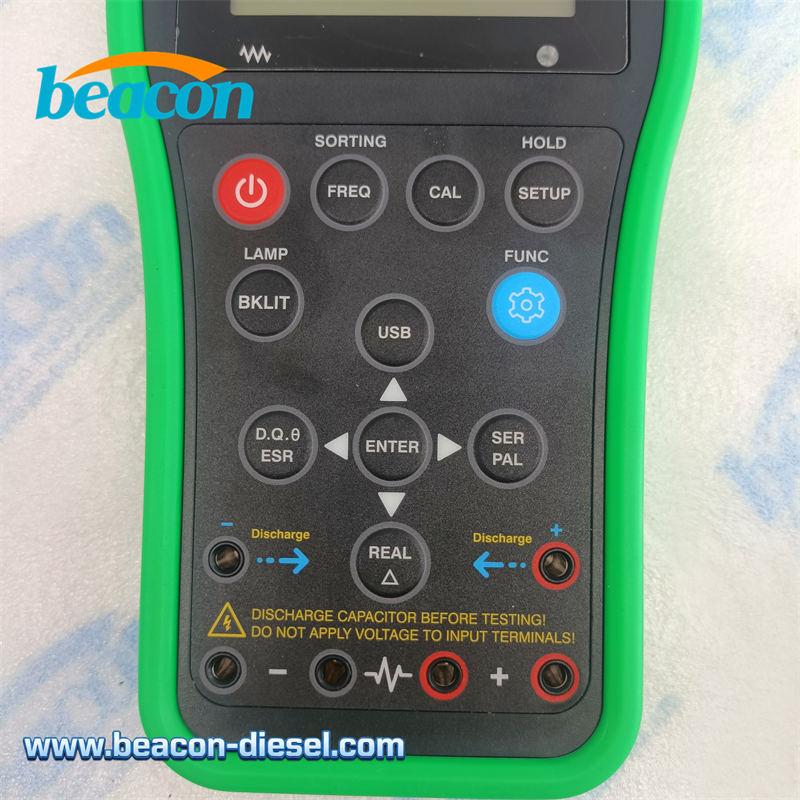

• Advanced Functions: Includes Data Hold, Calibration (Open/Short), Sorting/Screening Mode, and USB communication capability.

Application Scenarios:

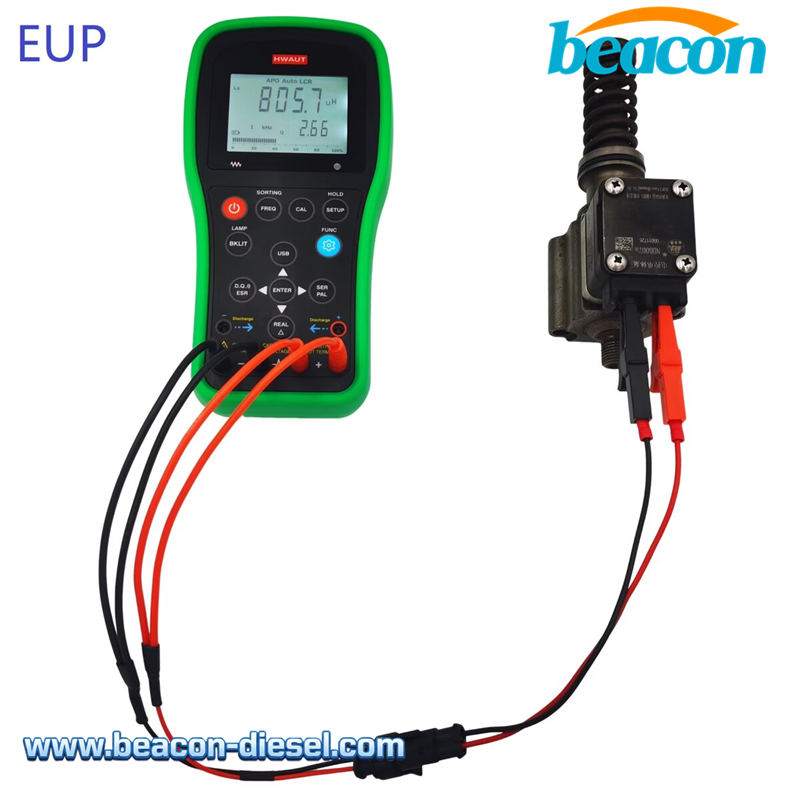

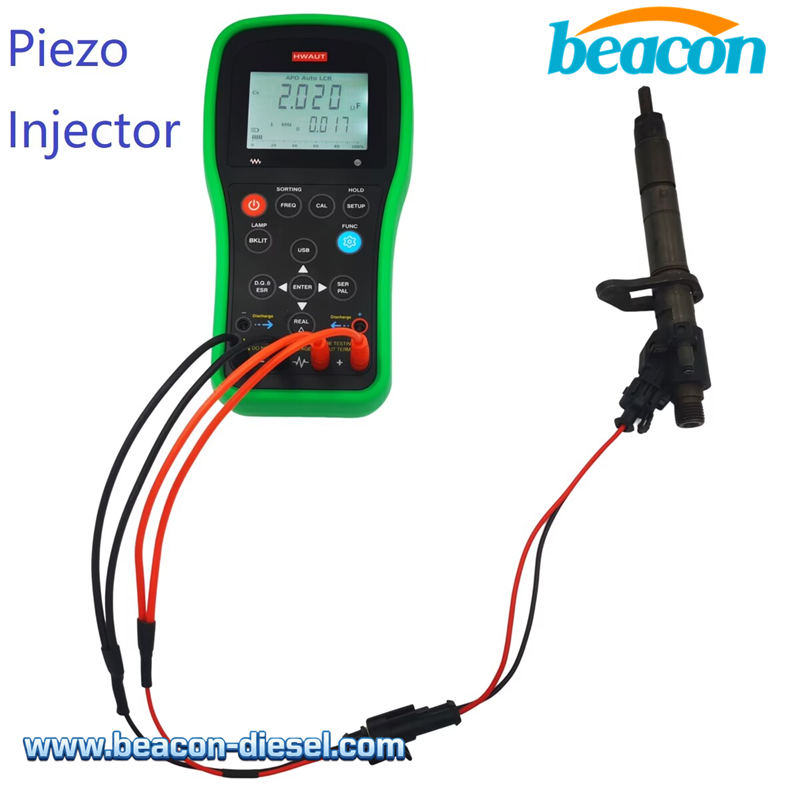

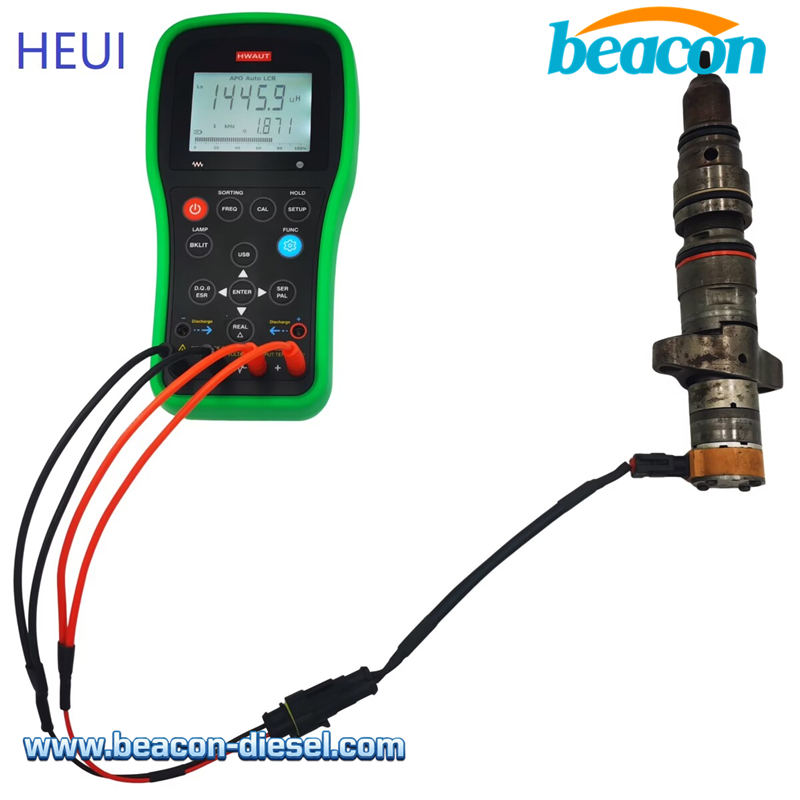

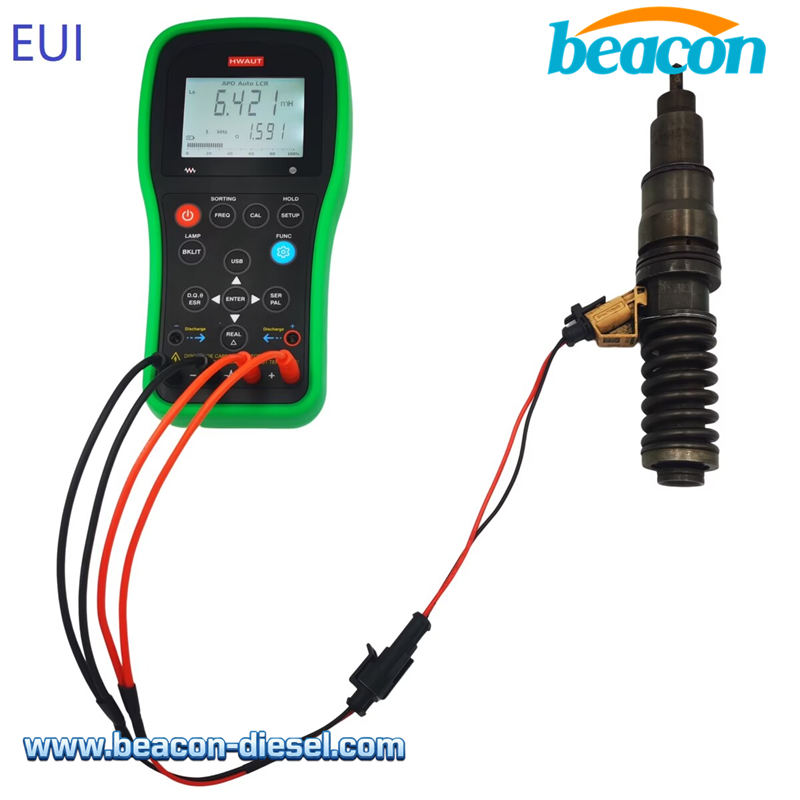

Suitable for testing passive components, dielectric materials, and impedance analysis in laboratories, production lines, and maintenance centers. Perfect for checking HEUI, EUI, EUP, ZME, and Injector components.
