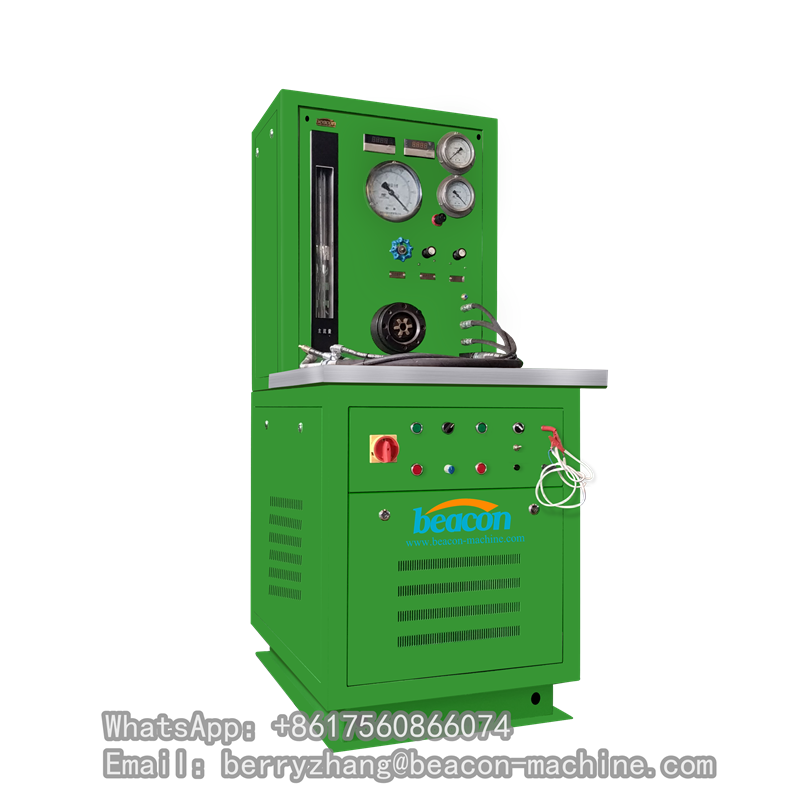

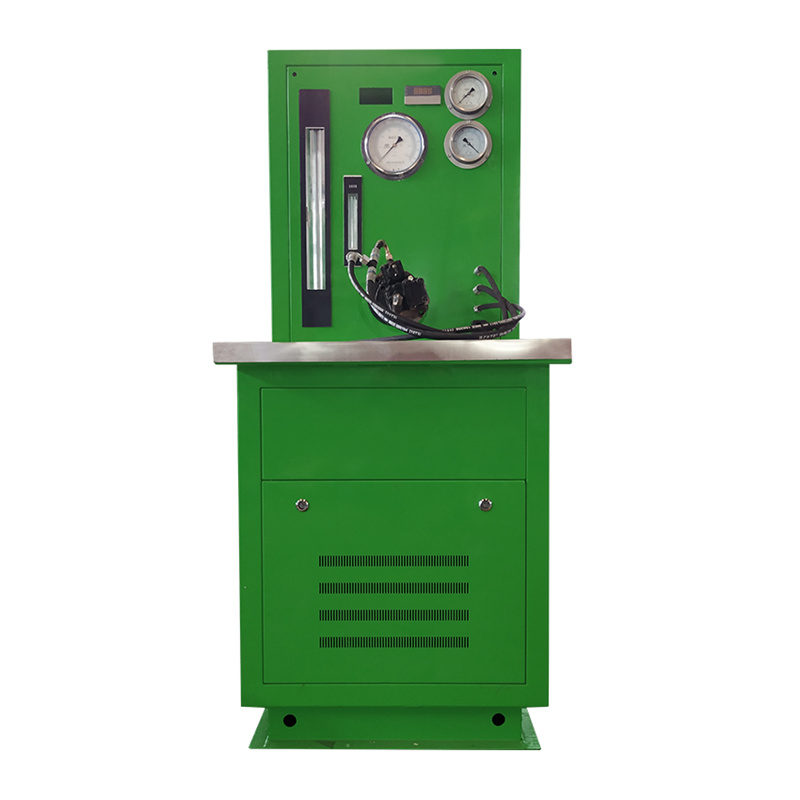

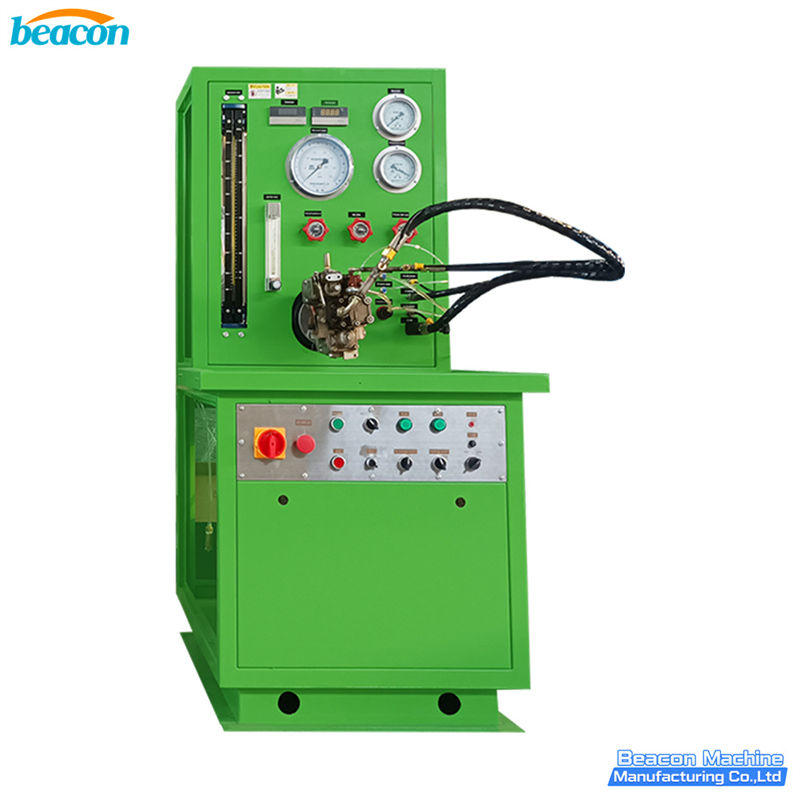

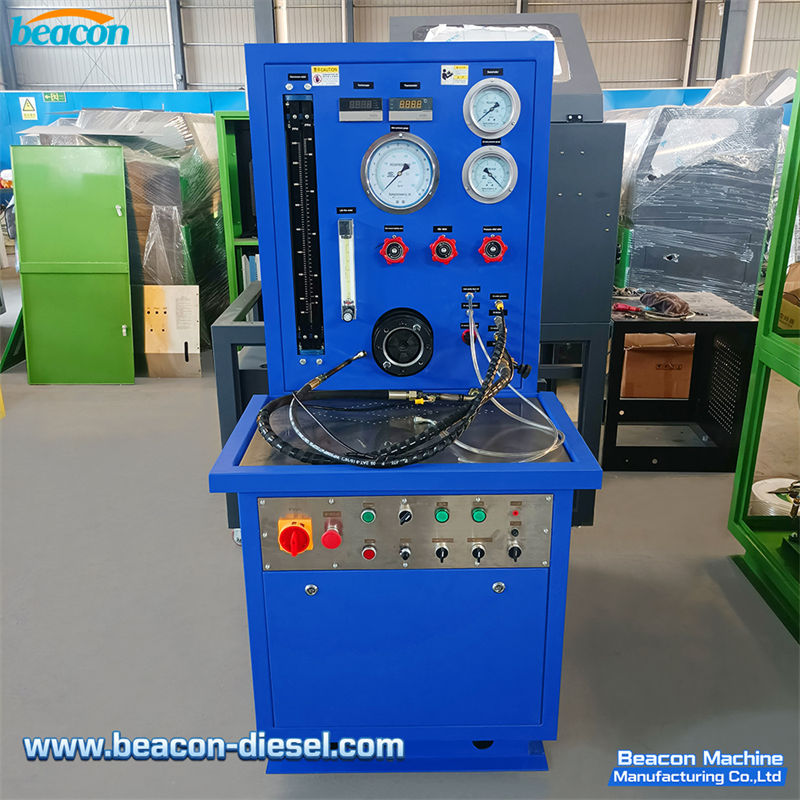

Pt212 Diesel Fuel Injection Pump Test Bench For Cummiins Type

The Beacon PT212 PT Pump Test Bench provides precise calibration for Cummins PT fuel pumps. Features include AFC, EFC, and ASA valve testing with high accuracy. Enhance your diesel repair shop's efficiency and diagnostic capabilities today.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

Value Proposition:

The Beacon PT212 is a critical asset for diesel repair workshops specializing in Cummins engines. It empowers technicians to accurately diagnose, calibrate, and repair PT fuel pumps, ensuring optimal engine performance and fuel efficiency. By simulating real-world working conditions, this machine helps professionals deliver reliable repairs for heavy-duty trucks and industrial machinery, building customer trust and business growth.

Key Functions:

Comprehensive PT Pump Test: Full functional testing for PT fuel pumps.
Idle & Speed Analysis: Precise idle speed test and route test of throttle.
Advanced Pressure Testing: Includes weight assistant pressure test and gear pump pressure verification.
Flow & Pressure Monitoring: Pressure and flow tests at every check point.
Control Valve Testing: Specialized functions for AFC (Air Fuel Control), ASA valve, and EFC (Electronic Fuel Control) testing.
Safety & Shut-off: Oil stopping test and shut down valve test capabilities.
Return Flow Check: Accurate oil return test of throttle and leak flow measurement.

parameter

Technical Parameters	Data / Description
Oil Tank Capacity	50 L
Oil Type	0 Fuel Diesel
Temperature of Oil	35 ± 2°C
Oil Test Pressure	400 PSI
Air Test Pressure	250 PSI
Gear Pump Test Pressure	600 PSI
Oil Test Demarcated Flow	75-720, 710-2400 PPH
Oil Test Leak Flow	10-760 ML/MIN
Air Test Flow	0-150 ML/MIN
Dimension of Stand	710 × 900 × 1880 MM
