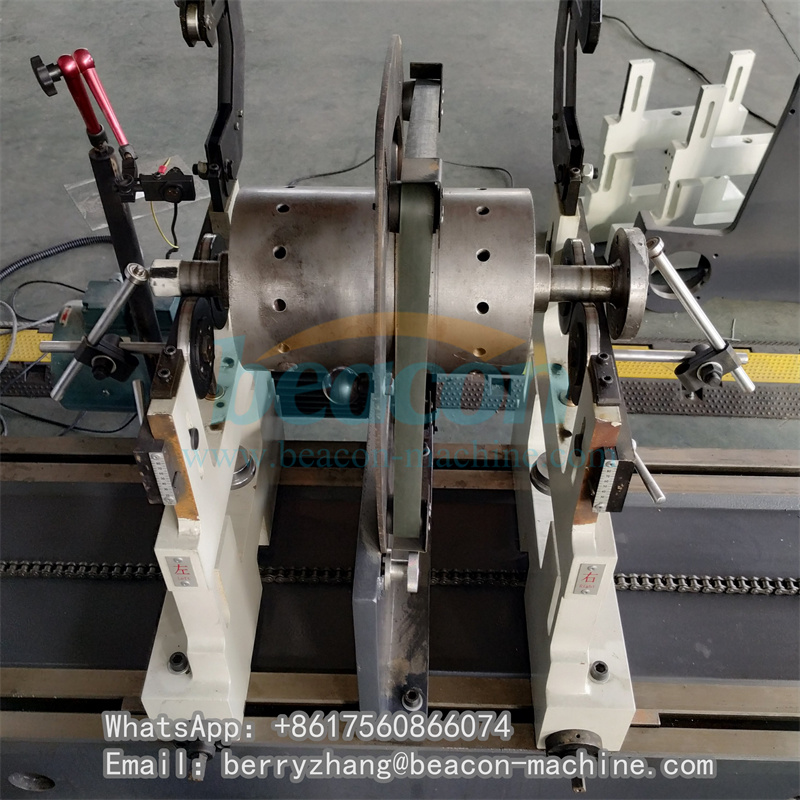

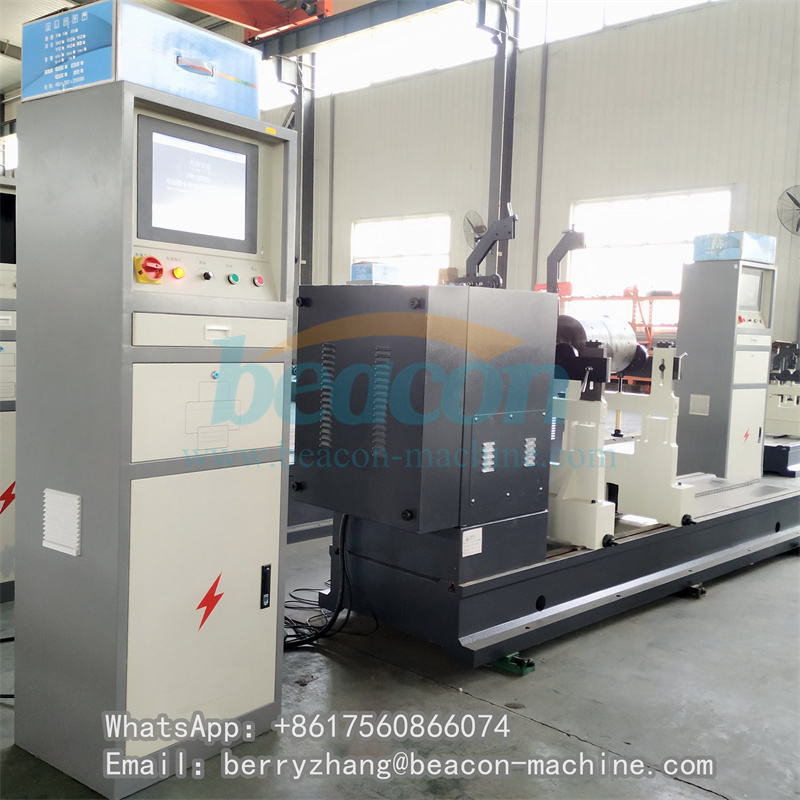

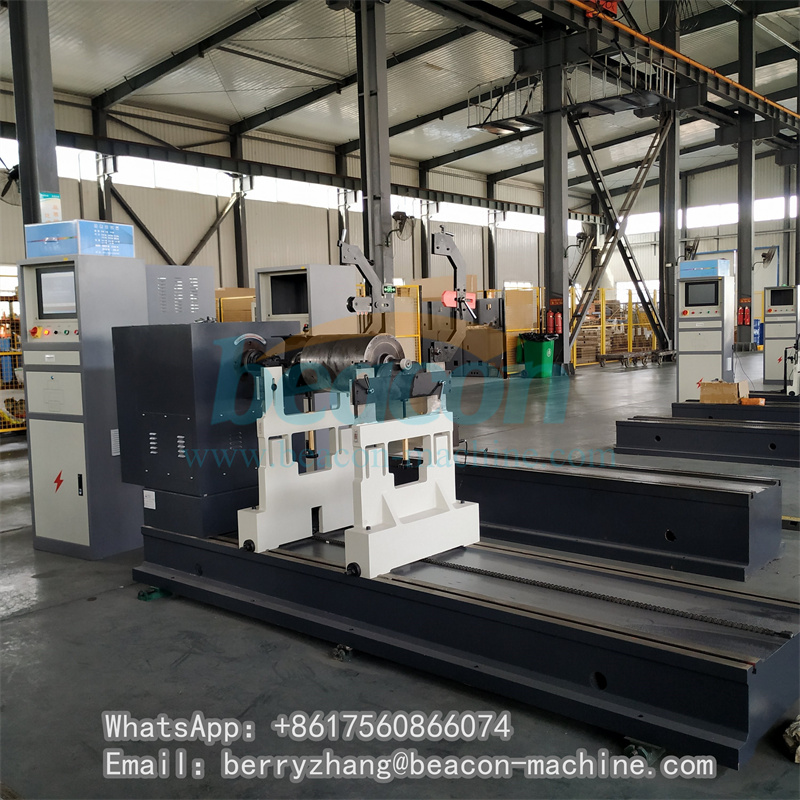

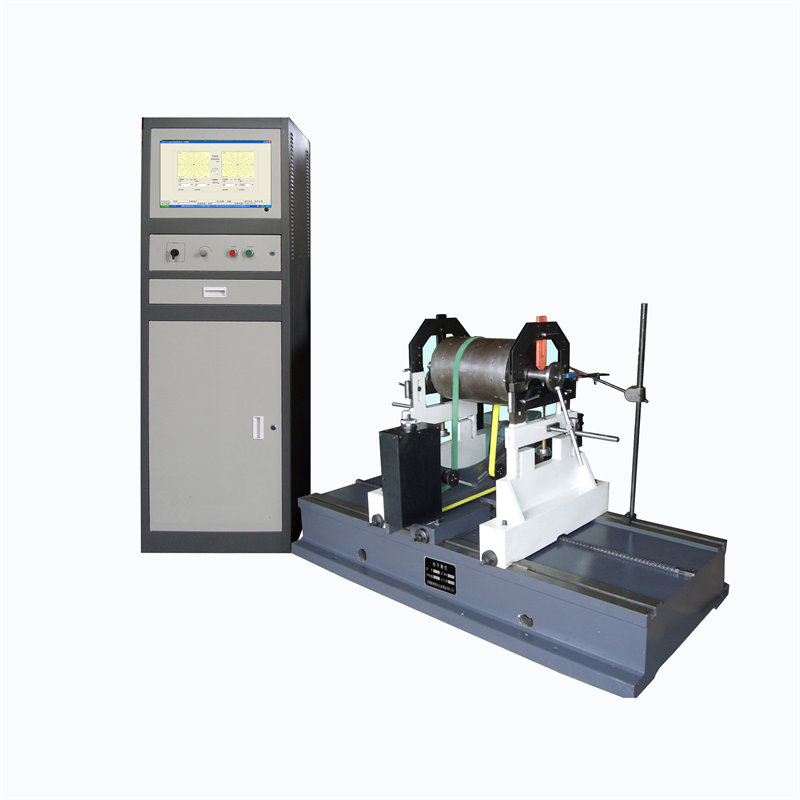

YYQ Series YYQ-500S Horizontal Hard Support Dynamic Balancing Machine

YYQ Series YYQ-500A Horizontal Hard Support Dynamic Balancing Machine

1.Features:
General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using semi hard bearing, belt driven, screen display structure, industrial control computer processing the data. 15 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single interface, suited for plate work-piece, center of gravity overhung rotor.

2.Main technical index

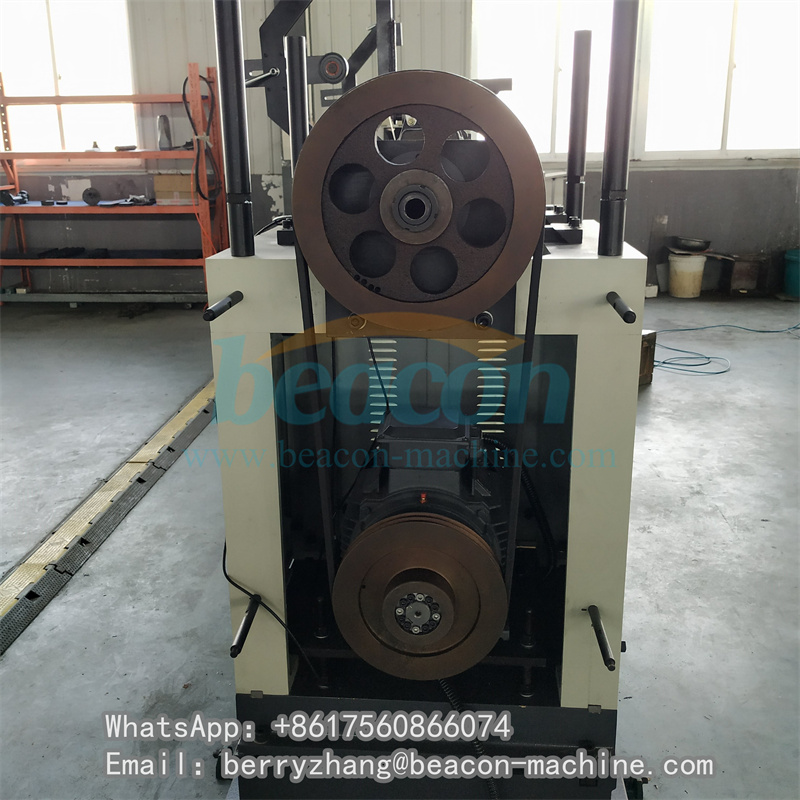

Way of driving: belt driven and 4 kw motor
Measuring system: independent developed dynamic balancing machine special measuring software.

1)weight of work-piece (kg):                                 10-500
2)Max diameter of work-piece (mm):                         φ1600
3)Max diameter of scope of driving belt(mm):                  φ500
4)Max distance between two swing frame center(mm):           1500
5)Length of lathe bed(mm):                                   1800
6)Journal diameter scope of work-piece(mm):     φ20-130(standard bearing roller frame)
7)Min achievable residual unbalance amount(gmm/kg):        ≤0.5
8)Unbalance reduction ratio(%):                            ≥90
9)Rotating speed(r/min):                                 200-1500
10)Motor power(kw):                                       4
11)Drive mode:                                        belt driven
Work environment:                         temperature: -5---45℃; humidity: 0-85%

*Test data from Beacon laboratory
