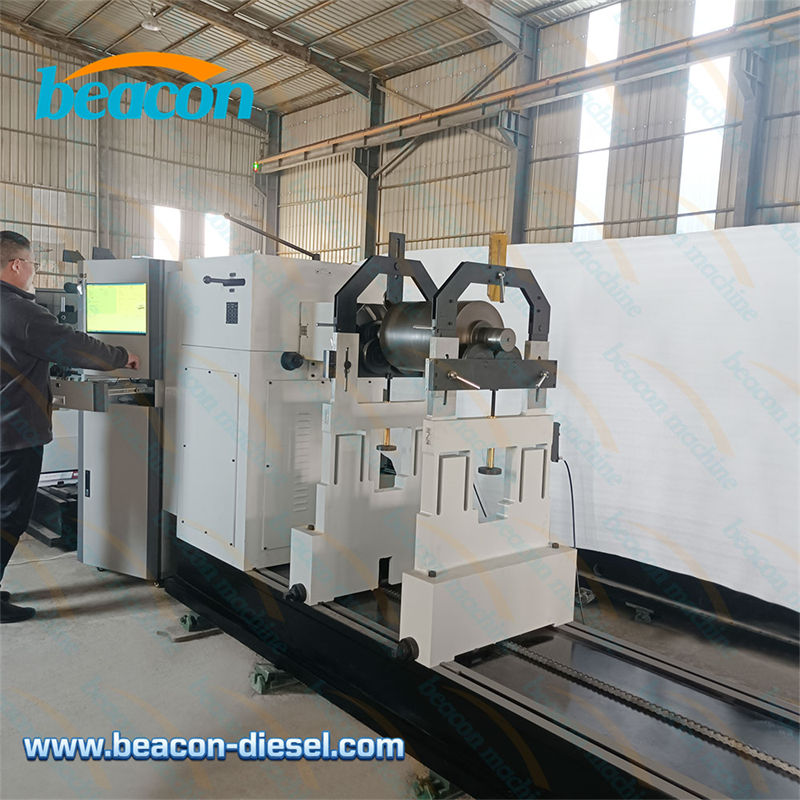

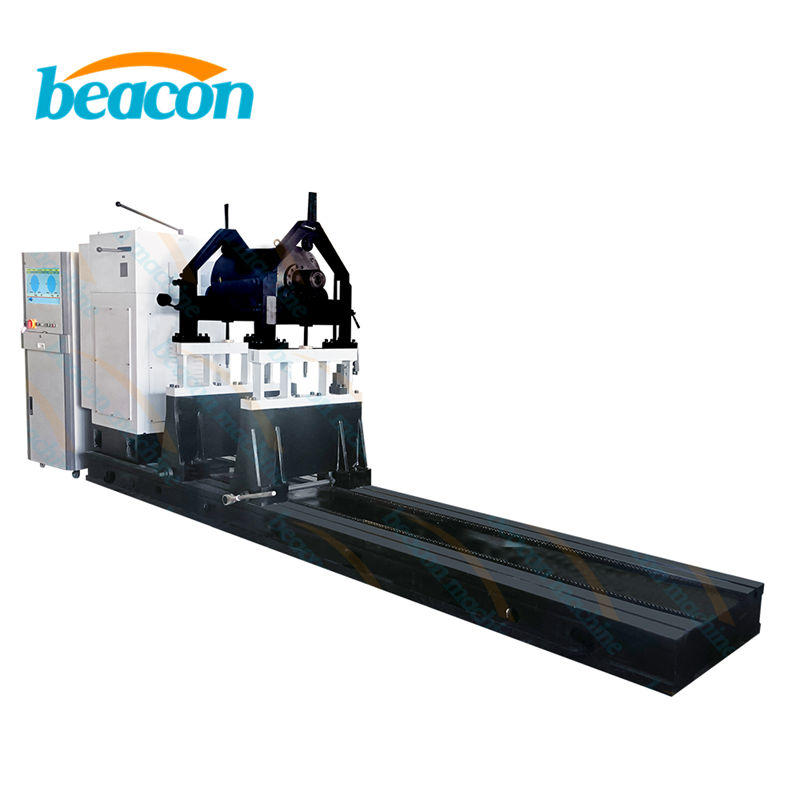

YYW-3000A Universal Joint Drive Dynamic Balancing Machine (3000kg Capacity)

High-precision YYW-3000A dynamic balancing machine for rotors 100-3000kg. Features universal joint drive, variable speed (110-1170 rpm), and high accuracy (≤1g·mm/kg). Ideal for large industrial rollers and motor rotors.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

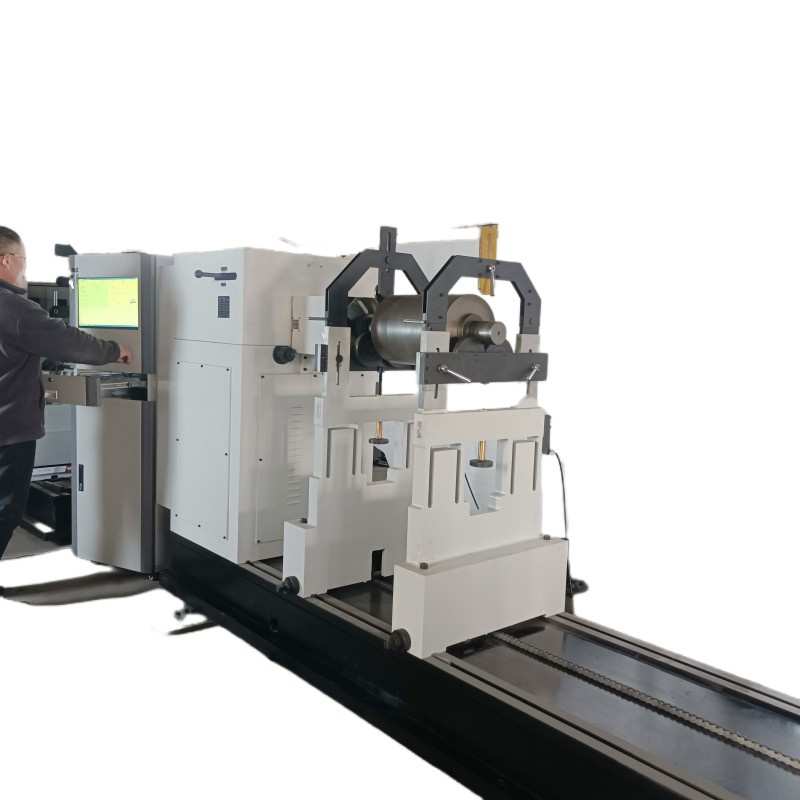

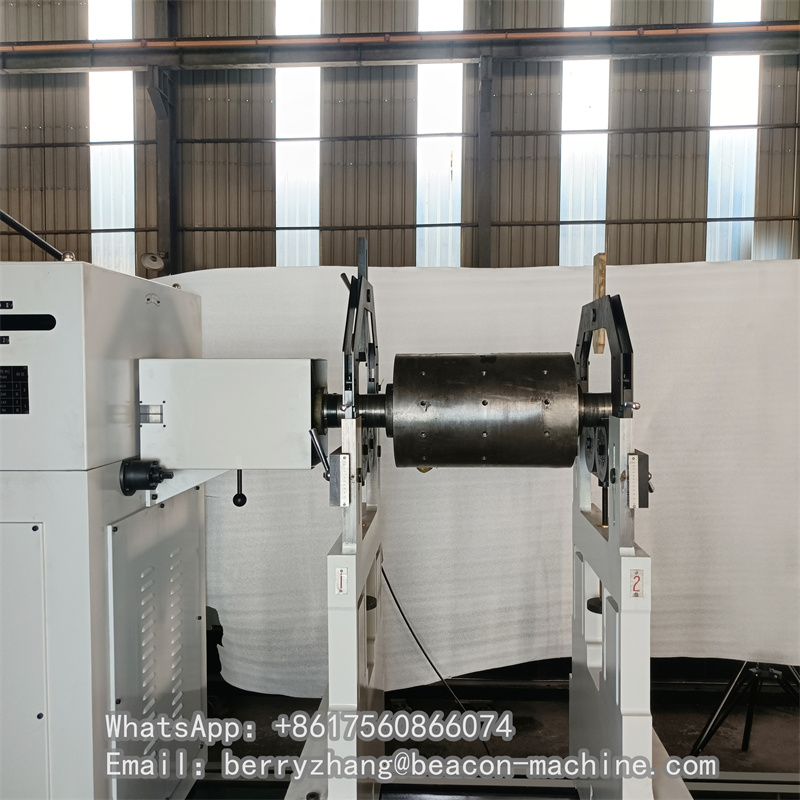

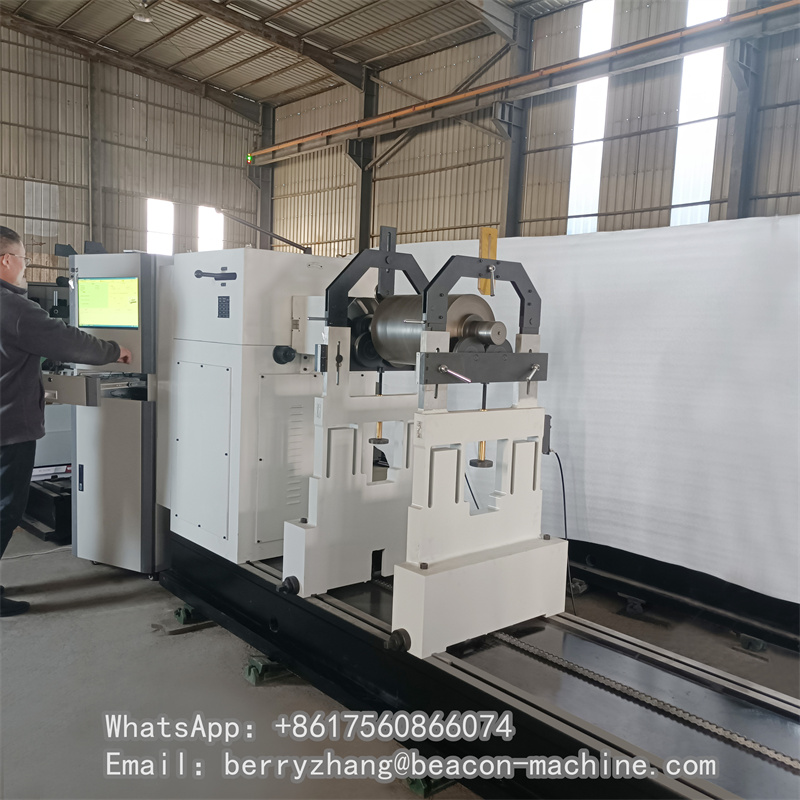

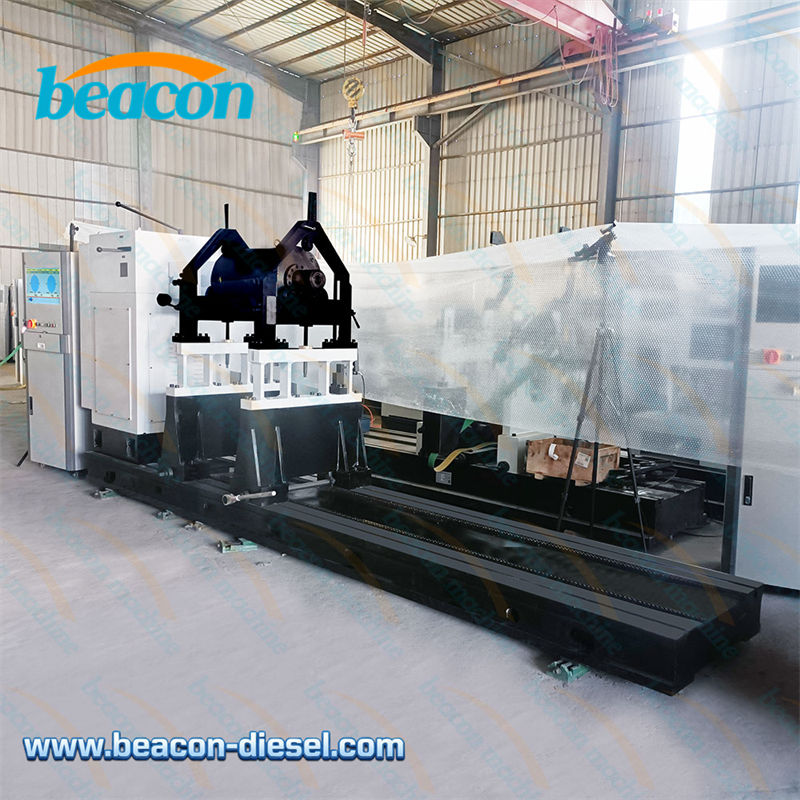

The YYW-3000A Universal Joint Balancing Machine is engineered for heavy-duty industrial applications, providing high-precision balancing for rotating workpieces weighing up to 3000 kg. By utilizing a universal joint drive, it delivers high transmission torque and operational stability, making it essential for manufacturers of large electric motors, fans, and paper-making rollers to eliminate vibration and extend equipment lifespan.

Key Features:

Wide Capacity Range: Handles workpieces from 100kg to 3000kg with a maximum diameter of 2400mm.

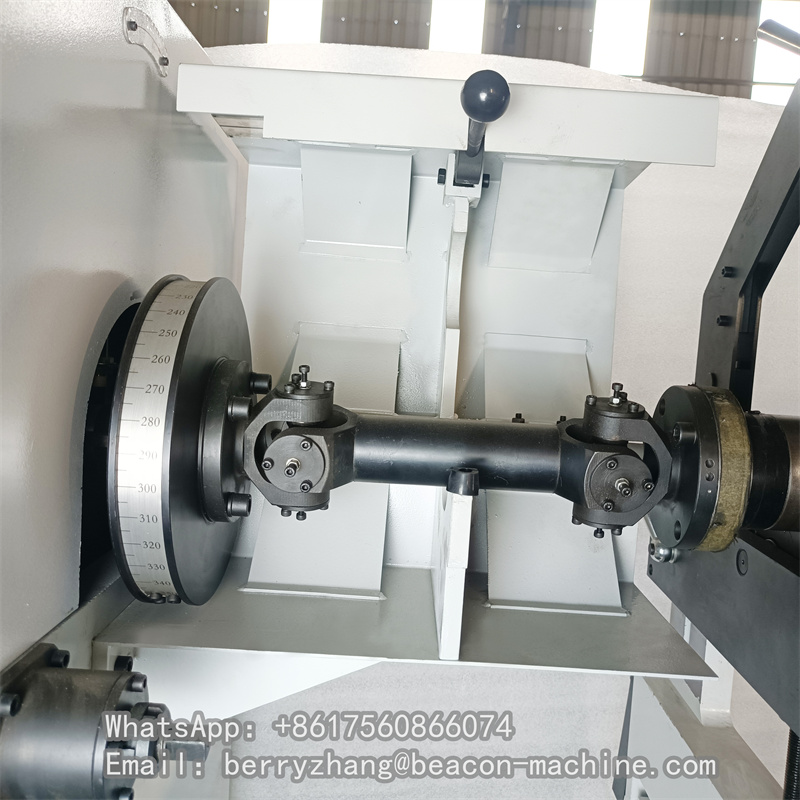

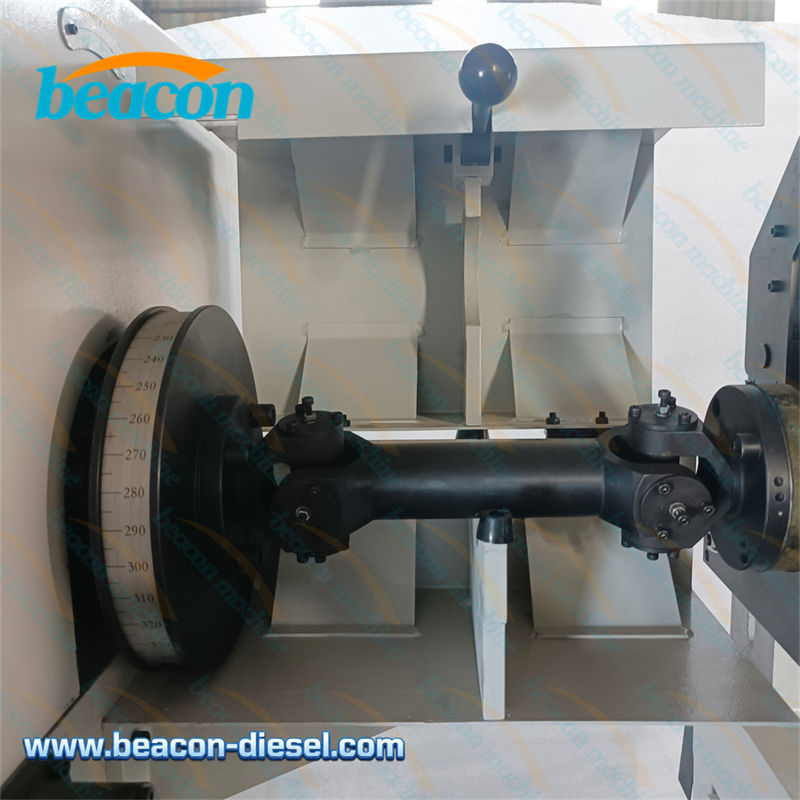

Universal Joint Drive: Ensures steady power transmission, large startup torque, and easy operation.

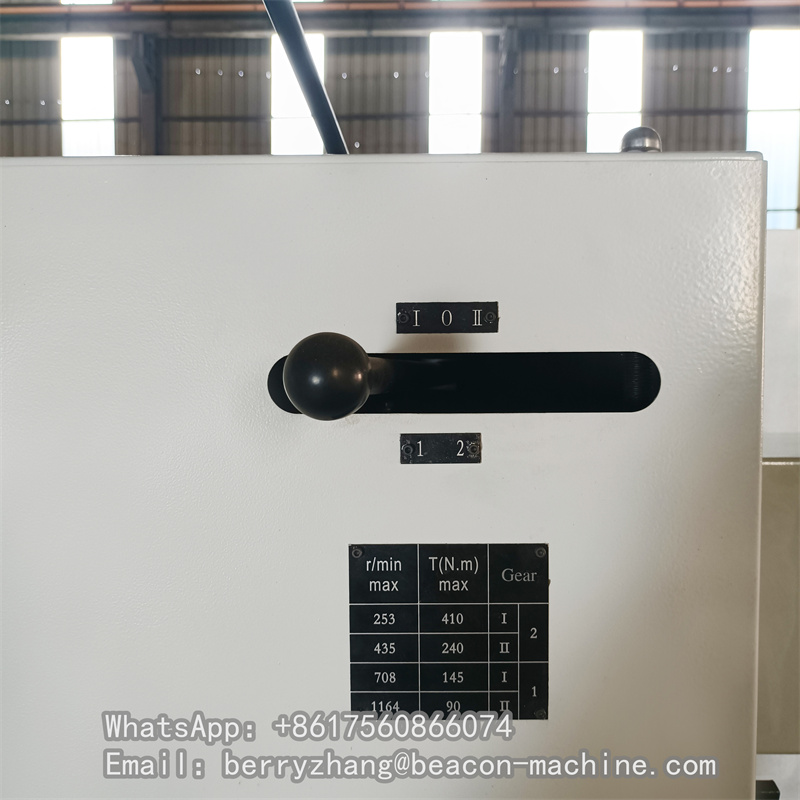

Precision Speed Control: Equipped with an 11kW motor, inverter speed regulation, and a 4-gear mechanical transmission (110–1170 r/min).
High Accuracy: Achieves a minimum residual unbalance of ≤ 1 g·mm/kg with a reduction ratio of ≥ 90%.
Customizable Design: Bed length, support journals, and swing diameter can be extended or increased based on user requirements.

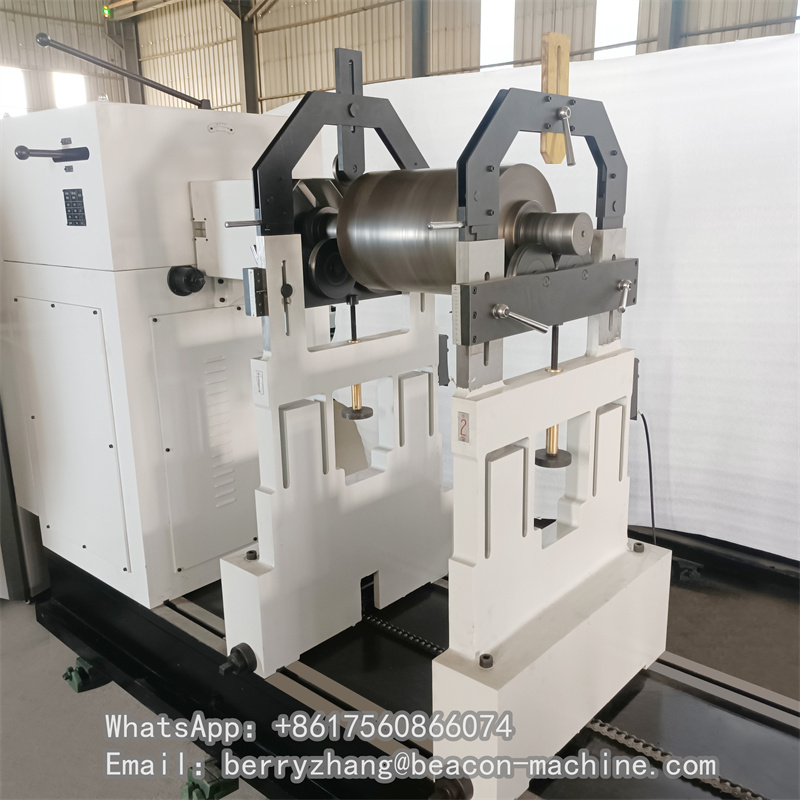

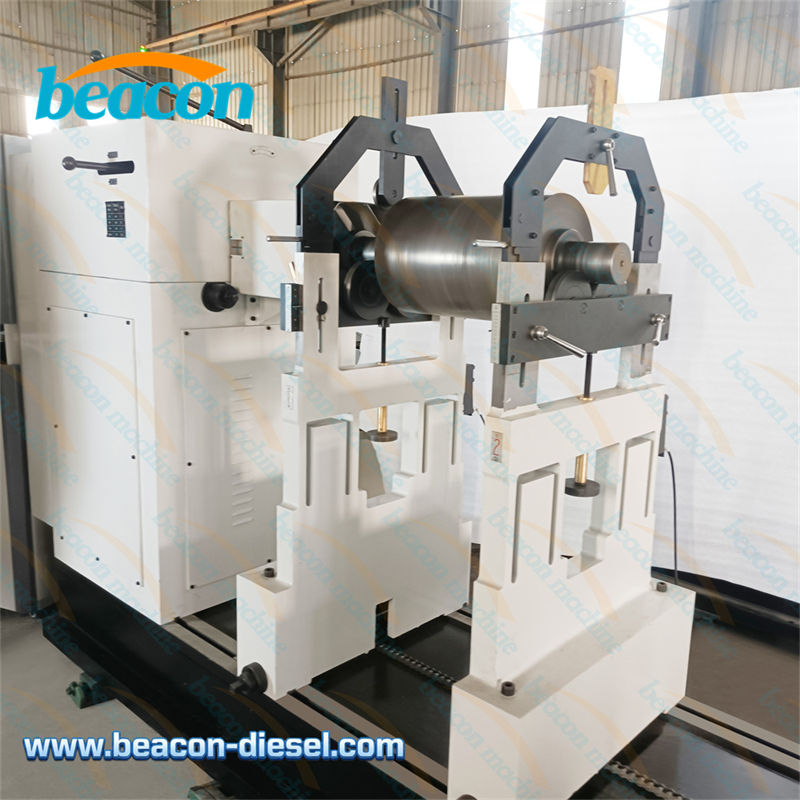

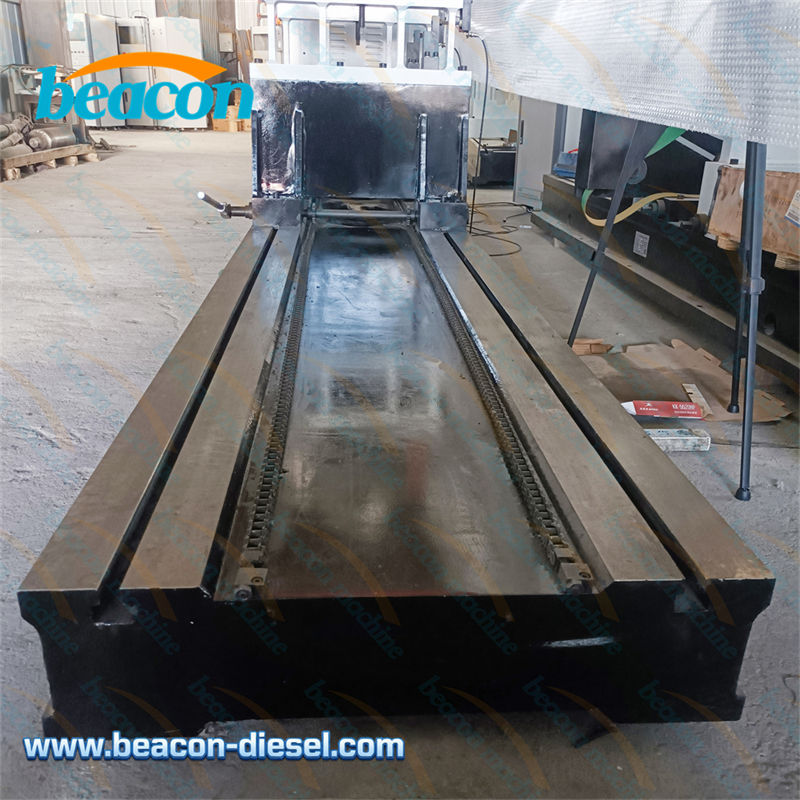

Robust Construction: Features a solid cast iron bed and durable roller carriage supports.

parameter

Model	YYW-3000A
Workpiece Mass Range	100 – 3000 kg
Max Workpiece Diameter	Φ2400 mm
Distance Between Bearing Centers	300 – 3000 mm
Journal Diameter Range	Φ40–180 mm / Φ180–300 mm
Balancing Speed	110 – 1170 r/min
Min Achievable Residual Unbalance	≤ 1 g·mm/kg
Unbalance Reduction Ratio	≥ 90%
Motor Power	11 kW
Speed Regulation	Frequency Conversion + 4-Gear Mechanical Shift
