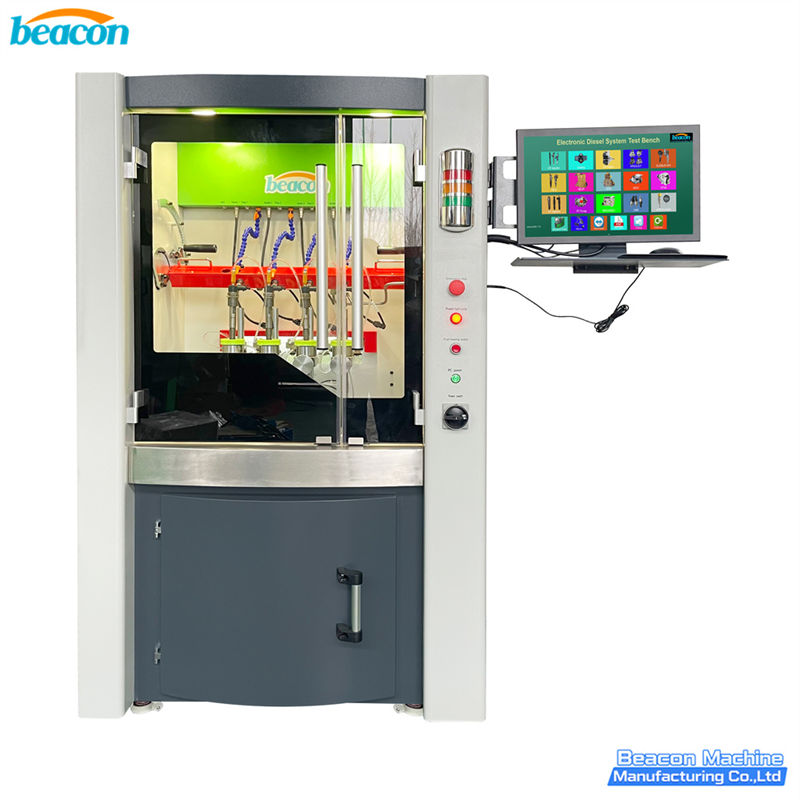

BC800-PRO Common Rail Injector Test Bench

BC800-PRO Common Rail Injector Test Bench

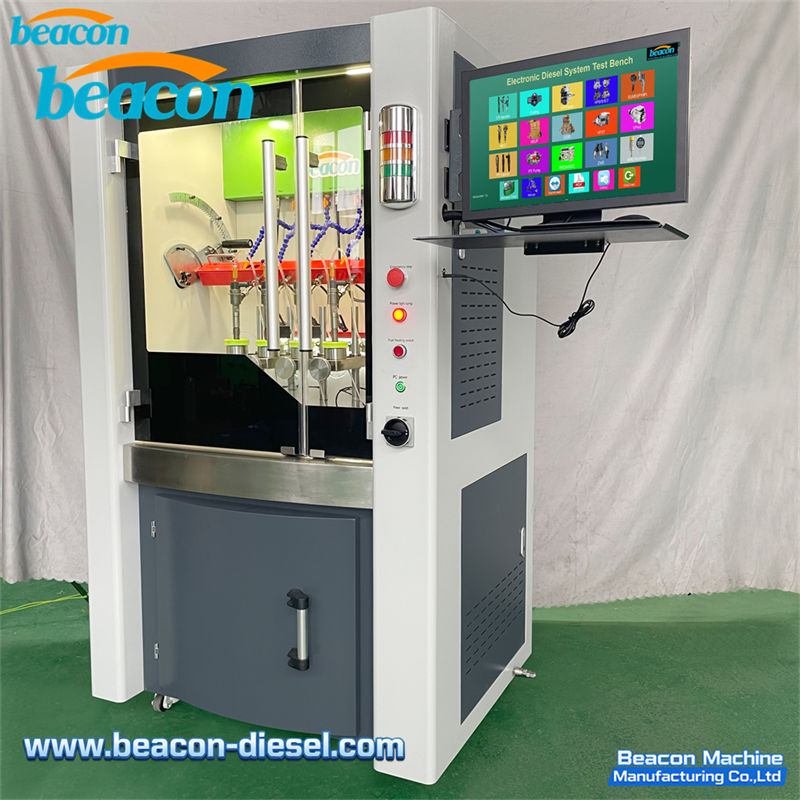

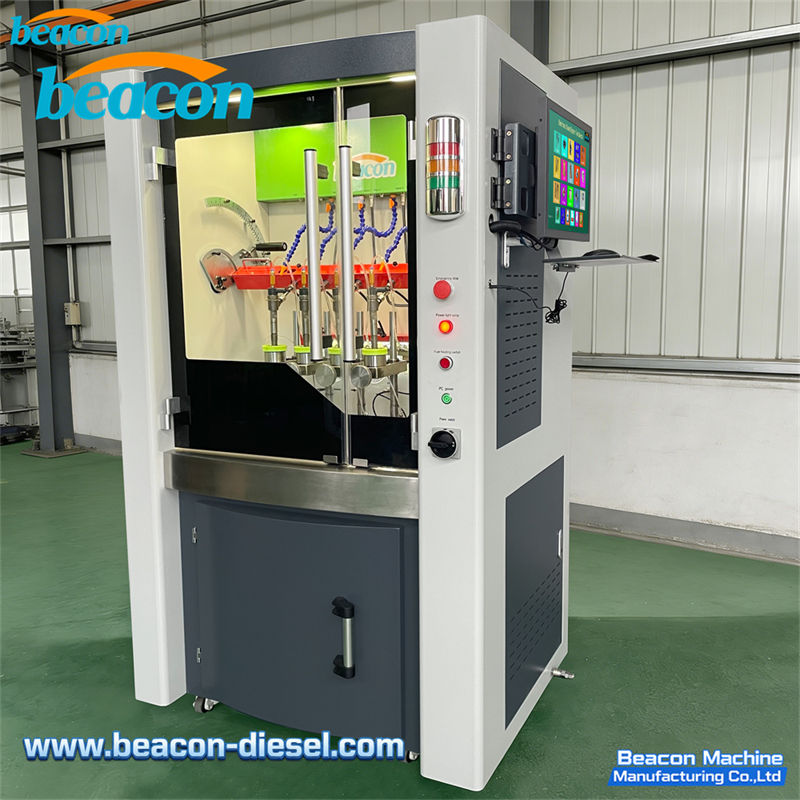

The BC800-PRO Common Rail Injector Test Bench is a professional diesel injection testing machine designed for accurate testing and calibration of Common Rail injectors. Built with an industrial-grade embedded touch-screen control system, this machine offers reliable performance and user-friendly operation for diesel service workshops and injection repair centers.

Key Features

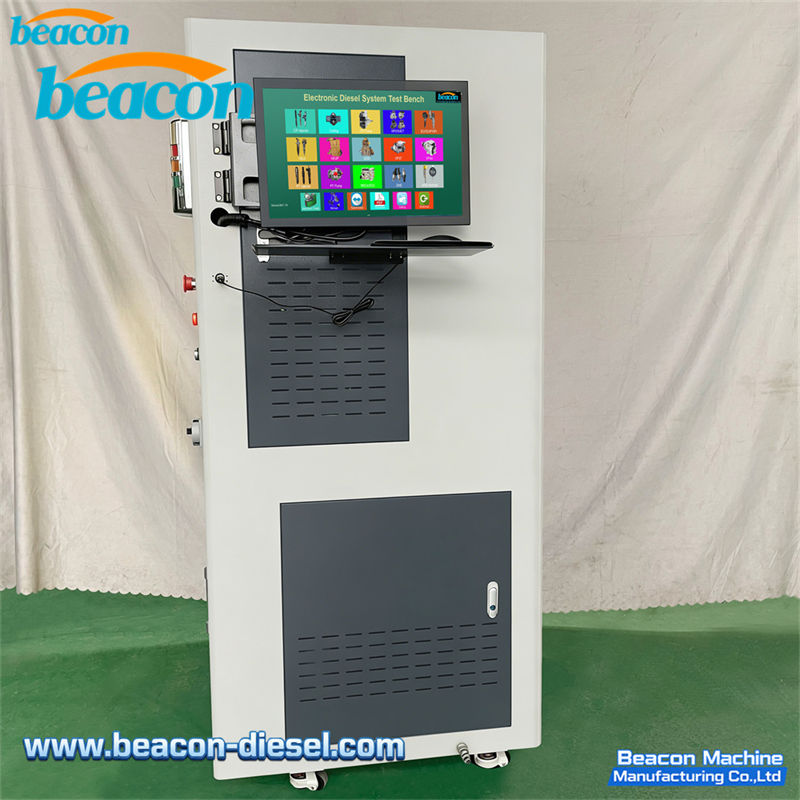

• Embedded Touch-Screen Control - Built-in industrial touch-screen panel for direct and intuitive operation
• High Pressure Performance - Maximum rail pressure up to 2400 bar
• All-in-One Design - Integrated touch screen, control system, and test unit in a compact footprint
• Wide Brand Coverage - Supports Bosch, Delphi, Denso, Siemens common rail injectors
• Automatic Flow Measurement - Fuel flow and return flow measurement for injector diagnostics
• Spray Pattern Test - Visual spray pattern analysis capability
• Piezoelectric Injector Support - Full support for piezo injector testing
• Durable Construction - Heavy-duty steel frame with powder-coated finish for long service life
• Low Noise Operation - Quiet running pump and motor assembly

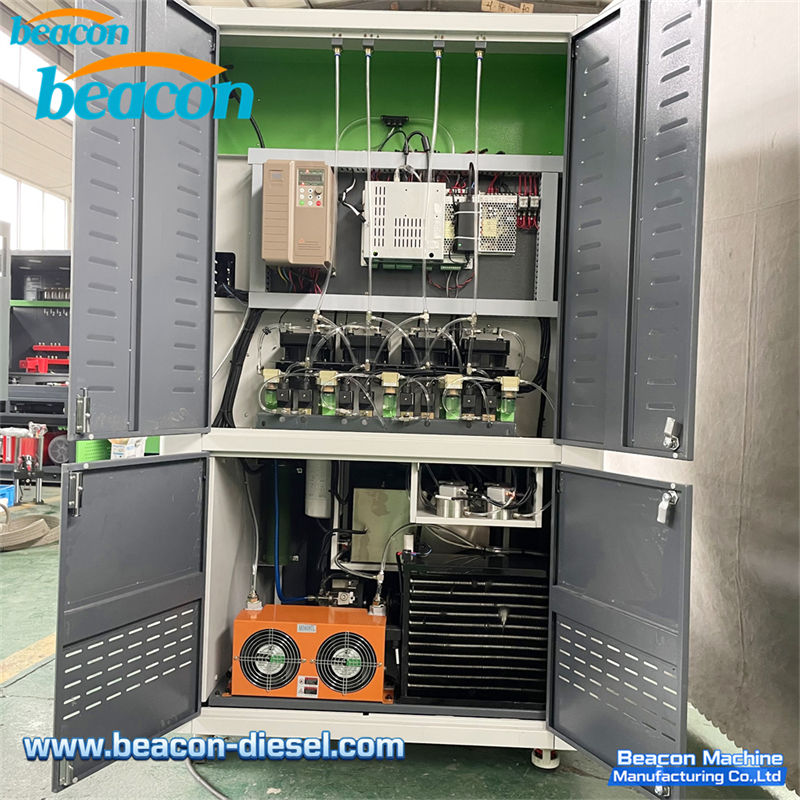

Standard Configuration

• Industrial embedded touch-screen control panel
• High-pressure oil pump unit
• Fuel return flow measurement system
• Injector signal drive module
• Fuel filtration system
• High-pressure common rail pipe set

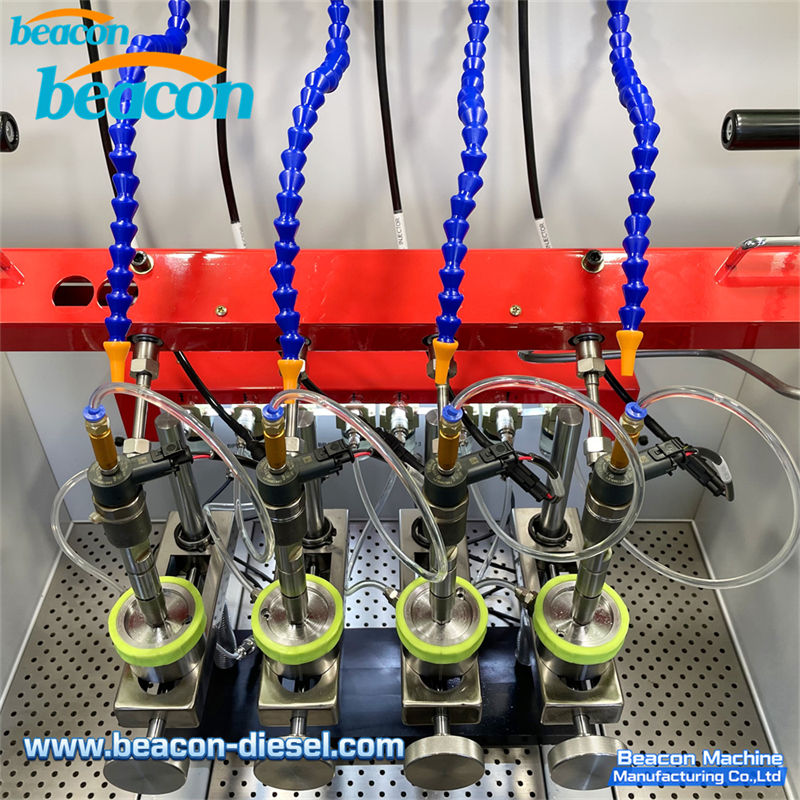

• Test adapters and connection cables
• Operation manual

Applicable Injector Types

• Bosch CRI/CRIN injectors (all generations)
• Delphi E1, E3 injectors
• Denso G2, G3, HP0, HP3, HP4 injectors
• Siemens VDO injectors
• Piezoelectric injectors
