Understanding Injector Dynamic Stroke (AHE): The Key to Diesel Precision

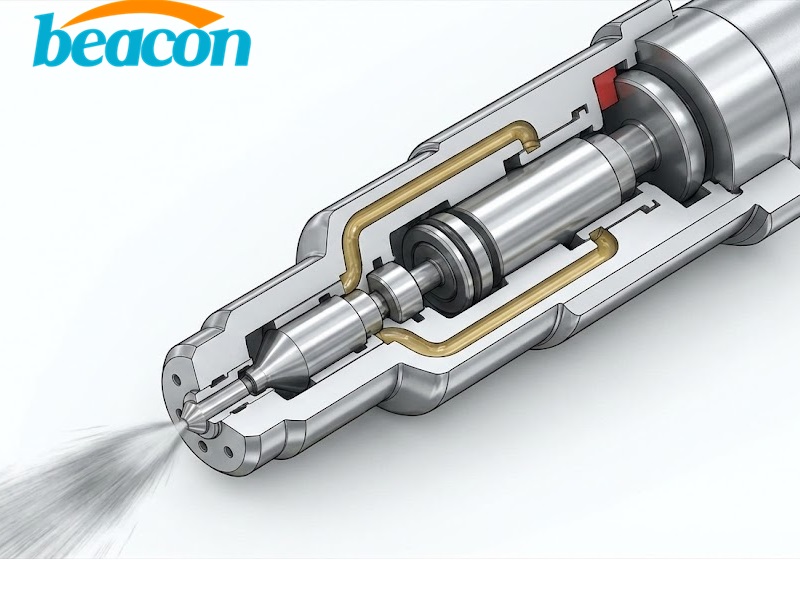

The Hidden Heart of Diesel Performance: What is Injector Dynamic Stroke (AHE)?

In the world of diesel engine maintenance, precision is everything. For professionals in the remanufacturing industry and vehicle owners alike, understanding the internal mechanics of a Common Rail Injector is essential. One term that frequently appears in high-level repair manuals is AHE, or Dynamic Armature Stroke. But what exactly is it, and why does it matter so much for your engine's health?

Defining AHE (Dynamic Stroke)

AHE refers to the "Armature Hub Excursion" or simply the dynamic stroke of the armature within the injector's solenoid valve assembly. In simpler terms, it measures the distance the armature moves when the electromagnet is energized. This movement controls the opening of the ball seat valve, which in turn regulates the pressure difference that allows the needle to lift and inject fuel into the combustion chamber.

Unlike static measurements, the dynamic stroke represents the actual behavior of the injector under operating conditions. It is a microscopic movement, often measured in microns, yet it dictates the entire injection timing and quantity.

Why Accurate AHE Adjustment is Critical

1. Fuel Quantity Control: If the AHE stroke is too short, the valve does not open sufficiently, leading to fuel starvation and loss of power. If it is too long, the return flow increases excessively, causing a drop in rail pressure and potential starting issues.

2. Response Time: The dynamic stroke directly influences how fast the injector opens and closes. Incorrect AHE values lead to injection lag, resulting in rough idling and increased engine noise.

3. Emissions and Economy: A precise AHE setting ensures optimal atomization of fuel. A poorly calibrated injector contributes to black smoke and higher fuel consumption, failing modern emission standards.

The Repair Process: Precision Shimming

Restoring a common rail injector to factory standards involves adjusting the AHE using high-precision calibration shims. Technicians use specialized AHE testers and lift gauges to measure the gap. By selecting a shim of the exact required thickness, they ensure the armature travels the perfect distance.

Conclusion

For diesel repair shops and parts distributors, ignoring the Dynamic Stroke is not an option. Investing in quality repair kits, reliable shims, and precise testing equipment ensures that every rebuilt injector performs like new. Whether you are troubleshooting a truck or refurbishing components, remember that the secret to power lies in the precision of the AHE.
