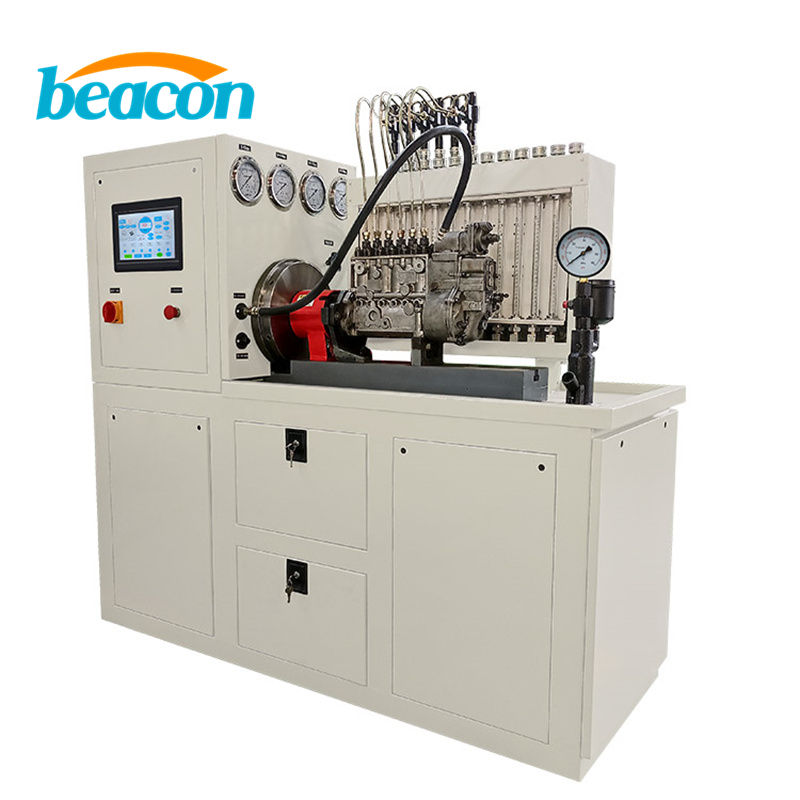

12psd mechanical pump test bench

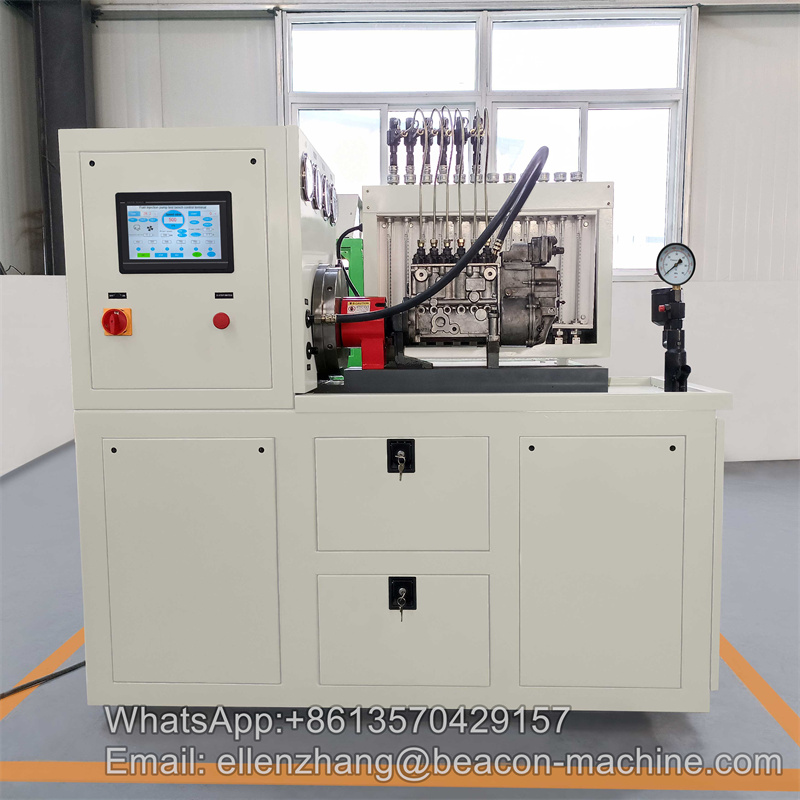

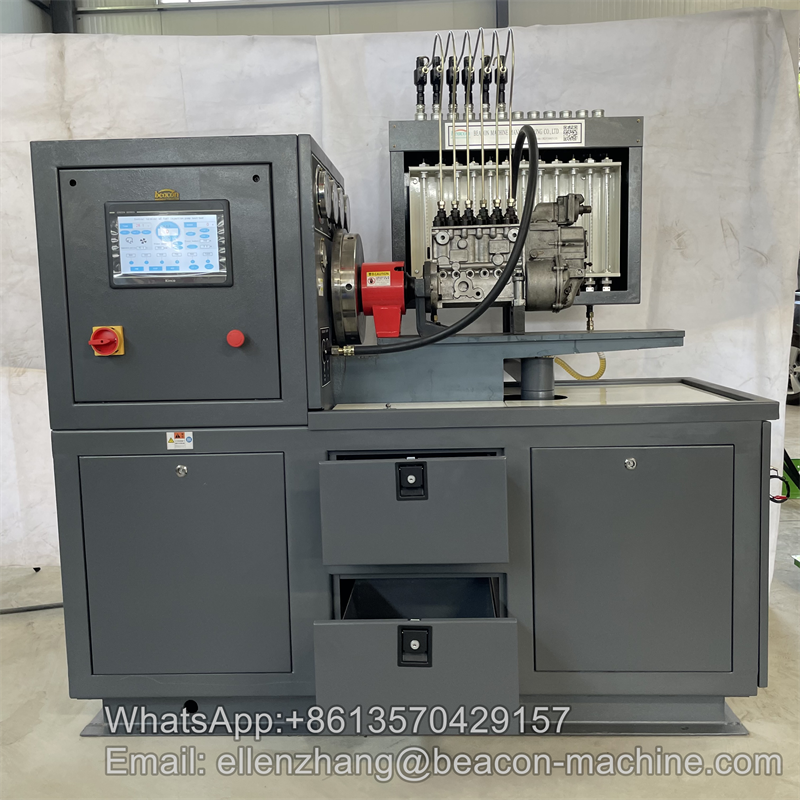

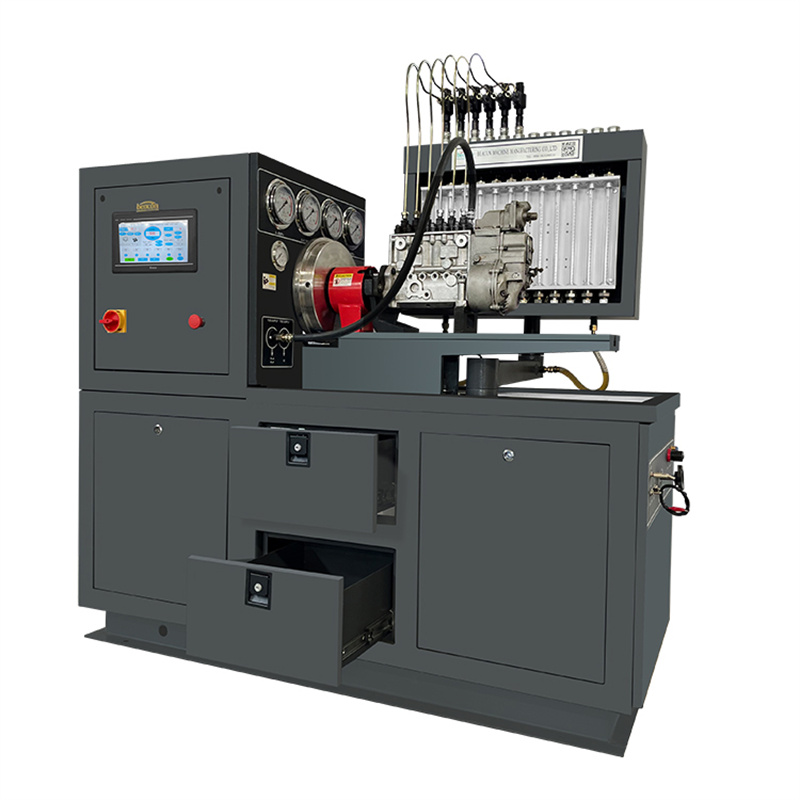

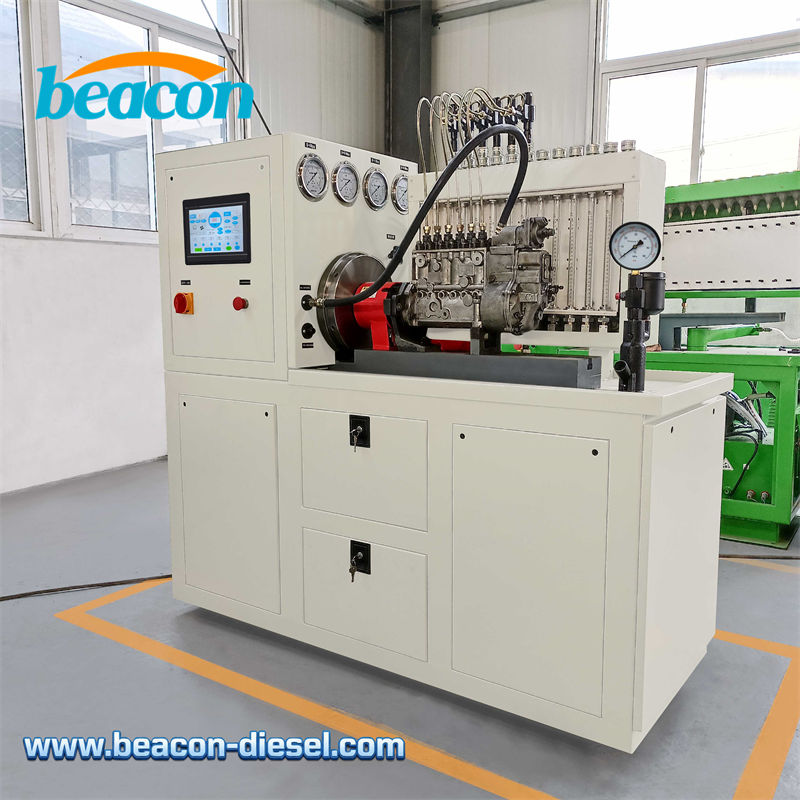

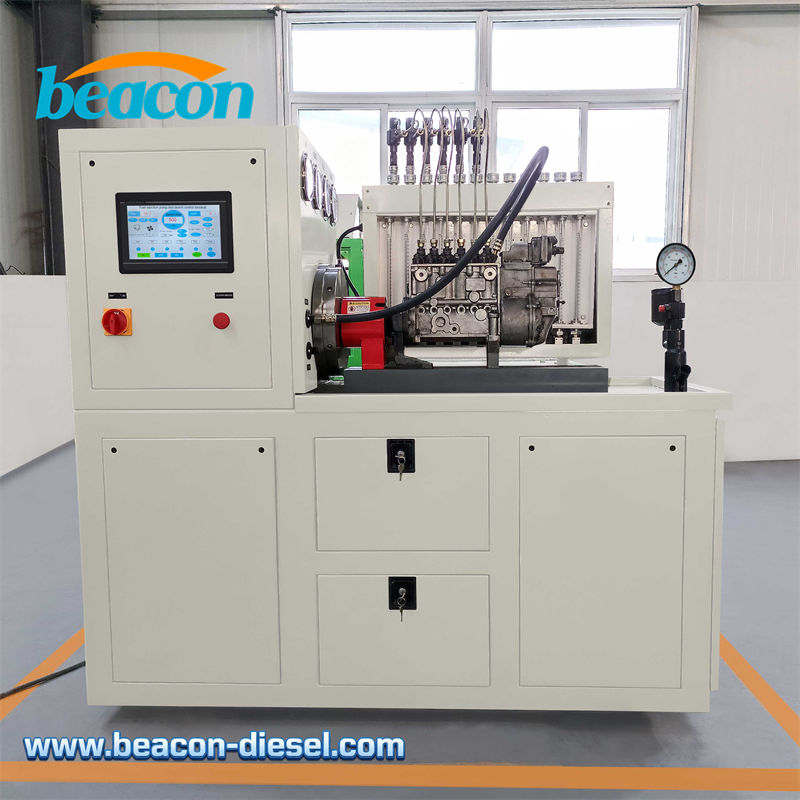

The Beacon 12PSD offers precise calibration for diesel pumps with full computer control and a touch screen interface. Features include dual tool drawers, an electric oil collecting tank, and 12-cylinder testing capacity up to 22kW.
Introduction
Value Proposition:
The Beacon 12PSD transforms the calibration process for mechanical diesel pumps by integrating digital precision into a rugged workstation. It empowers technicians to diagnose and adjust fuel injection pumps with greater speed and accuracy, streamlining workflow through its intelligent control system and organized storage solutions.
Key Features:
-

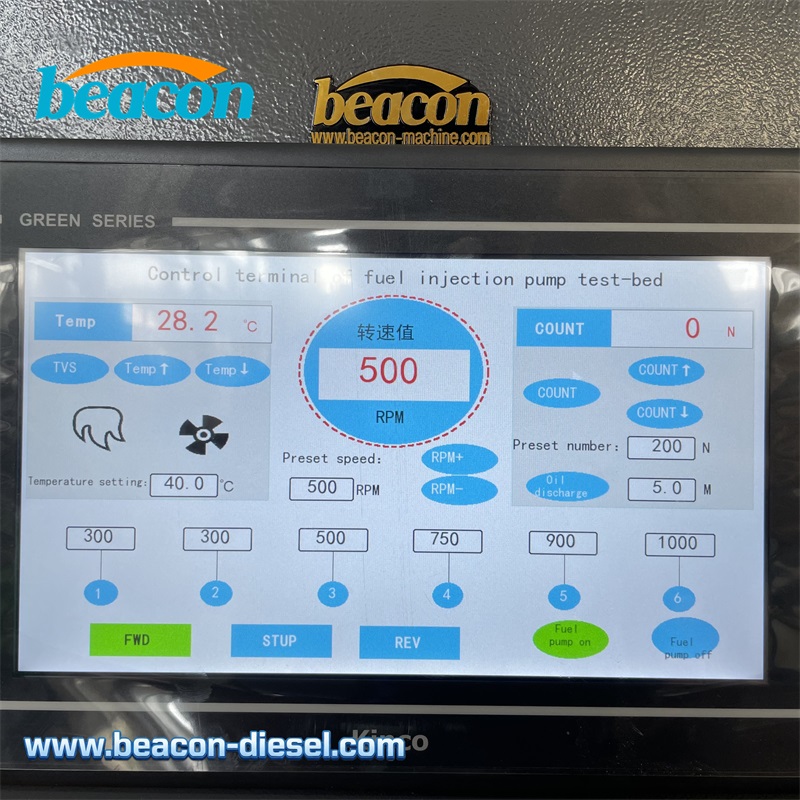

Computerized Control: Features a responsive touch screen interface for automated measurement and data management, superior to manual controls.
-

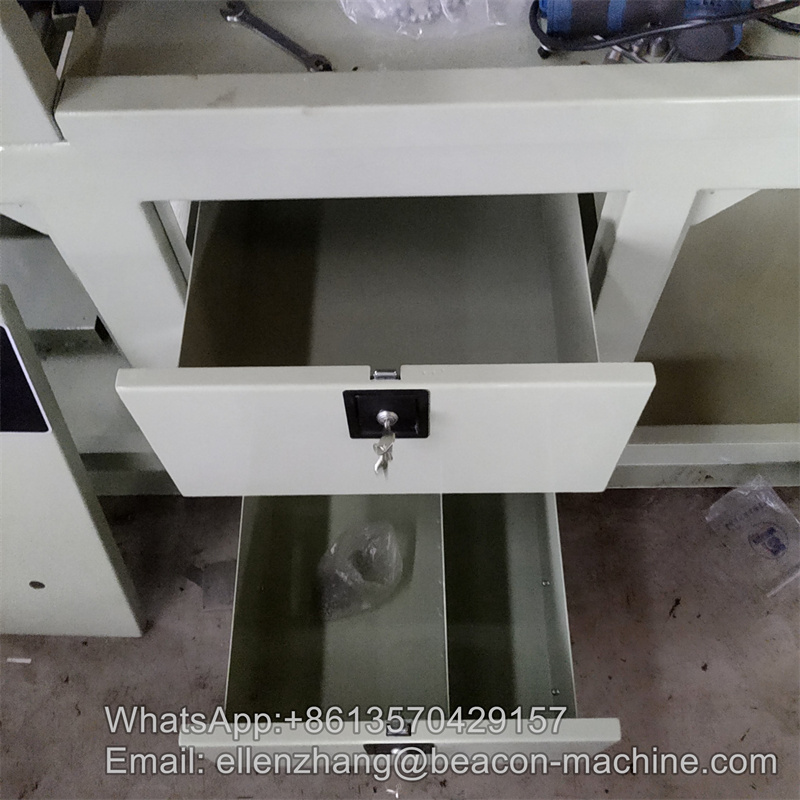

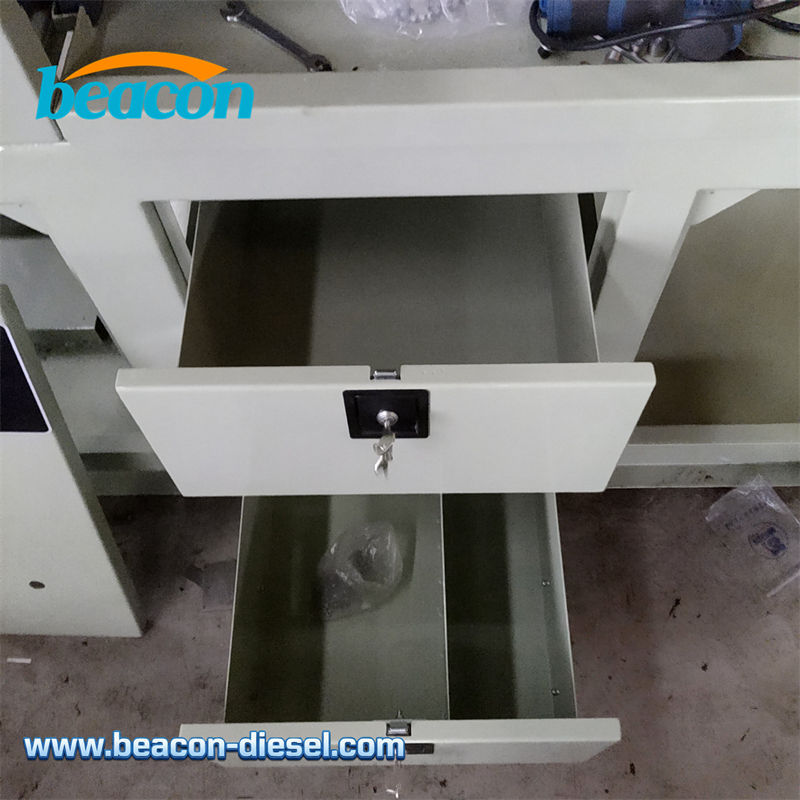

Optimized Storage: Built-in with two sturdy drawers to store tools and adapters, keeping your workspace organized.
-
Electric Oil Collection: Equipped with an electrically controlled oil collecting tank for cleaner and more efficient fluid handling.
-

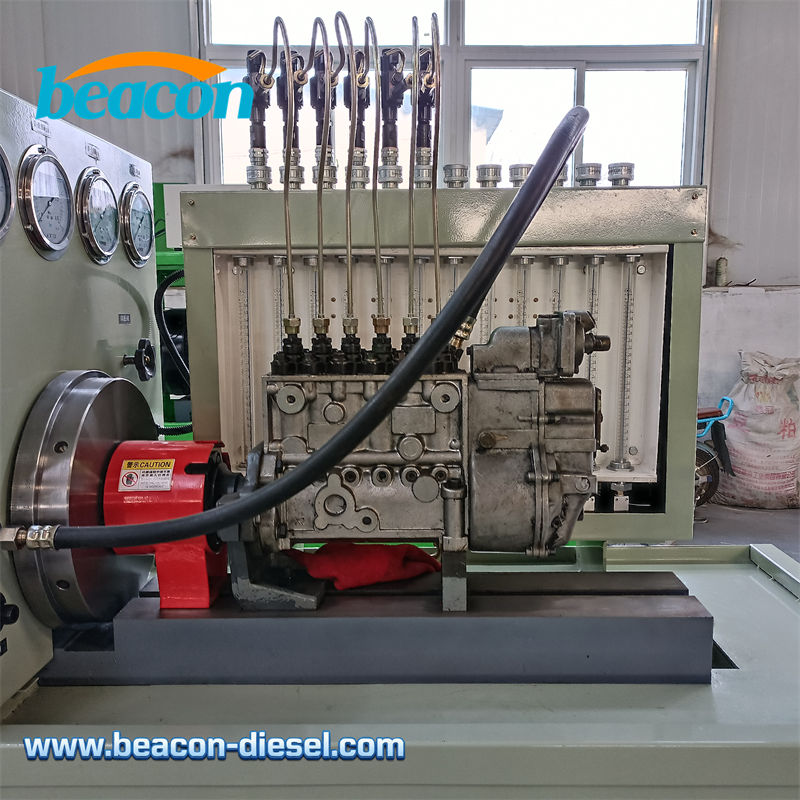

Comprehensive Testing: Capable of testing 12 cylinders simultaneously with adjustable speed range (0-4000 rpm).
Standard Functions:
-
Measurement of each cylinder delivery at any speed.
-
Test point and interval angle of oil supply of injection pump.
-
Checking and adjusting the mechanical governor.
-
Checking and adjusting the distributor pump.
-
Experiment and adjusting of behavior of supercharging and compensatory device.
-
Measurement of oil return of distributing pump.
-
Testing of the electromagnetic valve of distributor pump (12V/24V).
-
Measurement of the internal pressure of distributor pump.
-
Checking of the advance angle of advance device (on request).
-
Checking the sealing of injection pump body.
-
Installation of auto-sucking oil supply tube for checking oil supply pump (including VE pump).
Comparison:
For those who prefer a classic manual operation system without computer integration, please see our similar model: Compare with 12PSB Diesel Pump Test Bench.
parameter
| Technical Parameter | Value |
| Model | Beacon 12PSD |
| Voltage | 380V / 220V 3 phase |
| Power Output | 11KW / 15KW / 18.5KW / 22KW |
| Motor | AC motor |
| Transmission | Converter |
| Speed Range | 0 ~ 4000 rpm |
| Shaft High | 125 mm |
| Number of Cylinders | 12 |
| Number of Presetting | 10 |
| Programmer for Speed | Yes |
| Test Oil Temperature | 40 ± 2 ℃ |
| Strokes Counting | 50 ~ 9999 |
| Feeding Pumps Motor | 1.1 Kw |
| Standard Injector | ZS12SJ1 |
| Volume of Test Oil Tank | 40 L |
| Small Graduated Cylinder | 45 ml |
| Large Graduated Cylinder | 150 ml |
| Flower Meter | LZB-10 |
| DC Power Supply | 12 / 24V |
| High Pressure of Feeding Test Oil | > 4 Mpa |
| Low Pressure of Feeding Test Oil | > 0.4 Mpa |
| High Pressure Gauge for VE Pump | 0 ~ 1.6 Mpa |
| Low Pressure Gauge for VE Pump | 0 ~ 0.16 Mpa |
| Dimension of Packing | L*W*H 1.51 * 1.1 * 1.7 m |
| Weight of Testing Bench | 700 Kg |
*Test data from Beacon laboratory
product video
Related products
MINI12PSB Diesel Injection Pump Test Bench (8 Cylinders)
12PSB Diesel Injection Pump Test Bench
BC3000 Diesel Injection Pump Test Bench - 12 Cylinder Mechanical Pump Calibration
BCS619 Diesel Injection Pump Test Bench

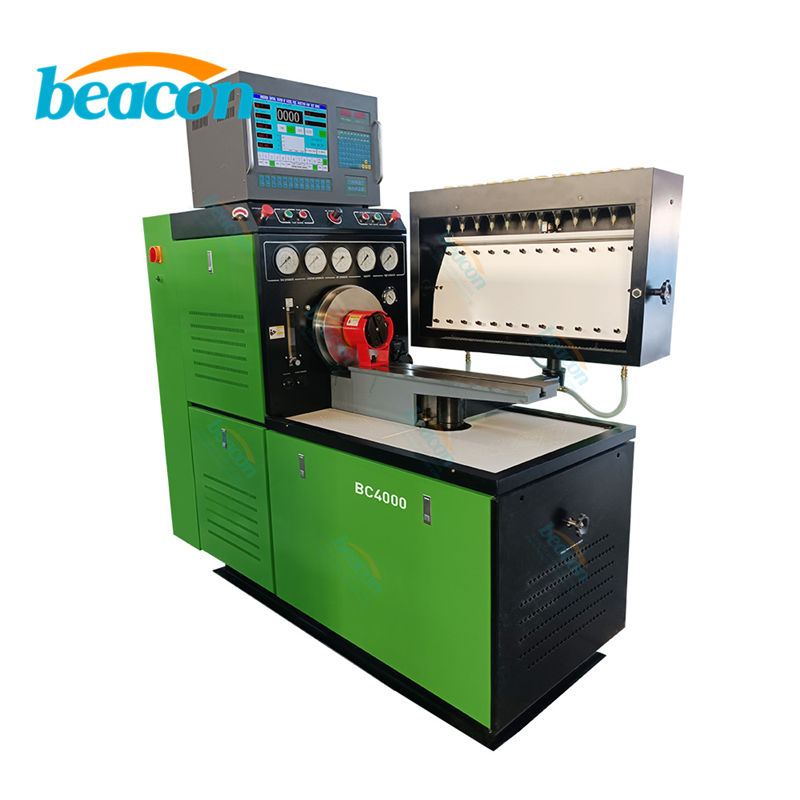

Beacon BC4000 Diesel Fuel Injection Pump Electronic Machine Pump Test Bench TAIAN Pressure Testing Machine Electronic
