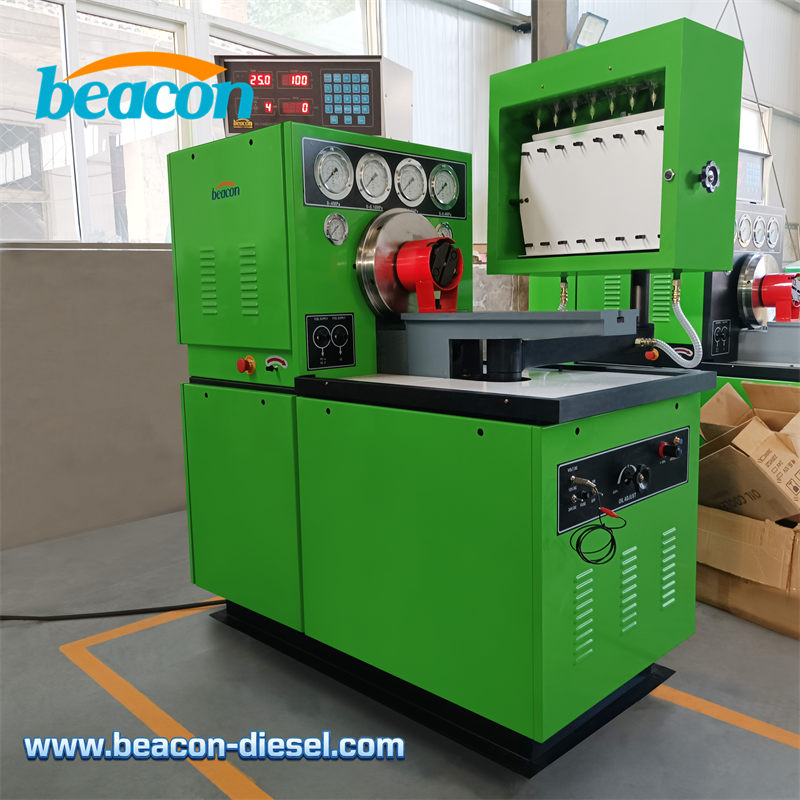

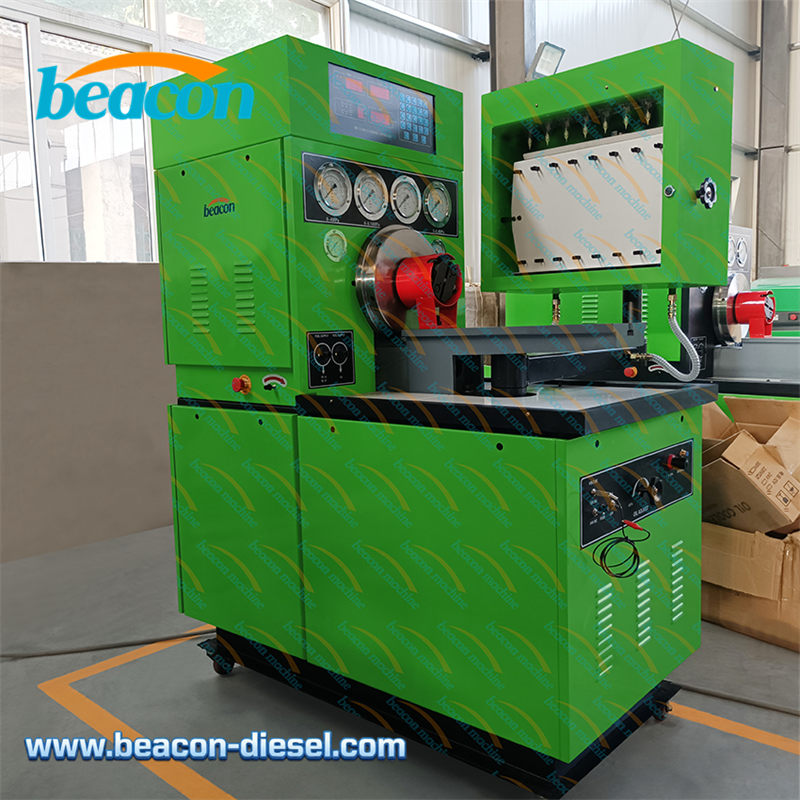

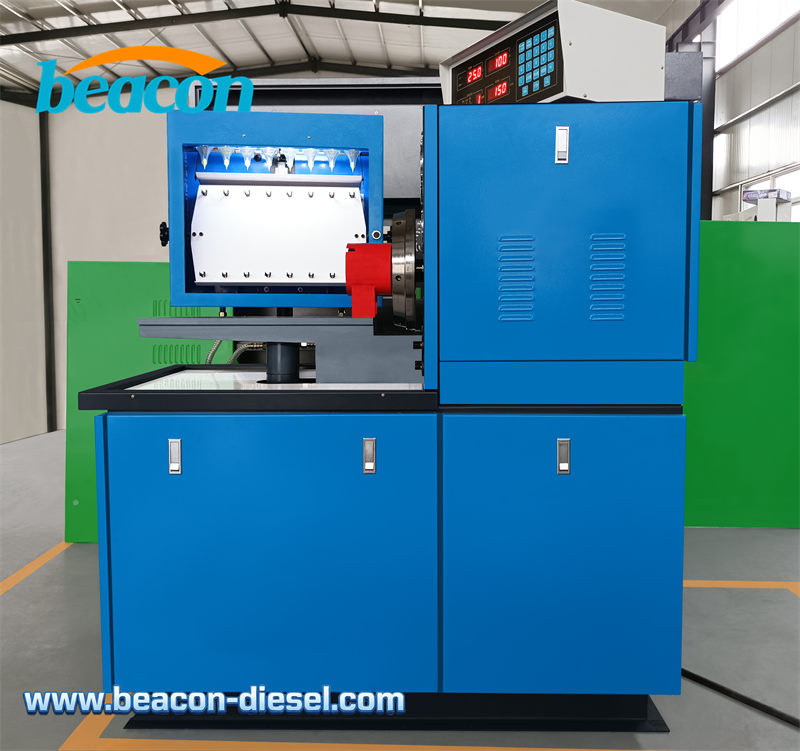

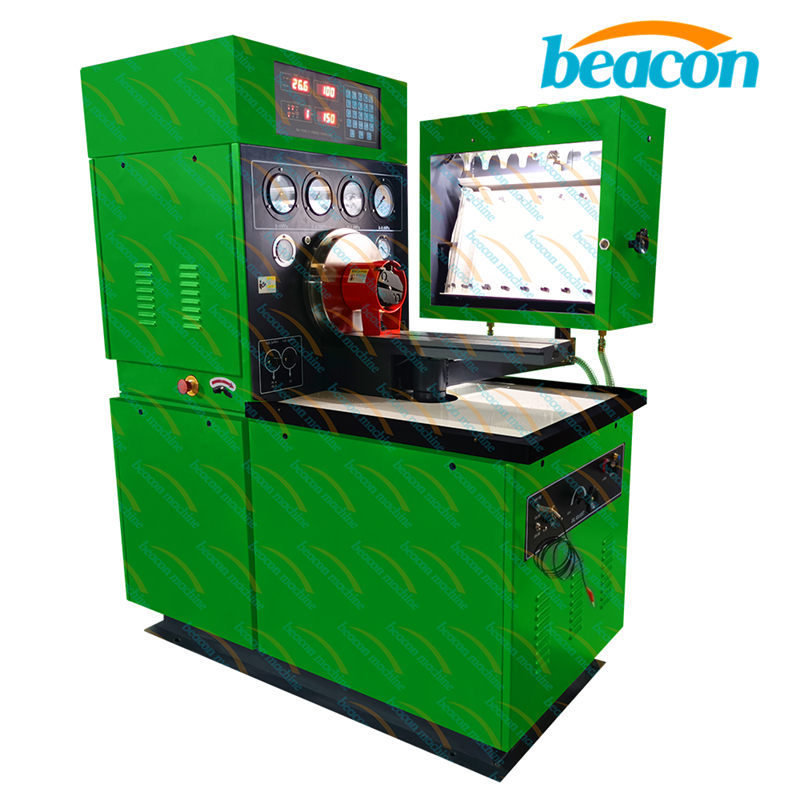

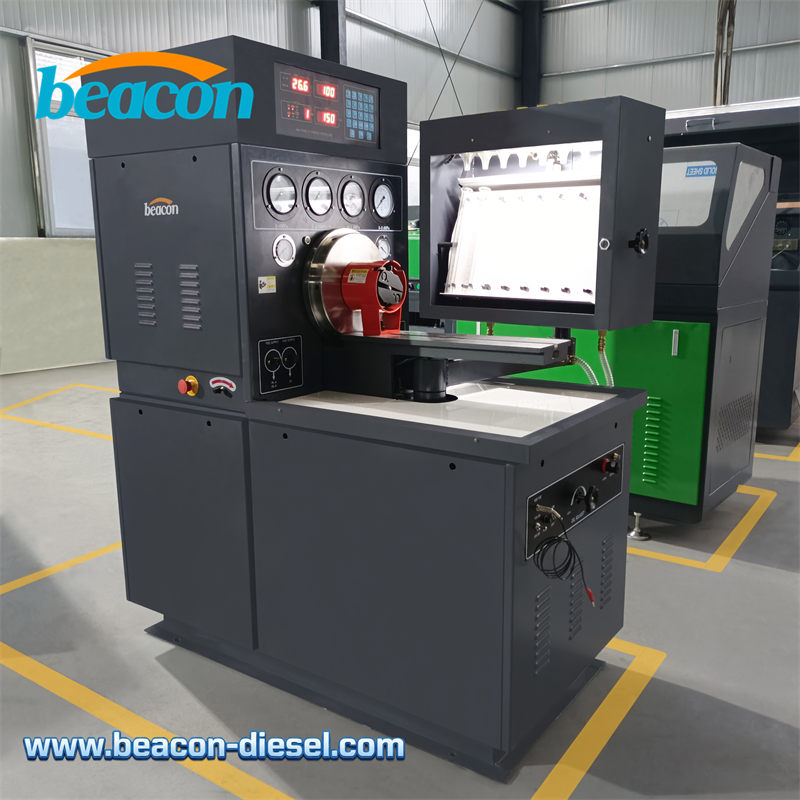

MINI12PSB Diesel Injection Pump Test Bench (8 Cylinders)

Struggling with inaccurate diesel pump diagnostics? The MINI12PSB Diesel Injection Pump Test Bench offers precise 8-cylinder testing for mechanical and VE pumps. Enhance your workshop's repair quality and engine performance today.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

The MINI12PSB is a versatile and cost-effective test bench designed for the comprehensive diagnosis of diesel fuel injection systems. Powered by an AC motor with frequency conversion technology, it delivers stable performance across a speed range of 0-4000 rpm. This machine creates value for diesel repair shops by enabling precise calibration of fuel delivery, internal pressure testing, and governor adjustments. It effectively handles distributor pumps (including VE pumps) and mechanical pumps, allowing mechanics to restore optimal fuel efficiency and reduce emissions for their customers' vehicles, making it an essential tool for professional calibration.

Standard Functions:

Measurement of each cylinder's delivery at various speeds.
Checking and adjusting the mechanical governor and distributor pump.
Testing of the electromagnetic valve (12V/24V) and internal pressure.
Checking the sealing of the injection pump body.

For a more ergonomic design, compare this with the [MINI12PSB-A, which adds a tilted control panel] for easier viewing and operation.

parameter

Parameter	Specification
Model	MINI12PSB
Voltage	380V / 220V (3 phase)
Power Output	7.5KW / 11KW
Motor	AC motor
Transmission	Converter
Speed Range	0 ~ 4000 rpm
Shaft Height	125 mm
Cylinders	8
Oil Temperature	40±2 ℃
Stroke Counting	50 ~ 9999
Feeding Pump Motor	1.1 Kw
Standard Injector	ZS12SJ1
Tank Volume	40 L
Dimensions	1.45 x 1.01 x 1.58 m
Net Weight	650 Kg
