2M2217 Cylinder Boring Machine

• Dual Motor Design - 1.5KW main motor drives boring spindle, 0.75KW feed motor enables automatic downfeed for smooth, consistent cylinder finishing
• Wide Boring Range - Handles cylinder diameters from 50mm to 180mm with depth up to 400mm, suitable for most diesel and gasoline engine blocks
• Automatic Feed System - Adjustable 0.05-0.20mm/rev automatic feed rate ensures uniform surface finish on every cylinder wall
• Precision Spindle - High-rigidity hardened spindle delivers concentricity within 0.01mm tolerance for professional-grade block reconditioning
• Adjustable Boring Head - Fine adjustment mechanism allows precise diameter control in 0.01mm increments
• Coolant Circulation - Built-in 0.12KW coolant pump with constant filtration keeps cutting area cool and extends tool life
• Heavy Duty Construction - Cast iron body with reinforced column ensures vibration-free operation during deep boring passes

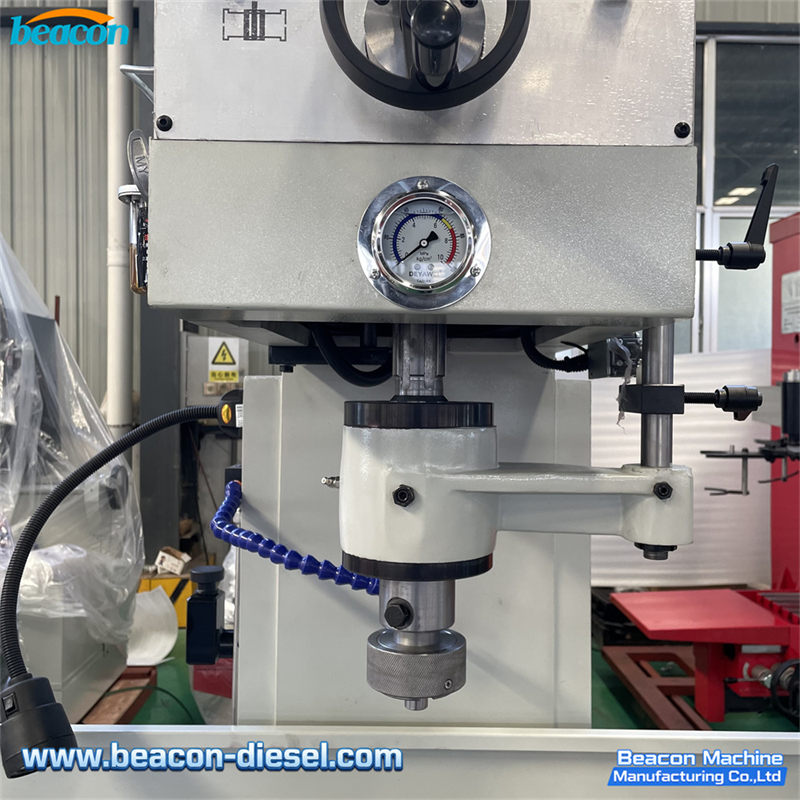

2M2217 Cylinder Boring Machine - cutting tool and boring head detail showing the boring bar and cutter setup

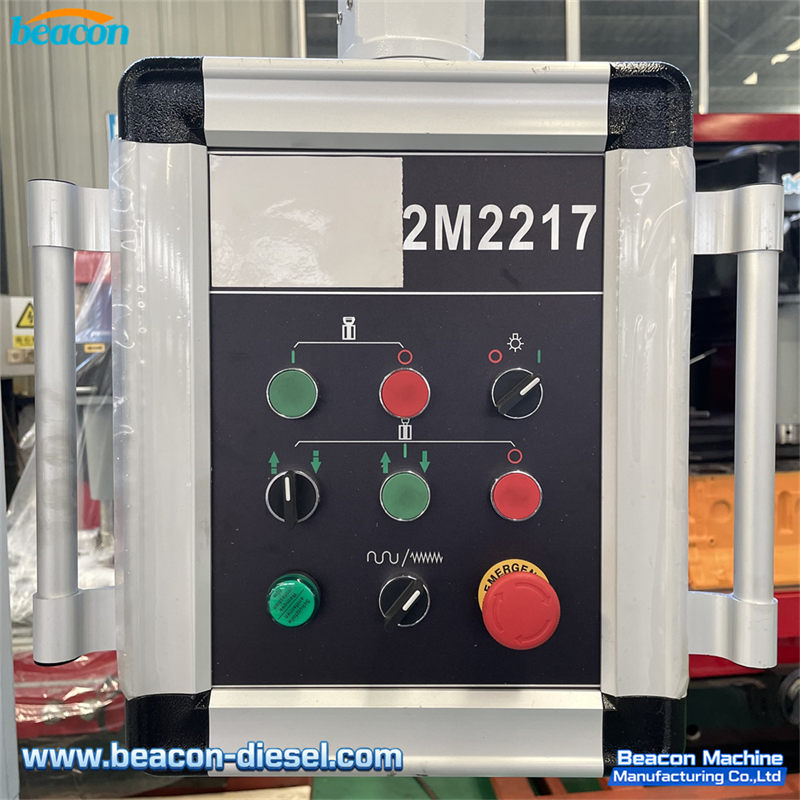

2M2217 Cylinder Boring Machine - control panel with speed selector switches, dial gauges, and operational controls

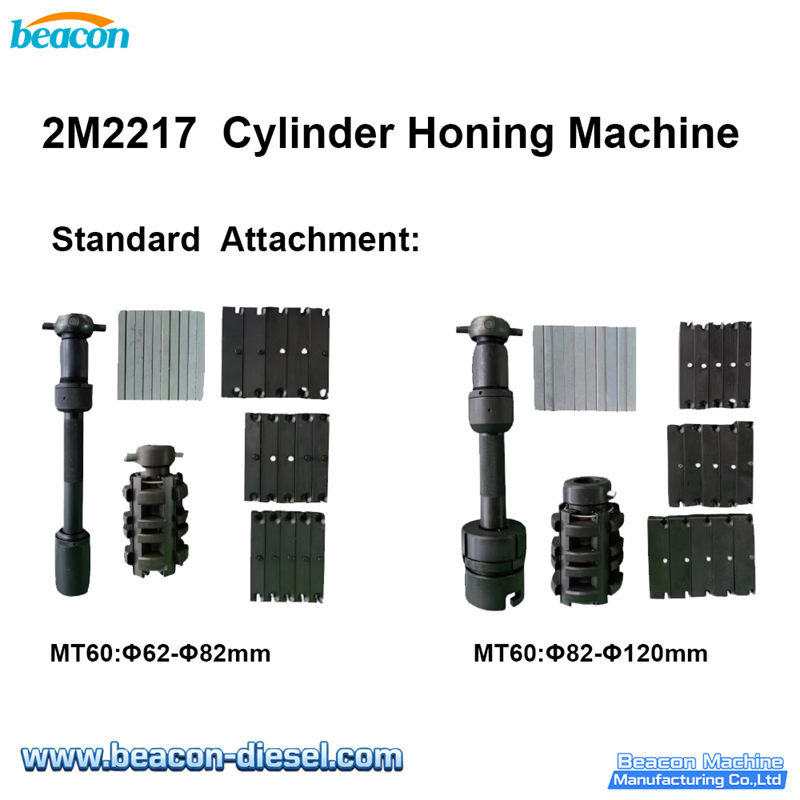

2M2217 Cylinder Boring Machine - accessories and tooling set including boring tools, measuring instruments, cutting bits, and maintenance tools

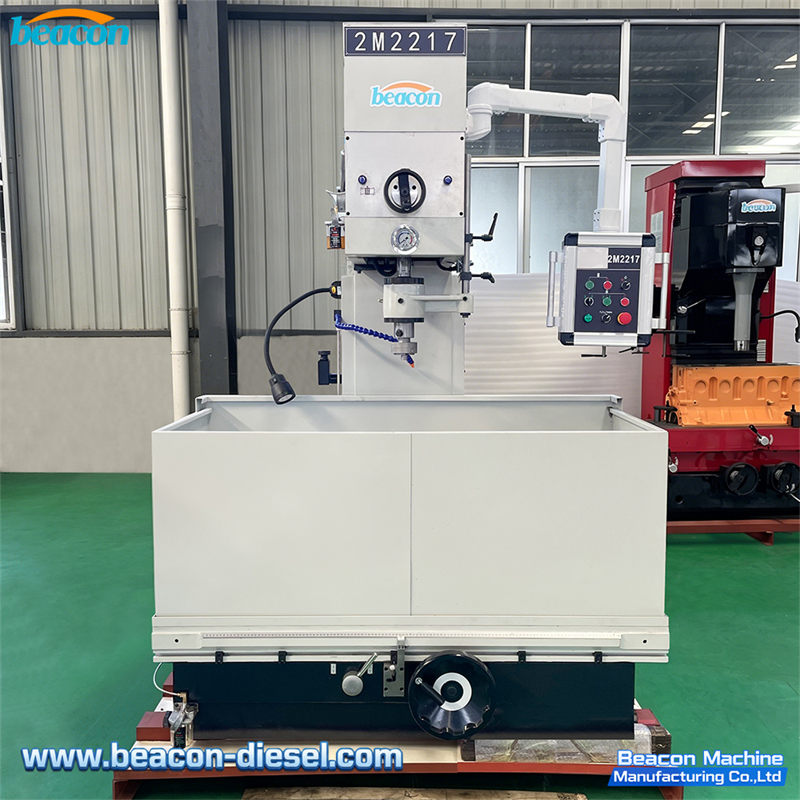

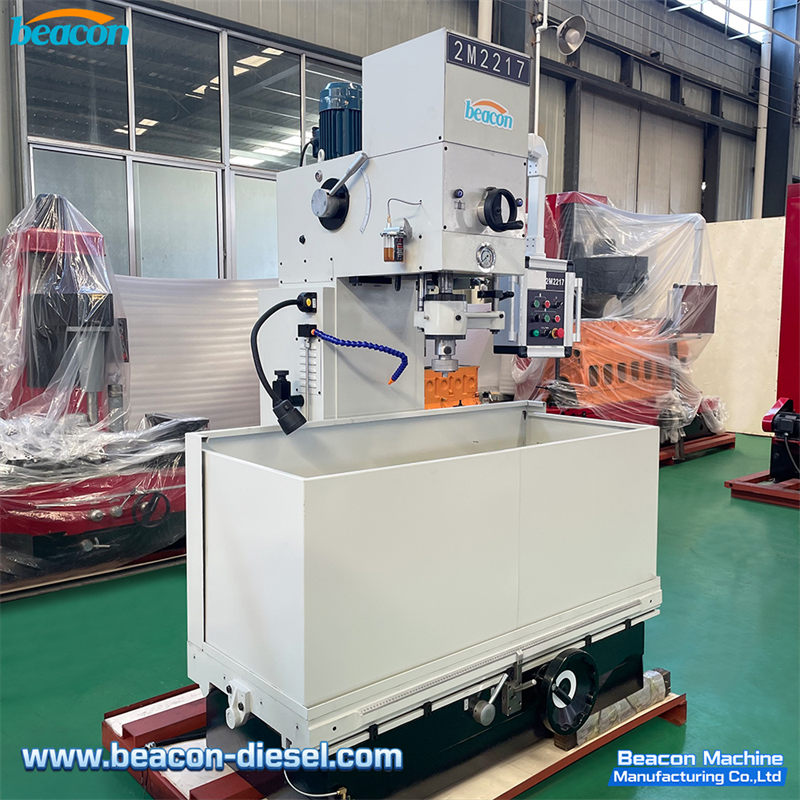

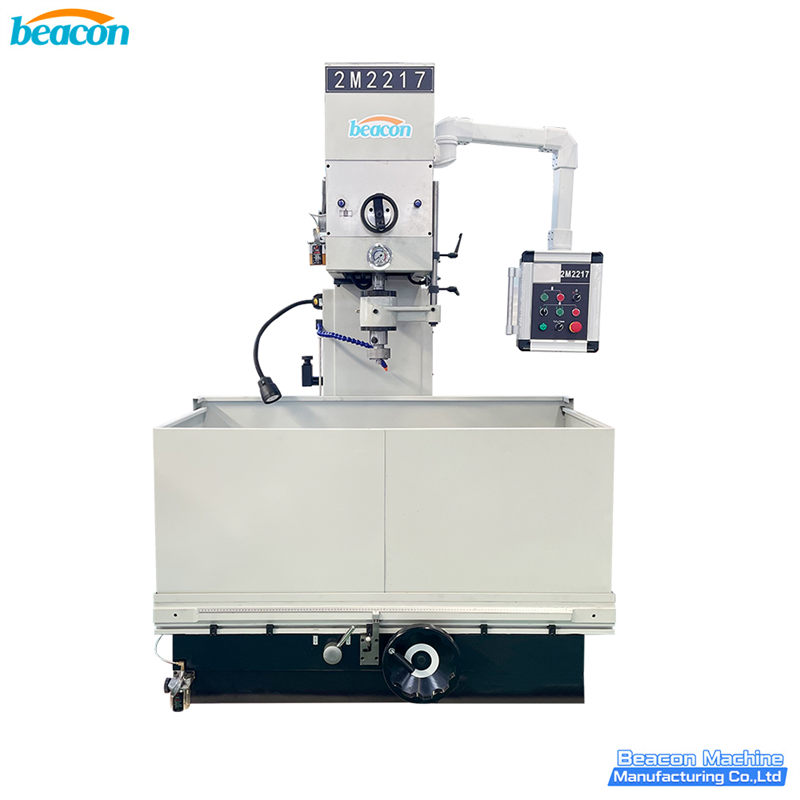

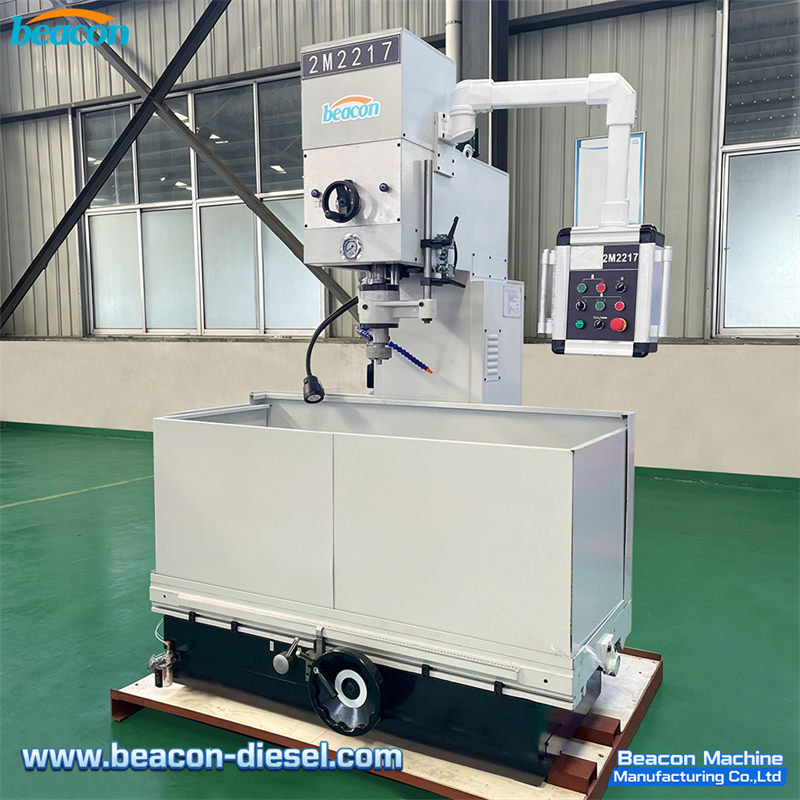

2M2217 Cylinder Boring Machine - full machine overview showing the complete equipment with all components assembled
