T2200 Portable Cylinder Boring Machine

T2200 Portable Cylinder Boring Machine - Manual operation portable boring bar for engine cylinder reboring. Bore diameter 50-130mm, max depth 380mm.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

Portable Design - Easy to carry and operate on-site without disassembling the engine block from the vehicle, saves time and labor
Wide Boring Range 50-130mm - Suitable for various diesel and gasoline engine cylinders, meets most engine repair requirements
380mm Boring Depth - Deep enough for most engine blocks, including truck and heavy equipment engines
Manual Feed Operation - 2-speed manual feed (0.08 / 0.15mm per revolution), gives the operator full control over cutting quality
185mm Spindle Travel - Sufficient travel for complete cylinder boring in a single setup
0.55KW Motor - Single phase 220V input for convenient workshop power connection
Compact and Lightweight - 470 x 250 x 670mm dimensions, only 45kg, easy to move around the workshop

parameter

Parameter	Specification
Boring Diameter Range	50 - 130 mm
Maximum Boring Depth	380 mm
Spindle Feed Rate	0.08 / 0.15 mm/rev (2-speed manual)
Spindle Travel	185 mm
Main Motor Power	0.55 KW / 1420 rpm
Power Supply	AC 220V / 50Hz / Single Phase
Dimensions	470 x 250 x 670 mm
Net Weight	Approx. 45 KG

*Test data from Beacon laboratory

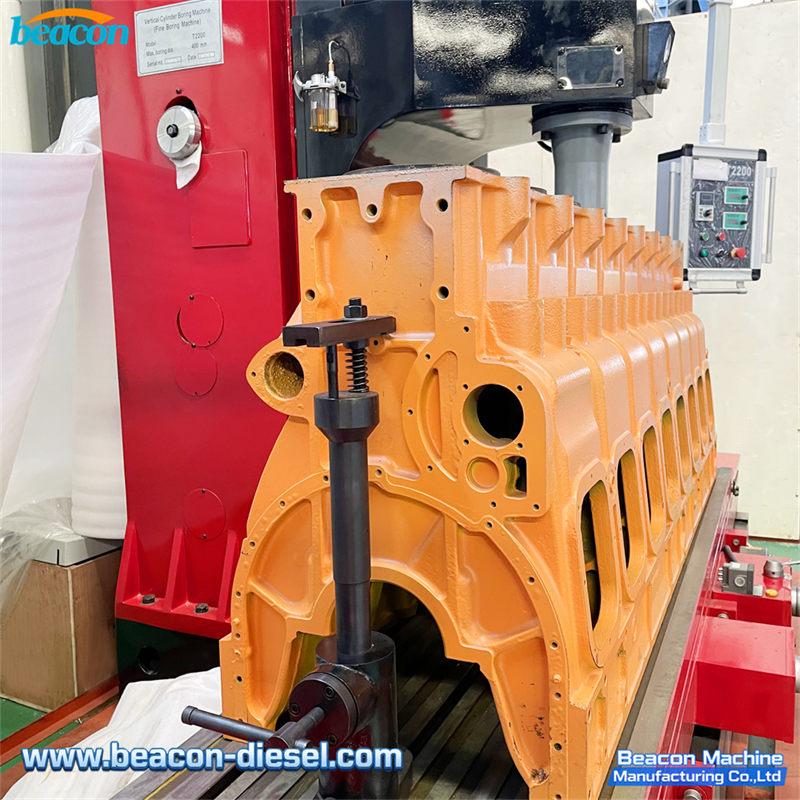

T2200 Portable Cylinder Boring Machine - engine block clamping fixture detail showing adjustable jaws and mounting mechanism for secure engine positioning during boring

T2200 Portable Cylinder Boring Machine - working area detail with boring tool assembly and centering gauge setup

T2200 Portable Cylinder Boring Machine - front overall view showing the complete machine with spindle, base plate, and controls

T2200 Portable Cylinder Boring Machine - side overall view showing the compact portable design with carrying handle
