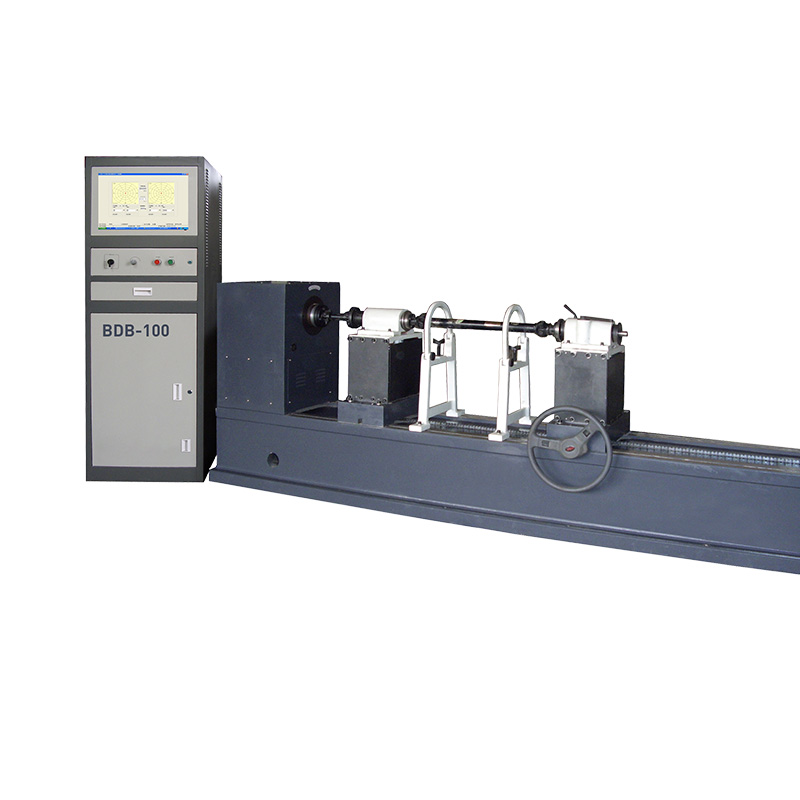

BDB-100A Drive Shaft Balancing Machine

Model

BDB-100A

The measuring time

10s (measurement cycle can be arbitrary set).

Software version

Windows XP

display mode

19 inch LCD

power supply

The power of three-phase four-wire type AC 380V, 50/60HZ

Working

continuously

Work-piece quality range (Kg)

5-100

Beam supporting interval distance (mm)

100-2800

Work-piece diameter (mm)

950

Balance speed (r/min)

300-2500 variable frequency speed regulation

Motor power (KW)

2.2

Unbalance reduction rate%

≤90

Minimum can reach surplus balancing

≤1g・mm/kg
