Beacon Machine Manufacturing Co.,ltd

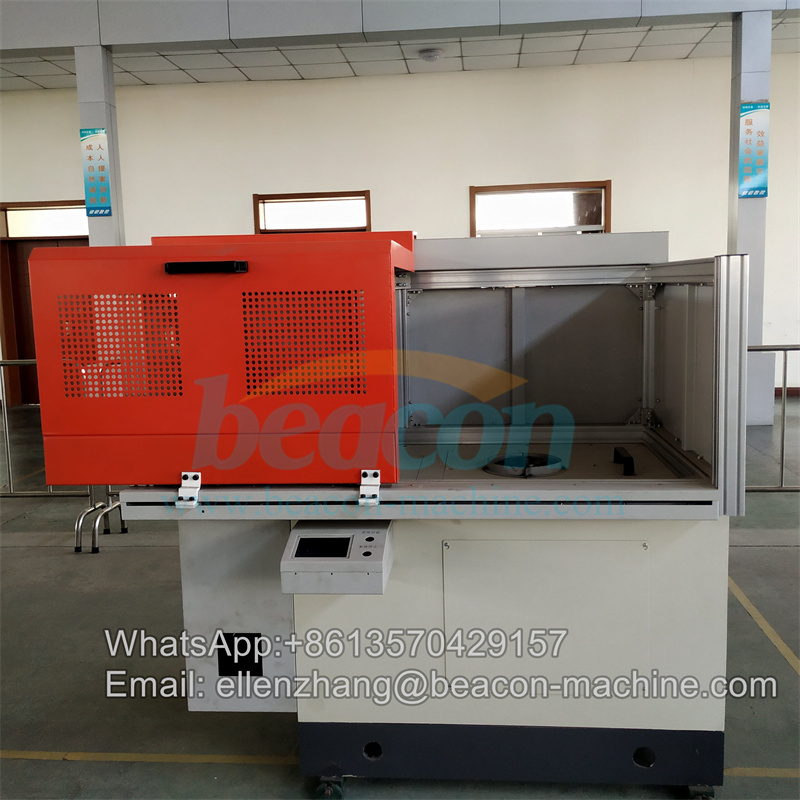

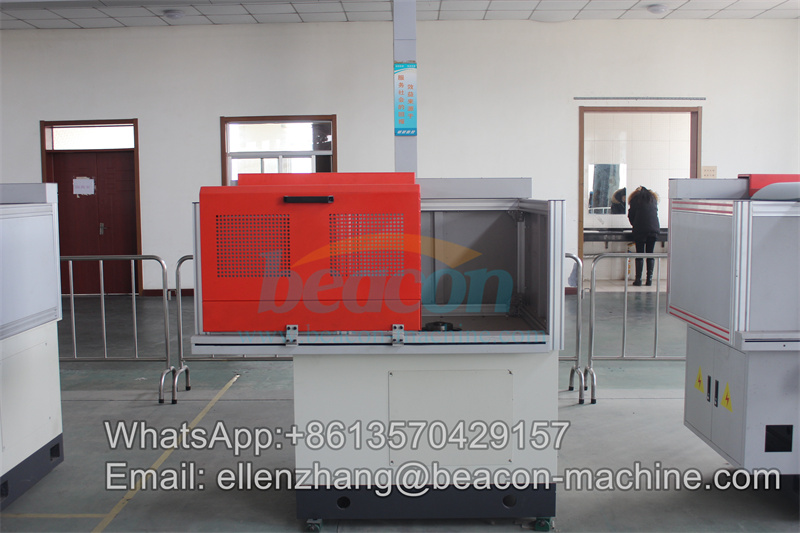

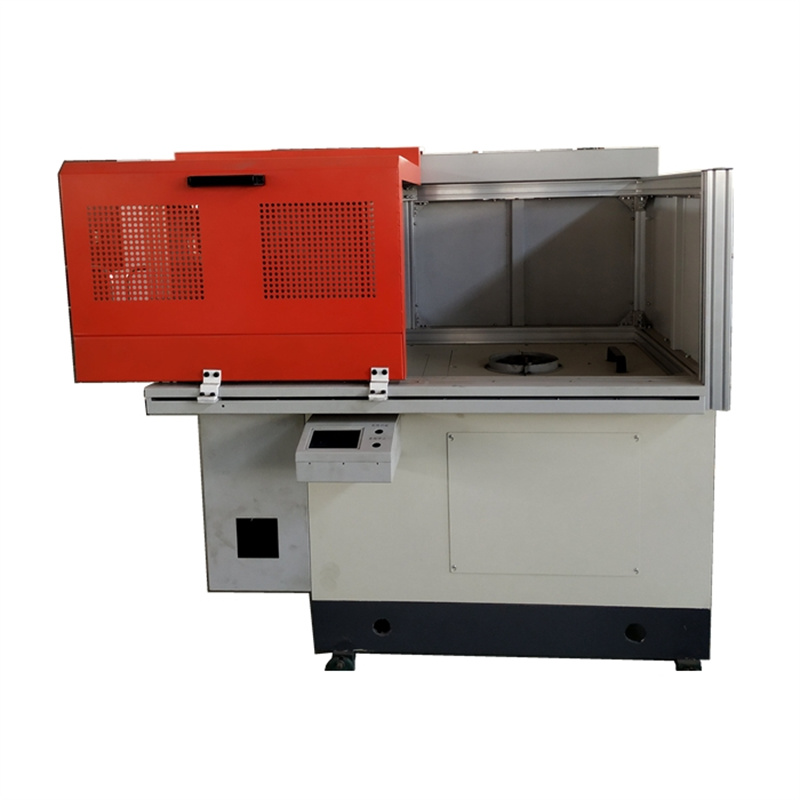

YLSD-200 double-sided vertical dynamic balancing machine
The YLSD-200s is a versatile dual-sided vertical balancing machine, providing efficient and precise balancing solutions for a wide range of rotor applications.
Introduction
YLSD-200 double-sided vertical dynamic balancing machine
parameter
| No. | Feature Description | Specification |
|---|---|---|
| 1 | Operating Height of Working Surface | Approximately 800mm |
| 2 | Balancing Workpiece Weight Range | 8-200kg |
| 3 | Maximum Diameter of Workpiece for Balancing (Inside Guard Cover) | Φ800mm |
| 4 | Main Motor Power | 4.5 KW |
| 5 | Measurement Time | ≤12S per piece |
| 6 | Measuring and Balancing Speed Range | 200-800 rpm, infinitely variable speed |
| 7 | Minimum Unbalance of Workpiece | ≤4gmm/kg |
| 8 | Minimum Displayed Unbalance Amount | ≤0.1g |
| 9 | Unbalance Angle Measurement Error | <±2° |
| 10 | Eccentricity Compensation | Arbitrary angle or 180° fixture compensation |
*Test data from Beacon laboratory
