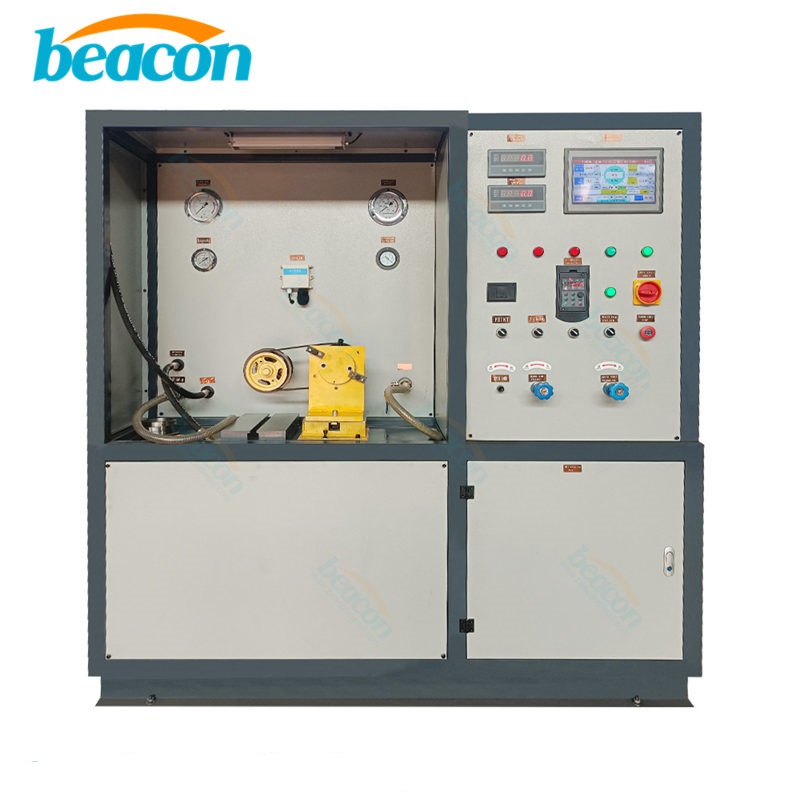

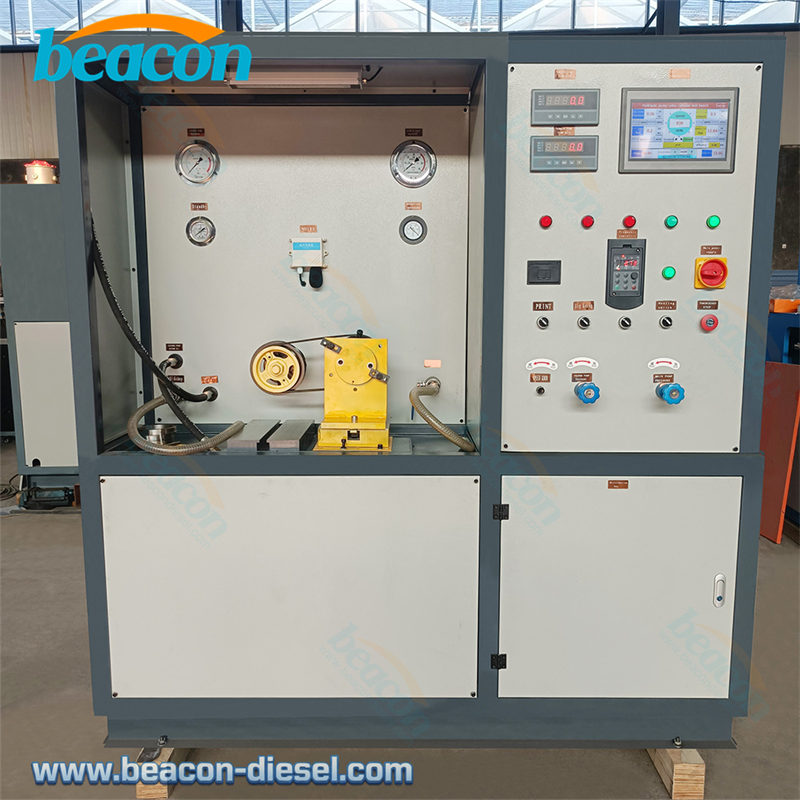

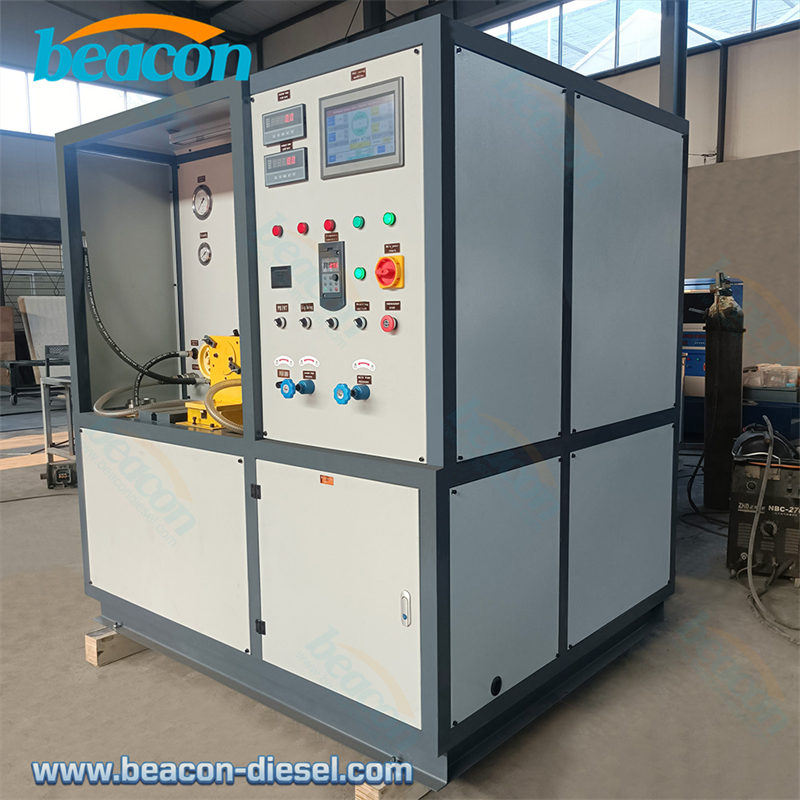

BP-A1 Hydraulic Steering Booster Pump Test Bench 7.5KW

Struggling with steering pump diagnostics? The BP-A1 Test Bench offers precise 30MPa automatic loading and 7.5KW power to accurately test flow, pressure, and noise. Ensure reliable pump repairs today.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

Professional Hydraulic Steering Pump Diagnostics

The BP-A1 Booster Pump Test Bench is engineered to simulate actual vehicle working conditions, allowing maintenance personnel to accurately judge and repair the status of hydraulic booster pumps.

Key Features:

Powerful Drive: Equipped with a 7.5KW motor and frequency conversion speed regulation for arbitrary forward and reverse rotation.
Intelligent Loading: Features fully automatic ESC proportional valve loading up to 30MPa.

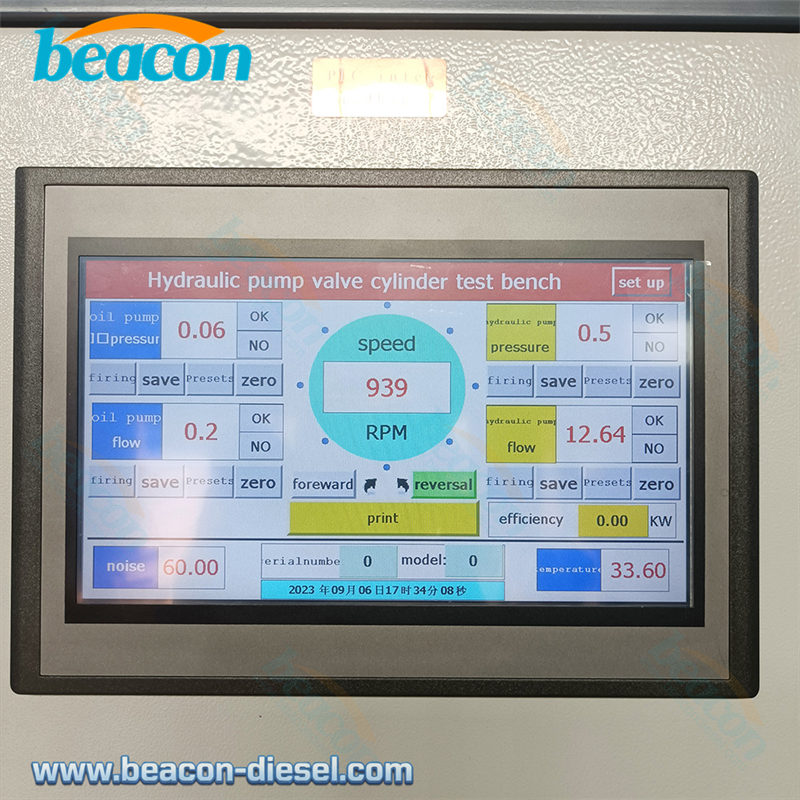

Comprehensive Data: The computer system dually displays speed, flow, mechanical efficiency, volumetric efficiency, noise, and pressure alongside a shock-resistant gauge.
Versatile Testing: Supports lateral tests at 800, 1500, and 2800 r/min, with freely modifiable speed settings.
Safety & Durability: Includes 80μm inlet and 30μm return oil filtration to protect the system.

parameter

Parameter	Specification
Model	BP-A1
Motor Power	7.5 KW
Power Supply	380V 3-Phase (R, S, T Live / N Neutral)
Max Loading Pressure	30 MPa (Automatic ESC Valve)
Drive Mode	Motor Drive with Frequency Conversion
Rotation Direction	Forward and Reverse (Arbitrary)
Test Speeds	Adjustable (Standard points: 800, 1500, 2800 r/min)
Display Type	Computer Screen + Pressure Gauge
Filtration Accuracy	Inlet: 80μm / Return: 30μm
Test Capabilities	Pressure, Flow, Noise, Efficiency, Sealing
