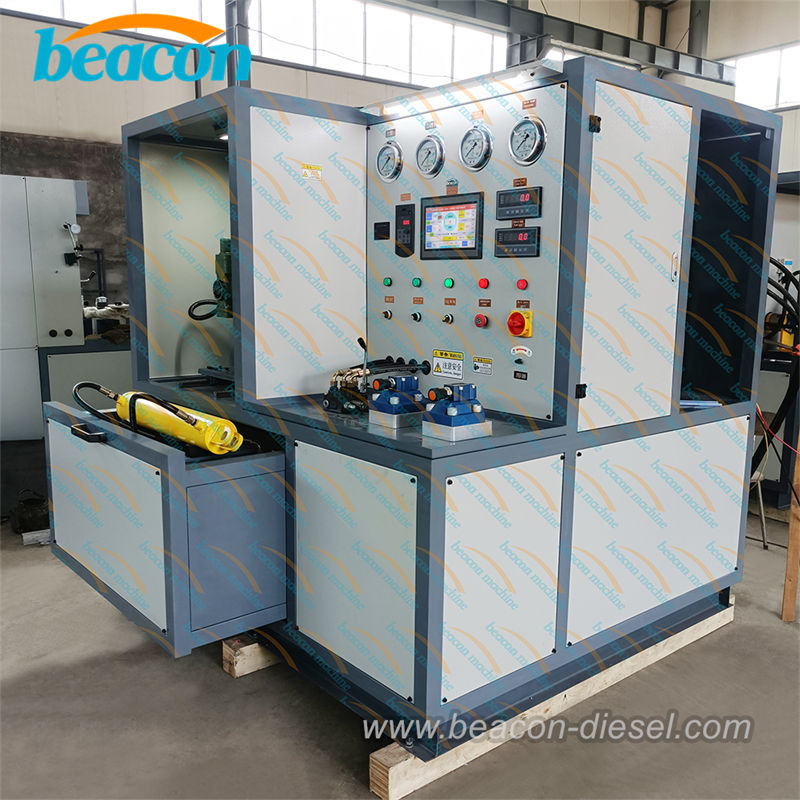

HP-A Hydraulic Pump Test Bench

Struggling with complex hydraulic diagnostics? The HP-A 55KW Test Bench offers a comprehensive solution for testing pumps, motors, valves, and cylinders. Featuring a closed tank for dusty environments and PLC control, it ensures precision and durability. Upgrade your workshop's testing capabilities today.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

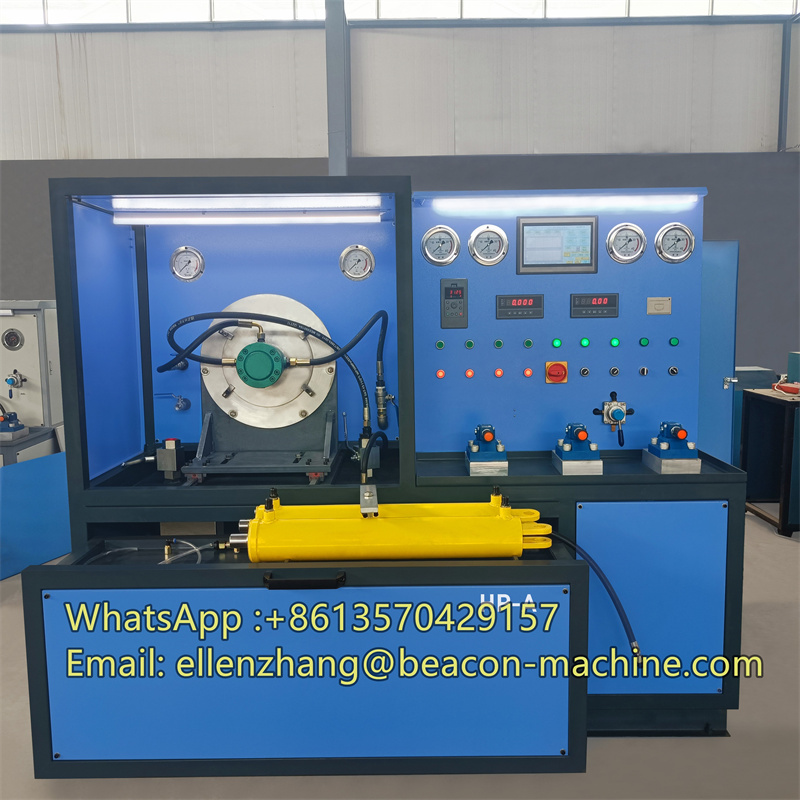

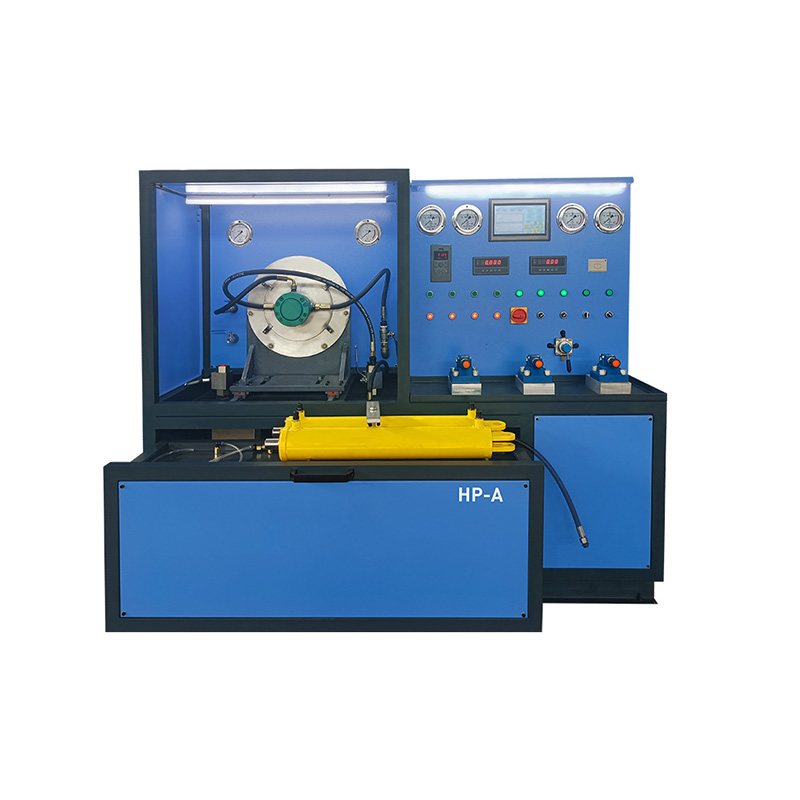

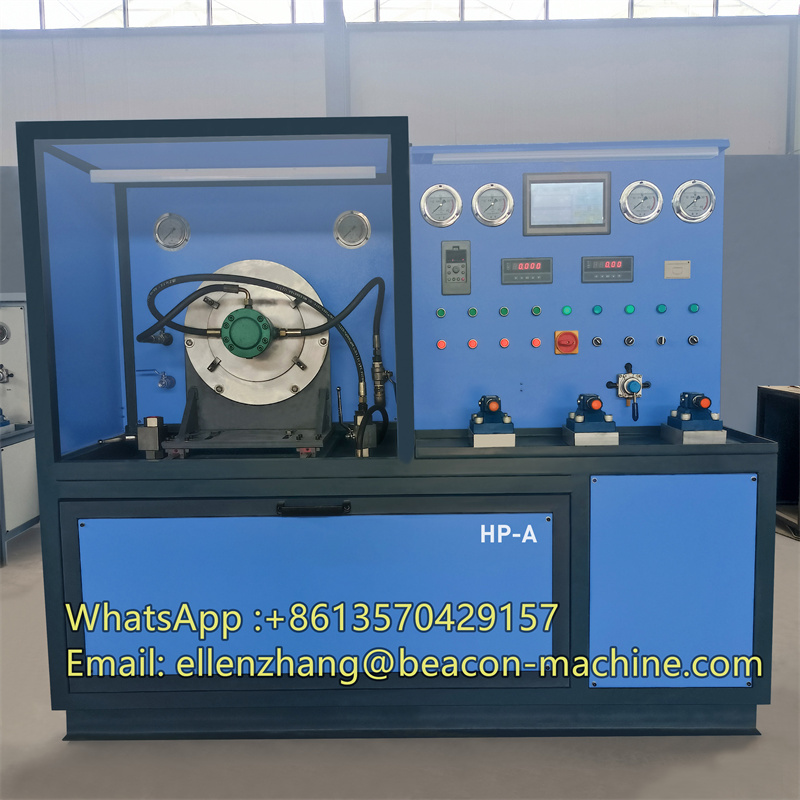

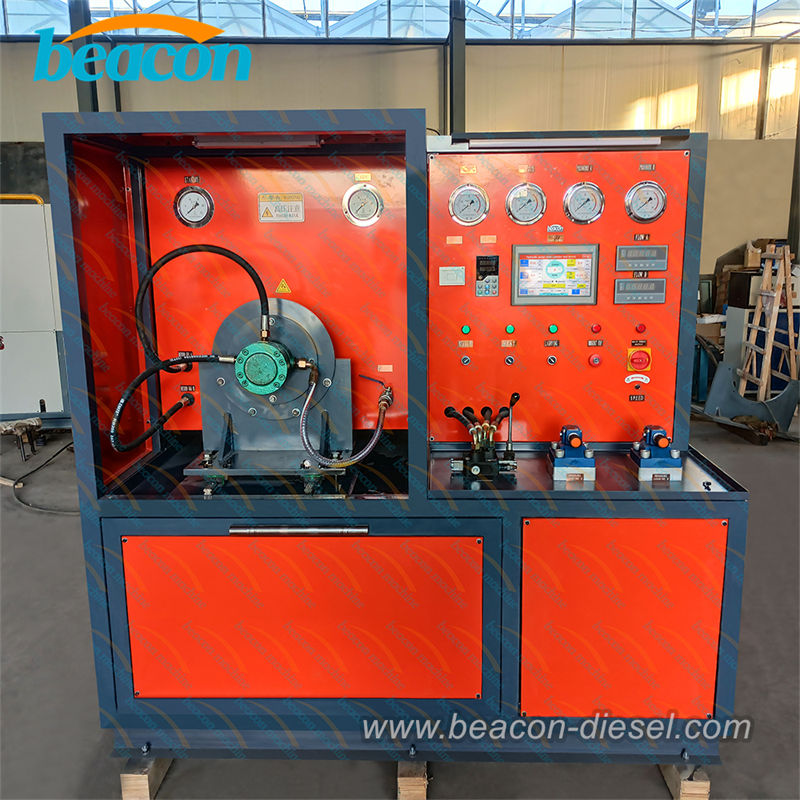

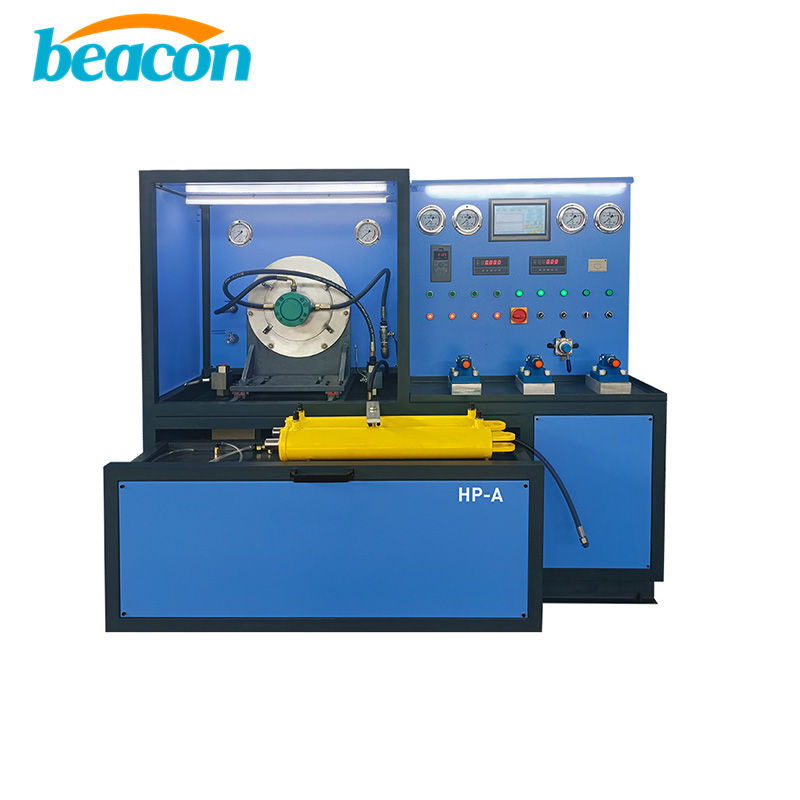

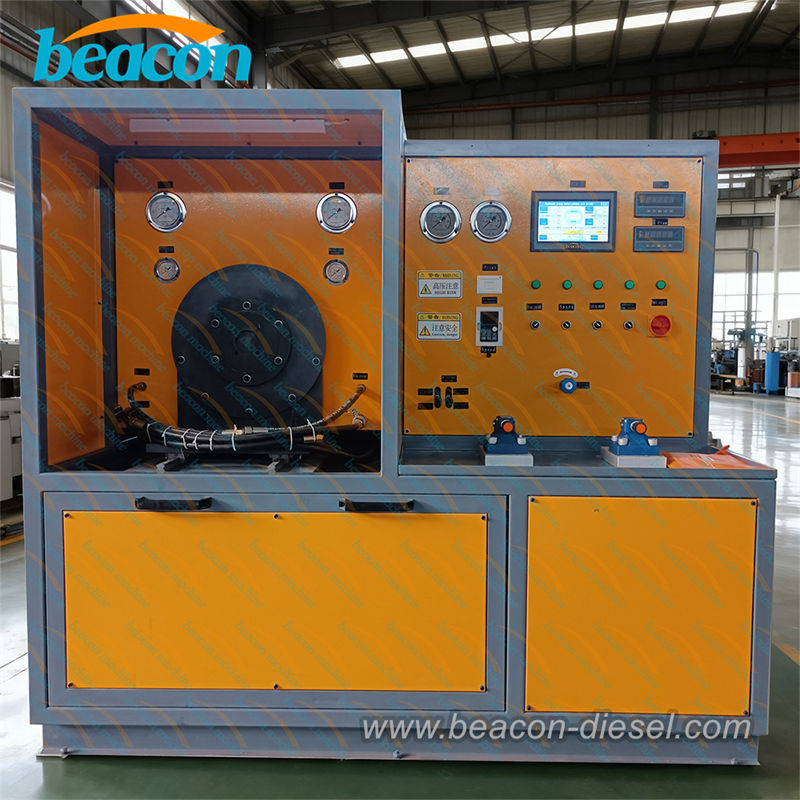

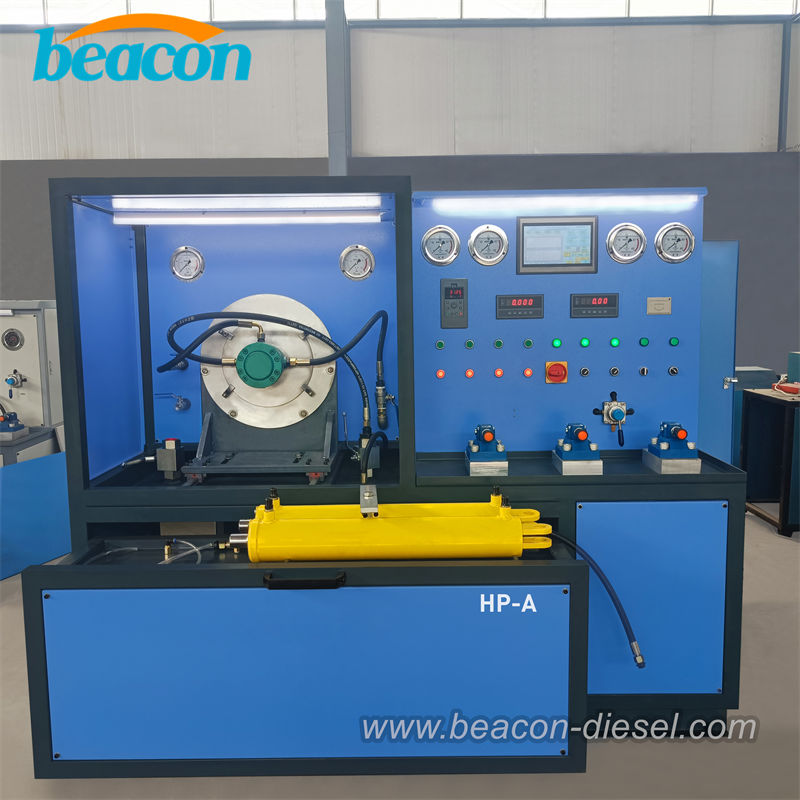

The HP-A 55KW Hydraulic Comprehensive Test Platform is a heavy-duty diagnostic station designed for the rigorous testing of hydraulic pumps, motors, valves, and oil cylinders. Engineered to meet the technical requirements of GB3766-88 "Smart Technical Conditions for Hydraulic Systems," this equipment combines a compact structure with industrial-grade reliability.

Key Features:

Versatile Testing: Capable of handling pumps, motors, valves, and cylinders in one unit.

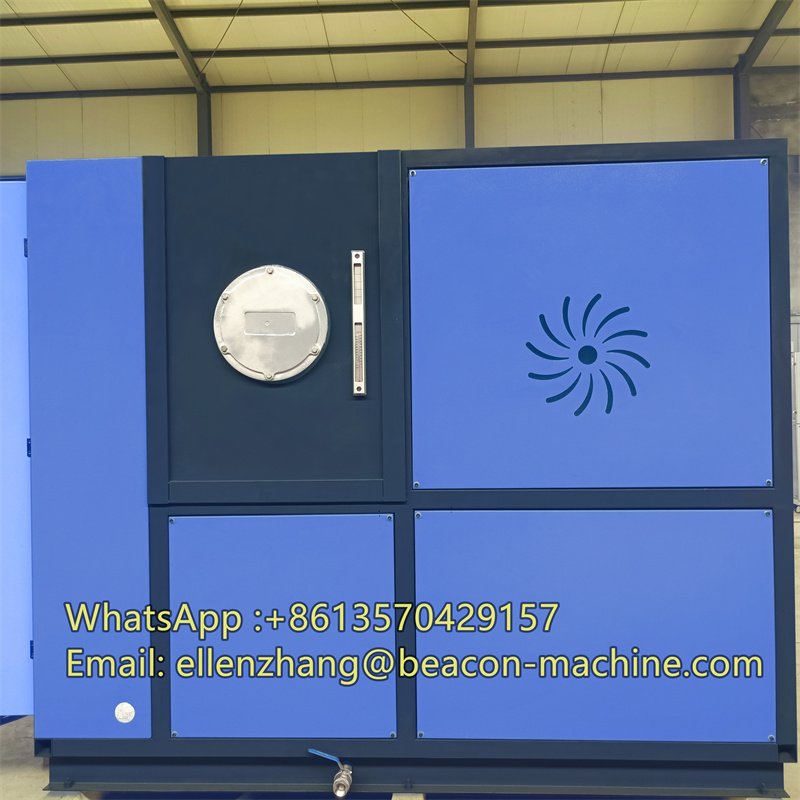

Robust Design: Features a closed fuel tank structure, making it ideal for working in dusty or harsh industrial environments while maintaining oil cleanliness.

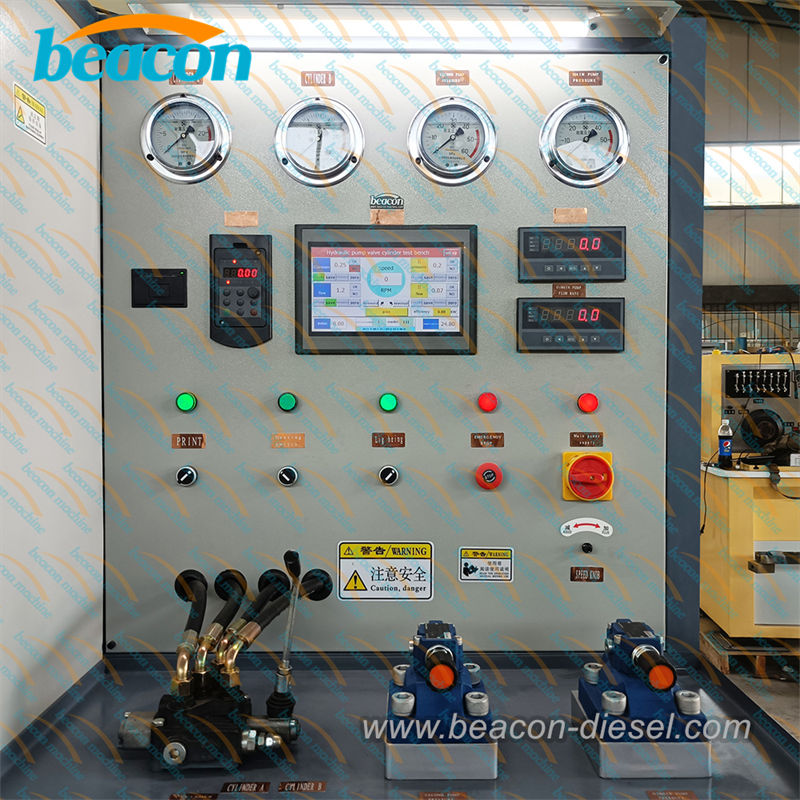

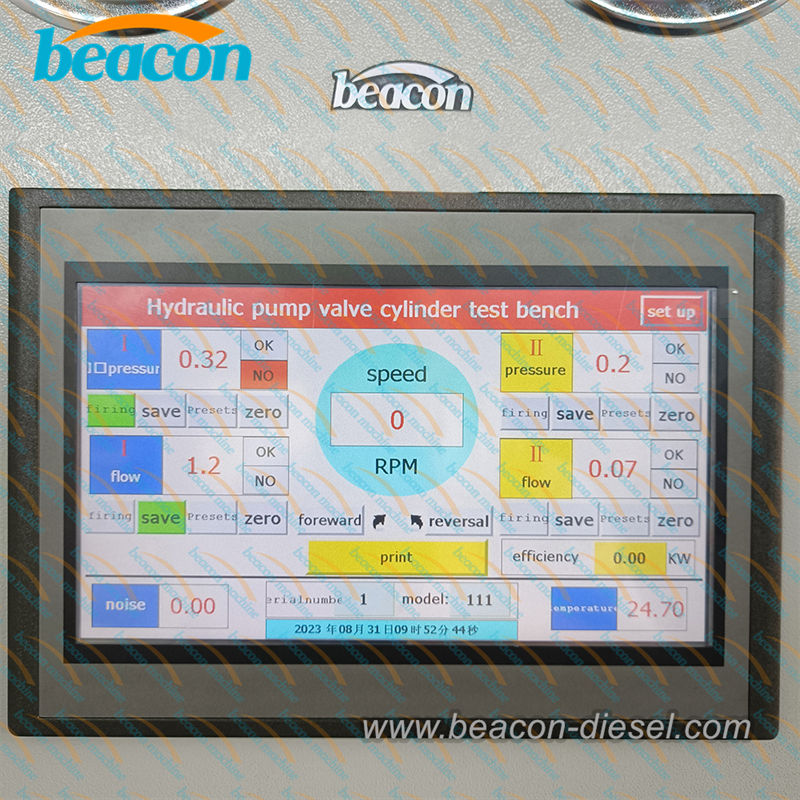

Advanced Control: Equipped with a Digital table and PLC touch screen display for precise monitoring and operation.

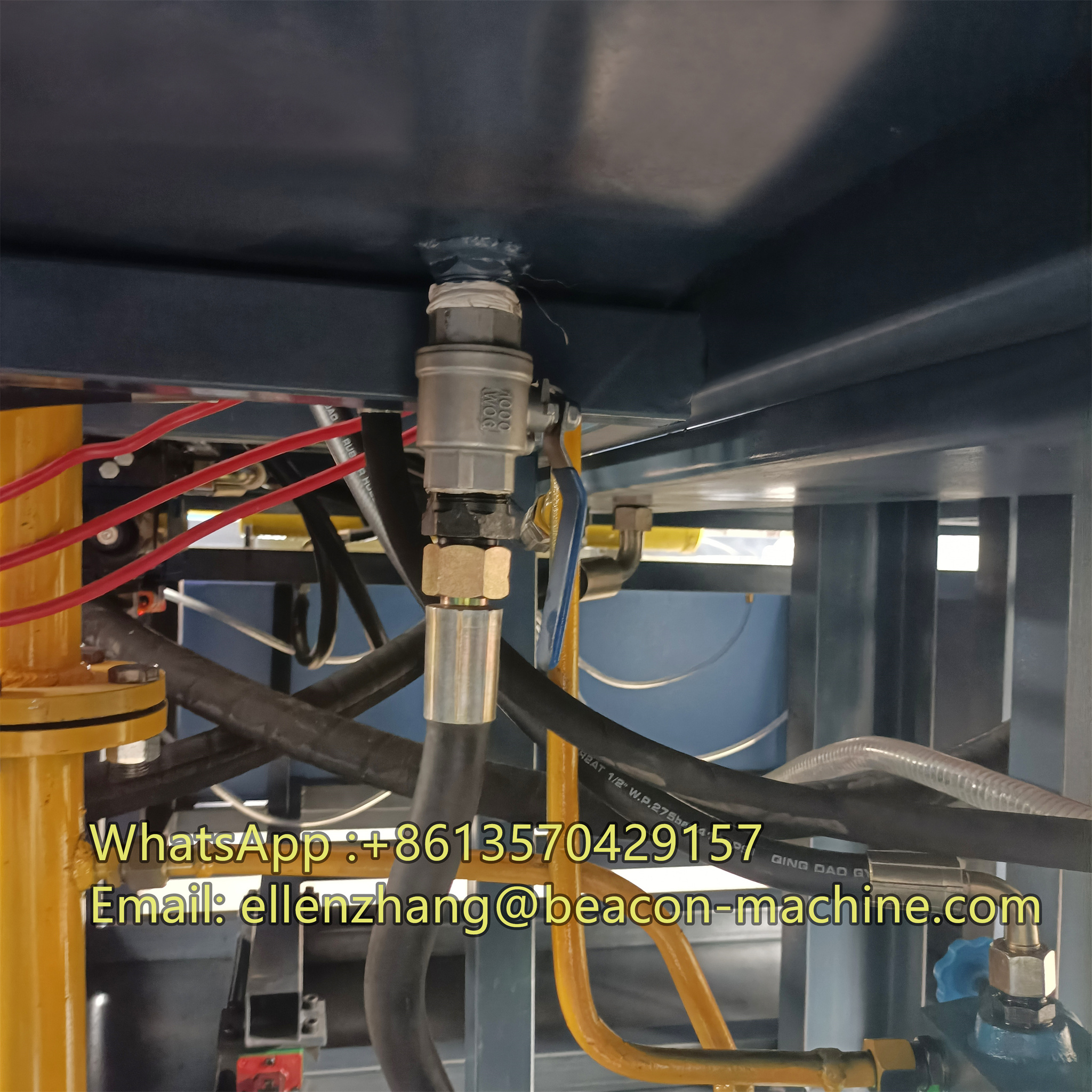

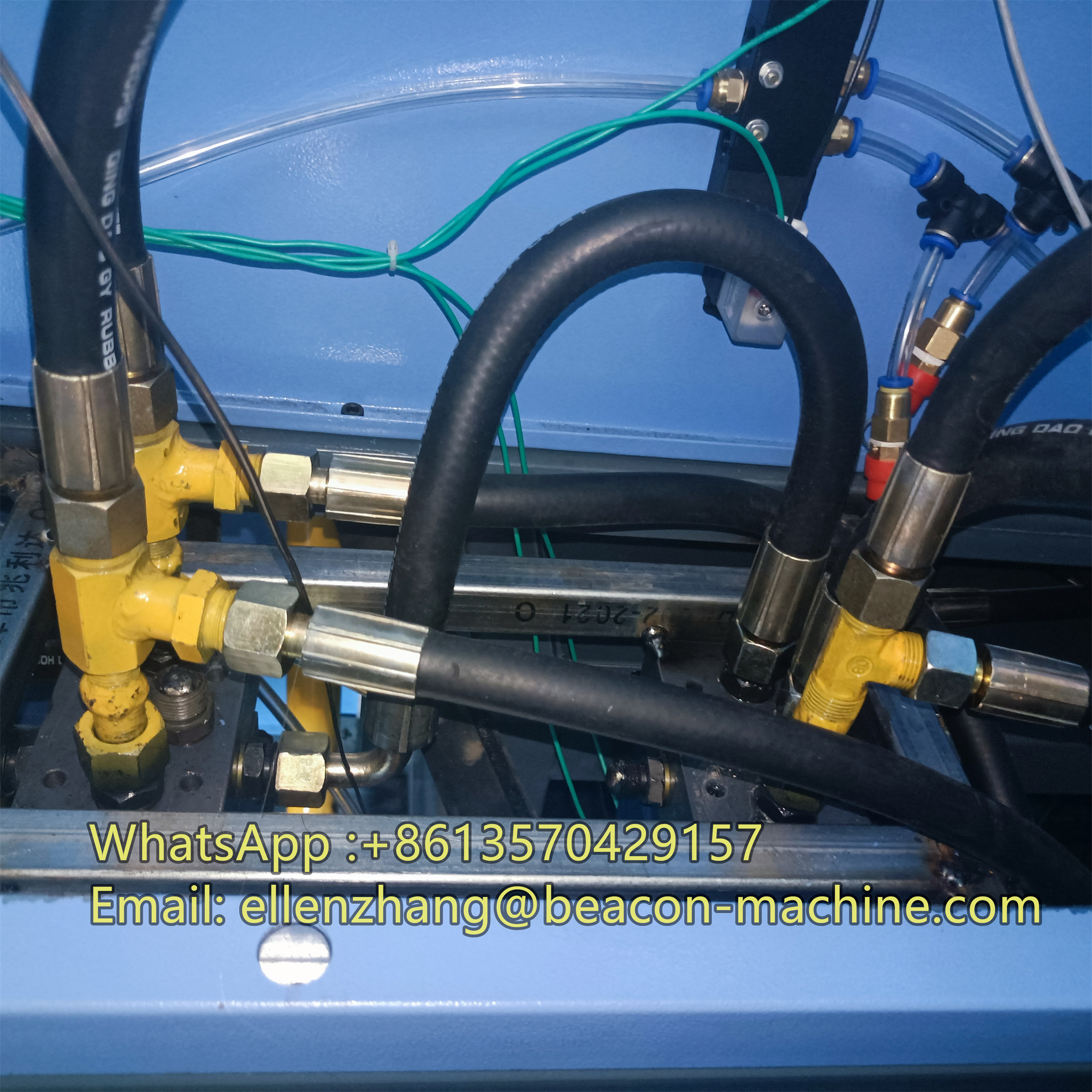

Optimized Structure: The integrated oil circuit block design minimizes leakage. The modular layout (motor drive table, console, and detection table) allows for easy installation and maintenance.
Powerful Performance: Driven by a 55KW electric motor with frequency conversion (0-2000r/min) and a comprehensive cooling and filtration system.

parameter

Technical Parameters:

Equipment Name: 55KW hydraulic pump pump valve cylinder comprehensive test table.
Weight: Theoretical weight of 3-4 tons.
Dimensions: Test Power Channel measures 2000mm x 2000mm x 1800mm.
Driver Power: 55KW-level 4.
Auxiliary Components: Includes a 5.5kW auxiliary motor and a 10 plunger pump for low-voltage oil supply.
Oil Supply Pressure: The highest oil supply pressure is up to 20MPa.
System Maximum Pressure: 30MPa, with a system limit pressure of 30MPa.
Maximum Displacement: 300-400L/min.
Functional Configuration:
- Driver method: Motor driver.
- Speed: Level 4 motor 0--2000r/min (frequency conversion).
- Loading method: Manual dual road loading pressure.
- Oil supply method: Forced oil supply and self-absorbing oil supply.
- Display method: Digital table and PLC touch screen display.
- Operation method: Manual operation.
Working Medium: ISO VG46 hydraulic oil.
Fuel Tank Volume: 1000L, with an actual refueling capacity of 800L.
Normal Cleaning Requirements: Adhere to GB/T14039 19/16 (NAS10) standards.
