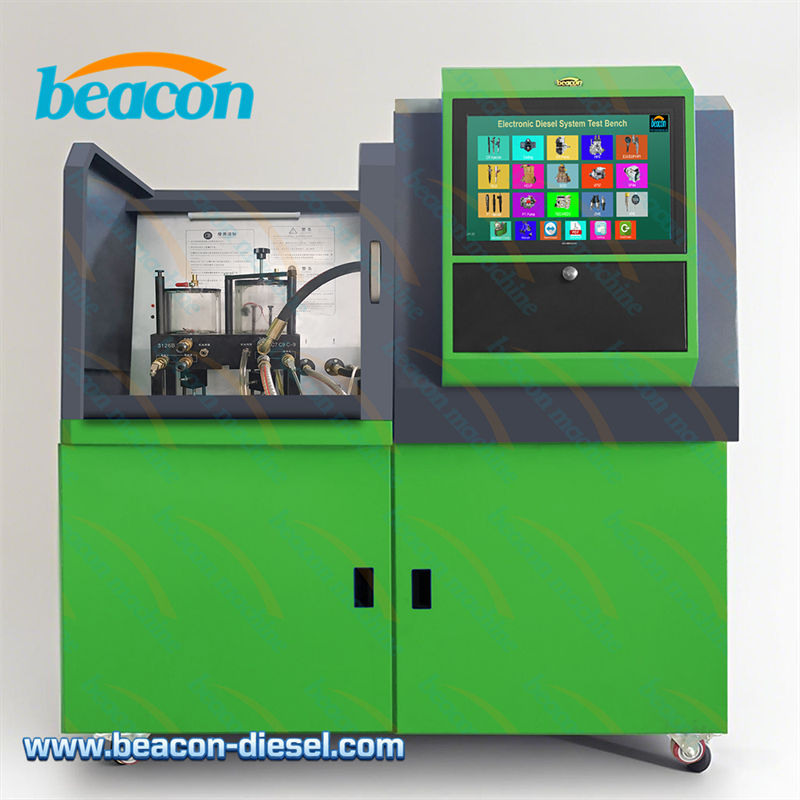

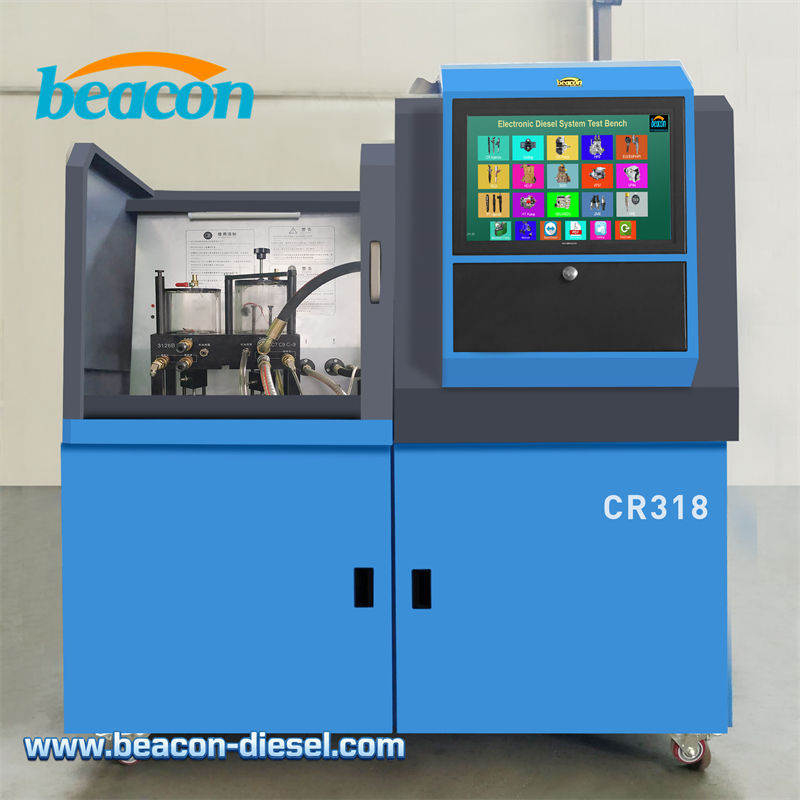

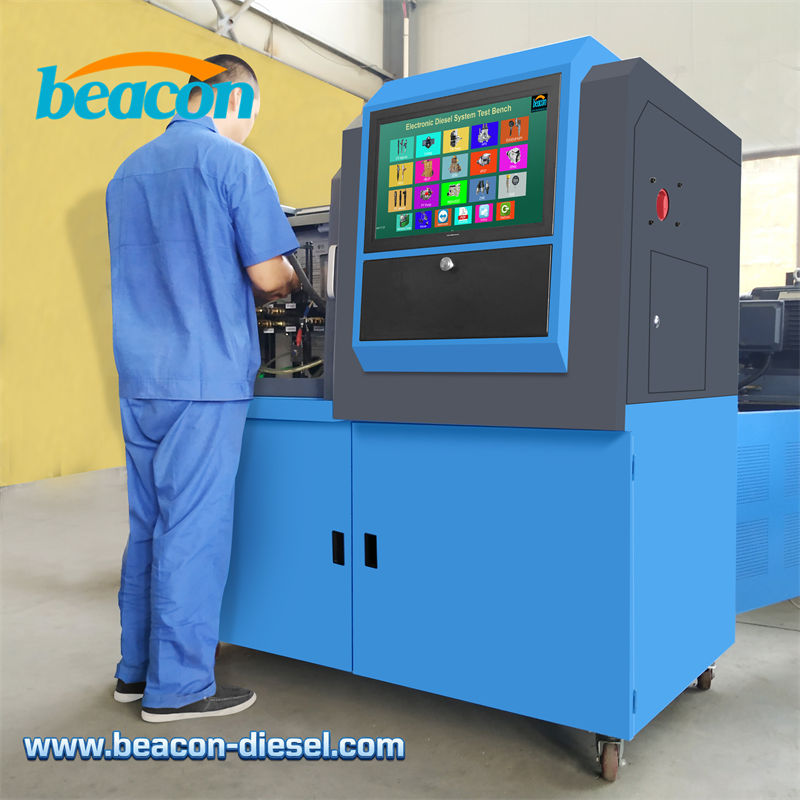

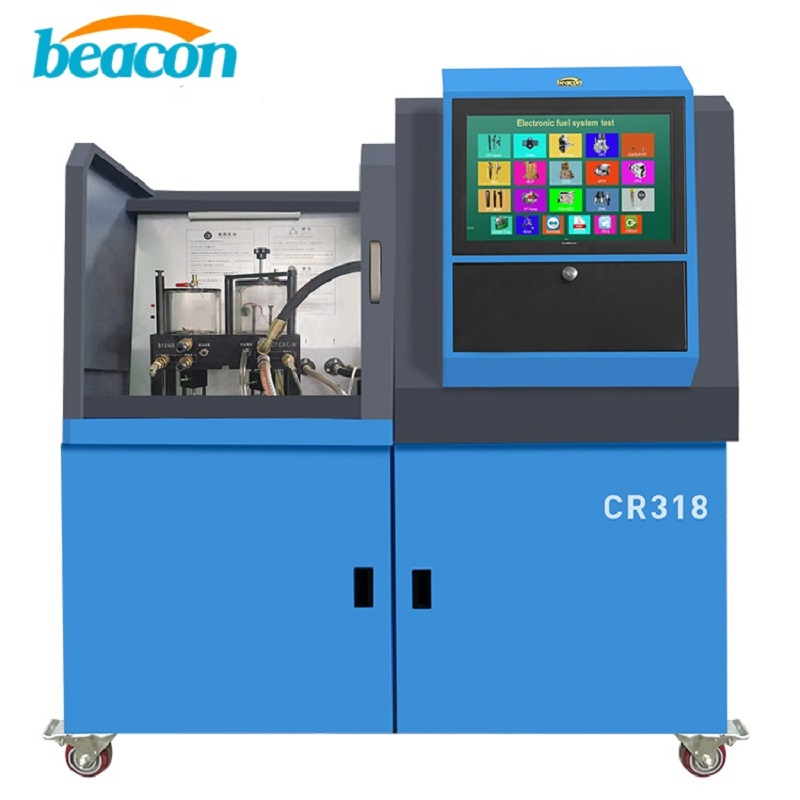

Beacon CR318 HEUI and Common Rail Injector Test Bench with Coding System

The Beacon CR318 is an integrated diagnostic powerhouse designed to streamline the workflow of professional diesel repair shops. By combining Common Rail and HEUI testing capabilities into a single unit driven by powerful double motors, it enables technicians to service a wide variety of injectors—including Piezo and Caterpillar HEUI types—with precision and efficiency. This machine helps you maximize throughput and deliver factory-level repair quality to your customers.

Control System & Data:

Standard Functions:

• Double Motor Configuration: Ensures stable and powerful operation for different testing modes.

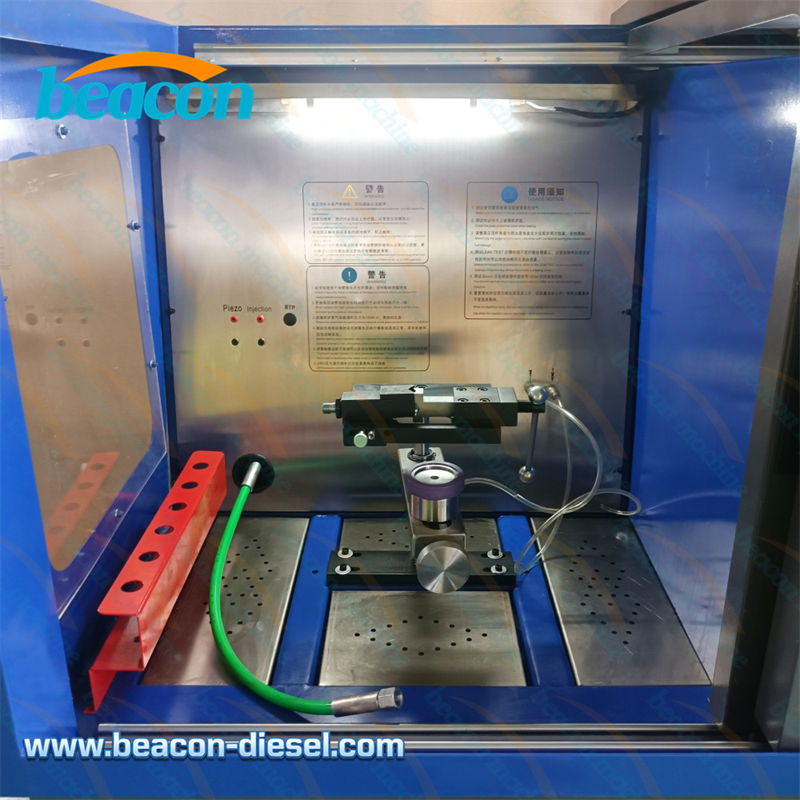

• Common Rail Testing: Comprehensive testing for solenoid and Piezo common rail injectors.

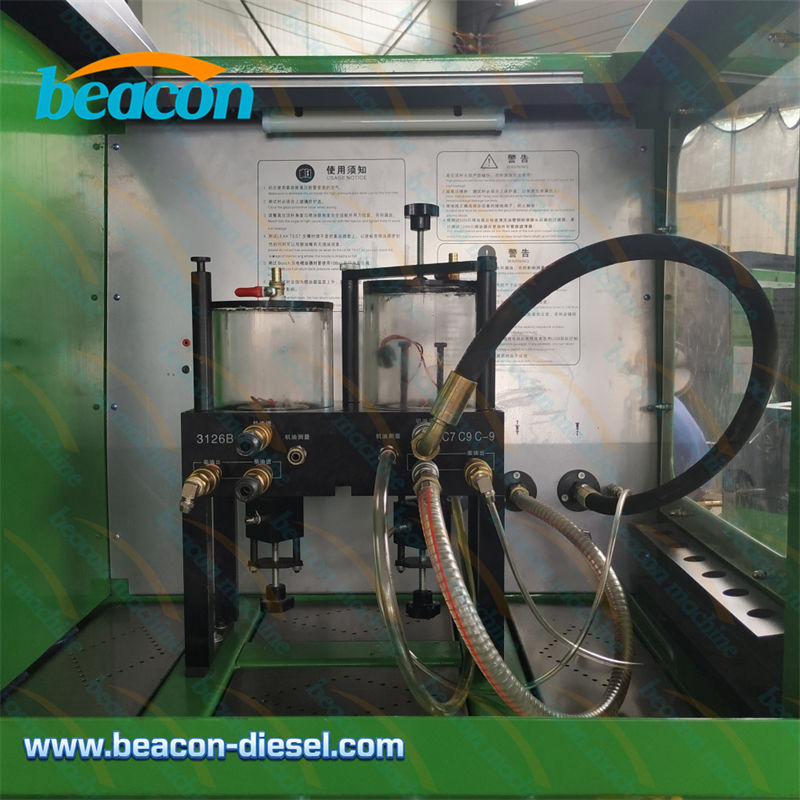

• HEUI Capabilities: Specialized dual-circuit system (oil + diesel) with integrated retainer for authentic HEUI simulation.

• Injector Coding: Generates coding for Delphi, Bosch, Denso, and Siemens injectors.

Optional Functions:

• Ford 6.0 and Carter 3408 injector testing support.

• BIP (Begin of Injection Period) function measurement.

• Delphi E3 double pulse control system.

• ZME measurement unit testing.

• AHE injector dynamic stroke measurement (equipped with Bosch 110/120 tools and dial indicator).

• High-efficiency mode: Test 4 or 2 injectors simultaneously.
