EPS206 PLUS Common Rail Injector Test Bench

The Beacon EPS206 PLUS is a professional-grade Common Rail Injector Test Bench engineered for precision diesel injector testing, calibration, and coding. Compact and powerful, it delivers advanced diagnostic capabilities for modern diesel repair workshops.

Key Features

• Dual Injector Technology — Supports both high-speed solenoid valve type common rail injectors and third-generation piezoelectric crystal (Piezo) injectors, covering the full spectrum of modern diesel injection systems
• BIP Function — Built-in Bosch Injector Parameter (BIP) function enables precise piezo injector testing and waveform analysis
• Full Injector Coding — Comprehensive coding support for Delphi, Bosch, Denso, and Siemens injectors with 4,204 encoded data points (Bosch 1,174 | Denso 2,375 | Siemens 160 | Delphi 438 | Cummins 28)
• Massive Test Database — Pre-loaded with 7,725 common rail injector data profiles (Bosch 2,587 | Denso 4,287 | Siemens 171 | Delphi 449 | CAT 17 | Cummins 54 | MTU 19) and 7,343 AHE injector data points
• Intelligent PID Pressure Control — Advanced PID algorithm ensures precise and stable pressure regulation for accurate, repeatable test results
• Dual Protection System — Both software and hardware short-circuit protection safeguards the machine and connected injectors for maximum reliability
• Multi-Sensor Compatibility — Supports BOSCH, DENSO, and DELPHI rail pressure sensors for flexible testing setups
• 15-Language Software — Control system supports 15 languages (EN, ES, FR, IT, DE, RU, PT, AR, TR, PL, FI, KO, HR, BS, ZH) with automatic updates, remote upgrades, custom logo branding, and printable test reports

Test Functions

• Common Rail Injector — Sealing, Full Load, Mid-Load, Idling, and Pre-Injection performance testing
• Piezo Injector — Full diagnostic and calibration support
• CR Pump — Common rail high-pressure pump testing
• EUI/EUP/HPI — Electronic unit injector and pump testing
• HEUI / HEUP — Hydraulic electronic unit injector and pump testing
• VP37 / VP44 — Distributor-type injection pump testing
• PT Injector & PT Pump — Cummins PT system diagnostics
• RED4/EDC / ZME / AHE — Electronic diesel control and advanced hydraulic element testing
• Mechanical Pump — Traditional mechanical injection pump testing
• Optional: Bosch 4-Pin Injector, Rail Pressure Sensor, DRV/HPV, Solenoid Valve testing

Why Choose EPS206 PLUS?

• All-in-One Solution — From solenoid to piezo, coding to pump testing, one machine covers your entire diesel injection workflow
• Workshop-Ready — Compact footprint (90×80×165 cm) fits standard workshops; 220V single-phase power means no special electrical installation required
• Future-Proof — Remote software upgrades and expandable test functions keep your investment current as diesel technology evolves
• ISO/CE Certified — Built to international quality and safety standards
• 1-Year Warranty — Backed by lifetime technical support and free accessory replacement for non-human damage within the warranty period

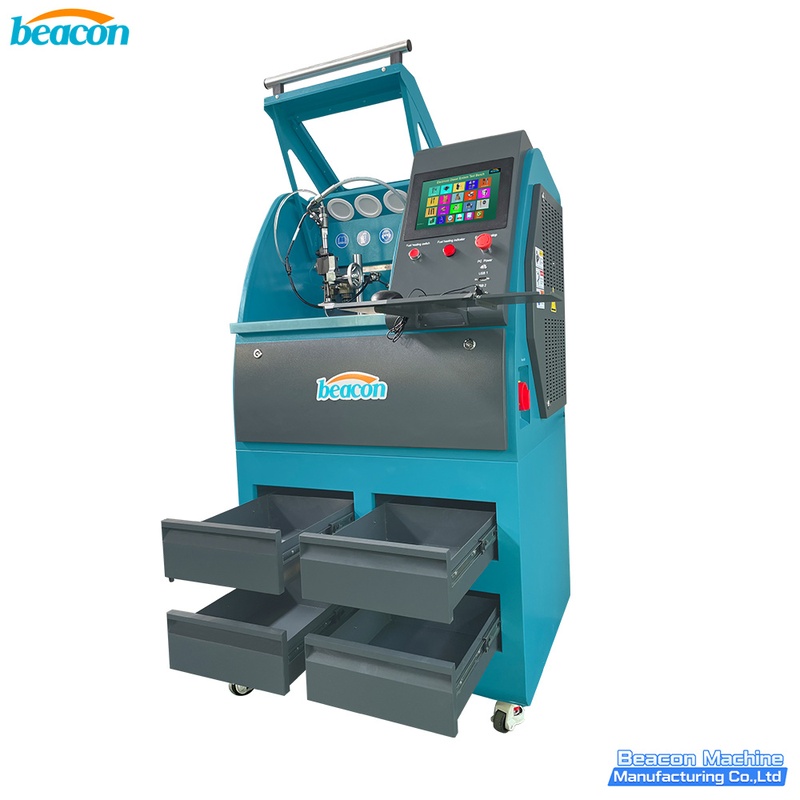

EPS206 PLUS Common Rail Injector Test Bench - Machine Overview

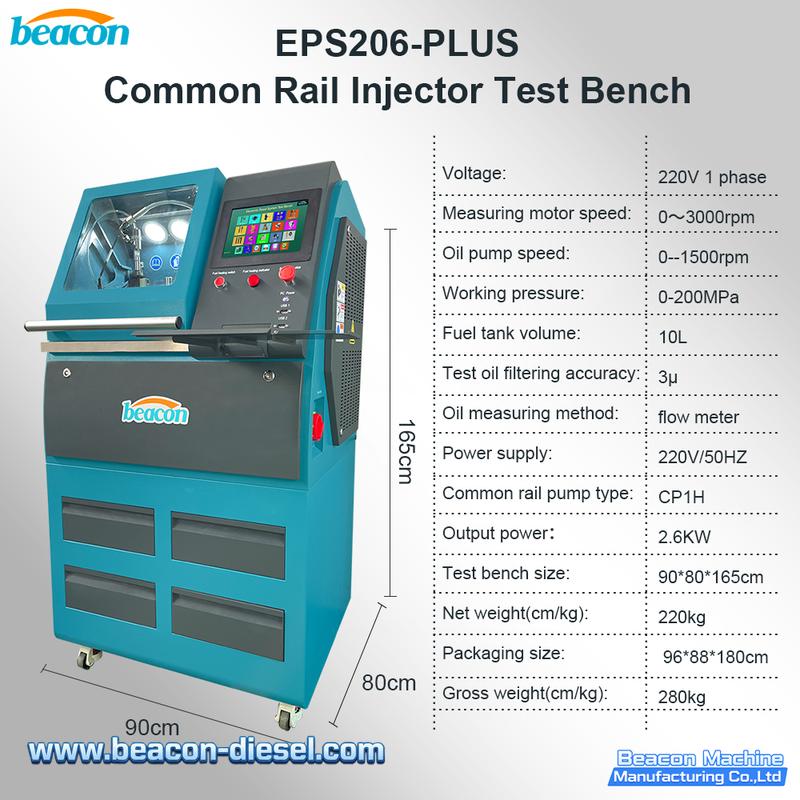

EPS206 PLUS Common Rail Injector Test Bench - Technical Parameters

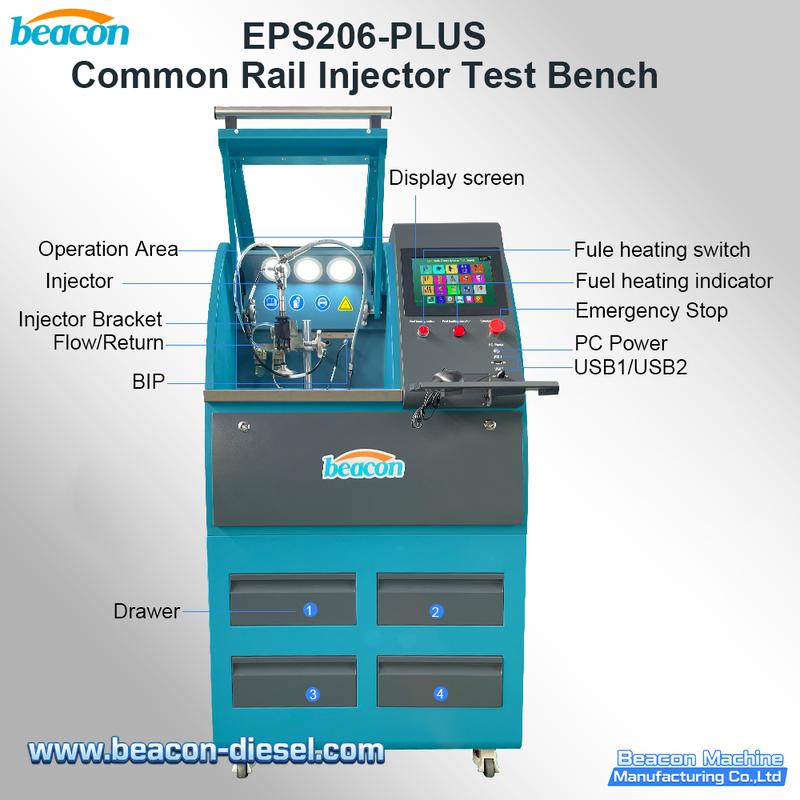

EPS206 PLUS Common Rail Injector Test Bench - Detail Features

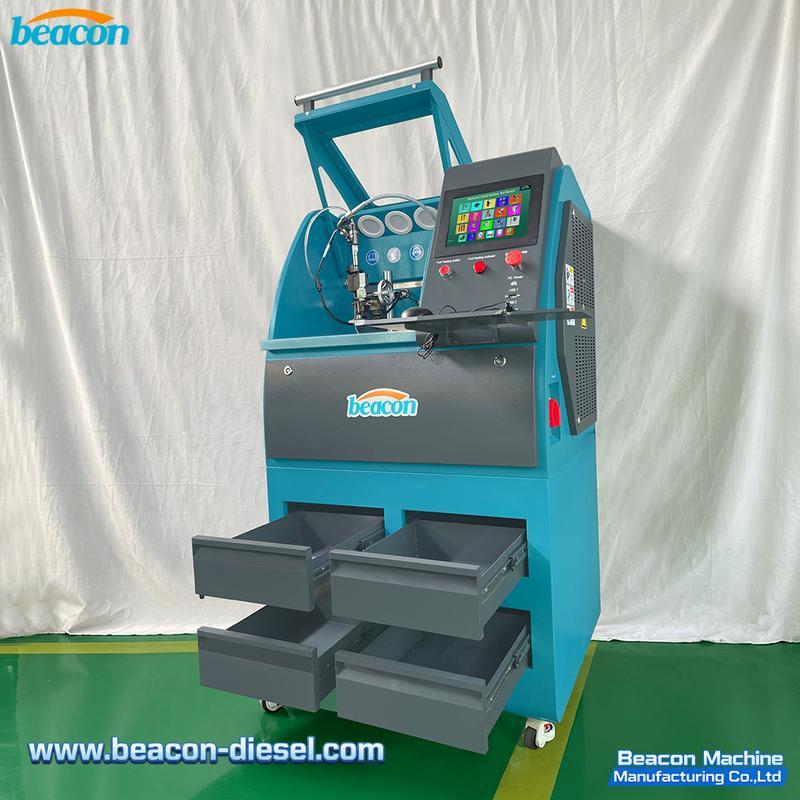

EPS206 PLUS Common Rail Injector Test Bench - Complete View 3

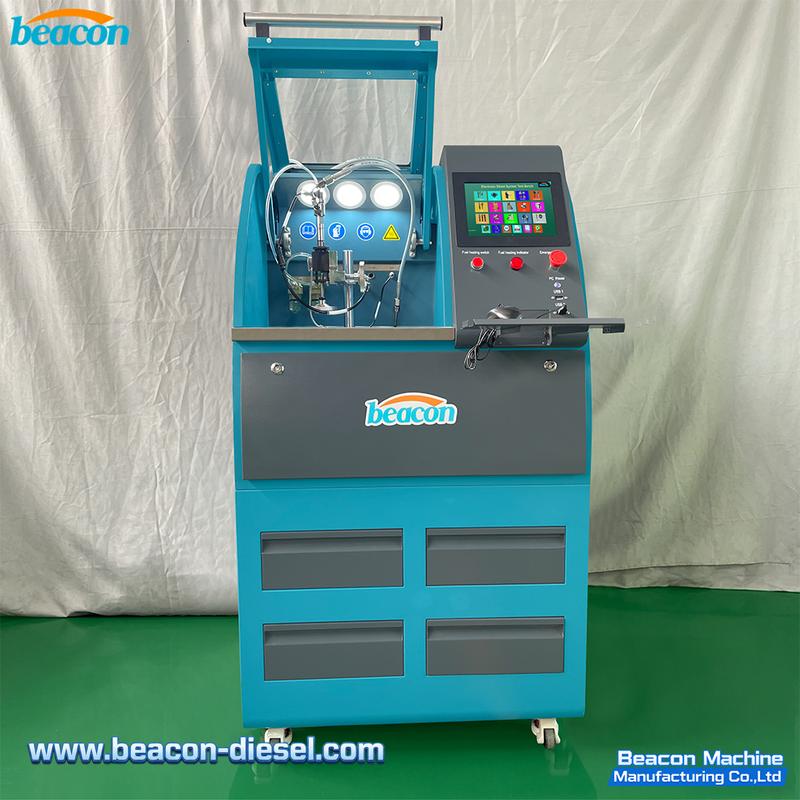

EPS206 PLUS Common Rail Injector Test Bench - Complete View 4

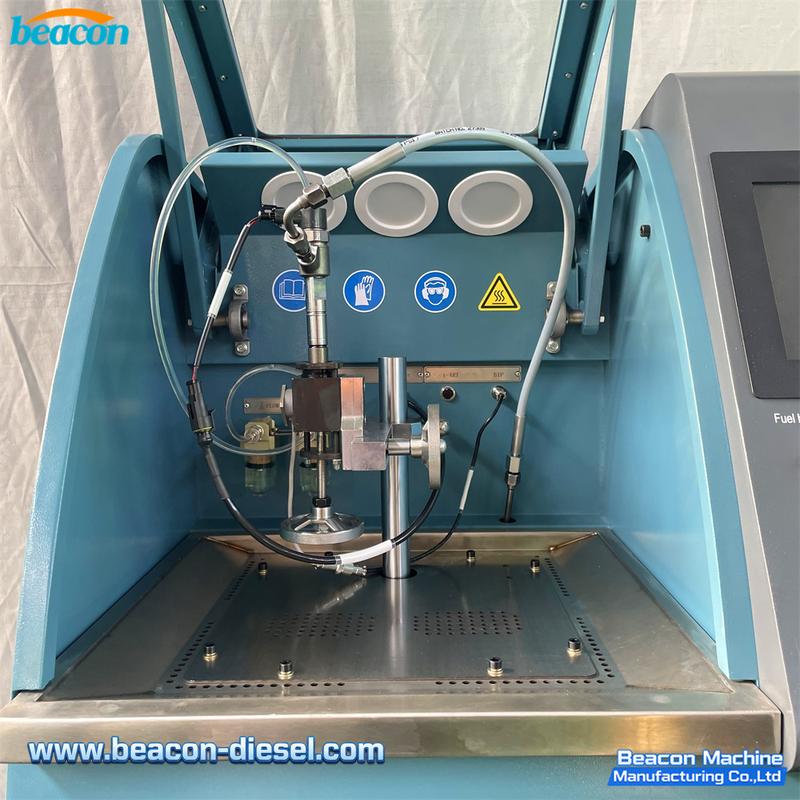

EPS206 PLUS Common Rail Injector Test Bench - Detail View 14
