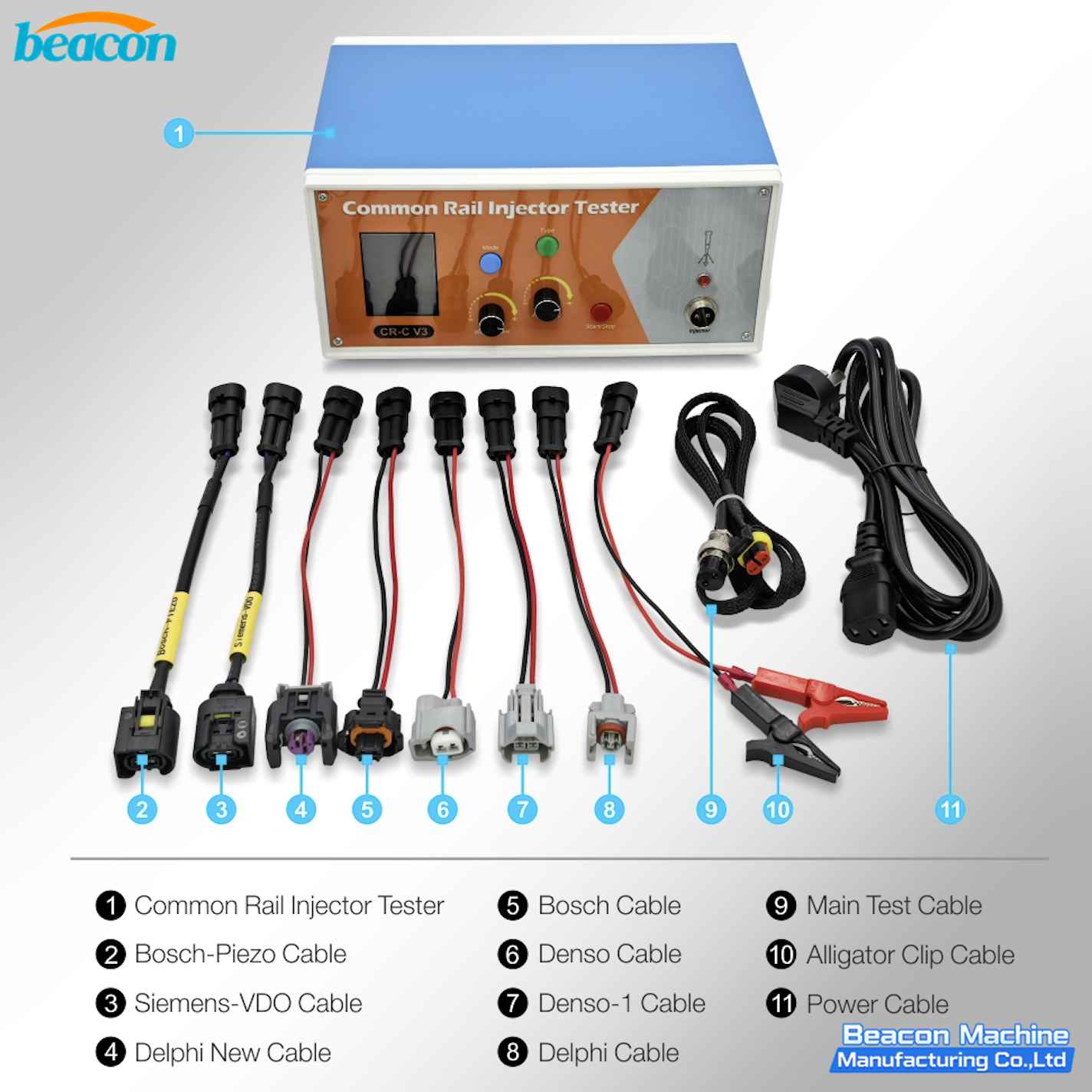

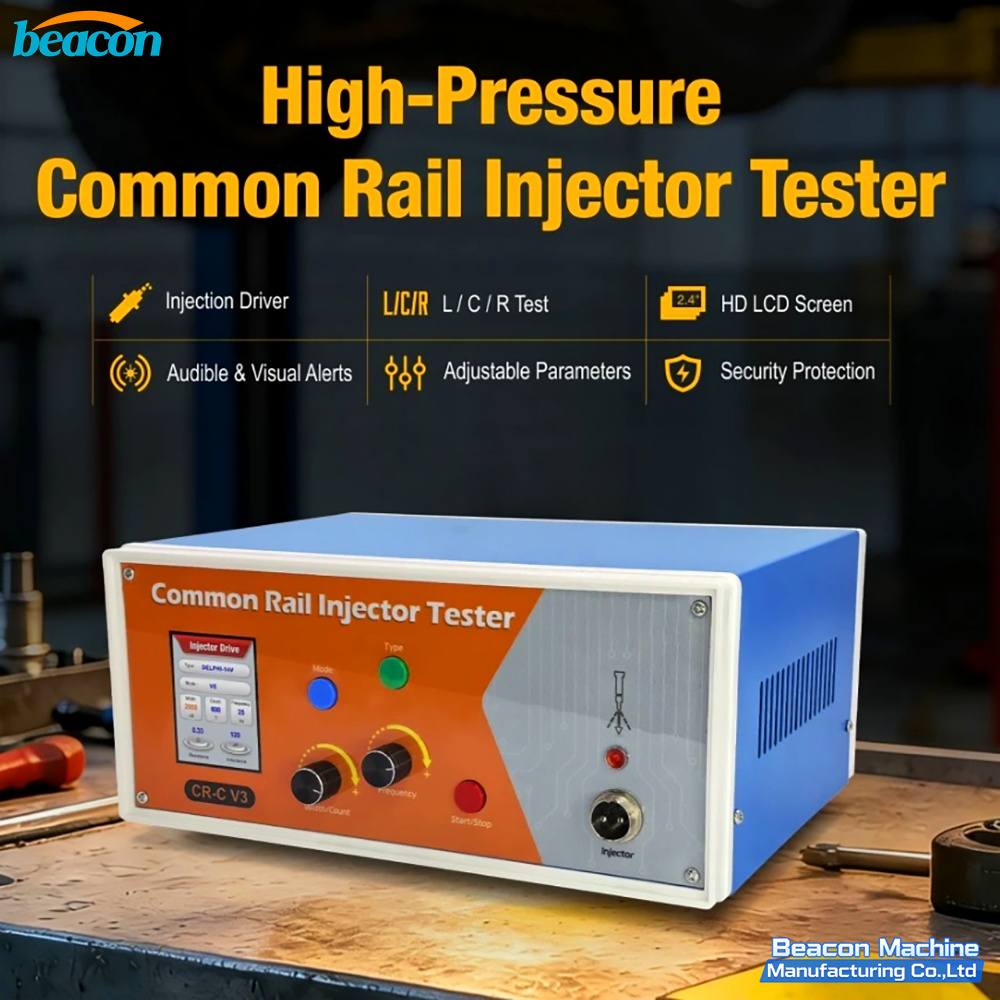

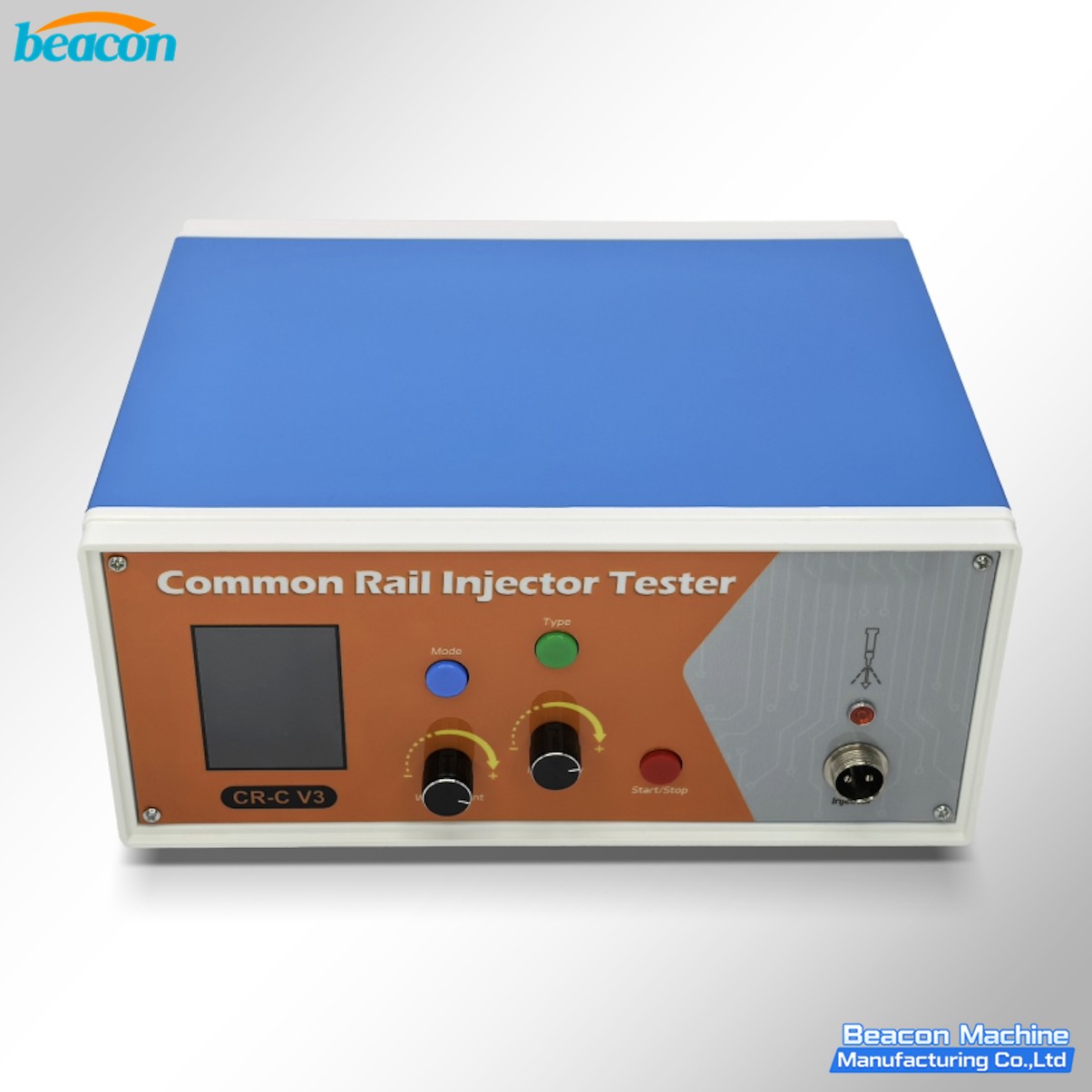

CR-C V3 Common Rail Injector Tester for Solenoid and Piezo Injectors

• Solenoid & Piezo Injector Compatibility – One versatile tester supports both solenoid-type and piezo-type common rail diesel injectors, eliminating the need for separate diagnostic equipment and making it ideal for multi-brand workshops servicing Bosch, Delphi, Denso, Siemens, and Continental injectors

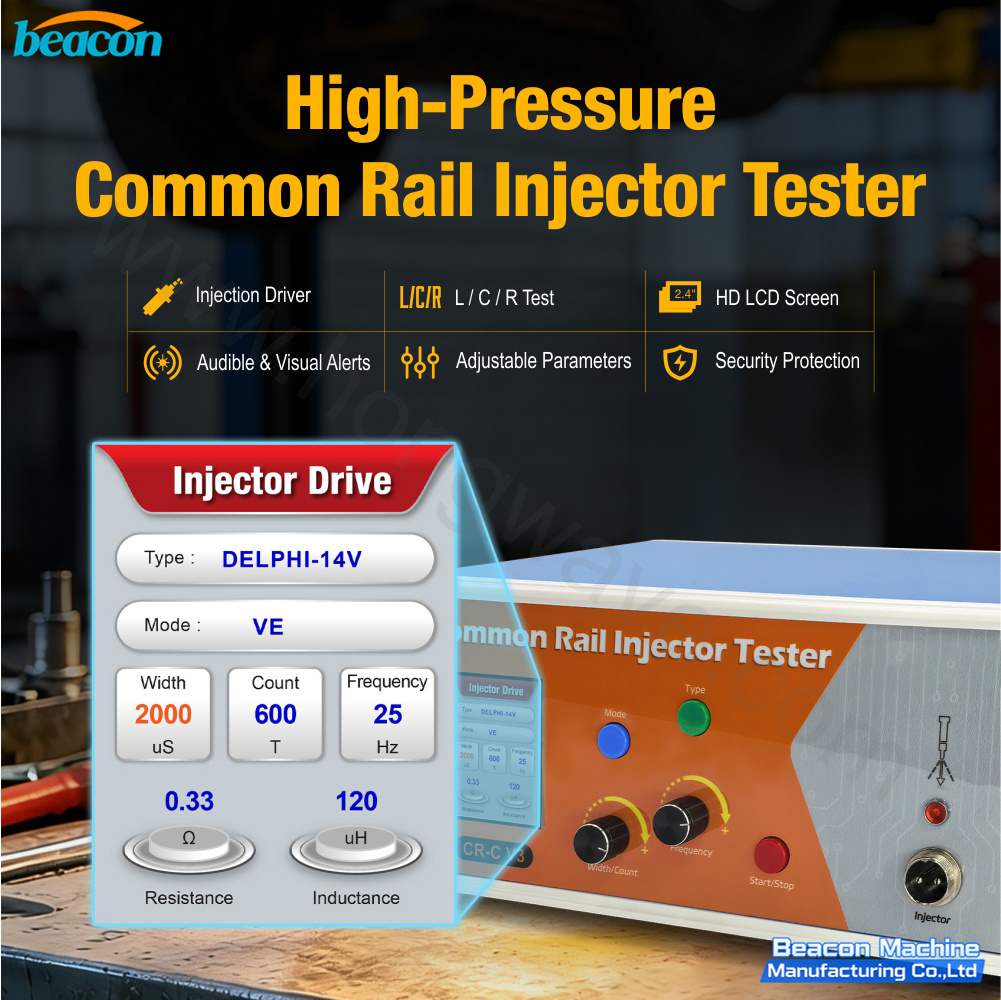

• Precision L/C/R Electrical Measurement – Built-in resistance, inductance, and capacitance measurement functions enable comprehensive electrical diagnostics on injector coils (solenoid) and piezo stacks, helping technicians quickly identify electrical faults such as short circuits, open circuits, or degraded piezo elements
• Adjustable Drive Frequency 1-30Hz – Simulates real engine operating conditions from idle to high RPM, allowing accurate injector response testing across the full engine speed range for reliable pass/fail judgment
• Adjustable Pulse Width 0-6000μs – Covers the complete spectrum of injector drive signals from pilot injection to full-load main injection, enabling thorough evaluation of injector opening/closing behavior under all engine load conditions
• Four Operating Modes (VE, VL, TL, LL) – Multiple test point configurations provide flexibility for different injector types and testing requirements, supporting both quick screening and detailed diagnostic workflows
• 2.4-Inch HD LCD Display – High-definition color screen with clear, intuitive interface displays real-time test parameters such as frequency, pulse width, and measurement values for at-a-glance monitoring during diagnostic sessions
• Audible & Visual Alert System – Built-in buzzer and driver-output LED indicator provide immediate pass/fail feedback, reducing operator error and speeding up batch testing workflows in high-volume repair shops
• Advanced Safety Protection – Integrated overcurrent protection and short-circuit protection safeguards both the tester and the injector under test, preventing accidental damage from wiring faults or defective injectors during bench testing
• Wide Voltage Input AC 100-240V – Universal power supply compatibility allows operation in workshops worldwide without voltage converters or external power adapters, ideal for international markets and export
• Compact & Portable Design – At just 245×200×120mm and approximately 2.2kg, this injector tester is lightweight enough for mobile diagnostics yet robust enough for daily workshop use, fitting easily on any workbench or tool cart

CR-C V3 Common Rail Injector Tester – rear connection panel with power input and injector cable ports for solenoid and piezo injector testing

CR-C V3 Common Rail Injector Tester – angled view showing 2.4-inch HD LCD display with operating mode indicators for diesel injector diagnostics
