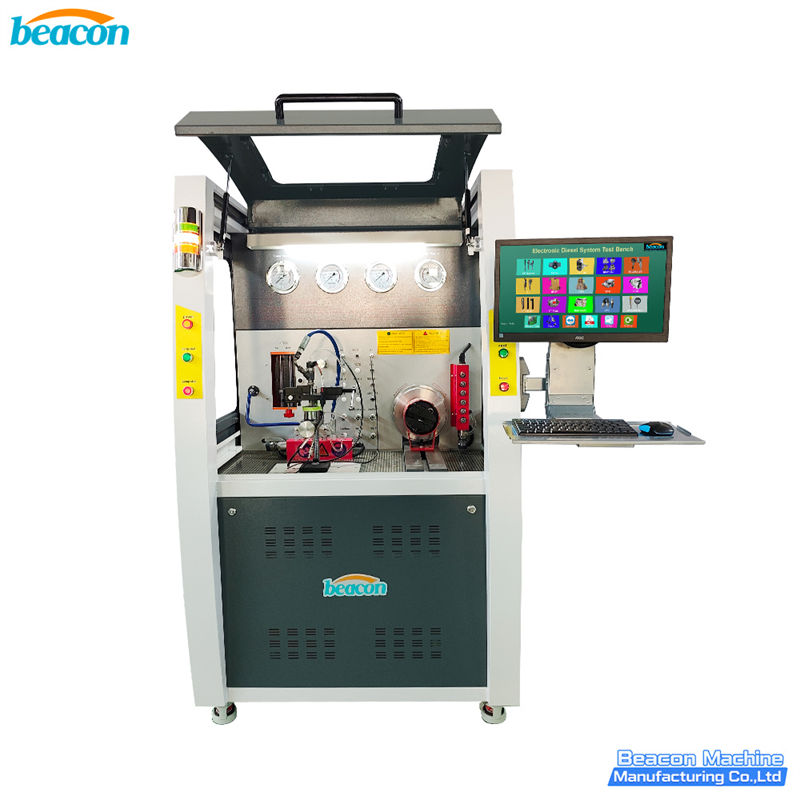

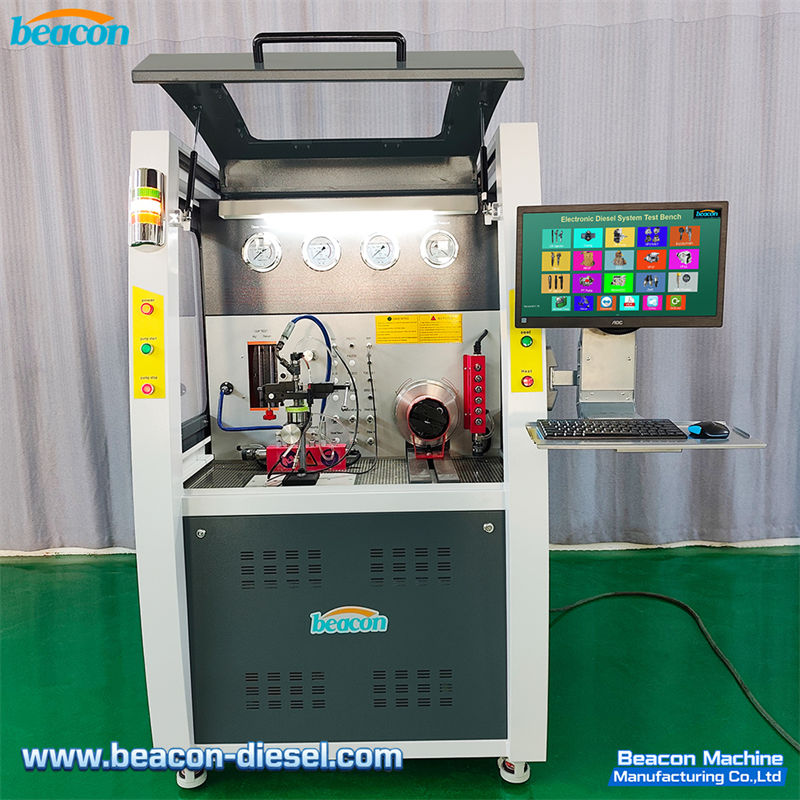

CR1029 High Pressure Common Rail Comprehensive Performance Test Bench - CR Injector & Pump Tester

CR1029 High Pressure Common Rail Comprehensive Performance Test Bench - Professional test bench for common rail injectors, piezoelectric injectors, high pressure pumps, HEUI, EUI/EUP and more. Up to 2400bar test pressure.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

High Pressure Common Rail Test System - Comprehensive performance test bench capable of testing common rail solenoid injectors, piezoelectric injectors, high-pressure common rail pumps, HEUI medium-pressure injectors, actuation pumps, and CAT 320D fuel pumps with test pressure up to 2400bar
Fully Automatic Operation - One-click operation integrates speed control, common rail pressure monitoring, flow measurement, and report analysis. Test results obtained automatically without manual intervention
Extensive Compatibility - Supports thousands of EFI injectors and fuel pumps from Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, and domestic brands, with 7725 common rail injector data points and 1821 CR pump data points
15 Language Interface - Software supports Chinese, English, Spanish, French, Italian, Korean, Polish, Portuguese, Russian, Turkish, Bosnian, Arabic, Croatian, Finnish, and more
Injector Coding Function - Generates compensation codes for Bosch, Delphi, Denso, Siemens injectors with 4204 encoded data points. Supports Delphi E3 dual solenoid control system
Dual Rail Pipe Design - Equipped with measuring cylinder and dual rail pipes for precise injector flow measurement with high accuracy
Comprehensive Optional Functions - EUI/EUP test with cam box (TU-C/D/E optional), HEUI injector test with dual oil circuits, CAT 320D pump, Denso HP5/HP6/HP7, PT injector and pump, Cummins HPI, ZME metering unit, AHE injector dynamic stroke, and more
Simultaneous Multi-Injector Testing - Capable of testing 2 or 4 injectors simultaneously with optional additional flow sensors, significantly improving workshop efficiency
Automatic System Updates - Free upgrades within one year, remote upgrade capability, and always up-to-date test data and functions via network
Test Report Printing - Generates professional test reports with customizable company logo, providing documented results for customer service
Database Fully Open - Users can add new part numbers to the database, ensuring the system adapts to new injector and pump models as they emerge
Durable Construction - Robust build quality with plywood case packaging for secure delivery, suitable for demanding workshop environments worldwide
Comprehensive Warranty - One-year warranty plus lifetime technical support, with free accessory replacement for non-human damage within the warranty period

parameter

Parameter	Specification
Model	CR1029
Machine Dimensions (L×W×H)	95 × 94 × 98 cm
Standard Power Supply	7.5 KW, AC 380V, 50/60Hz, 3-Phase
Optional Power Supply	AC 220V 1-Phase / AC 220V 3-Phase
Max Test Pressure	2400 bar
CR Injector Data Points	7,725 (Bosch 2,587 + Denso 4,287 + Siemens 171 + Delphi 449 + CAT 17 + Cummins 54 + MTU 19)
CR Pump Data Points	1,821
Injector Coding Data	4,204 (Bosch 1,174 + Denso 2,375 + Siemens 160 + Delphi 438 + Cummins 28)
Supported Injectors	Common Rail Solenoid, Piezoelectric, HEUI, EUI/EUP, PT Injector, HPI
Supported Pumps	Common Rail Pump, Denso HP0/HP5/HP6/HP7, CAT 320D, PT Pump, VP37/VP44
Software Languages	15 Languages (EN/ES/FR/IT/KR/PL/PT/RU/TR/BS/AR/HR/FI/ZH, etc.)
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	15% to 95% at 40°C (non-condensing)
Warranty	1 Year + Lifetime Technical Support
Delivery Time	3-4 Weeks
Packaging	Plywood Case

*Test data from Beacon laboratory

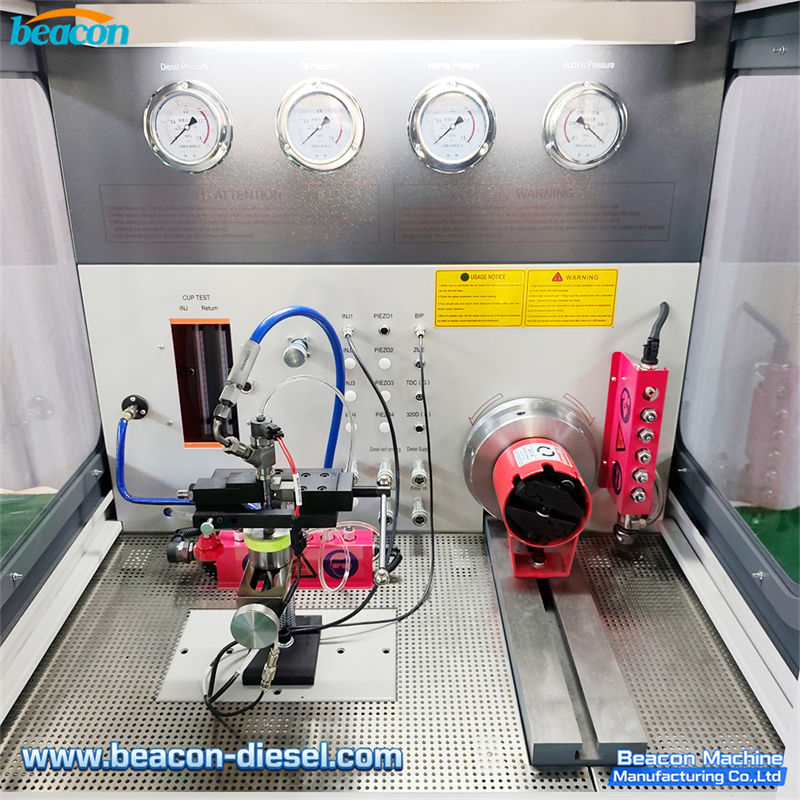

CR1029 Common Rail Test Bench - working area testing common rail injectors and high pressure common rail pump with dual rail pipes and measuring cylinder

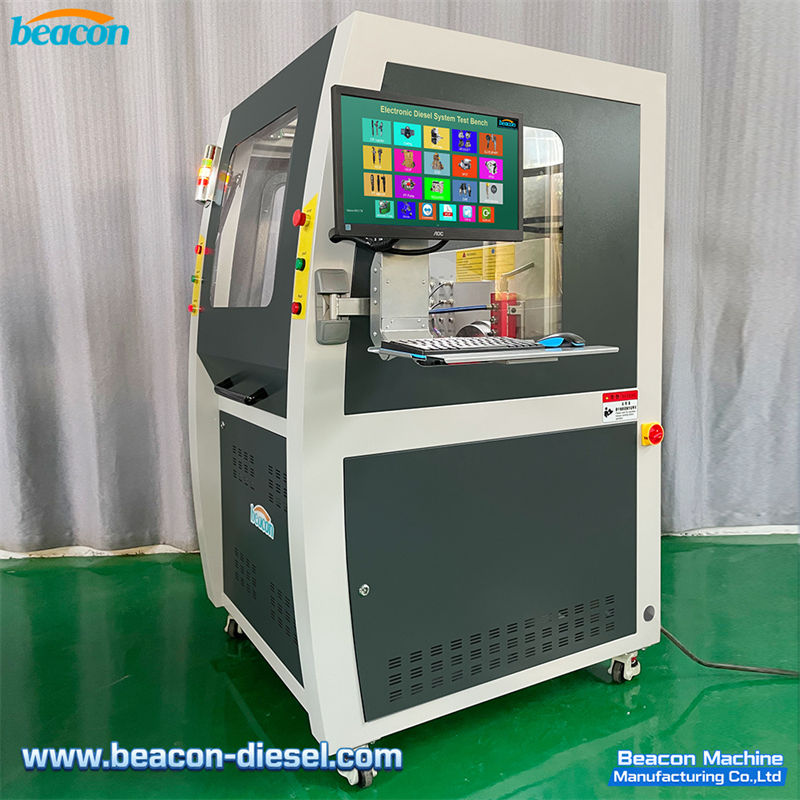

CR1029 Common Rail Test Bench - side view showing the complete machine layout, control panel, and durable construction design

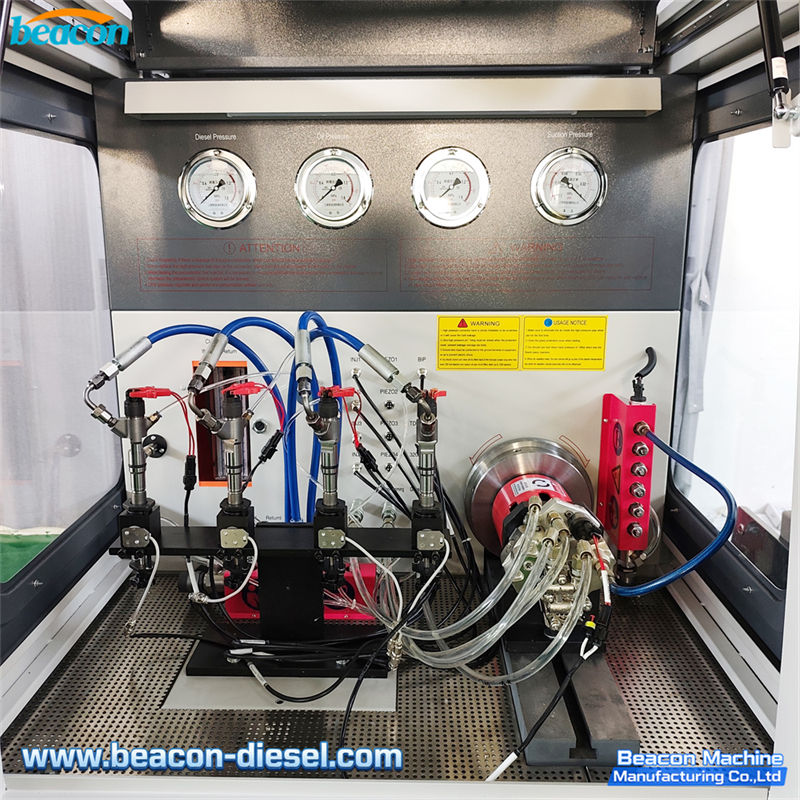

CR1029 Common Rail Test Bench - simultaneous testing of 4 common rail injectors with multi-injector fixture for efficient workshop operation

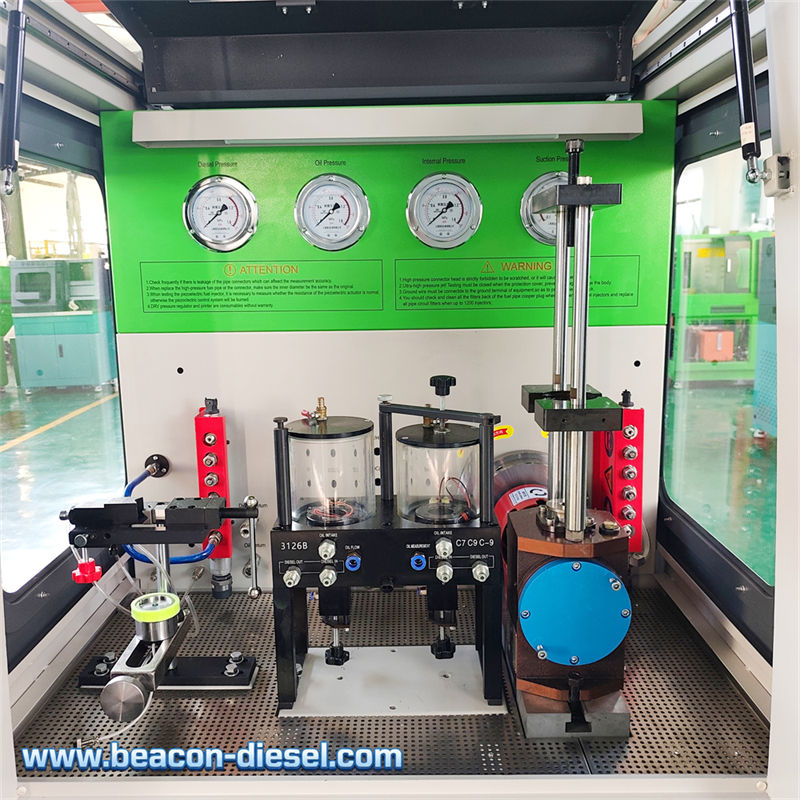

CR1029 Common Rail Test Bench - testing HEUI medium pressure injector and EUI/EUP unit injector with optional cam box accessory
