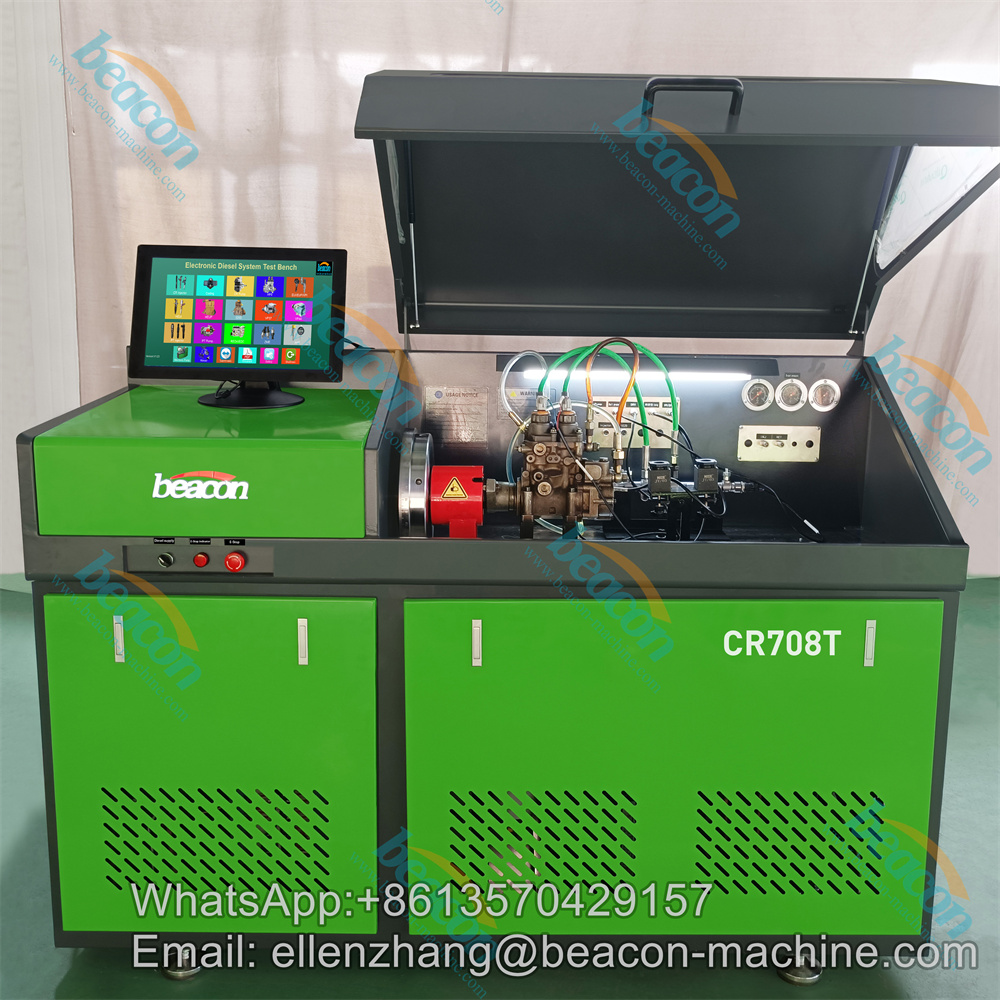

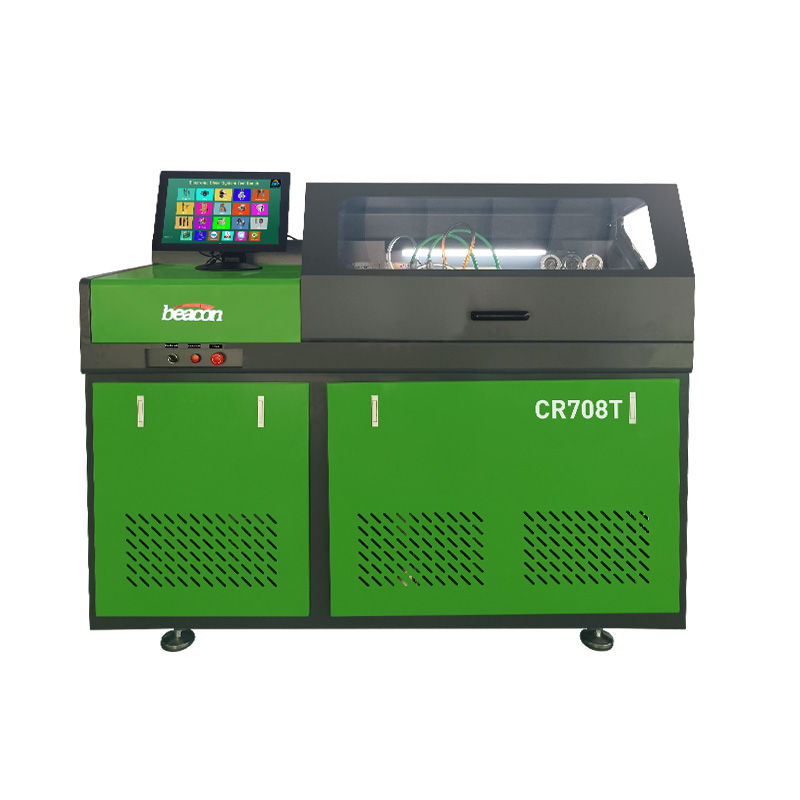

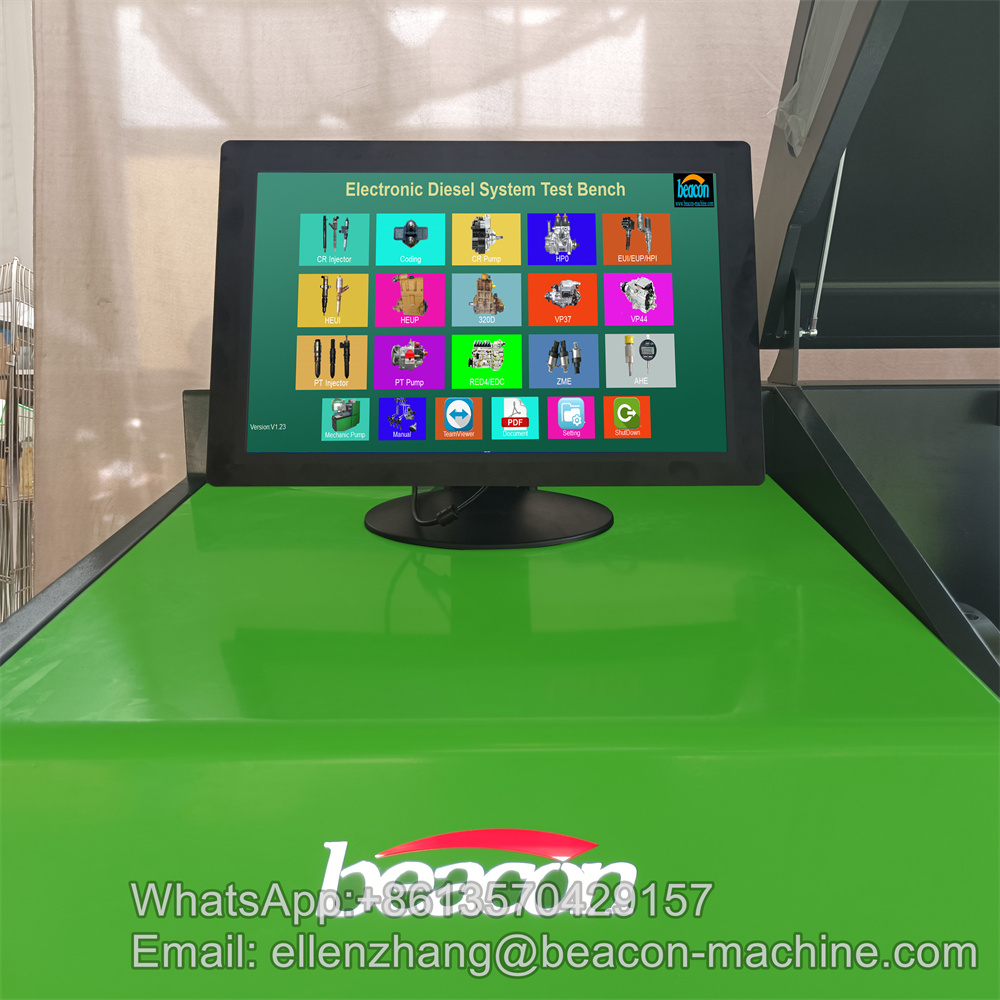

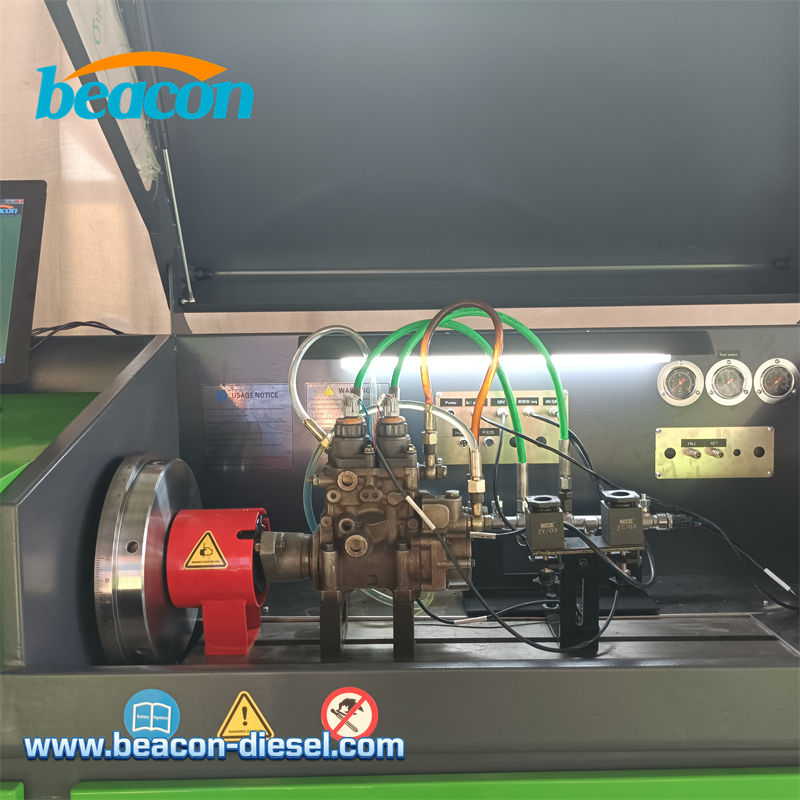

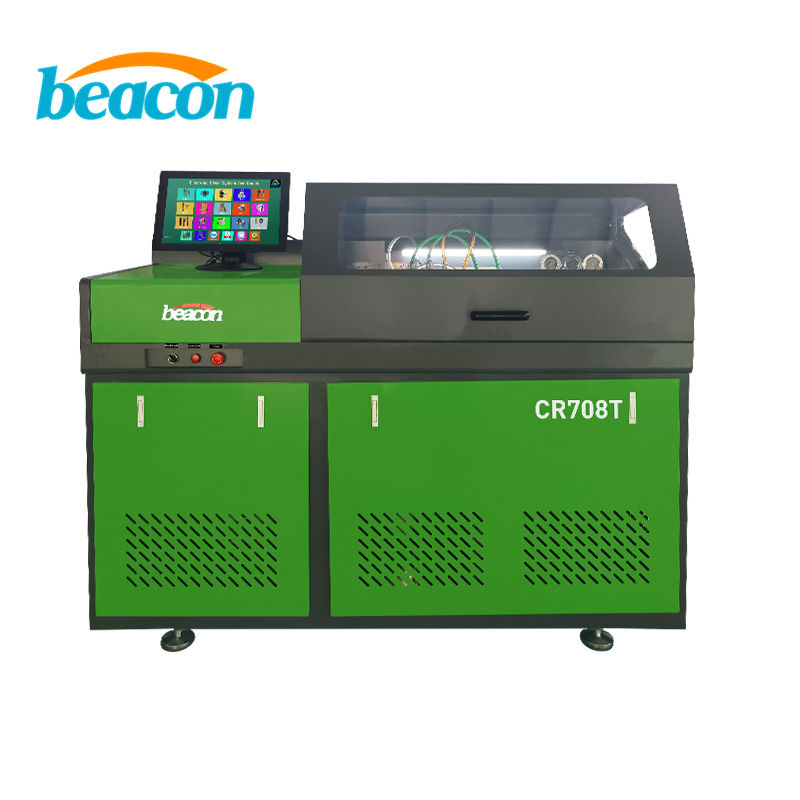

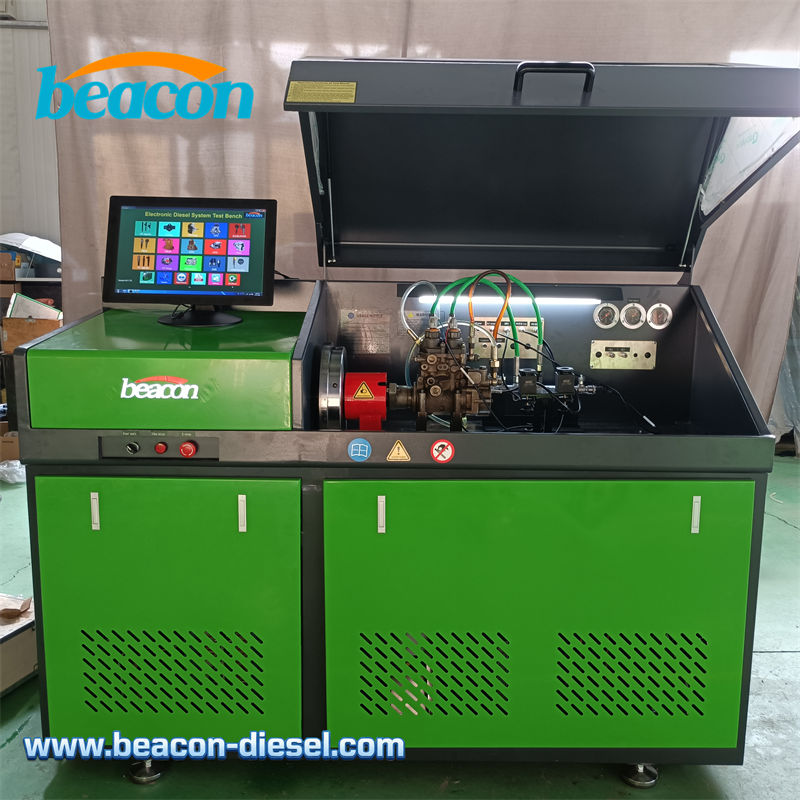

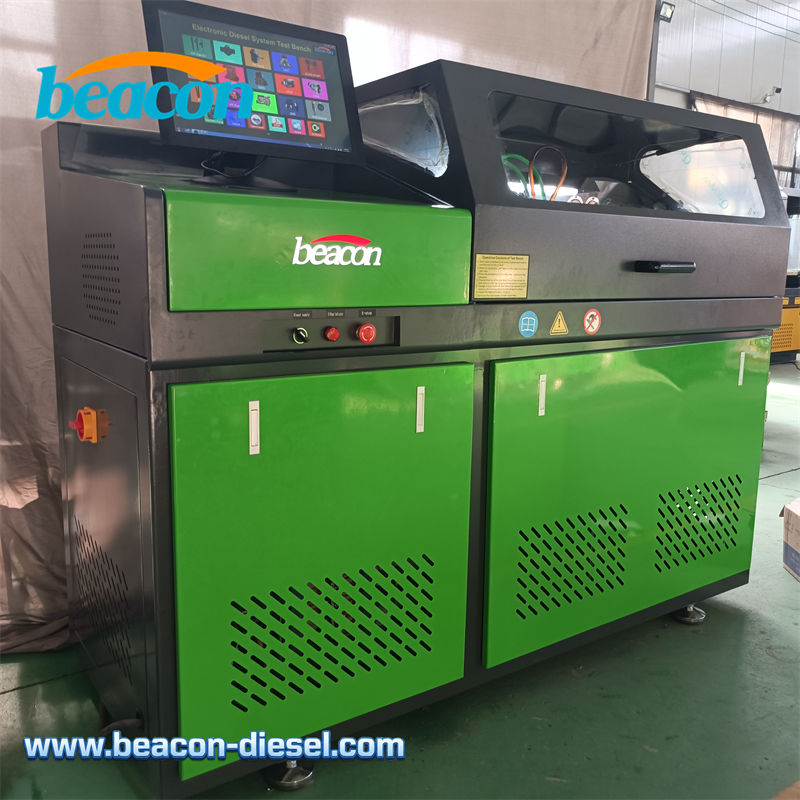

Beacon CR708T 18-inch Touch Screen Common Rail Injector Pump Test Bench

The Beacon CR708T Common Rail Test Bench is designed to maximize workshop efficiency with its upgraded 18-inch industrial touch screen. It provides a comprehensive solution for testing common rail injectors, pumps, EUI/EUP, and HEUI systems, helping you diagnose diesel system faults accurately and quickly, thereby increasing your service turnover.

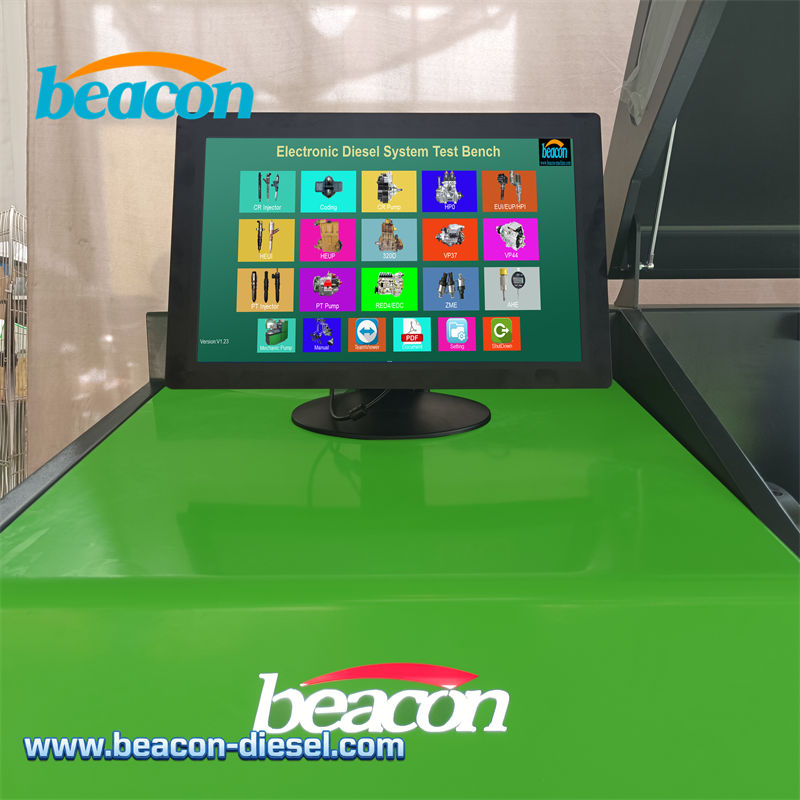

Intelligent Control System

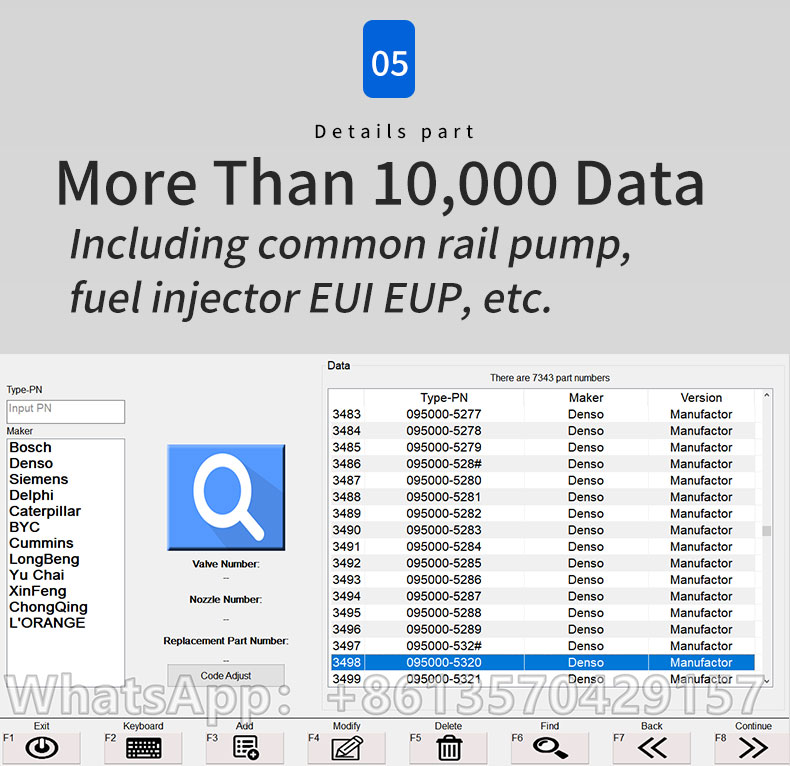

The CR708T is equipped with a state-of-the-art control system containing over 10,000 standard data entries. It covers major brands including Bosch, Denso, Delphi, and Siemens, offering complete testing plans for injectors, pumps, EUI EUP, and HEUI systems. The database supports coding functions and ensures precise calibration.

Standard Functions

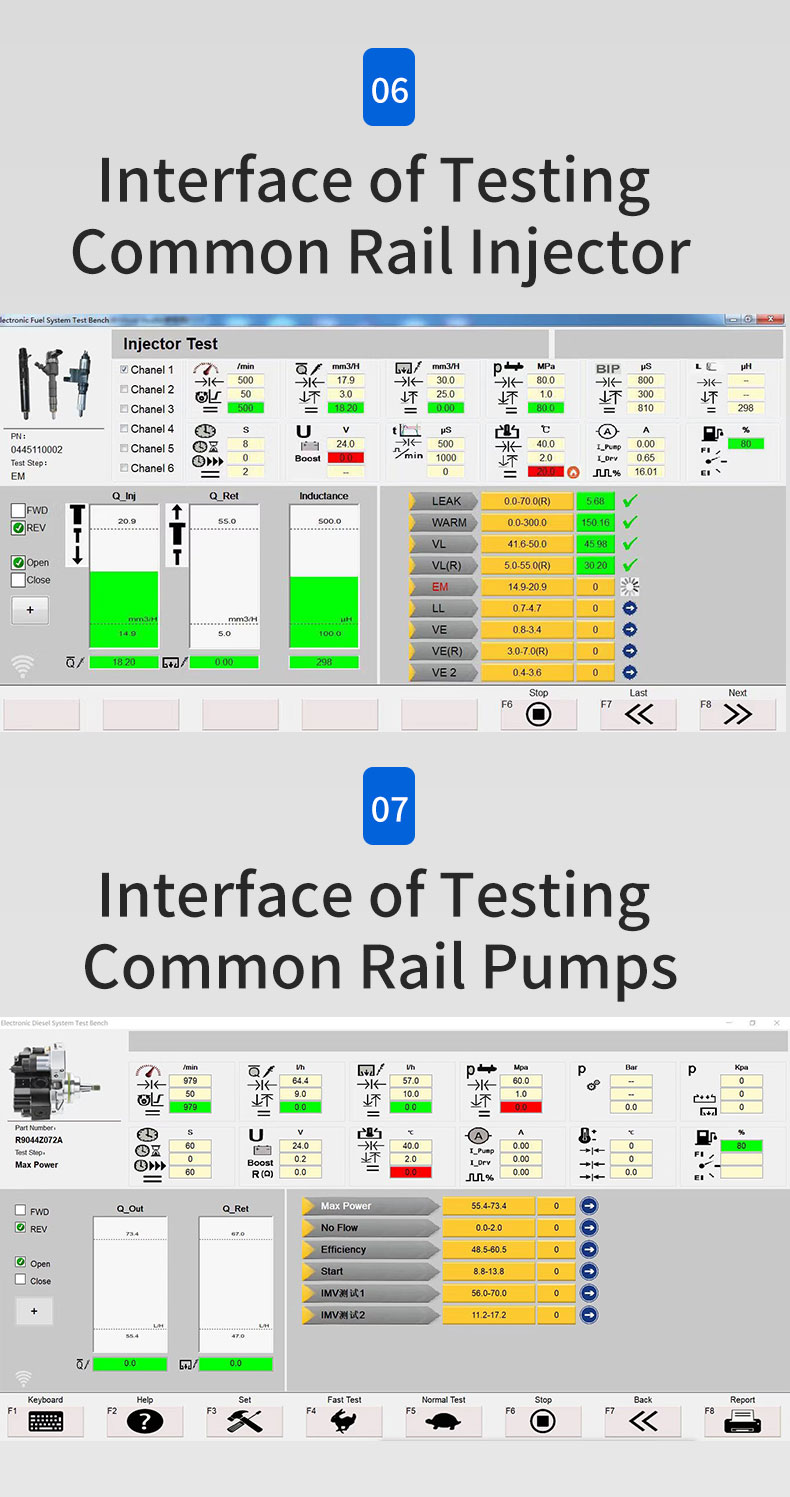

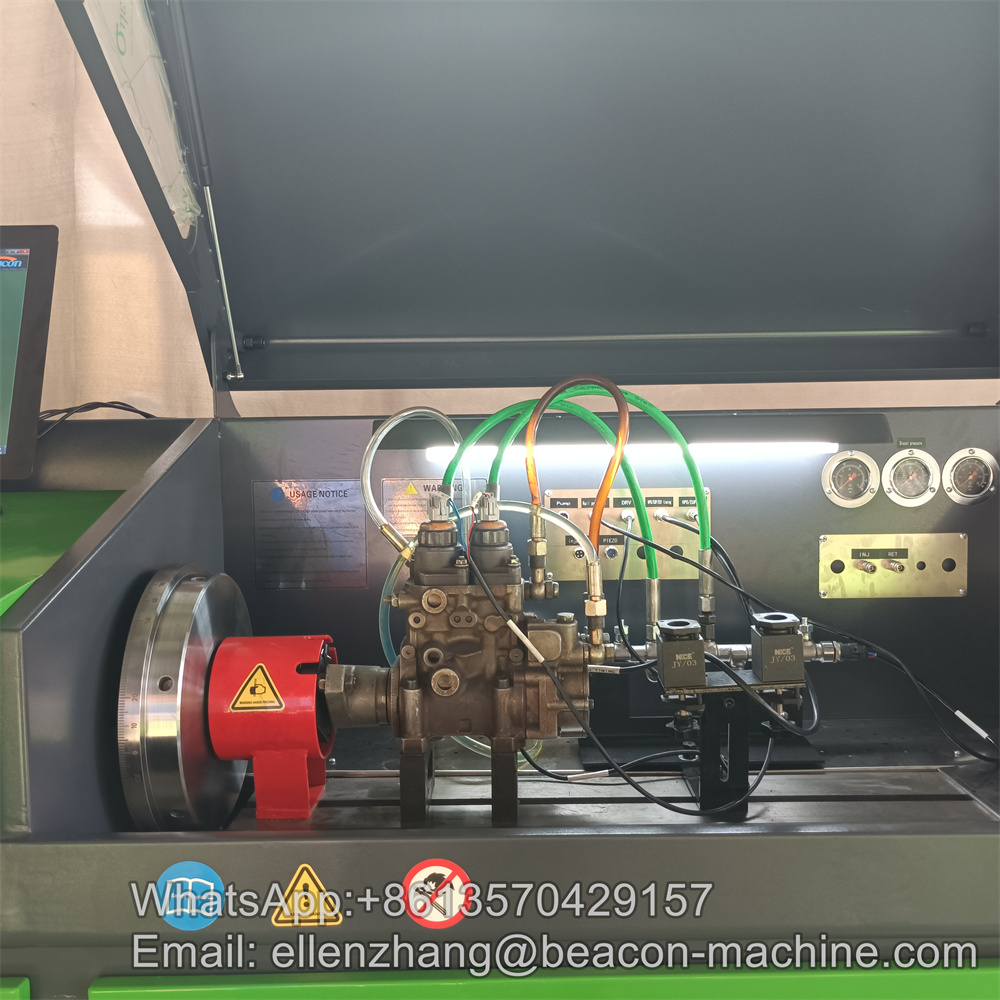

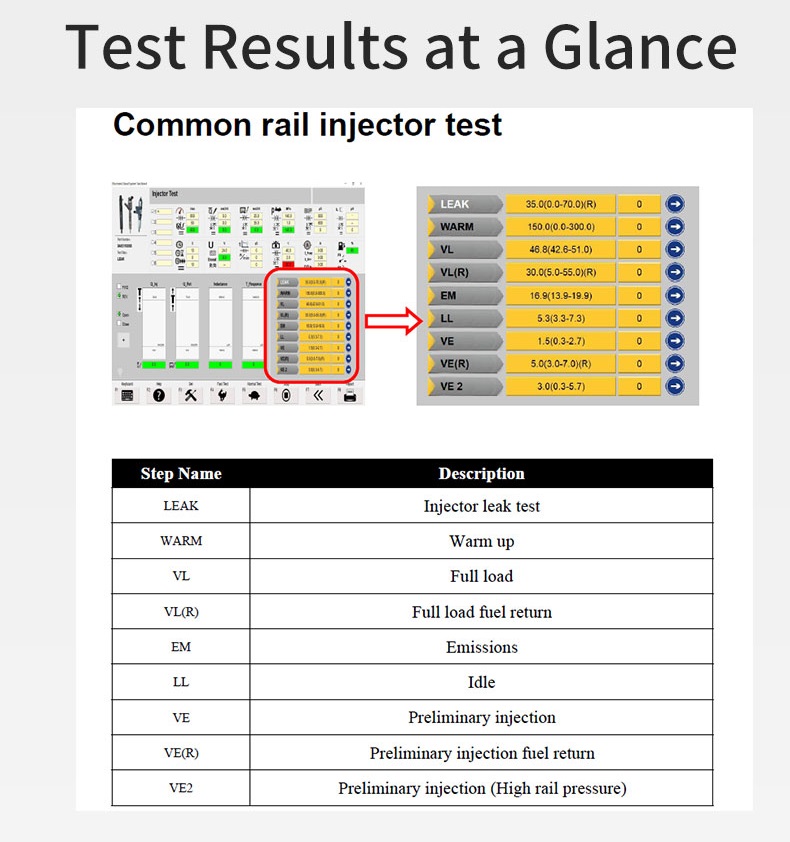

• Core Testing: Tests common rail injectors (including Piezo) and common rail pumps.
• Pump Support: Includes specific function for Denso HP0 pumps.
• Injector Coding: Generates QR codes for Delphi, Bosch, Denso, and Siemens injectors.
• Power System: Basic model equipped with 11kw 380v 3-phase motor.

Optional & Advanced Functions

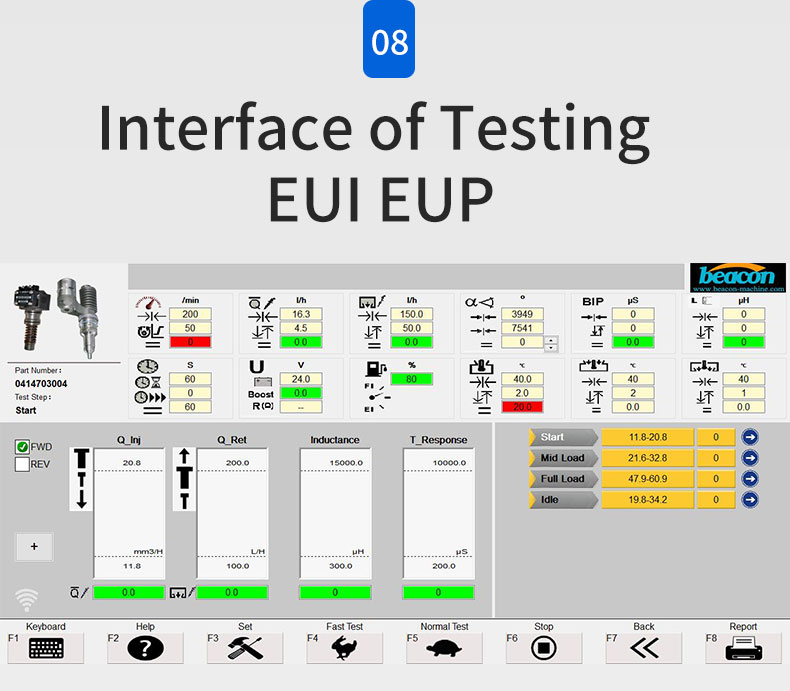

• EUI/EUP Testing: Compatible with cam boxes (10 or 23 adapters) and gear scale cam boxes.
• HEUI Testing: Supports single oil circuit (split holder) and oil+diesel dual circuit (one-piece holder).
• CAT Special: Tests FORD 6.0 (Cat3408), Cat 320D pump, and HEUI actuation pumps.
• Advanced Control: Features BIP function, Delphi E3 double pulse control system, and ZME test measurement unit.
• Stroke Measurement: AHE injector dynamic stroke tool with dial indicator.
• New Pump Support: Capable of testing CP4 pumps.
• Multi-Injector Test: Option to test 2 or 4 injectors simultaneously.

Looking for a different configuration? Compare with the Beacon CR819 Common Rail Test Bench to find the perfect match for your workshop.
