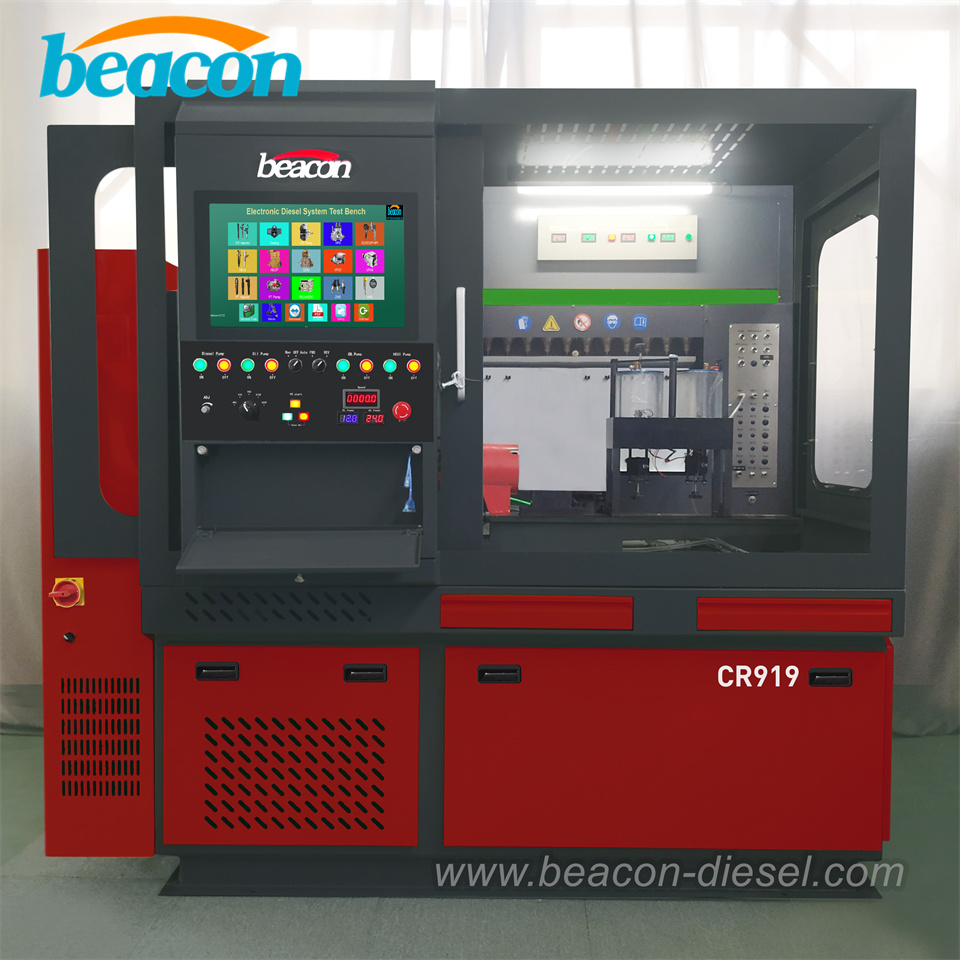

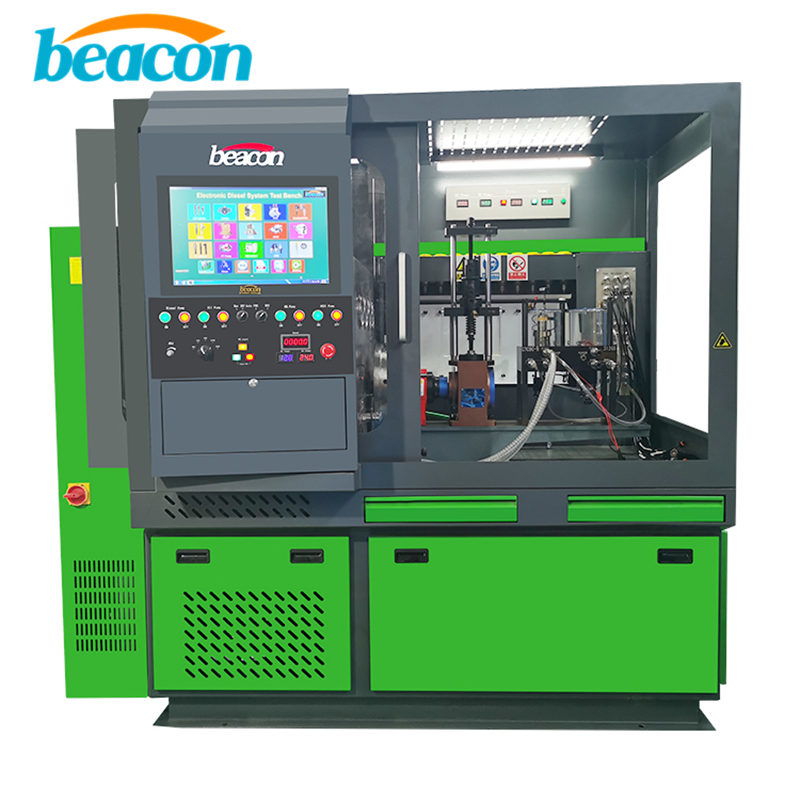

CR919 Multi Function Diesel Fuel Injection Test Bench

Beacon CR919: The Ultimate Multifunctional Diesel Test Bench Solution

Product Overview

Intelligent Control System & Data

• Massive Database: The system naturally integrates over 10,000 standard data entries, covering injectors, pumps, EUI, EUP, and HEUI systems across all major brands (Bosch, Denso, Delphi, Siemens, CAT, Cummins, etc.).

• Comprehensive Testing: Whether handling routine maintenance or complex diagnostics, the system provides complete testing plans to ensure factory-level precision.

• User-Friendly Interface: Supports 15 languages, automatic updates, remote upgrades, and customizable report data with your company logo.

Standard Capabilities

• Common Rail: Precision testing for high-pressure common rail injectors and pumps (Piezo & Solenoid).

• HEUI System: Features a dual-oil system specifically for HEUI testing (Standard C7, C9, 3126B fixtures included).

• EUI/EUP: Includes Cambox (TU-D) for testing Electronic Unit Injectors and Pumps.

• Coding: Full coding capabilities for Delphi, Bosch, Denso, and Siemens injectors.

• Pump Testing: Handles Denso HP0 pumps efficiently.

Advanced Optional Functions

• High-Volume Testing: Capability to test 2, 4, 6, or 8 injectors simultaneously.

• Heavy Duty & Specialized: CAT 320D pumps, Cummins HPI/Q60/X15, and CAT 3412E/Navistar/Isuzu HEUI applications.

• Legacy & Rotary: VP37, VP44, RED4, and mechanical pump testing.

• Sensor & Valve Testing: DRV/HPV rail pressure sensors and solenoid valves.

Technical Specifications

• Power: 15KW (Standard) / 18.5KW / 22KW options.

• Pressure: 0-2400 bar rail pressure.

• Cooling: Heavy-duty air conditioning cooling unit for continuous operation.

• Precision: Equipped with 3 high-accuracy flow sensors.
