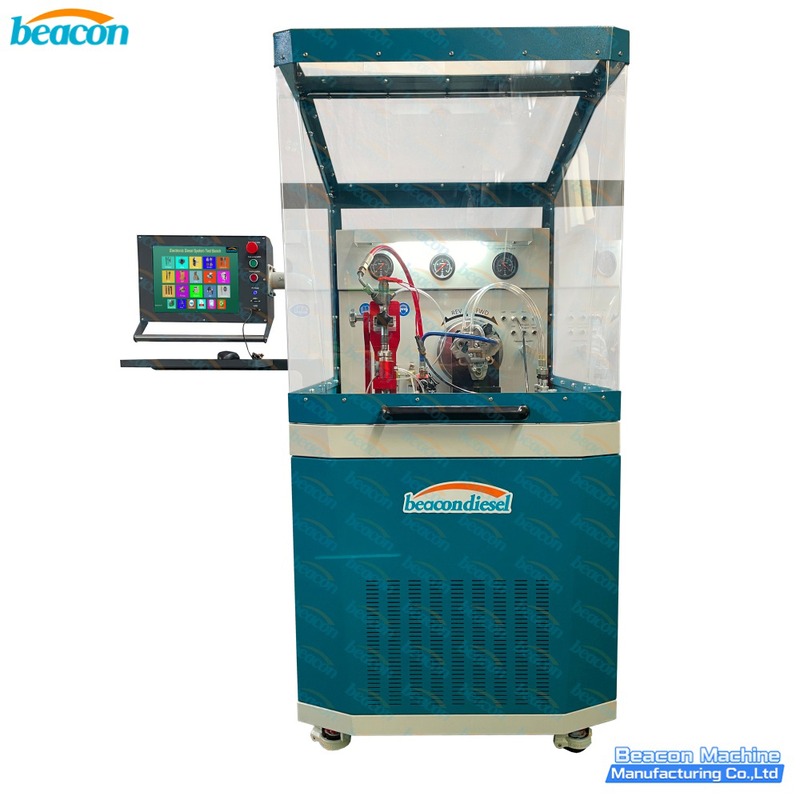

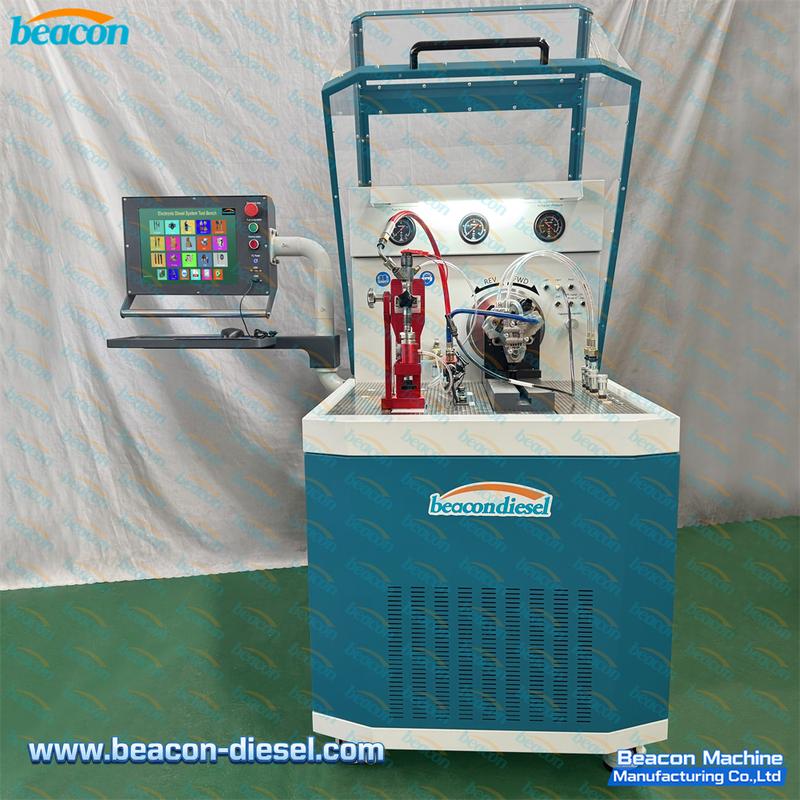

BC810 Common Rail Diesel Injector and Pump Test Bench

The BC810 is a 7.5 kW test bench for diesel common rail injectors and fuel injection pumps.

Introduction

BC810 Common Rail Diesel Injector and Pump Test Bench

The BC810 is a 7.5 kW test bench for diesel common rail injectors and fuel injection pumps. Its documented standard configuration is 380 V, three phase. HEUI and EUI/EUP functions are available by selecting additional modules and fixtures.

Standard functions

Common rail injector tests — Test solenoid and piezoelectric common rail injectors using the installed control software and test data.
Common rail pump tests — Run test procedures for common rail fuel injection pumps.
Denso HP0 testing — The standard function list includes testing for Denso HP0 pumps.
Injector coding — The standard function list includes coding for supported Bosch, Delphi, Denso and Siemens injectors. Confirm part-number coverage before ordering.
Controlled measurements — The software controls speed and rail pressure, records fuel-flow measurements and produces a test report.
Operator interface — The control software supports multiple languages, including English, Spanish and Russian, and can print test reports.

Available options

Optional configurations include HEUI testing with a dual oil circuit and suitable fixtures; EUI/EUP testing with a TU-C, TU-D or TU-E cam box; CAT 320D pump testing; PT injector and pump testing; Cummins HPI Q60/X15; CP4 and Denso HP5/HP6/HP7 pump functions; Bosch 4-pin injector accessories; ZME, AHE, BIP and sensor tests; dual-injector arrangements; and a printer. Each function requires the corresponding hardware, adapters and software configuration. Confirm the selected package and compatible part numbers before ordering.

The technical figures below come from the BC810 product document. Electrical alternatives and optional functions depend on the ordered configuration. Software test data may vary by release.

Configuration questions

Does the standard BC810 include HEUI or EUI/EUP?

No. The source document lists these as configuration options. Confirm the dual oil circuit, cam box and fixtures in the quotation.

How do I confirm injector or pump compatibility?

Provide the part numbers so the required test data, adapters and wiring harnesses can be checked.

Can it test two injectors?

A dual-injector arrangement is listed as an option, with or without an additional flow sensor. The chosen measurement method should be confirmed for the ordered system.

parameter

Technical specifications

Model	BC810
Equipment type	Common rail diesel injector and pump test bench
Standard motor power	7.5 kW
Standard power supply	380 V, three phase
Main motor speed range	0–4,000 r/min
Fuel pressure control range	0–2,400 bar
Machine dimensions (L × W × H)	115 × 102 × 171 cm
Packing dimensions (L × W × H)	125 × 112 × 191 cm
Standard testing	Common rail solenoid and piezo injectors, common rail pumps, Denso HP0 pumps, supported injector coding
Optional testing	HEUI, EUI/EUP and other modules according to the selected configuration
