Why the Same Injector Gives Different Test Results: Repeatability Problems Explained

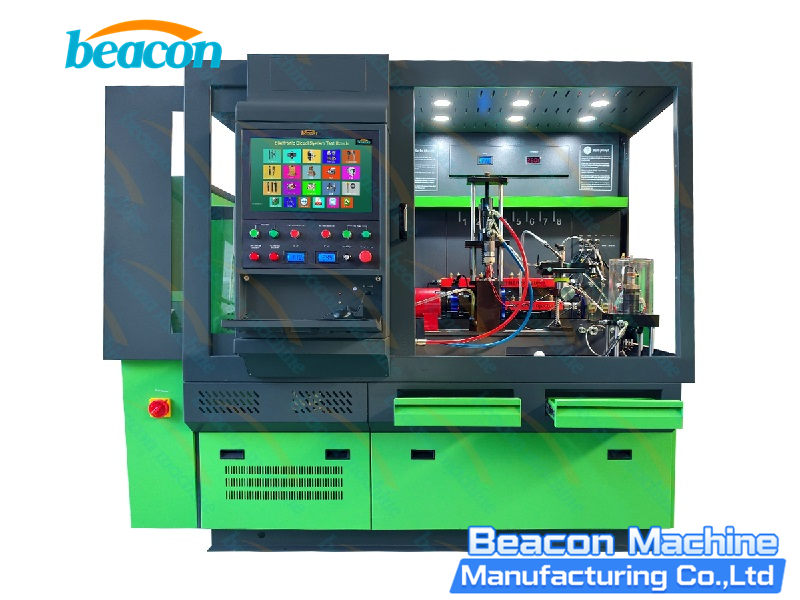

1. What Is True Test Repeatability?

NIST describes measurement repeatability as the agreement between successive measurements of the same measurand under the same procedure, instrument, location and short-term conditions. NIST measurement terminology

For common rail injector testing, a repeatability check normally requires all of the following conditions to remain unchanged:

• the same injector;
• the same test bench and measuring channel;
• the same test plan and test point;
• the same installation, adapter and connections;
• the same target rail pressure, drive condition and test sequence;
• the same calibration fluid within the specified temperature range;
• successive measurements over a short period.

If the bench, measuring channel, operator, test plan or environmental condition changes, the comparison is no longer only repeatability; it also involves reproducibility under changed conditions. Results from two different benches should therefore be compared only after aligning plan version, pressure, temperature, measuring method, return back pressure and adapters.

2. First Identify the Type of Variation

Random Up-and-Down Variation

The value moves high and low without a clear direction.

• trapped air in the circuit;
• short-term rail-pressure fluctuation;
• incorrect measuring-system zero;
• intermittent needle or control-valve sticking;
• unstable electrical connection.

A Gradual Rise or Fall Through the Test Sequence

The first result may be low and later results may approach a stable value, or delivery may gradually fall during repeated operation.

• fluid or injector temperature has not stabilized;
• the specified pre-run or flushing stage has not been completed;
• continuous energizing is heating the coil or injector body;
• actual rail pressure or return temperature is changing;
• air is gradually leaving the circuit.

Do not keep only the last result, and do not automatically discard the first result unless the applicable test plan authorizes that treatment.

Two Distinct Result States

Some results remain in a high band while others remain in a low band instead of fluctuating slightly around one center.

• intermittent needle or control-valve sticking;
• movement of deposits or fine particles;
• poor electrical connector contact;
• occasional abnormal armature, spring or moving-part behavior;
• intermittent measuring-channel or control-signal failure.

An average can hide this kind of two-state fault. Keep every raw result and its sequence.

3. Test-Plan Differences Must Be Excluded First

Injectors that look similar or have close part numbers do not necessarily use the same conditions. Programs may specify different rail pressure, voltage or current strategy, pulse width, frequency, injection count, return back pressure, conditioning time, delivery limits and response-time, BIP, NOP or MDP methods.

If two tests use different plan versions or a similar but incorrect part number, their difference cannot be used to judge repeatability. Check the complete part number, injector technology, current plan, report identification, adapters, harness and drive mode before each test.

DENSO explains that common rail injection pressure, timing, rate and quantity are precisely controlled. A change in pressure or drive condition can therefore change the result. DENSO common rail injector information

4. Why Calibration Fluid and Temperature Matter

Diesel injection equipment should be tested with the calibration fluid required by the bench and test plan, not with an arbitrary fuel. ISO 4113 defines requirements for calibration fluids, including viscosity and density characteristics, and notes that closer viscosity and density tolerances can improve calibration-setting accuracy. ISO 4113:2010

Temperature changes the fluid condition and can therefore affect delivered quantity, internal leakage, return flow, hydraulic valve or needle behavior and the measuring system. Hartridge explicitly connects temperature regulation and stabilization with test-to-test and machine-to-machine repeatability. Hartridge temperature-management information

Injector-body temperature can also matter. Hartridge reports that certain DENSO G2/G3 coding applications require forced-air cooling because overheating prevented consistent and repeatable results. This is a model-specific example, not a universal rule for all injectors. Hartridge coding test information

A repeatability record should include starting and ending fluid temperature, specified pre-running, temperature rise during continuous testing, cooling-system operation, test sequence and waiting time.

5. Rail Pressure, Return Back Pressure and Air

Actual Rail Pressure Is Not Stable

Delivery depends on the actual pressure during injection. The same target value can still produce different delivery if actual pressure, pressure build-up or pressure ripple changes. Compare target and actual pressure, build-up time, pressure stability, pressure-control operation and leakage.

Return Back Pressure Is Different

The operation of some injectors is affected by return-side pressure. A blocked or bent return line, a wrong connector or unstable back-pressure control can change both delivery and return flow. Keep the return connection, routing and pressure condition the same.

Air Remains in the Circuit

Because air is compressible, it can delay pressure build-up and change delivery, response time and flow measurement. After mounting an injector or changing adapters, complete the specified bleeding and pre-running procedure before judging repeatability.

6. The Measuring System Can Also Create Differences

Injector results depend on both the injector and the measuring channel. At pilot or minimum-drive quantities, values near the system resolution are especially sensitive to sensor zero drift, residual fluid, incomplete drainage, different timing or injection counts, calibration status and manual reading error.

To separate channel and injector effects, and only where the equipment manufacturer permits it, repeat the injector in the same channel, check the channel with a stable reference injector, or repeat the same injector in another channel. A channel change is a fault-isolation comparison rather than the original short-term repeatability test.

If different injectors fluctuate in one channel, inspect that channel, sensor, pipe and adapter. If the abnormal behavior follows one injector, focus on the injector itself.

7. Injector Faults That Can Reduce Repeatability

Intermittent Needle or Control-Valve Sticking

Deposits, corrosion or surface damage can prevent the needle from opening and closing at the same speed every time. Delphi states that deposits can cause needle sticking and disrupt injection quantity and timing. Delphi common rail injector service advice

Particle Contamination or Control-Valve Wear

Fine particles can damage the control valve and seat. Moving contamination can also make different cycles produce different results. If delivery variation occurs together with return-flow variation, inspect the valve, seat and precision fits, but do not condemn one part from this pattern alone.

Thermal Change in Dynamic Response

Coil, electromagnetic mechanism, control-valve and body temperature can change during repeated operation. When delivery variation follows response-time or BIP variation, inspect the connector, drive signal, armature and valve movement, body temperature and the model-specific gap, stroke or spring condition. BIP and response-time tests are used only when the injector and plan support them.

Incorrect Repair Parts or Assembly

A wrong control valve, nozzle, spring, shim or assembly torque can leave the injector near an unstable operating boundary. One passing result is not proof of a successful repair; the complete plan and acceptable repeatability must be confirmed.

8. Use the Variation Pattern to Choose the Next Check

9. Recommended Repeatability Diagnostic Procedure

10. Common Misunderstandings

“The average passes, so the injector passes.”

An average can hide intermittent sticking or two-state behavior. Review every result, the spread and the trend.

“The first abnormal result can always be deleted.”

Discard conditioning data only when the applicable plan defines a pre-run, flush or stabilization stage.

“If two benches disagree, one must be inaccurate.”

First align plan, temperature, back pressure, measuring principle, adapter and calibration status, then use traceable references.

“Poor repeatability only needs a shim adjustment.”

Variation more often directs attention to unstable conditions, contamination, sticking, poor contact or measurement. A shim cannot repair an intermittent fault.

“One passing run proves the injector is good.”

A reliable decision requires the complete plan and acceptable consecutive consistency, not the most favorable value from several runs.

Conclusion

When the same injector gives different results, first establish whether the comparison is a true repeatability test. If plan, pressure, temperature, return back pressure, channel or installation changed, the difference may come from the test conditions rather than the injector.

After those variables are controlled, continuing variation justifies inspection of contamination, sticking, internal leakage, electrical connection and dynamic response. Keep every raw result, observe what the variation follows, and separate the bench, channel and injector through controlled comparisons. Do not use an average to hide an intermittent fault or invent universal percentage and shim rules.
