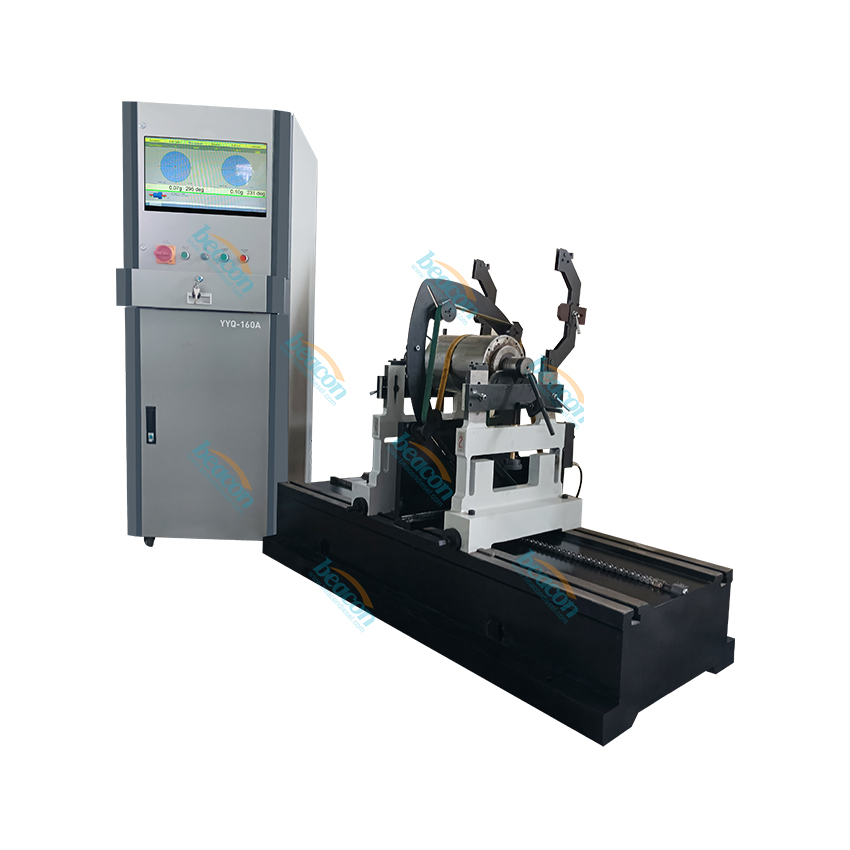

Auto Engine Industrial BDB-300A Dynamic Drive Shaft Crankshaft Rotor Balancing Mmachine

This series balancing machine is an ideal euipment for a car to balance and check the drive shaft. Just replace the installation of the workpiece fixture, you can make a variety of automotive drive shaft of the balancing correction, Dual-speed motor (inverter) drive, handle fast-brake brakes, double-sided balance, swing frame adopts semi-hard supporting structure, measurement systems use RYW-2001 balance measurement software, with industrial control computer and control cabinet.

Maximum workpiece qualitykg：20-300
Maximum workpiece length：3200
The maximum diameter of the pieces mm：900
Bed size (L * W * H)：4500*540*260

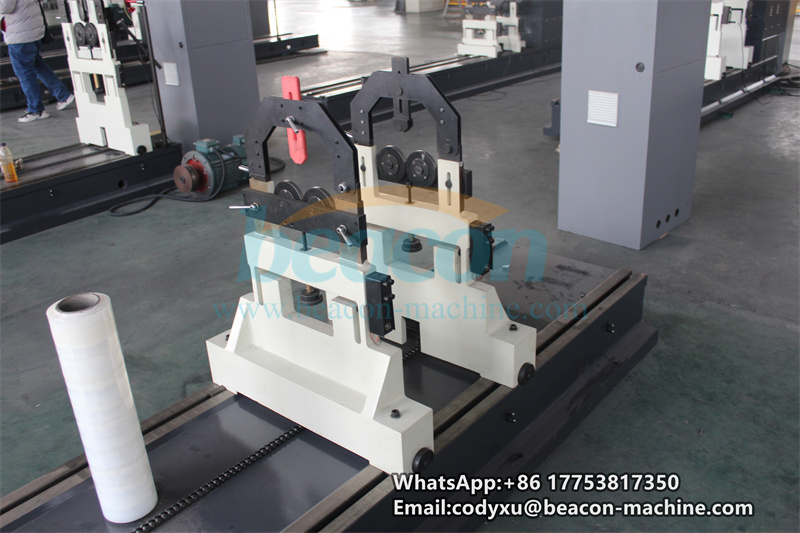

Swing frame structure：Hard bearing rack, front and rear spindle tooling
Balanced speedr/min：300-3000 Frequency
Minimum residual unbalance：≤3gmm/kg
Unbalance reduction rate%：≥85%
Motor Power：4Kw
Speed mode：Frequency
Machine size (L * W * H)：4500*540*900

*Test data from Beacon laboratory
