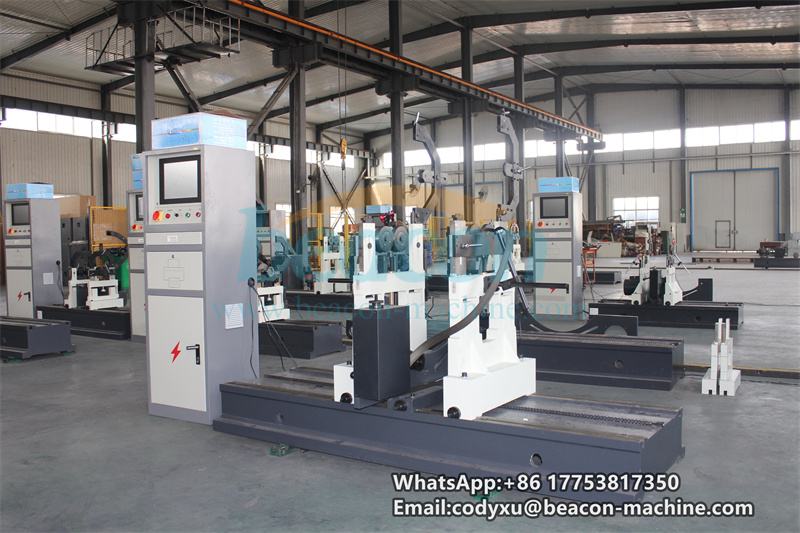

YYH-3000A Hard Bearing Dynamic Balancing Machine High Precision Marine Propeller Rotor Balance Test

The YYH series is a universal joint and ring belt dual-drive universal hard-supported horizontal double-sided dynamic balancing machine. The equipment model covers a measurement range from a few kilograms to more than 50 tons. It is supported by rollers. The products are strictly in accordance with GB/T 4 2 0 1- 2006 Organization of production. The equipment measurement is processed by the industrial control computer.

Maximum mass of workpiece kg：3000

Minimum weight of workpiece kg：50

Maximum diameter of workpiece on bed rail surface mm：φ2000

Minimum distance between two supports mm：300

Maximum distance between two supports mm：3000

Minimum residual unbalance：≤0.5gmm/kg

Unbalance reduction rate%：≥95%

Motor Power：11KW

*Test data from Beacon laboratory
