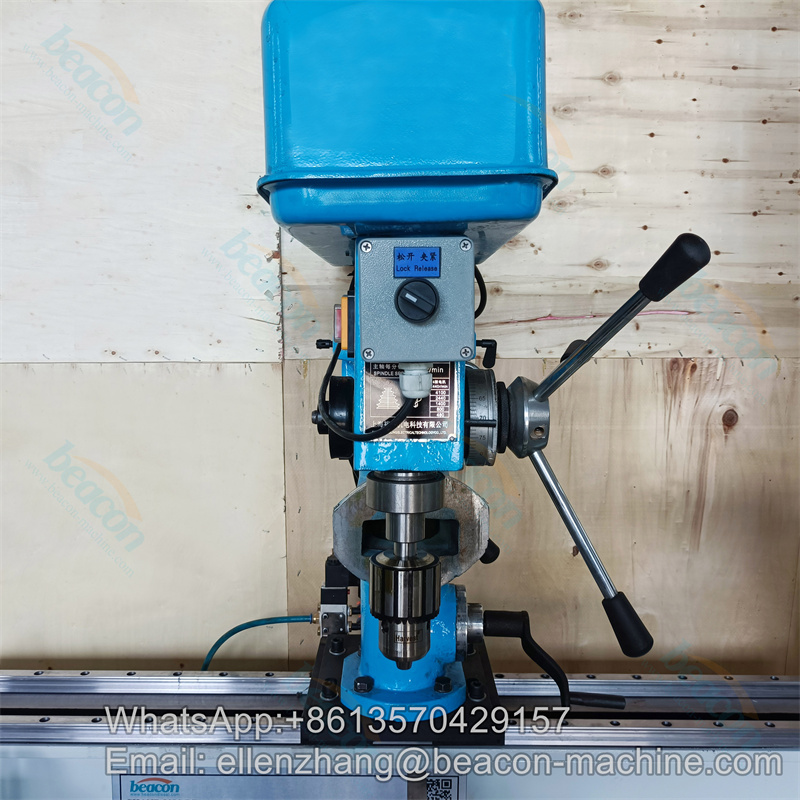

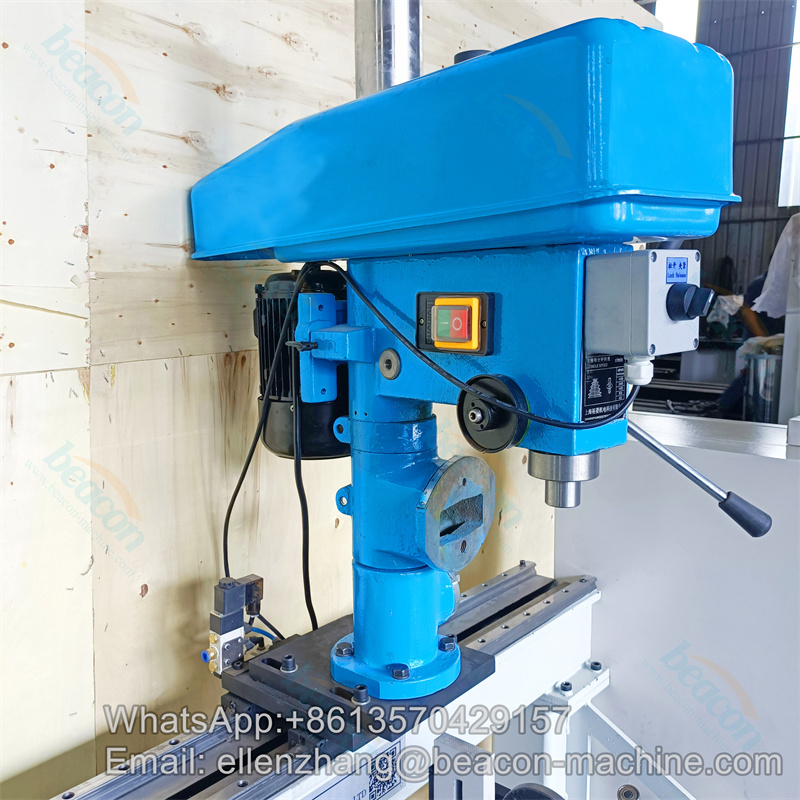

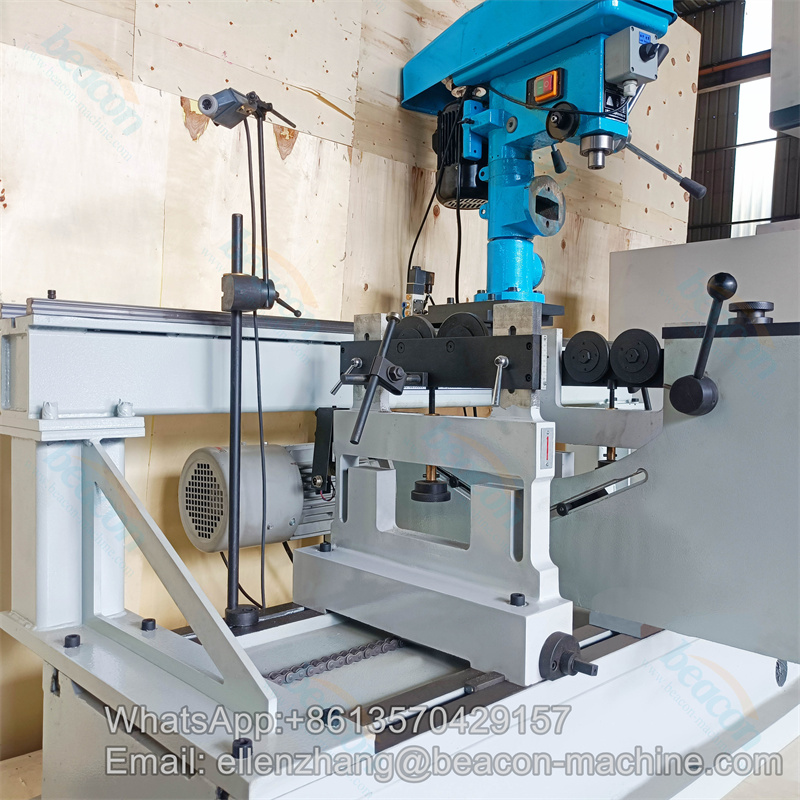

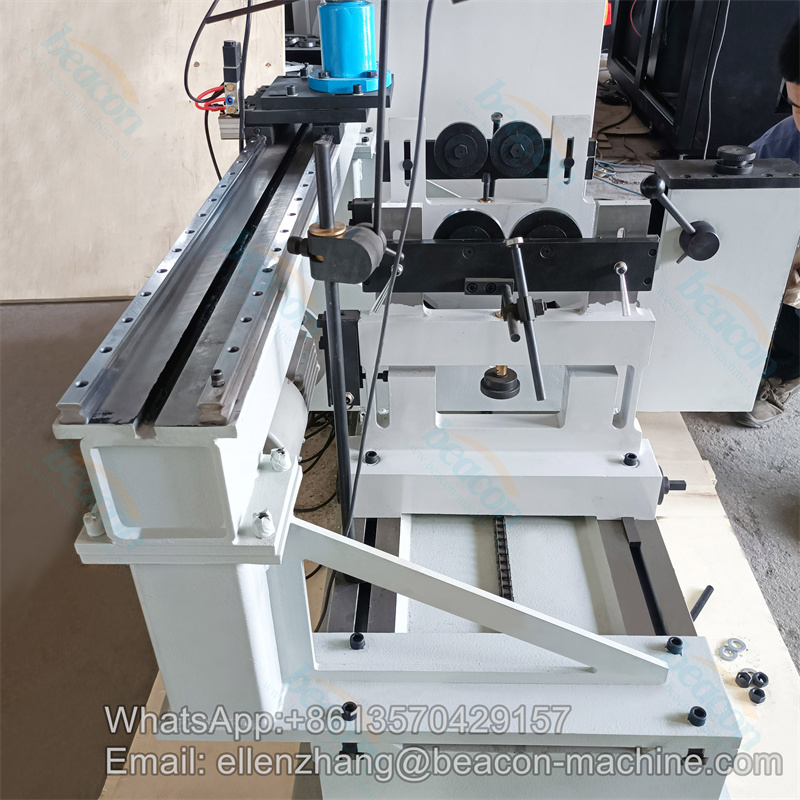

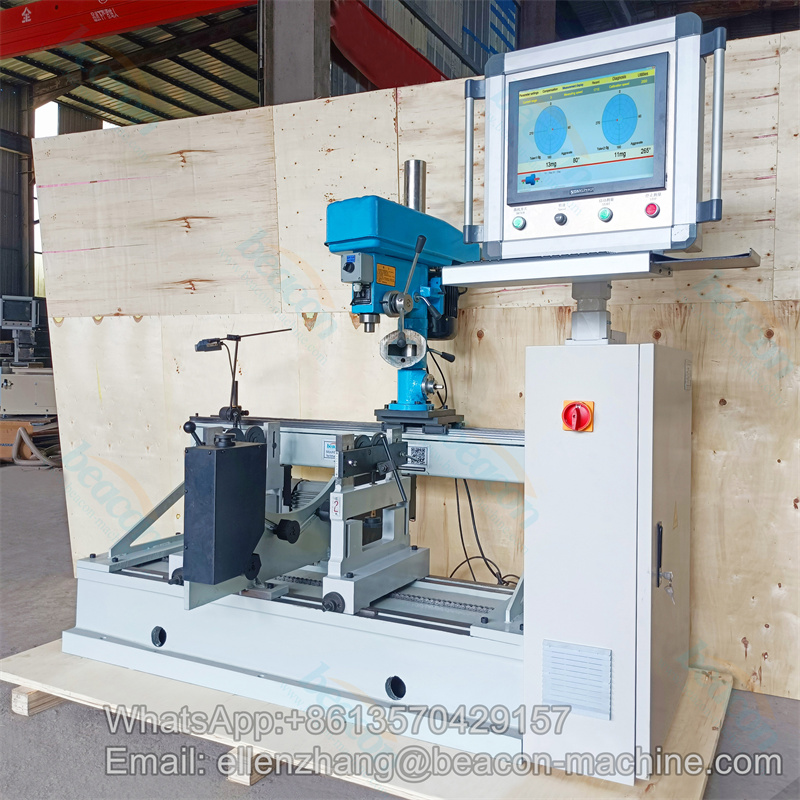

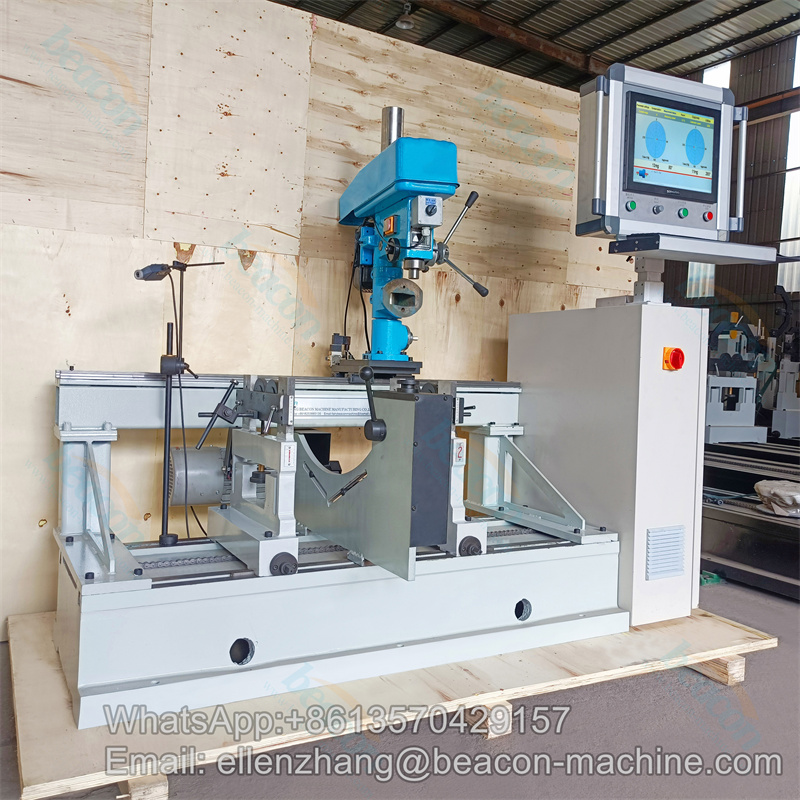

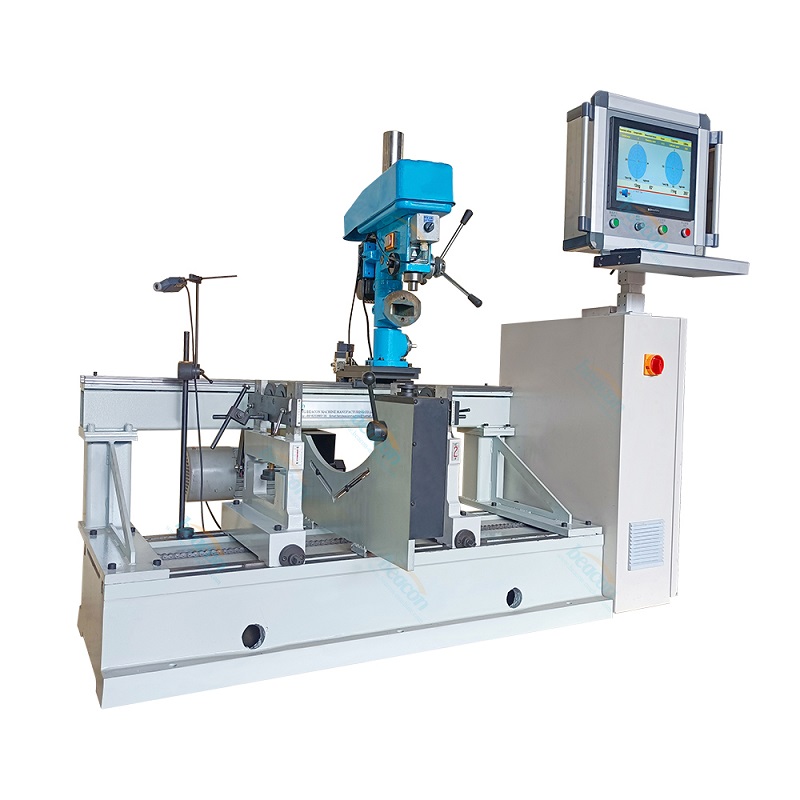

YYQ-100L Belt Balancing Machine Dynamic balance machine with driller

YYQ-100L Belt Balancing Machine with Drill

Precision dynamic balancing for various rotating machinery

YYQ-100A

• Workpiece weight range: 2-100 KG
• Maximum workpiece diameter: φ900 mm
• Distance between supports: 100-1000 mm
• Shaft diameter range at support: φ10-90 mm
• Diameter range at belt drive: φ30-300 mm
• Balancing speed: 300-1500 r/min
• Minimum achievable residual unbalance: ≤0.5 g.mm/kg
• Unbalance reduction rate: ≥90%
• Motor power: 1.5KW
