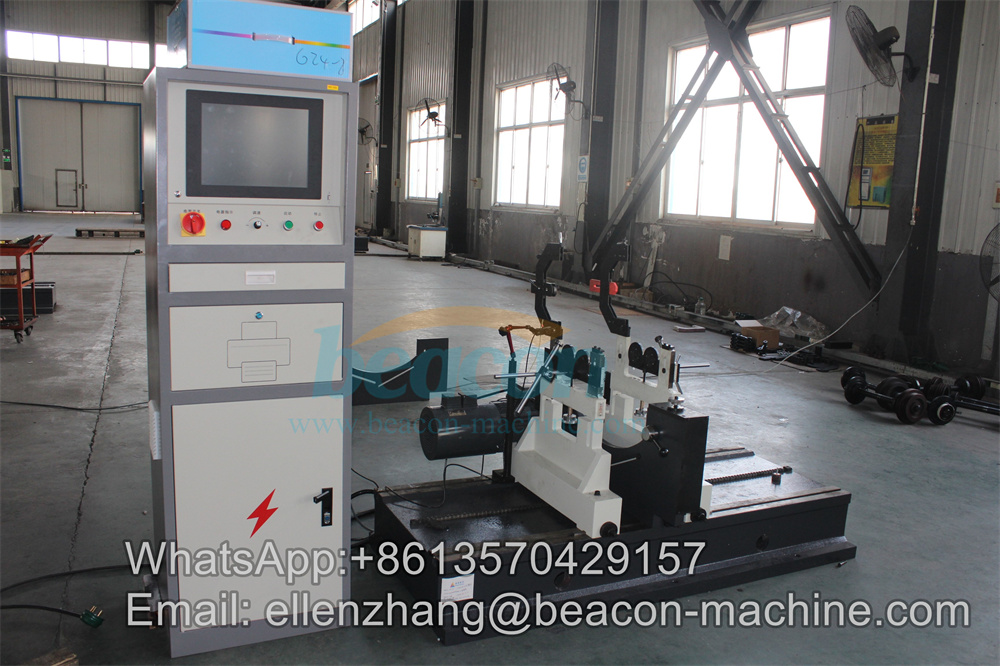

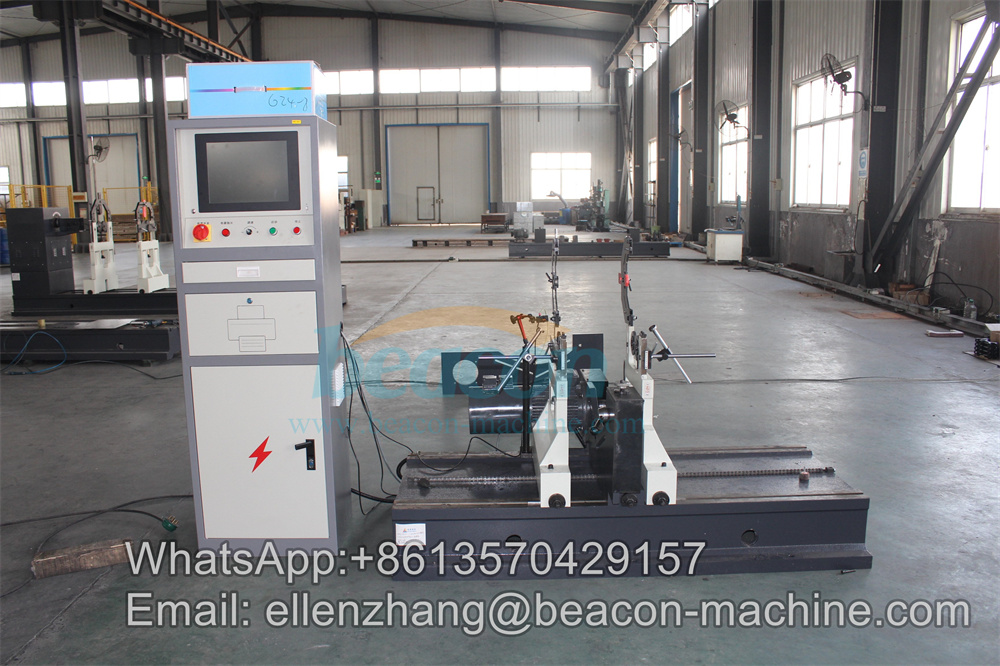

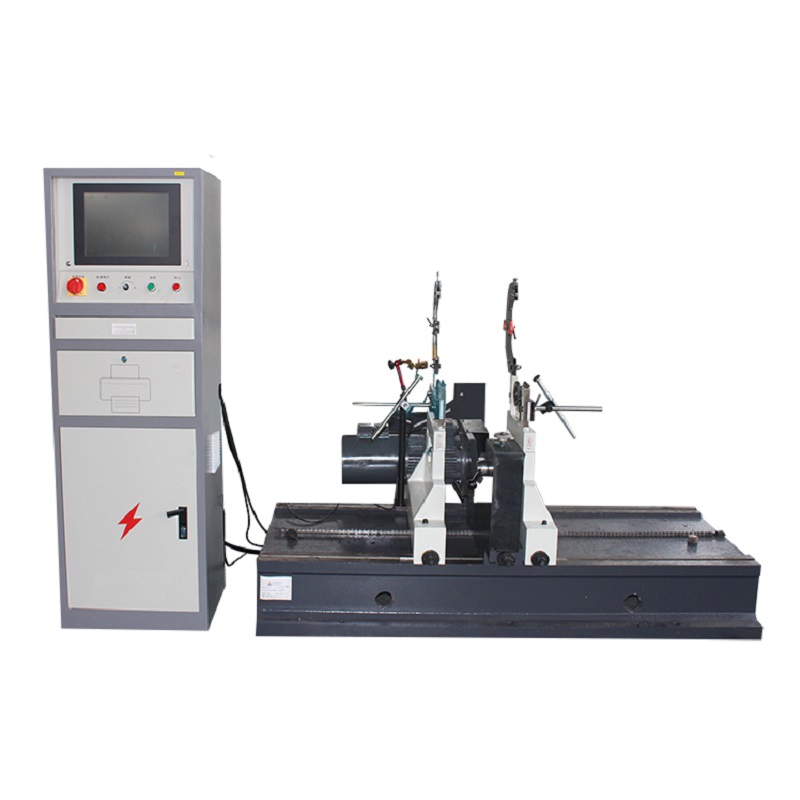

YYQ-100S Dynamic balancing machine

A precision balancing machine for workpieces up to 100kg, optimized for high accuracy and efficiency.

Main technical index

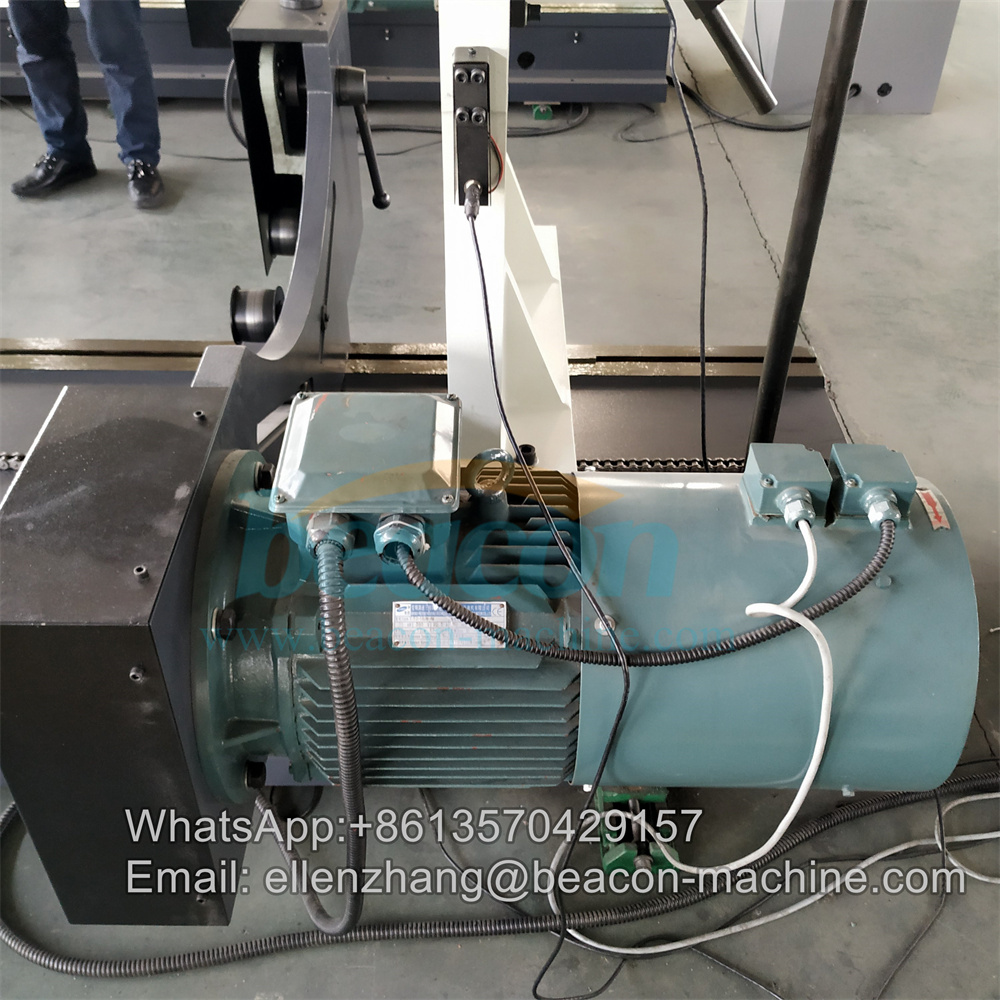

Way of driving: belt driven and 1.5 kw motor

Measuring system: independent developed dynamic balancing machine special measuring software.

YYQ-100S dynamic balancing machine technical index:

1) weight of work-piece (kg): 2-100

2) Max diameter of work-piece (mm): φ900

3) Max diameter of scope of driving belt(mm): φ300

4) Max distance between two swing frame center(mm): 1000

5) Length of lathe bed(mm): 1200

6) Journal diameter scope of work-piece(mm): φ10-90(standard bearing roller frame)

7) Min achievable residual unbalance amount(gmm/kg): ≤0.5

8) Unbalance reduction ratio(%): ≥90

9) Rotating speed(r/min): 200-1500

10) Motor power(kw): 1.5

11) Drive mode: belt driven

Work environment: temperature: -5---45℃; humidity: 0-85%

*Test data from Beacon laboratory
