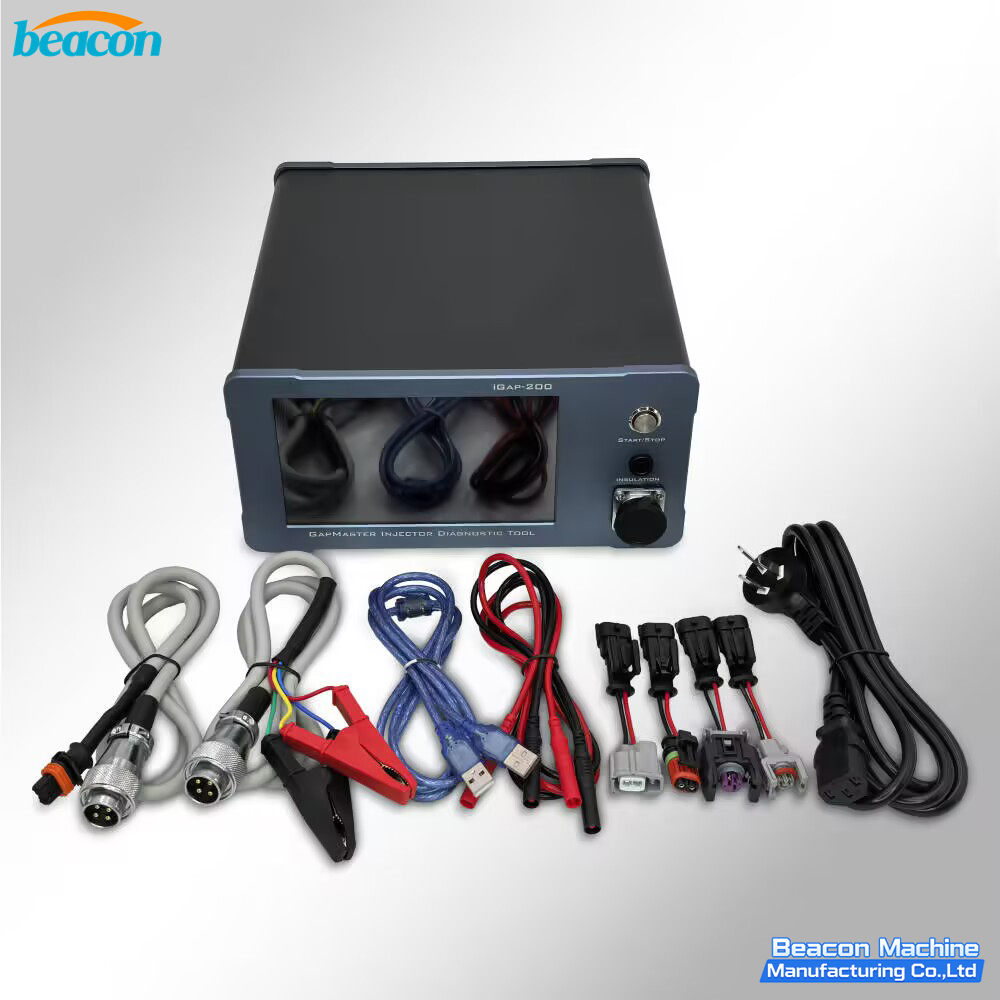

i-GAP 200 Piezo Electric Injector Tester - Capacitance High Impedance Diagnostic Machine

i-GAP 200 Piezo Electric Injector Tester

The Beacon i-GAP 200 is a dedicated machine optimized for testing piezoelectric injectors, with a specific focus on capacitance and high impedance. It provides comprehensive diagnostic testing for piezo injectors used in modern common rail diesel engines.

Key Features

• 7-Inch HD Touchscreen: Large high-definition display for clear data reading and intuitive multi-terminal operation
• Independent Data Storage: Supports independent storage for up to eight sets of injector data for quick batch diagnostics and comparison
• Parameters Test: Checks the basic electrical health of the piezo stack as a first step in quality assessment
• Injection Test: Simulates ECU high-pressure drive signals to measure the amount of fuel injected and returned
• Insulation Test: Detects insulation performance between the piezo component and metal housing to protect the ECU from high-voltage breakdown
• Stroke Test: Uses a USB electronic dial indicator to measure piezo crystal elongation under voltage, with automatic scanning and manual measurement

Additional Test Modes

• Resistance Test: Monitors resistance stability under drive voltage to detect soft faults that only occur under high voltage
• Gap Test: Measures the mechanical clearance between the piezo actuator and the hydraulic amplifier / needle valve

Multi-Language Support

Supports Chinese, English, Russian, Spanish, and Portuguese for global operation.

i-GAP 200 Piezo Electric Injector Tester - Front View

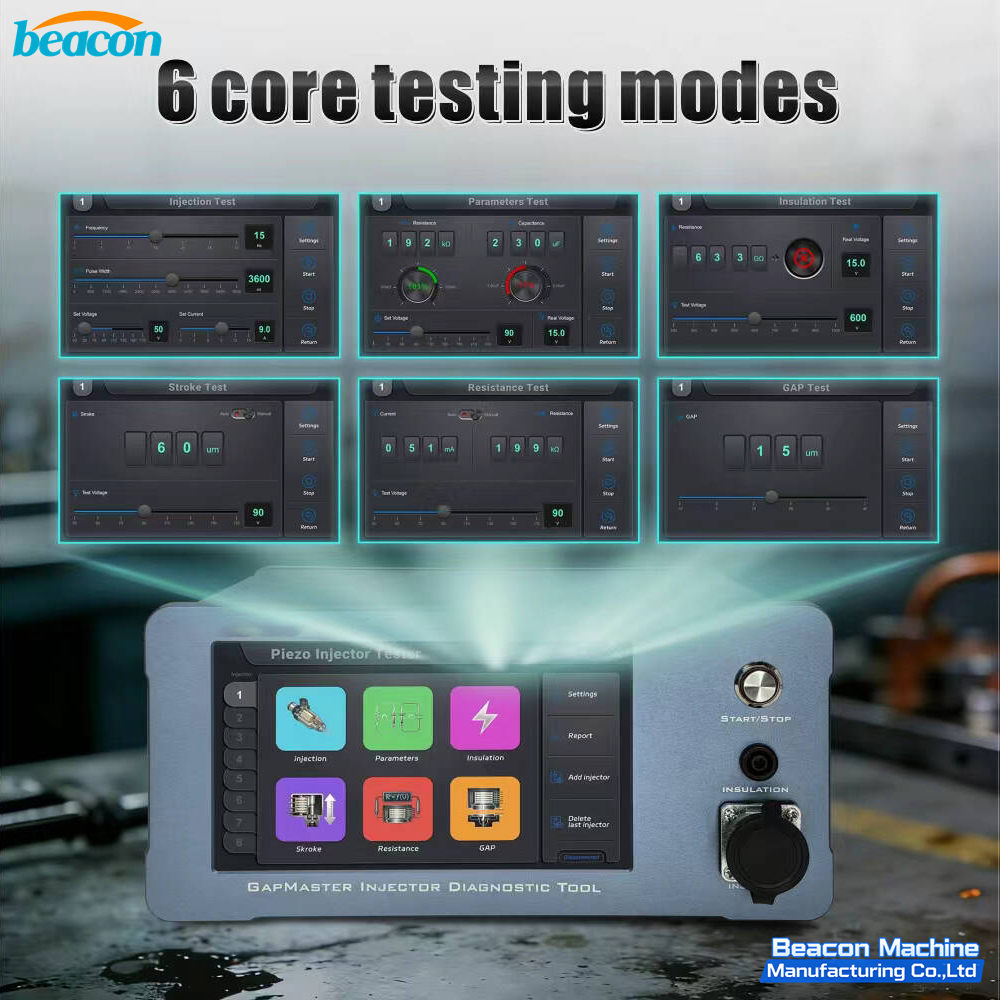

i-GAP 200 Piezo Electric Injector Tester - Main Overview

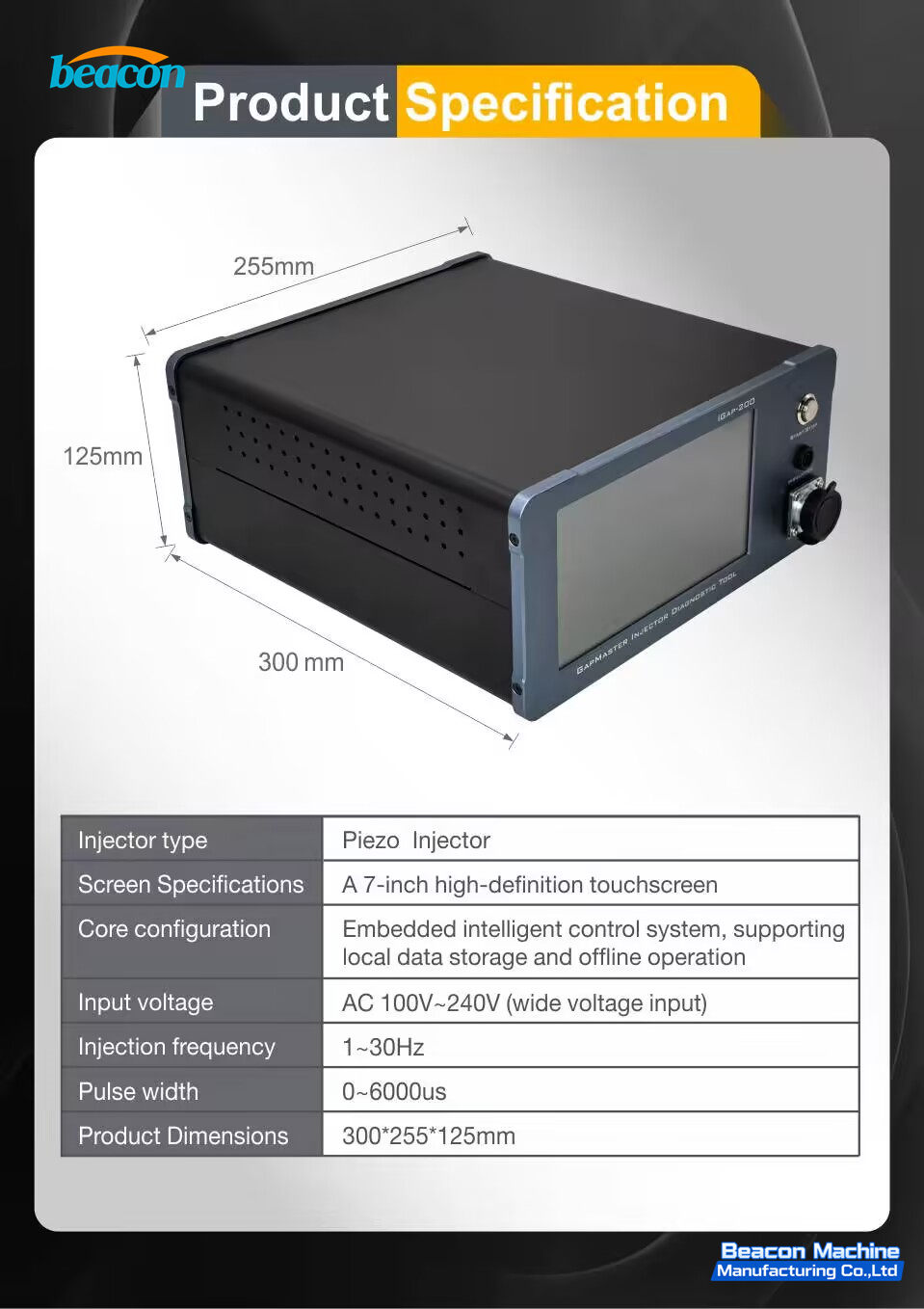

i-GAP 200 Piezo Electric Injector Tester - Display Detail

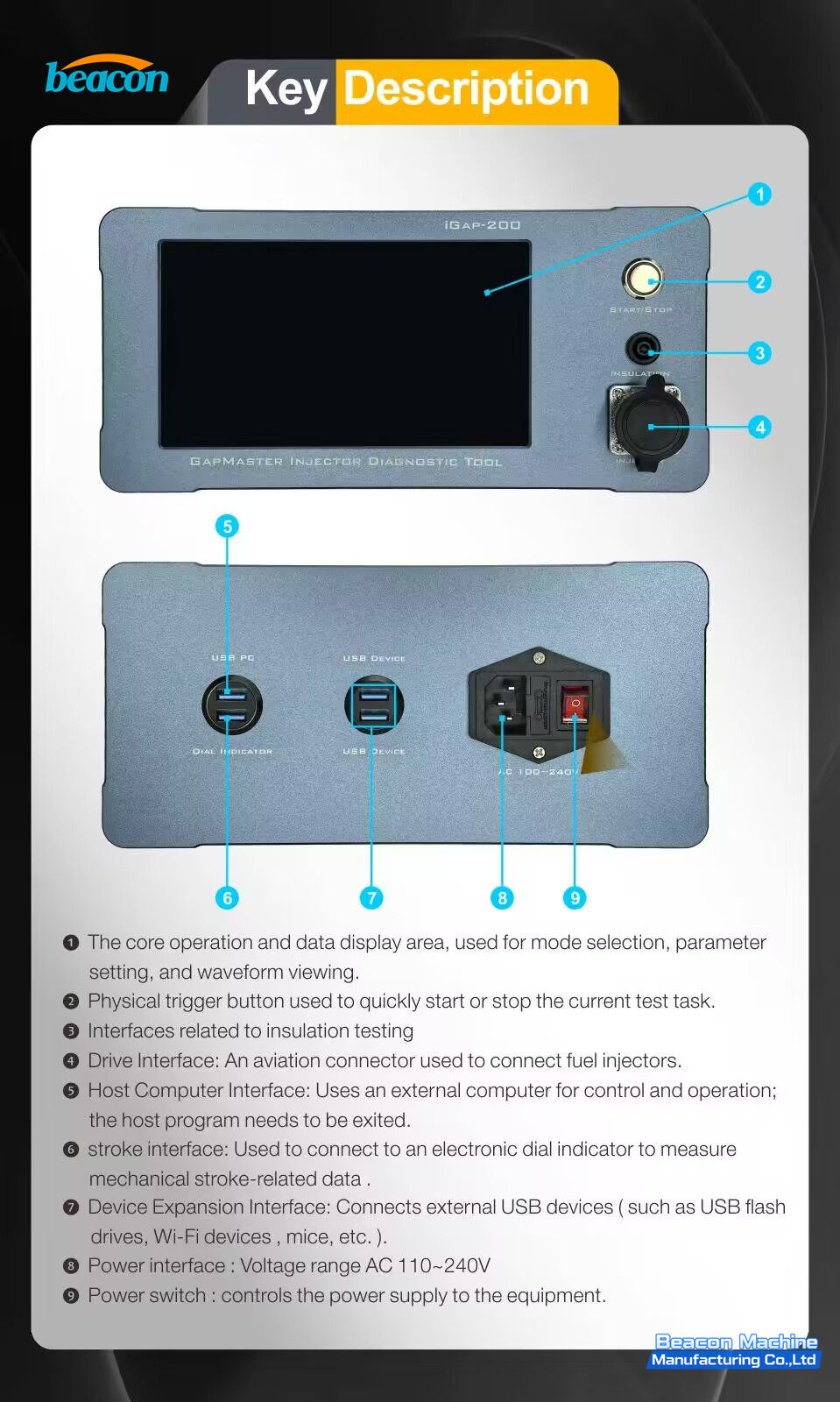

i-GAP 200 Piezo Electric Injector Tester - Testing Mode
