Introduction

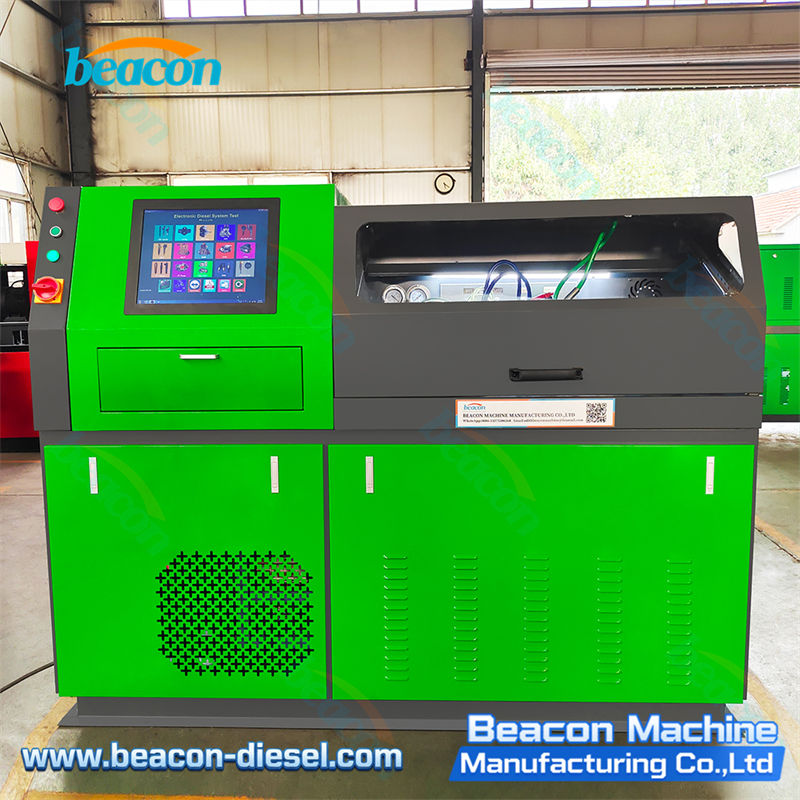

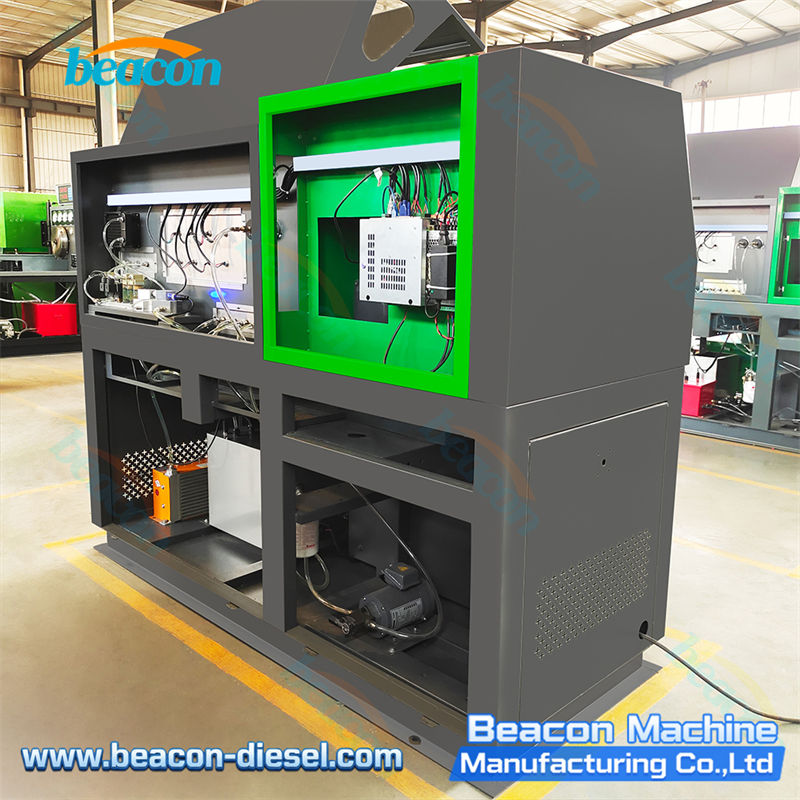

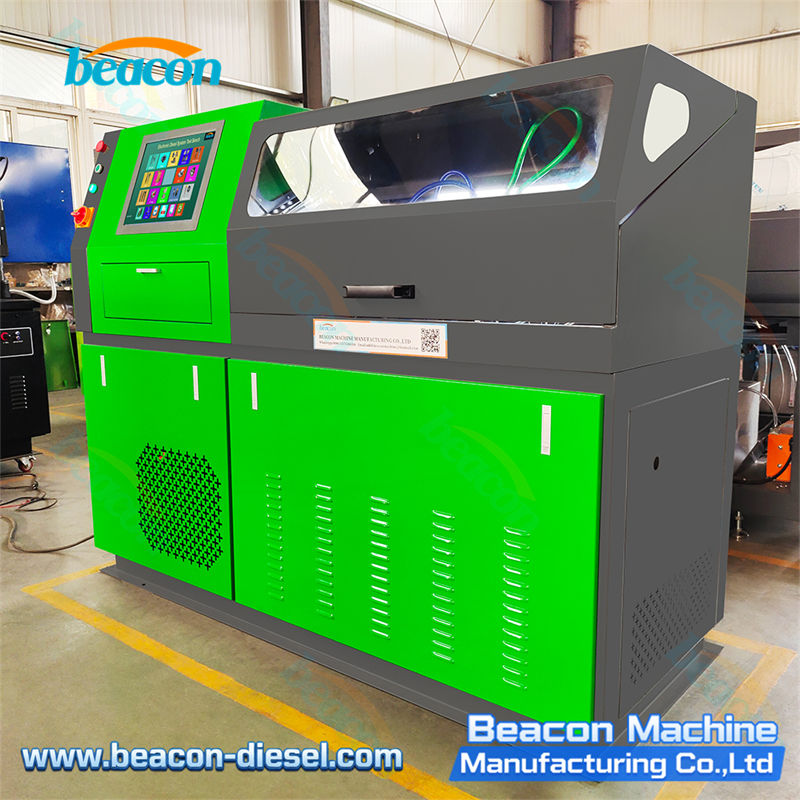

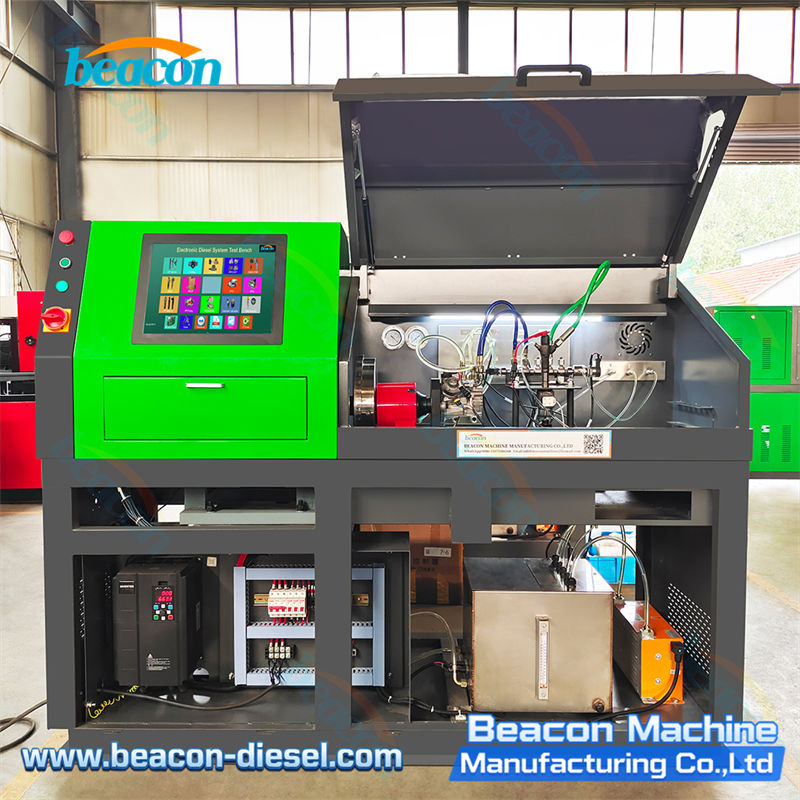

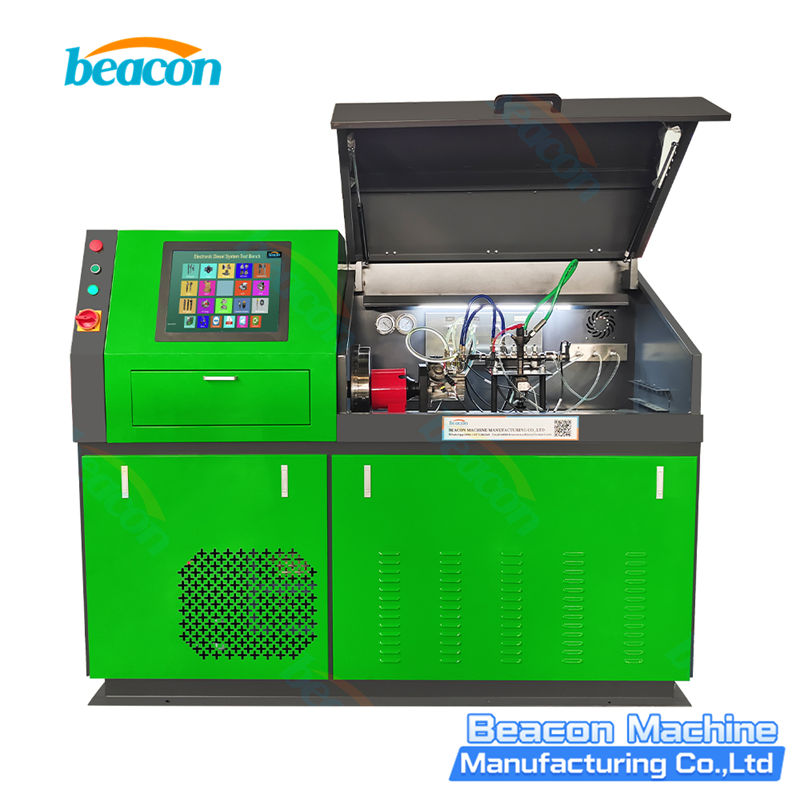

CR899 Common Rail Injector Test Bench

The CR899 Common Rail Injector Test Bench is a professional-grade diesel injection testing machine for testing and calibrating Common Rail Injectors from Bosch, Delphi, Denso, and Siemens.

Key Features

Industrial PC Control - Windows-based system for intuitive operation
High Pressure - Max rail pressure up to 2000 bar (2200 bar optional)
Wide Compatibility - Bosch, Delphi, Denso, Siemens piezoelectric injectors
Automatic Flow Measurement - Fuel flow and return flow measurement
Spray Pattern Analysis - Video imaging system for injector spray analysis
Temperature Control - Automatic fuel temperature control system

Standard Configuration

Industrial computer + LCD monitor
High pressure oil pump assembly
Fuel return flow measurement system
Spray pattern video imaging system
Injector signal drive system
Fuel temperature control unit
High pressure common rail pipe
Test oil tank and filters
Full set of test adapters and cables

parameter

Parameter	Specification
Injection Frequency	100~3000 times/min
Rail Pressure	0~2000 bar (2200 bar optional)
Speed Range	0~3000 rpm
Main Spindle Power	4KW / 5.5KW
Power Supply	AC 380V / 50Hz / 3-Phase / 6KW / 16A
Dimensions	1200 × 850 × 1680 mm
Weight	Approx. 650 KG
Oil Tank Capacity	35 L
