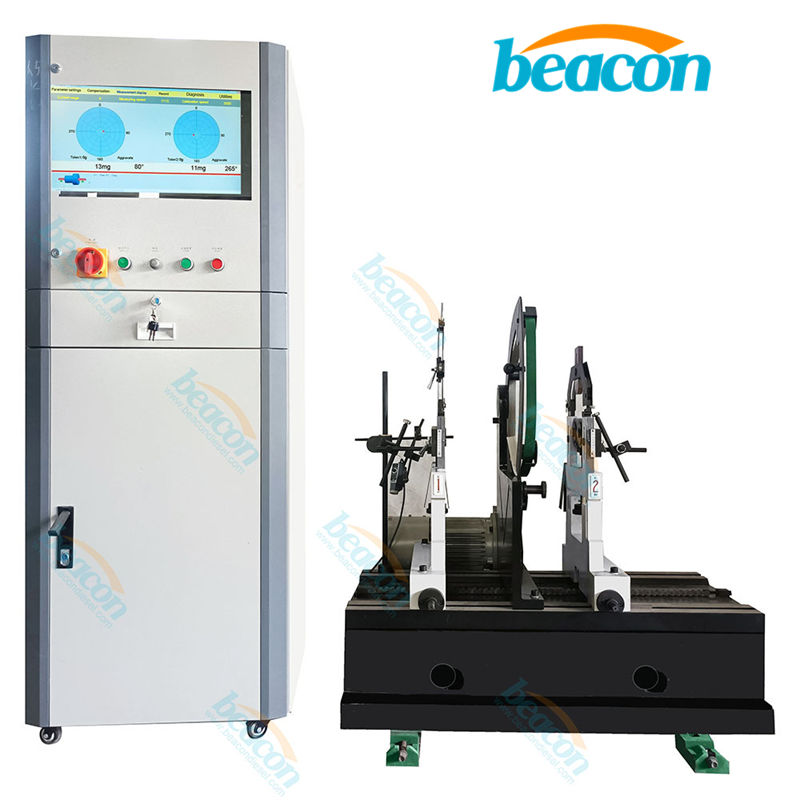

YYQ-50A Hard Support Horizontal Dynamic Balancing Machine

Tired of rotor vibration and noise? The YYQ-50A Dynamic Balancing Machine offers high-precision measurement for motors and blowers (1-50kg), ensuring operational stability and extended equipment life.

WhatsApp: +86-13570429157

Tel / Wechat: 0086-13570429157

Email: ellenzhang@beacon-machine.com

Quick Order

Introduction

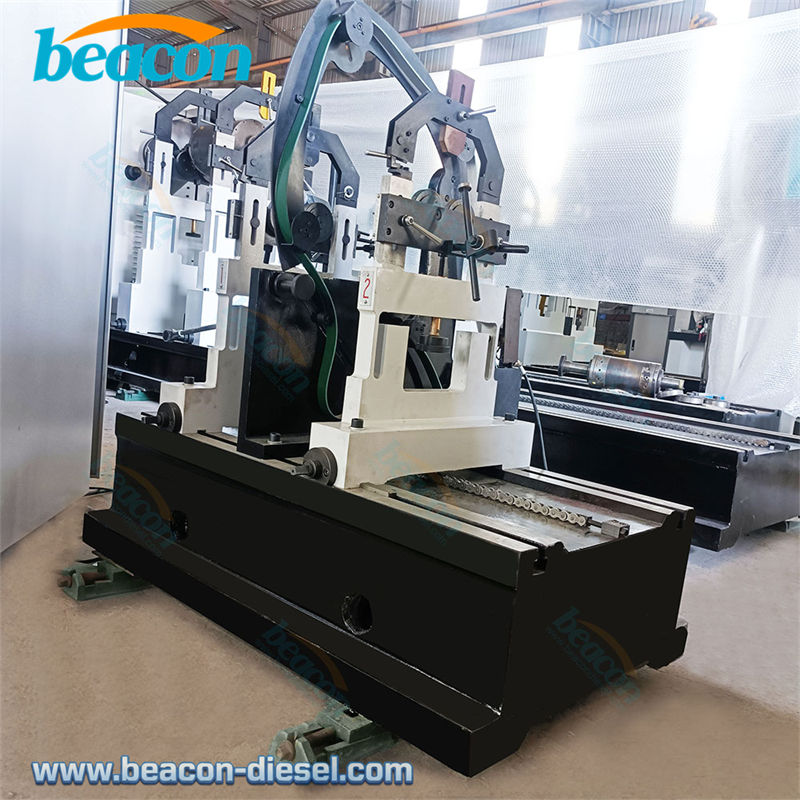

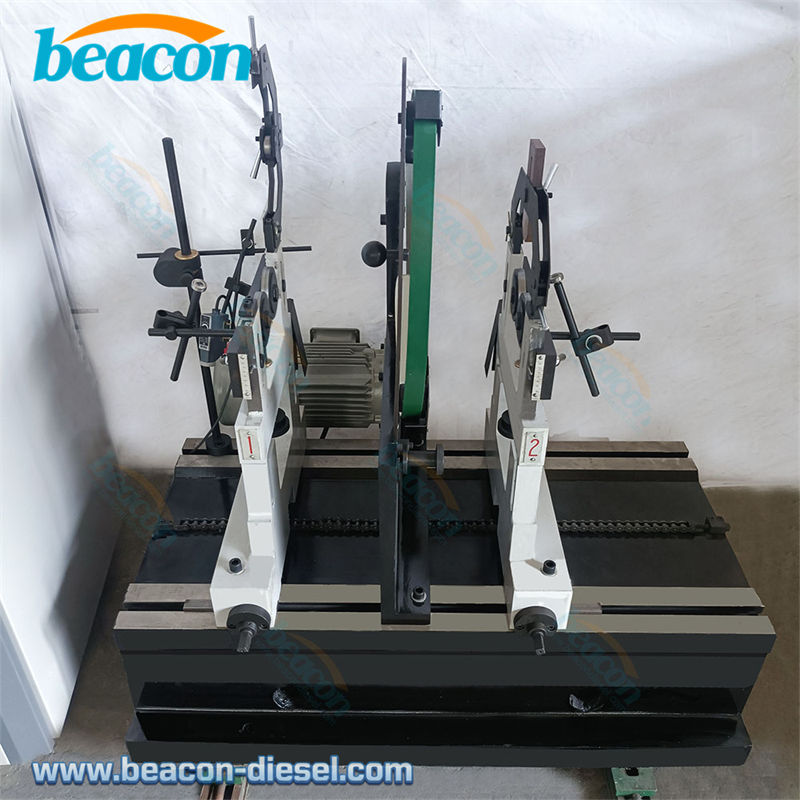

The YYQ-50A is a hard-support horizontal dynamic balancing machine designed for industrial efficiency.

By utilizing a universal joint coupling drive and a Windows-based computer data processing system, it provides real-time monitoring of imbalance values, phase angles, and speeds.

This equipment helps manufacturers eliminate harmful vibrations in rotors weighing 1-50kg, significantly improving the quality and safety of motors, diesel engines, and centrifugal blowers.

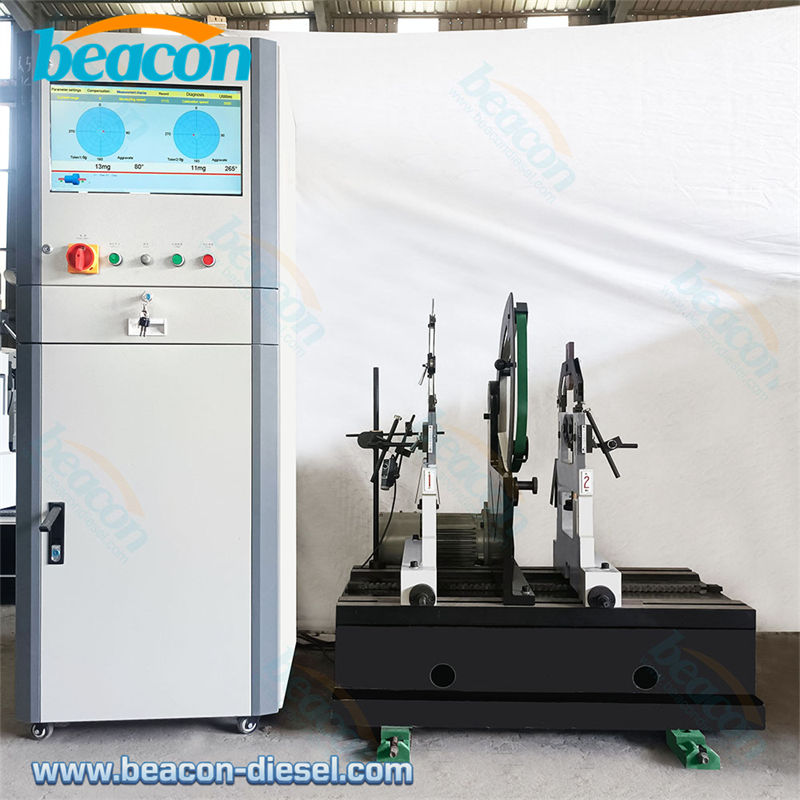

Its robust cast-iron bed and intuitive LCD interface make it a reliable choice for high-precision balancing tasks in diverse industrial environments.

parameter

Parameter Item	Technical Specifications
Model	YYQ-50A
Work Piece Quality Range	1 - 50 kg
Max Work Piece Diameter	900 mm
Beam Supporting Interval Distance	100 - 800 mm
Trunnion Range	Φ 10 - 90 mm
Balance Speed	300 - 1500 r/min (Variable Frequency)
Motor Power	0.75 KW
Unbalance Reduction Ratio (URR)	≥ 90%
Min. Achievable Residual Unbalance	≤ 0.5 g·mm/kg
Measuring Time	10 s (Adjustable measurement cycle)
Display Mode	19 inch Industrial LCD
Power Supply	Three-phase Four-wire AC 380V, 50/60HZ
